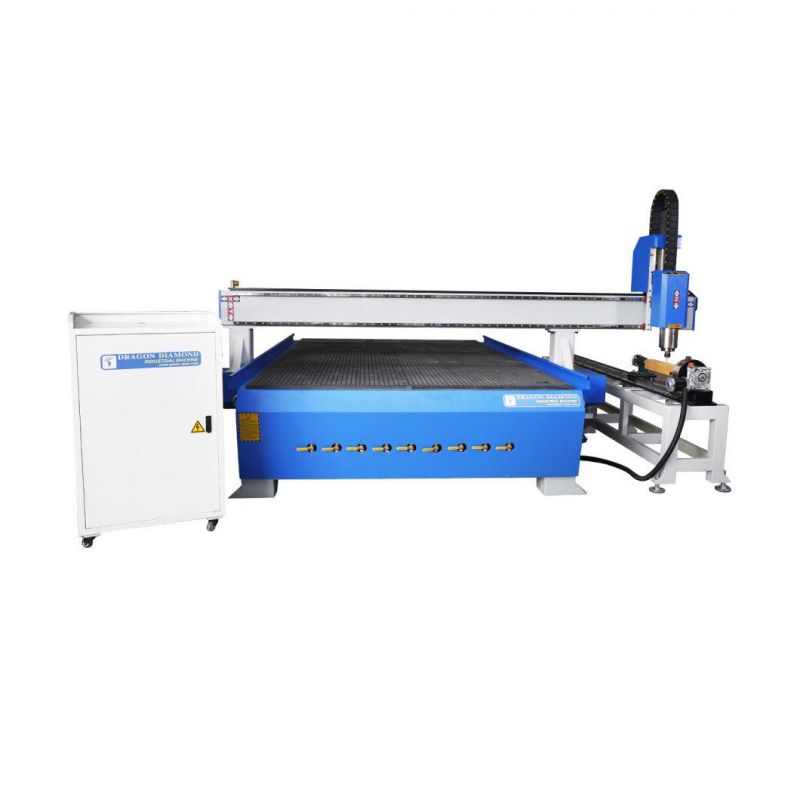

1325 4 Axis CNC Router Woodworking Engraving Machine
Guangzhou Dragon Diamond Technology Co., Ltd.- Condition：New
- Certification：CE
- CNC or Not：CNC
- Voltage：AC220V Single Phase or AC380V Three Phases
- Effective Working Area：1300(X)mm*2500(Y)mm*200(Z)mm
- Machine Structure：More Thickness Steel Pipe Welded Machine Holder Be
Base Info
- Model NO.：LZ-1325R
- Working Table：More Thickness (3mm) Aluminum T Slot
- Moving Type：Gantry Moving
- Guide Rail：Linear Square Guide Rail ( Hiwin, Taiwan)
- Transmission：Helical Rack &Pinion for X Y -Axis, Lead Ball SCR
- Inverter：Sunfar
- Spindle Motor：3.2kw Water Cooling
- Spindle Speed：0-24000rpm
- Driving Mode：Stepper Motor
- Transport Package：Plywood Case
- Specification：1working area: 300(X)mm*2500(Y)mm*200(Z)mm
- Trademark：Dragondiamond
- Origin：Guang Dong(China)
- Production Capacity：50pieces,Month
Description
Basic Info.
Model NO. LZ-1325R Working Table More Thickness (3mm) Aluminum T Slot Moving Type Gantry Moving Guide Rail Linear Square Guide Rail ( Hiwin, Taiwan) Transmission Helical Rack &Pinion for X Y -Axis, Lead Ball SCR Inverter Sunfar Spindle Motor 3.2kw Water Cooling Spindle Speed 0-24000rpm Driving Mode Stepper Motor Transport Package Plywood Case Specification 1working area: 300(X)mm*2500(Y)mm*200(Z)mm Trademark Dragondiamond Origin Guang Dong(China) Production Capacity 50pieces/MonthProduct Description

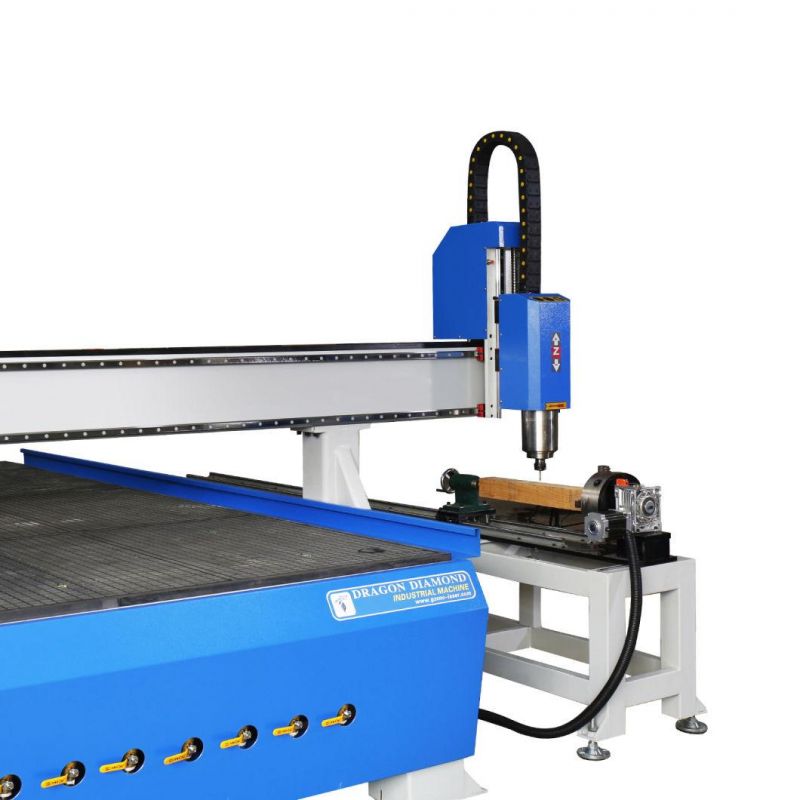

1325 4 Axis CNC Router Woodworking Engraving MachineMchine Parameter
| Effective working area | 1300(X)mm*2500(Y)mm*200(Z)mm |

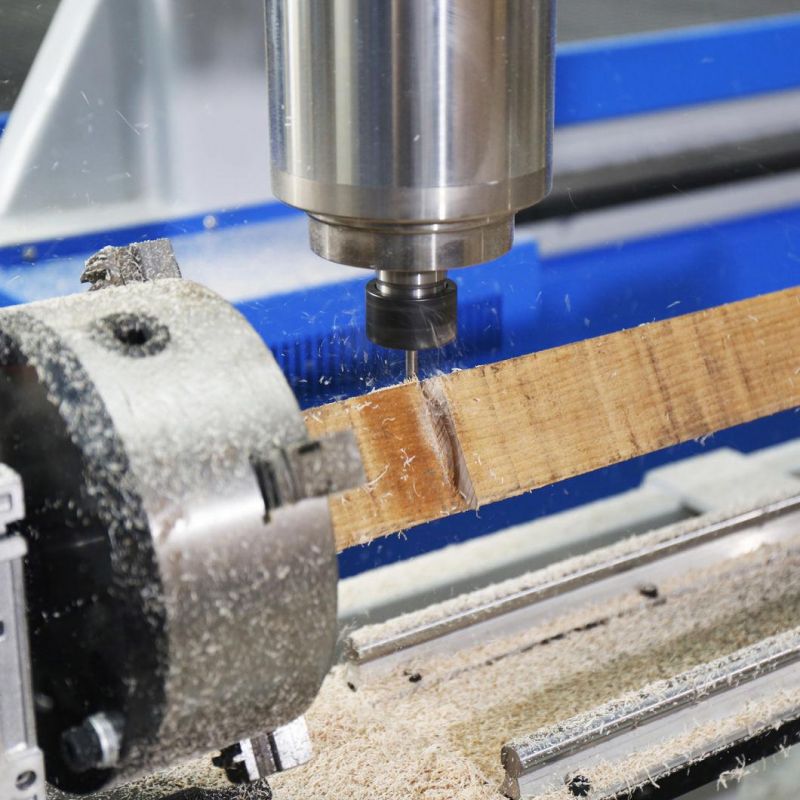

| Rotart axis | Diameter 300mm, working length 2500mm, reduction gear type rotary axis |
| Machine Structure | More thickness steel pipe welded machine holder bed, cast iron gantry |

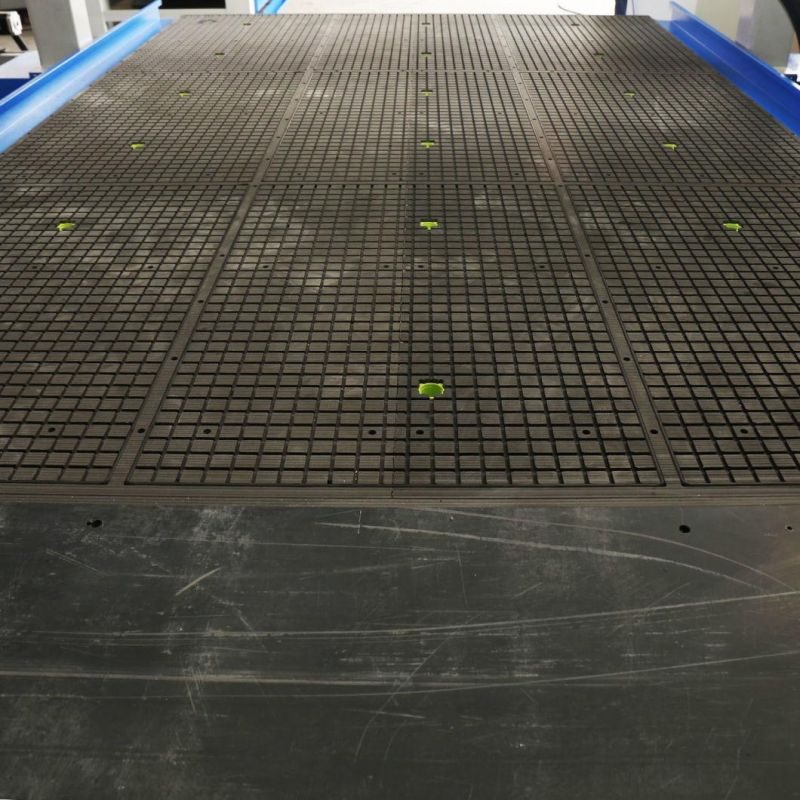

| Working table | More thickness (3mm) aluminum T slot |
| Moving type | Gantry moving |
| Guide rail | Linear square guide rail ( Hiwin, Taiwan) |
| Transmission | Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis |
| Inverter | Sunfar |
| Voltage | AC 220V± 10%, 50/60Hz, single phase or AC 380V±10%, 50/60Hz, three phases |
| Driving mode | Stepper motor |
| Spindle motor | 3.2kw water cooling |
| Spindle speed | 0-24000rpm |
| Traveling speed | >25000mm/min |
| Engraving speed | >12000mm/min |
| Machine accuracy | 0.03mm |
| Controller | DSP offline control system A18, 4axis, RichAuto |
| Suitable software | Artcam, Type3, Ucancam V9,etc |
| Running environment temperature | 0-45 ºC |
| Relative humidity | 30%-75% |
| Lubrication system | Semi-auto |
| Tool calibration | Auto |
| Certificate | CE |
Machine Application & Sample
Application:Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out and simple copper aluminum plastic board, etc
