Wood Large Wall Hangings Processing CNC Router Machine Center
Hefei Aquila CNC Equipment Co., Ltd.- Condition：New
- Certification：ISO, CE, Patent Certification
- CNC or Not：CNC
- Voltage：380V
- Configuration：9kw Spindle with Linear Atc
- Table Surface：Vacuum Table
Base Info
- Model NO.：XS200
- Spindle Speed：0-24000 Rpm
- Automaitc Tool Change：Carousel, 8PCS
- Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
- Specification：Working Area: 1300*2500*300mm
- Trademark：Mars
- Origin：China
- HS Code：8465990000
- Production Capacity：3000 Sets,Year
Description
Basic Info.
Model NO. XS200 Spindle Speed 0-24000 Rpm Automaitc Tool Change Carousel, 8PCS Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification Working Area: 1300*2500*300mm Trademark Mars Origin China HS Code 8465990000 Production Capacity 3000 Sets/YearProduct Description
Wood Large Wall Hangings Processing CNC Router Machine CenterKeywords:15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brand: Mars, Golden Eagle,Borio
Description:

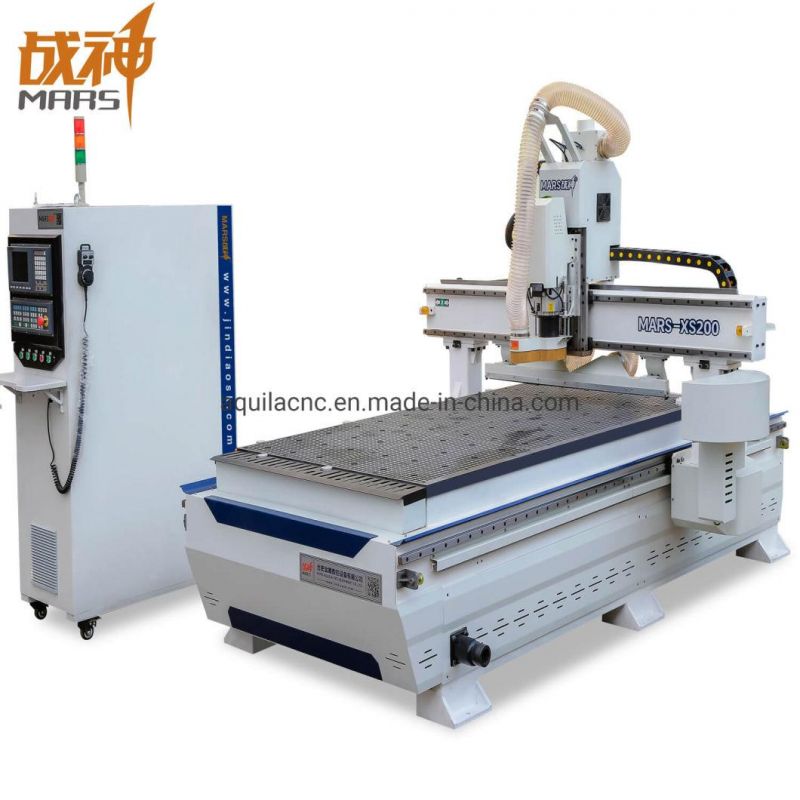

XS200 Wood Large Wall Hangings Processing CNC Router Machine Center is MARS featured machine for processing molded doors, wooden windows, wooden cabinet, wood panels. MARS design it for many years, now popular in the market, it's economic machining center of woodworking cutting machine.
Functions:
The functions of this machine include cutting,milling,drilling and slotting.
Applicable Materials:
MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.
Application Scope:
Cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings, advertising boards, sign makings.
Parameters:
| Model | XS200 Wood Large Wall Hangings Processing CNC Router Machine Center |
| X/Y/Z axis working stroke | 1300*2500*100mm |
| Table surface | vacuum Table |
| Frame machine | Thick steel tube welded structure, w/ aging treatment |
| Spindle power | 9KW Italy HSD ATC air cooling spindle |
| Spindle speed | 0-24000 rpm |
| Automaitc tool change | Carousel, 8pcs |
| Control system | Taiwan Syntec 4 axis control System |
| Drive sytem | Japan Yaskawa servo motor & driver |
| Transmission | X/Y axis helical rack & pinion, Z axis ball screw |
| Gue rail | Taiwan Hiwin rectangular linear rail |
| Vacuum pump | 5.5kw vacuum pump |
| Inverter | Fuling or Zoncn |
| Oil lubrication | Automatic |
| Positioning Accuracy | ± 0.05mm |

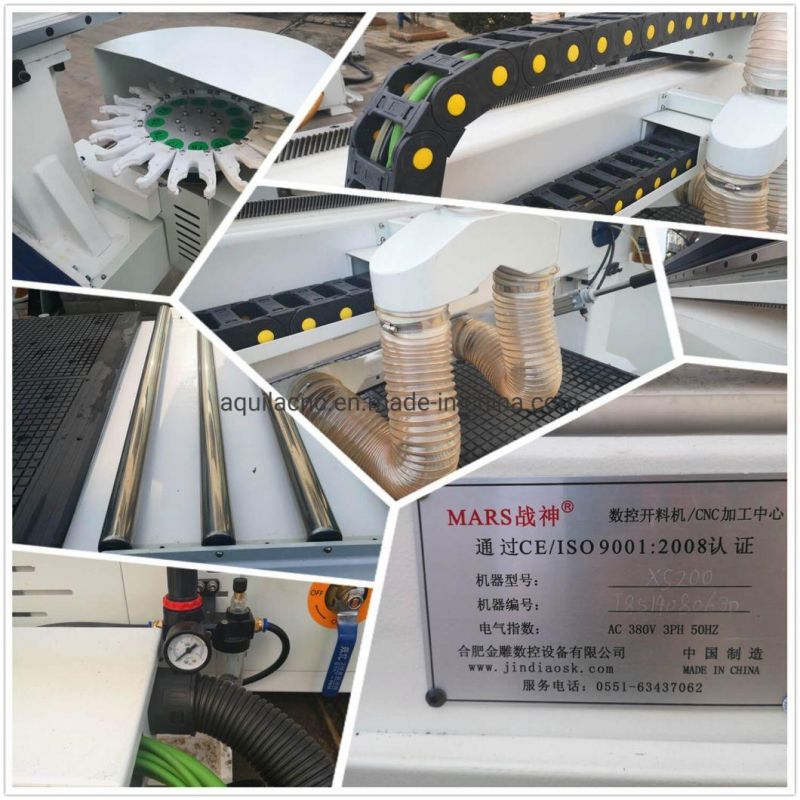

Accessories:
Performance Features:
1. Equipped with all the leading international brand components, Taiwan Syntec control system, Japan Yaskawa servo motor and driver.
2. Carousel type tool magazines support automatic tool changer, improve processing efficiency.
3. Italy 9KW high-power air-cooling spindle can withstand high-speed, heavy loading, low noise characteristics.
4. Machine body structure is made of welded thick-walled square steel tube, with five-sided tempering, to ensure the body never deformation.
5. Vacuum table, high adsorption capacity, able to adsorb materials of different sizes.
6. Taiwan-made guide rail and ball screw, high precision, long service life, good stability.
7. Taiwan Syntec control system, easy to operation,fully support automatic production.
8. Taiwan planetary reducer, with small volume, large torque, high transmission efficiency, wide range of deceleration.
9. Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area.

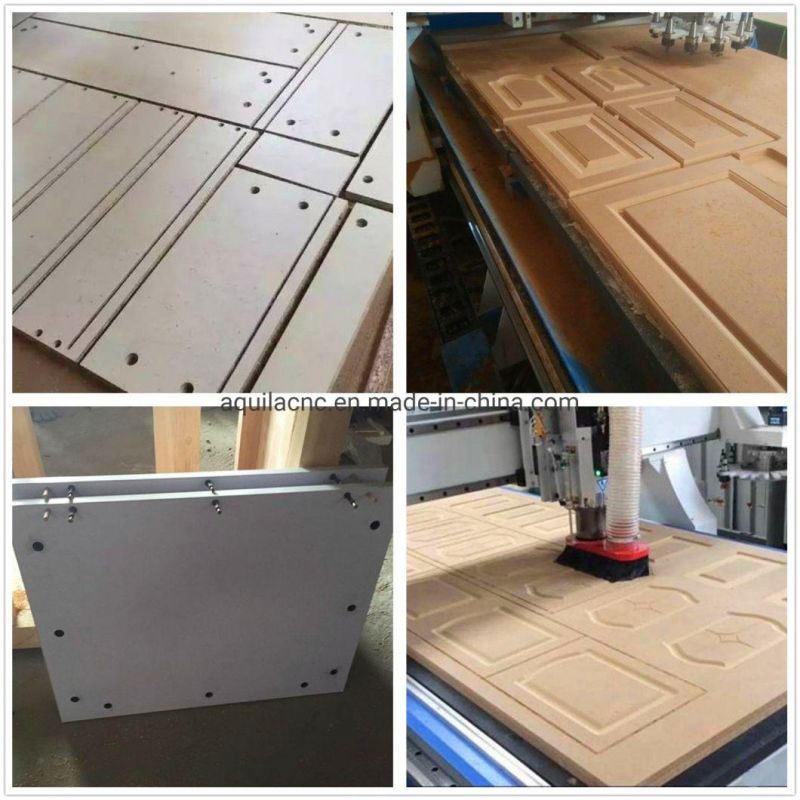

Samples:
