Manufacturing Wood Copying Machine, Wood Furniture Copying Milling Machine, Wood Forming Copying Machine with Polishing /Woodworking Machinery.Woodworking Machi
Foshan Shuntongjia Machinery Manufacturing Co., Ltd.- Warranty：1year
- Type：Wooden Mold Router
- Spindle Layout：Vertical
- Spindle Number：Double-Spindle
- Feed Mode：Mechanical
- Controlling Mode：CNC
Base Info
- Model NO.：MX7504
- Certification：CE
- Customized：Non-Customized
- Condition：New
- Color：Green and White
- After-sales Service：Provide Technical Support 24 Hours Via Email, Phon
- Transport Package：Standard Packaging, Can Be Made According to Custo
- Specification：2000*1520*1830mm
- Trademark：ShungTongJia
- Origin：Guanggonfoushan
- HS Code：8465920000
- Production Capacity：3000,Year
Description
Basic Info.
Model NO. MX7504 Certification CE Customized Non-Customized Condition New Color Green and White After-sales Service Provide Technical Support 24 Hours Via Email, Phon Transport Package Standard Packaging, Can Be Made According to Custo Specification 2000*1520*1830mm Trademark ShungTongJia Origin Guanggonfoushan HS Code 8465920000 Production Capacity 3000/YearProduct Description

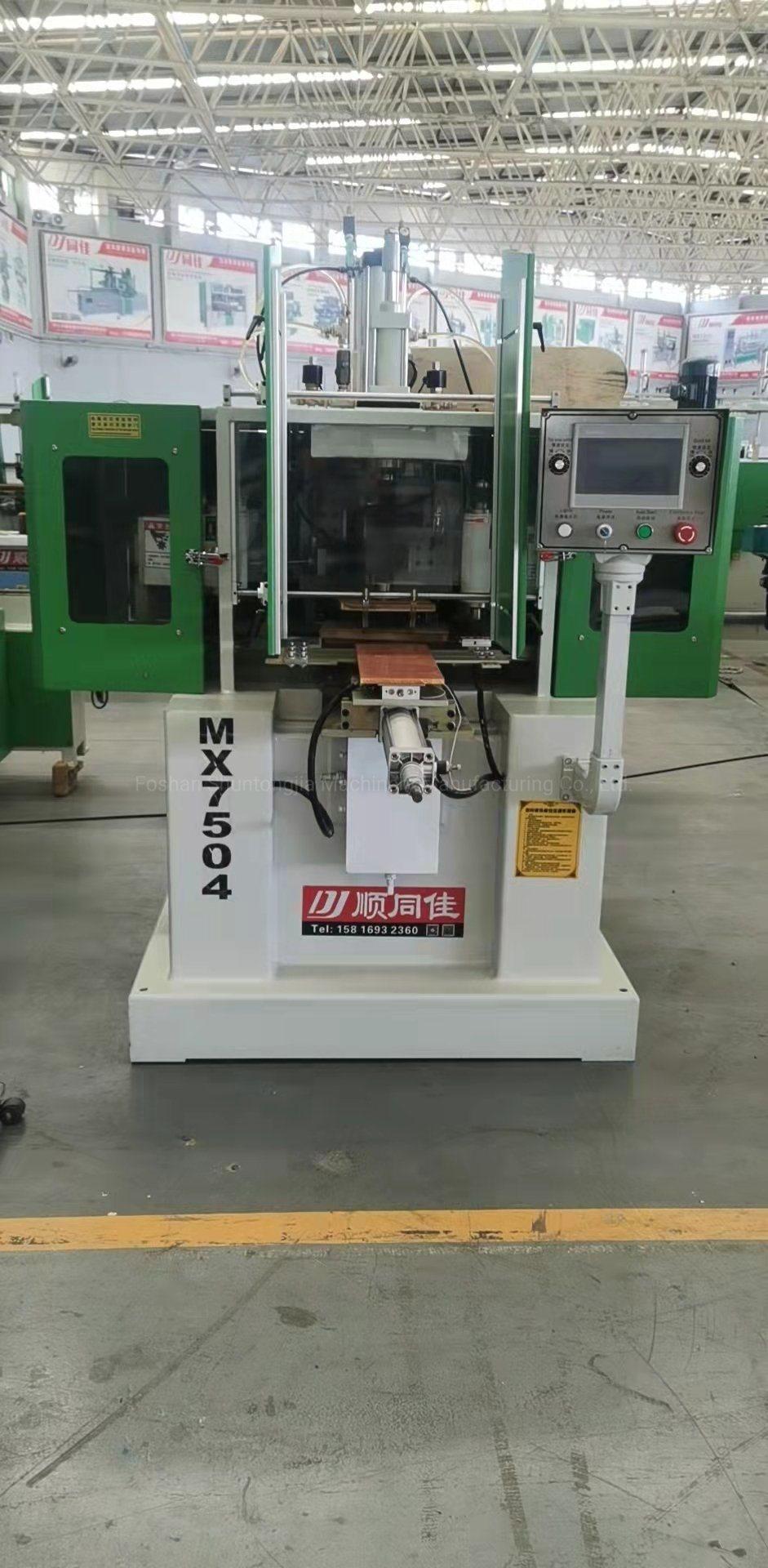

MX7504Automatic copying machine, with sanding function, processing solid wood tea mat, toothbrush, wooden chess,triangle, oval, square, long wood
Technical Parameters:
| Model | MX7504 |
| Working length | 60-330mm |
| Working width | 60-400mm |
| Working thickness | 50mm |
| Cutter spindle speed | 11000 rpm |
| Cutter spindle diameter | 25.4mm |
| Frequency control rotation speed | 4-20 r/min |
| Cutter motor power | 4kW*2 |
| Rotation motor power | 0.75kW |
| Max retangular cutting | 3:1 |
| Working air pressure | 0.6-0.8Mpa |
| Dust outlet diameter | 100mm |
| Overall size | 2000*1520*1830mm |
| Machine weight | 870KG |
Main Features:
1. Automatic loading and discharging PLC control, automatic and manual operation
2. Reliable product quality, excellent performance, the main parts are famous brand products, to ensure product quality and durability.
3. Easy to operate, automatic wood imitation molding machine adopts touch screen operation
4. High imitation molding machine with polishing effect can process 3-8 pieces of workpiece per minute, one worker can operate 5-6 machines.
5. Automatic copying molding machine adopts high quality steel structure, and coated with anti-rust paint, all electrical components adopt reliable brand.
6. Wide application scope, suitable for processing small wooden products, such as round lid, knife handle, brush handle, post
lid, cup lid, pizza plate, salad bowl, wood products, crafts and other shapes of wood products.
