Tony CE Approved Straw Pellet Machine Rice Husk Pellet Press Biomass Pellet Mill Machine Sawdust Pellet Making Machine Wood Pellet Mill for Sale
Shandong Tony Environmental Protection Sci-Tech Co., Ltd.- Type：Ring Die Pellet Machine
- Voltage：380V,400V,415V
- Automatic Grade：Automatic
- Controlling Mode：CNC
- Energy Saving：Energy Saving
- Certification：CE, ISO, SGS
Base Info
- Model NO.：TYJ560-II
- Warranty：1 Year
- Customized：Customized
- Condition：New
- Color：Multi Color
- After-sales Service：Lifetime After-Sales
- Application：Biomass Fuel Pellets Producing, Power Generation P
- Diameter of Pellet：6-10mm
- Raw Materials：Wood Chips, Sawdust, Timber, Trunks
- Capacity：1-1.5ton,Hr
- Usage：Making Biomass Pellets
- Power：90kw
- Transmission：Reducer Transmission
- Ideal Moisture：10-15%
- Spare Part：Ring Die and Roller Group
- Lubrication：Auotomatic
- Structure：Vertical Ring Die
- Weight：6.3ton
- Installation：Manual,Video Chat,Engineer Guide
- Material of Die and Roller：High Alloy Steel
- Bearing：Hrb Brand
- Transport Package：Iron Case
- Specification：2680*1300*2080mm
- Trademark：TONY
- Origin：China
- HS Code：8479300000
- Production Capacity：500set,Month
Description
Pellet Mill Machine Application
TONY wood biomass wood pellet mill machine is mainly used for medium and big process plant. Wood pellet mill machine is a new generation of energy-saving green power products, researched and developed by our researcher newly. Wood pellet mill machine is mainly used to compress crushed wood, corn straw, plant waste, bamboo powder, grass, straw, rice husk etc. into pellets. Machines adopt bipolar speed adjusting, and have the characteristics of low power consumption, reasonable structure, economic and durable.

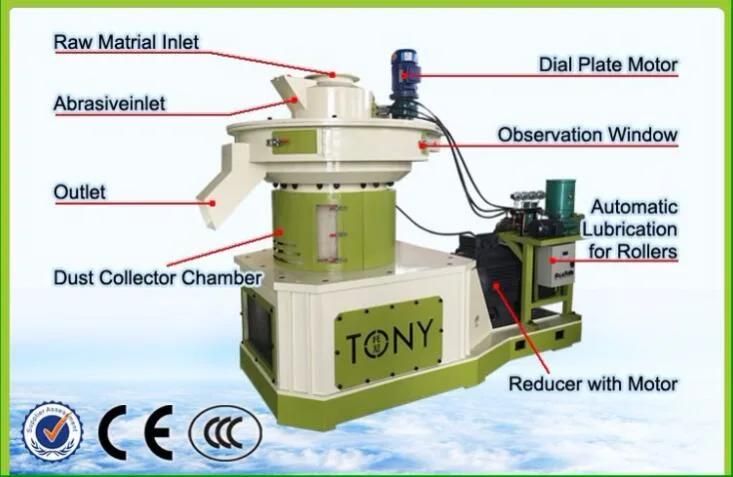

Structure Diagram of Pellet Mill Machine with Reducer Transmission
Special Features of TONY Ring Die Wood Pellets Mill TYJ560 series:
1.Vertical hopper: This design can avoid the raw material be stuck in granulating room.2.Cooling system: As the pelletizing process will generate high temperature, it will lower the service life of die and bearing.Cooling system are considering this situation and avoid it happened.
3.Double-layer dies: This design increase the efficiency of pellet making,reduce clients cost.
4.Bearing: High precision, high speed, low noise, long life
5.Unique automatic lubricating system: Which lubricate the bearing, dies and rollers ,increase the produce efficiency and reduce energy consumption.It can work continuous 24 hours.
Features of Complete Biomass Wood Pellet Machine
★Upward mould, special structure; vertically feeding, never buff placer, feeding material with wide inlet, and easier heat dissipation.★Die static, roller rotating, material centrifugation, distributed around evenly; because of the die high side, the material can be kicked back to the pressure room.
★Double-layer die, up and down dual-use, high capacity, saving energy.
★ Adjust the length of pellets and briquette with frequency conversion, which is the separate device in the machine, * the speed depends on the length of finished products.
★Grease filtrated, automatic lubrication and link compaction.

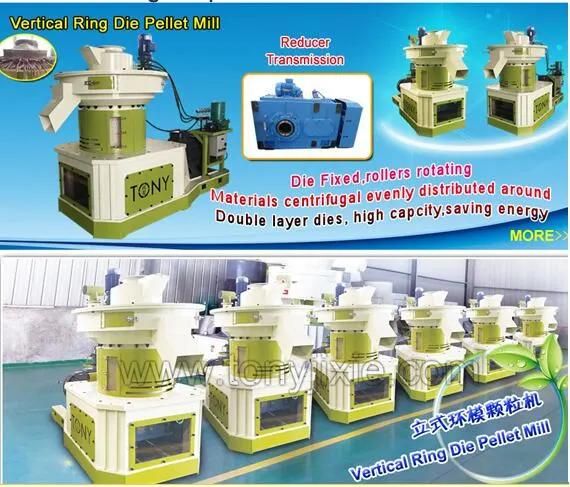

Working Principle of our ring die wood pellet machine
★Vertical ring die, feeding vertically
★Die fixed, rollers rotating
★Centrifugal force combined with extrusion to press materials from inside to outside and form pellet

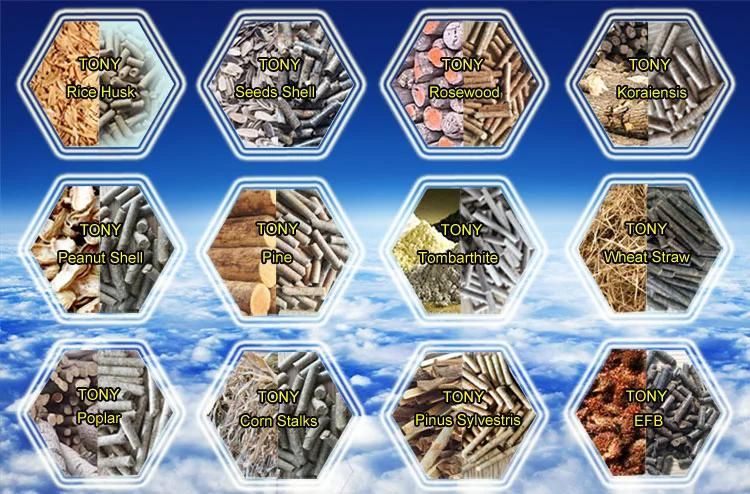

Raw Materials of Wood Pellet Mill
Suitable Raw Materials: It can process various kinds of biomass raw materials such as wood, trunck, branch, sawdust, straw, rice husk, bamboo sawdust, peanut shell, bagasse waste, alfalfa, a variety of crop stalk and other agricuntural waste, etc. If you are not sure how your materials perform in pelletizing, you can send us some sample of the material and we can help you test the pelletizing process and send you the final products.Requirements for raw material:Size: Less than 5mm.
Miosture: Better to be 10%-15% (Moisture is one of the most influential factors which desides pellet quality good or bad)
Final Pellets From Vertical Ring Die Wood Pellet Machine
Diameter Size: 4mm, 6mm, 8mm, 10mm, 12mm

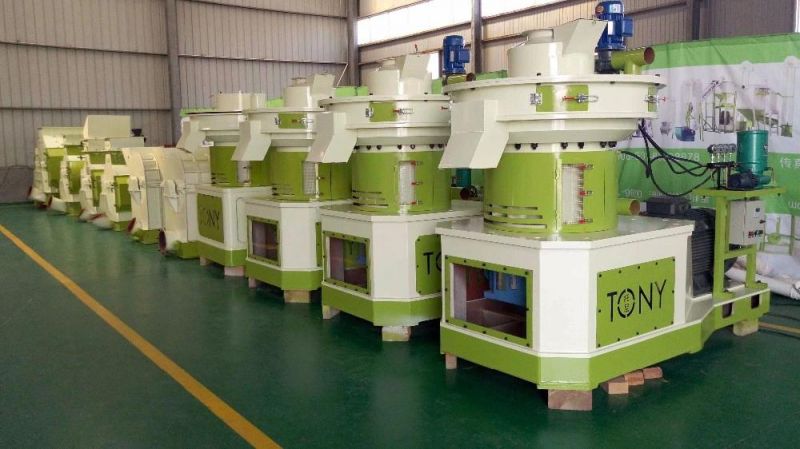

Machine Testing

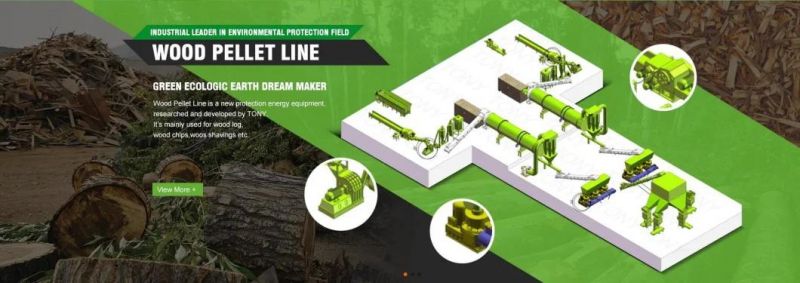

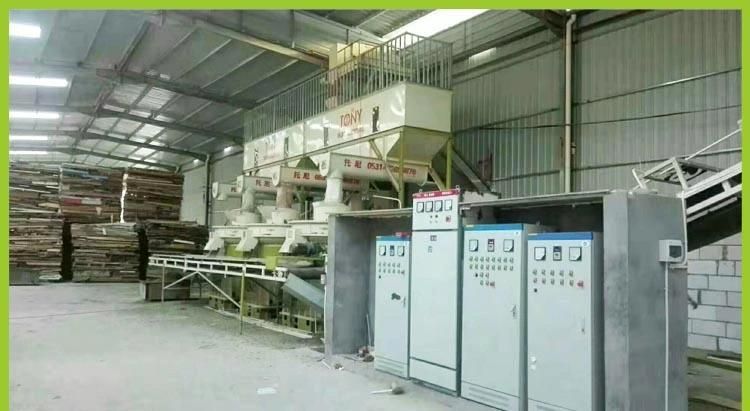

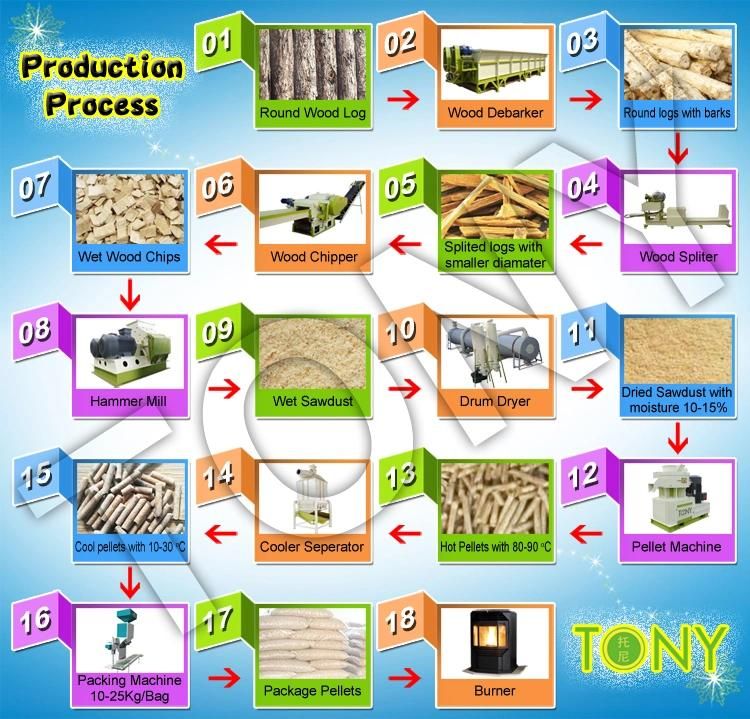

Complete Pellet Making Process/Full Wood Pellet Line:
The complete line through our R&D is manufactured for produce the wood pellets, Main equipments within it include Wood Crusher, Dryer, Storage bin, Screw Conveyor , pellet mill, Hoisting machine, Cooling and dusting machine and Packing machine.

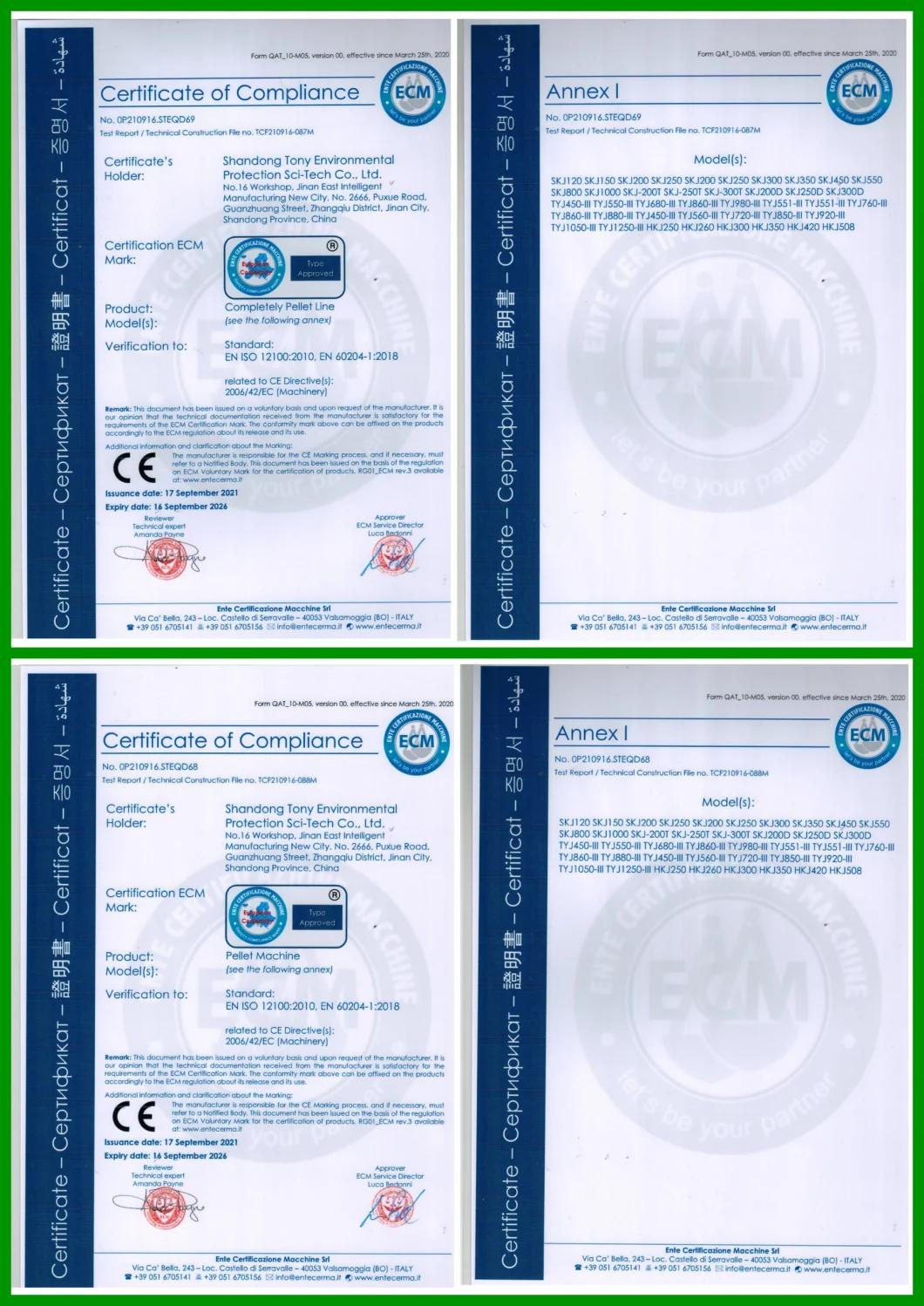

Certifications
About Us --- Professional Manufacturer of Pellet MachinesTony owns a professional team in researching, designing, manufacturing, trading, installing, instructing and serving on pelleting equipments.Main Products: Biomass wood pellet line, various pellet mill/machines, gridingand crushing equipment, drying equipment, cooler and other screening, conveying products and so on.
Successful Export Experiences: "TONY" machines with good reputation have been exported to lots of Europe, South America, Southeast Asia countries.
