• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• After-sales Service：Lifetime After-Sales
• Capacity：5-6ton,Hr
• Power：590kw
• Pellets Diameter：6-10mm
• Weight：60ton
• Suitable Materials：Wood, Sawdust, Rice Husk, Biomass Waste and So on
• Lubrication System：Automatic
• Power Consumption：75%
• Spare Part：Ring Die and Roller Group
• Transmission：Big Gear
• Pellet Mill Type：Ring Die Pellet Mill
• Application：Making Biomass Pellet
• Bearing：Hrb Brand
• Material of Die and Roller：High Alloy Steel
• Installation：Manual,Video Chat,Engineer Guide
• Transport Package：Container
• Specification：4000*1825*2700mm
• Trademark：TONY
• Origin：China
• HS Code：8479300000
• Production Capacity：500unit,Year

Introduction and application of  biomass energy wood pellet line
A complete pellet line's capacity is from smaller 500kg/h to bigger 30ton/h.
Until now hundreds of pellet production lines are installed in China and abroad, such as France, Bulgaria, Romania, Hungary, Argentina, Belarus, Japan, Korea, India, Indonesia, Vietnam, Malaysia, Thailand, Laos, ect . Greatly welcome to visit our factory

: wood, waste wood and straws, etc. such as woodchips(palm, pine white pine, mahogany, pinus sylvestris, rubber tree),
bamboo shavings, rice hust, seeds shells, peanut shells, halm, pennisetum, wheat straw, corn stalk, cotton stalks, alfalfa grass,
bagrass, palm fiber, waste paper, non-physical material
Size:2-4mm (All the raw materials must be crushed into sawdust before going
to wood pellet machine.If not, you may need a wood chipper, wood crusher.)
Moisture: Generally, 10-15% is best for producing good quality wood pellet

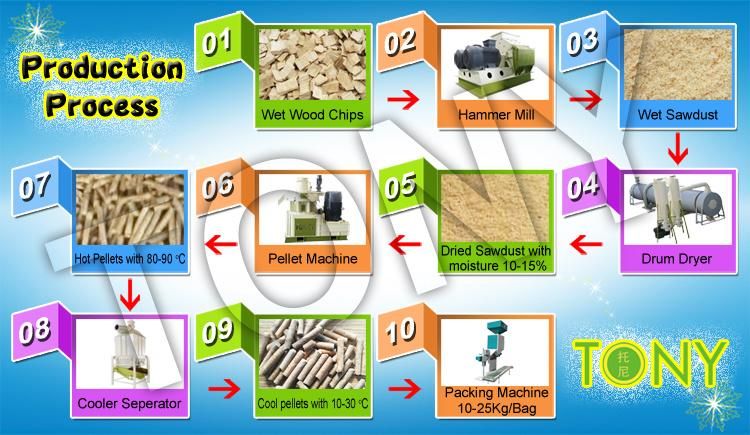

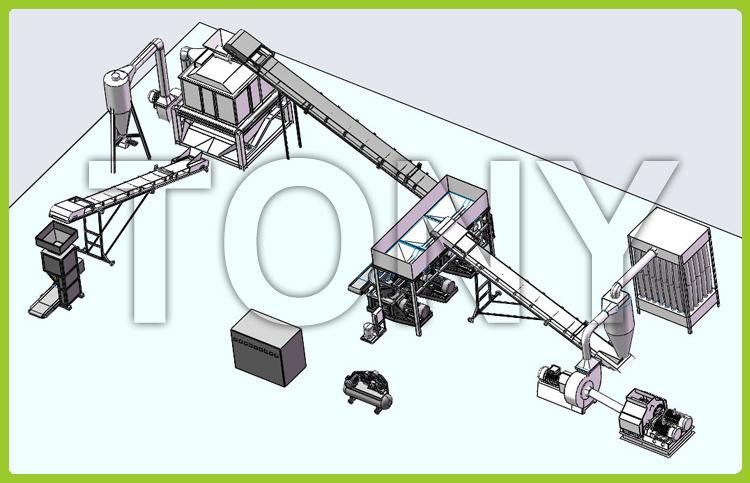

Diagram picture explanation for wood pellet line

1.Grinding Process:

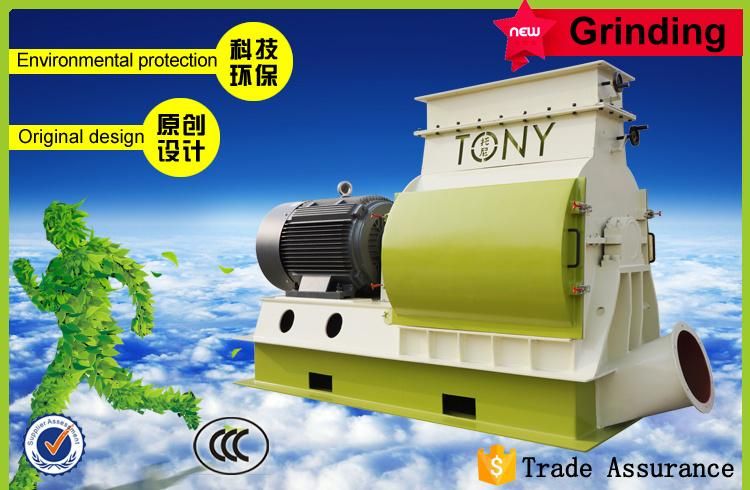

After the raw materials are crushed into smaller chips, then use our multifuctional hammer mill to grind them into sawdust.

3.Drying Process:

The best moisture content to pelletizing is about 10-15%. Our Rotary Dryer is made up of Stove and Main Rotary Dryer, which can realize to reduce the moisture from 50% to 10%. Our stove is fueled by coal, which can save electricity consumption largely.

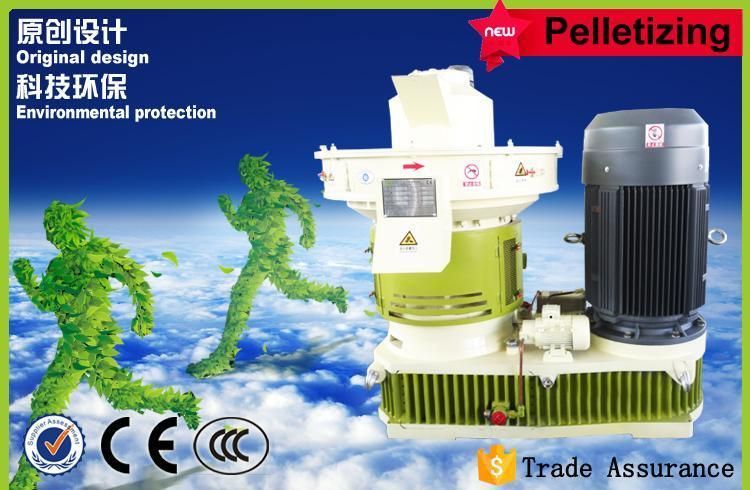

4. Pelleting Process:

Wood Pellet Mill is the most important equipment, which have the following features:
a. Perfect Turn-Key Project;
b. 24 hours continuous running;
c. Stable and Durable Equipment Function;
d. Competitive Price with Good Quality;
e. Lower Energy Consumption and Less Manpower;

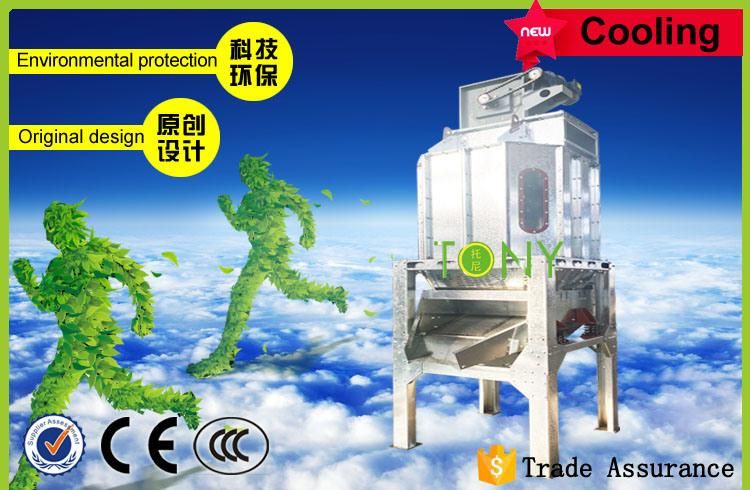

5. Cooling Process:
After the pelletizing process, the temperature of the wood pellet is about 60-80 degree, and the moisture content of the wood pellet is about 14%, so we need use Cooler to reduce about 3-4% moisture, such this the wood pellet is easy to store.

But considering the feedback from some foreign clients, the local climate is very humidity; they hope to cool the wood pellet with moisture 7-8%. In order to satisfy the different need from different clients, we develop one kind of new Stabilizer Combined Cooler.

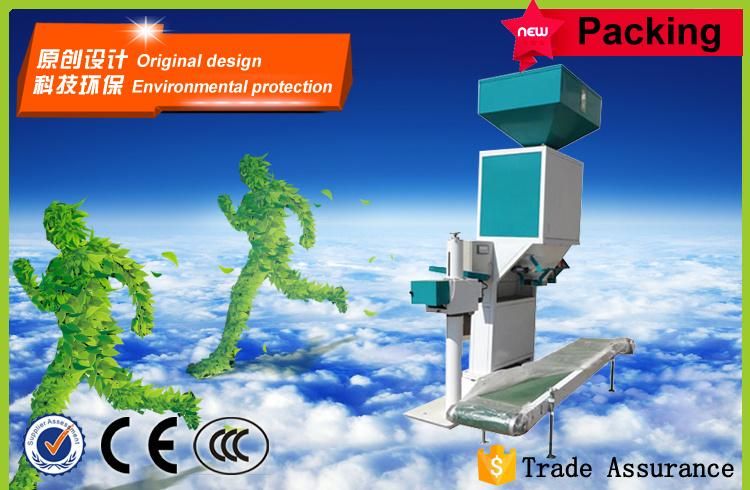

6. Packing Process:

After cooling, the wood pellet will not directly enter into the fuel process, avoiding the wood pellet affected with damp. The packing process is necessary. In this process, we assemble our domestic Semi-Auto Packing Machine to you.

Customer Case

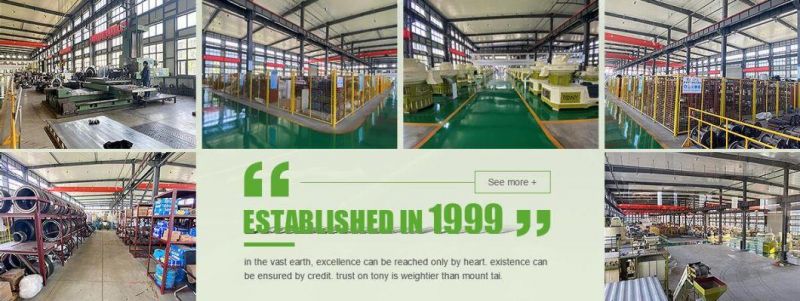

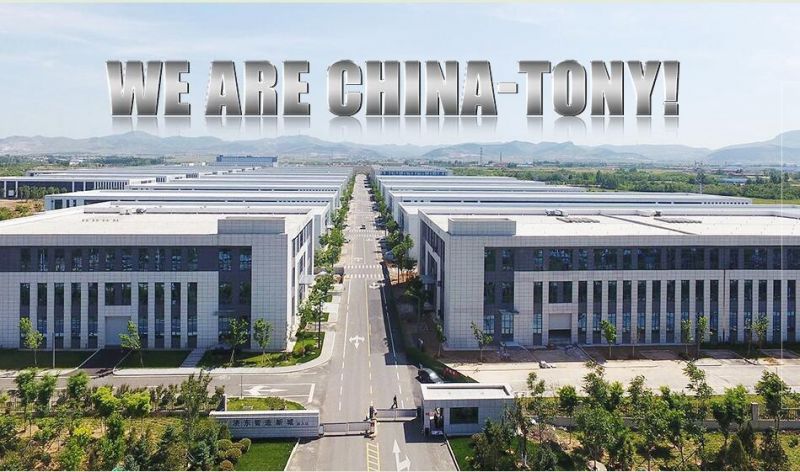

TONY  is an integrated enterprise specializing in development, production and sales, which is a professional pelleting equipment manufacturer for many years. Located in Zhangqiu,Jinan,North China, we enjoy convenient water, land, railway and air transportation.

We are a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mill(flat die low temperature pellet mill, vertical ring die pellet ,),feed pellet mill, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.
