• Model NO.：LT-2030, LT-6090
• Model：Lt-2030
• Working Area：2000X3000mm
• Max. Feeding Height of Z Axis：200mm
• Machine Body：Welded Steel Tube, Cast Iron Vertical Shafts and S
• Spindle：3.0kw Water Cooling Spindle
• Collet：Er20
• Table Type：Vacuum Table with Vacuum Pump
• Guide Rail：Hiwin Square Guide Rail
• Transmission：X, Y Axis by Helicia Gear Rack, Z Axis by Tbi Ball
• Motor and Driver：Stepper Motor 86byg-450b and Leadshine Drivers Ma8
• Control System：Nc Studio,Mach3 with USB
• Inverter：Fuling
• Other：Oiling System
• Transport Package：Plywood Case with Water-Proof Material
• Specification：3700x220x1750mm
• Trademark：LINTCNC
• Origin：China
• HS Code：8465990000
• Production Capacity：300 Pieces,Year

Basic Info.

Model NO. LT-2030, LT-6090 Model Lt-2030 Working Area 2000X3000mm Max. Feeding Height of Z Axis 200mm Machine Body Welded Steel Tube, Cast Iron Vertical Shafts and S Spindle 3.0kw Water Cooling Spindle Collet Er20 Table Type Vacuum Table with Vacuum Pump Guide Rail Hiwin Square Guide Rail Transmission X, Y Axis by Helicia Gear Rack, Z Axis by Tbi Ball Motor and Driver Stepper Motor 86byg-450b and Leadshine Drivers Ma8 Control System Nc Studio/Mach3 with USB Inverter Fuling Other Oiling System Transport Package Plywood Case with Water-Proof Material Specification 3700x220x1750mm Trademark LINTCNC Origin China HS Code 8465990000 Production Capacity 300 Pieces/Year

Product Description

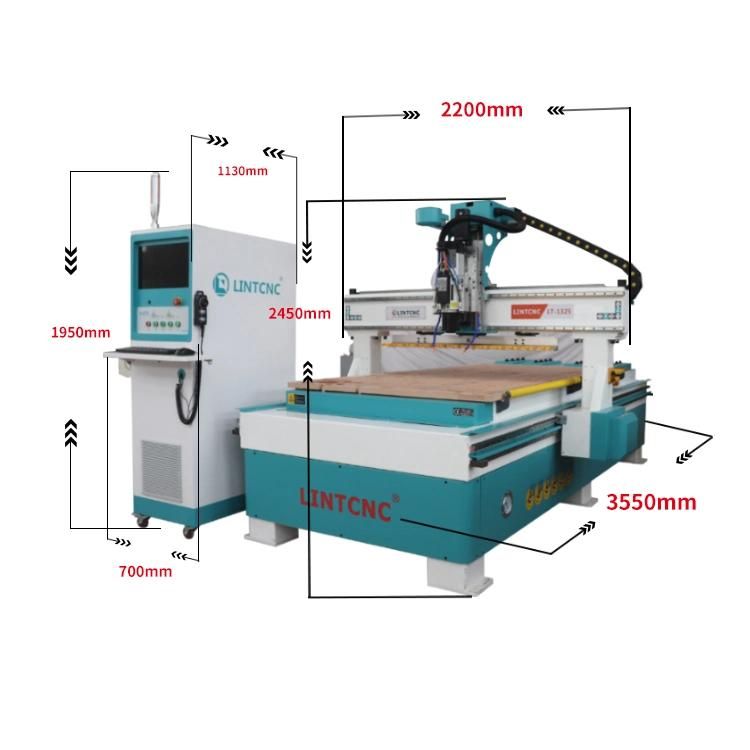

6090 1212 1325 2030 3D Woodworking Machine CNC Router Cutting Carving Engraving Machine /4 Axis Wood CNC Router for cabniet Wood Furniture Cabniet Door

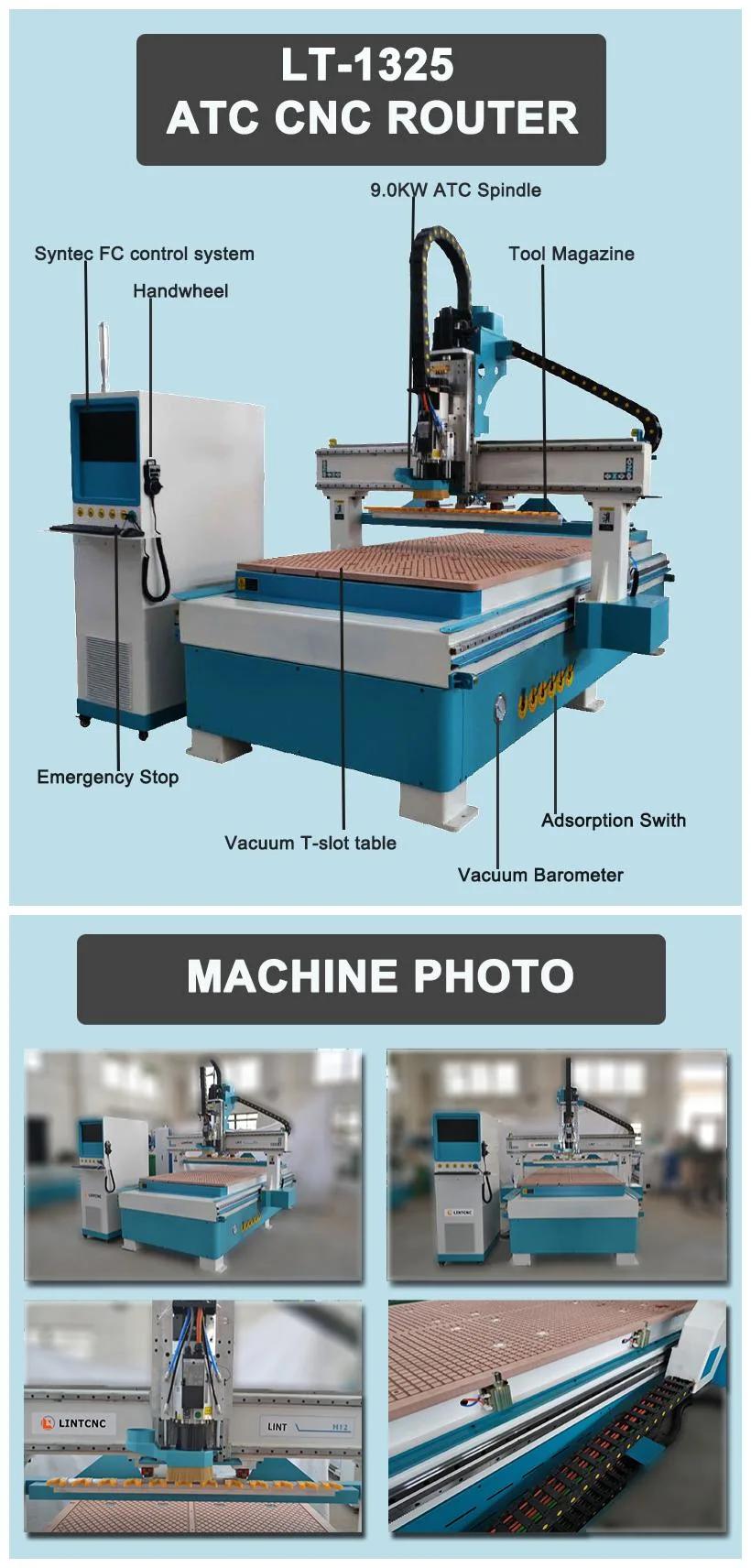

Automatic tool changer cnc router with 12 position carousel tool changer, can change tools within 5 second. Whcih can improve working efficiency greatly. Its working area cna be made 1300*1300mm, 1300*2500mm, 1500*3000mm, 2000*3000mm, 2000*4000mm,....These are our standard size. We also support custom service, for example 2100*2800mm, 2100*3100mm,...

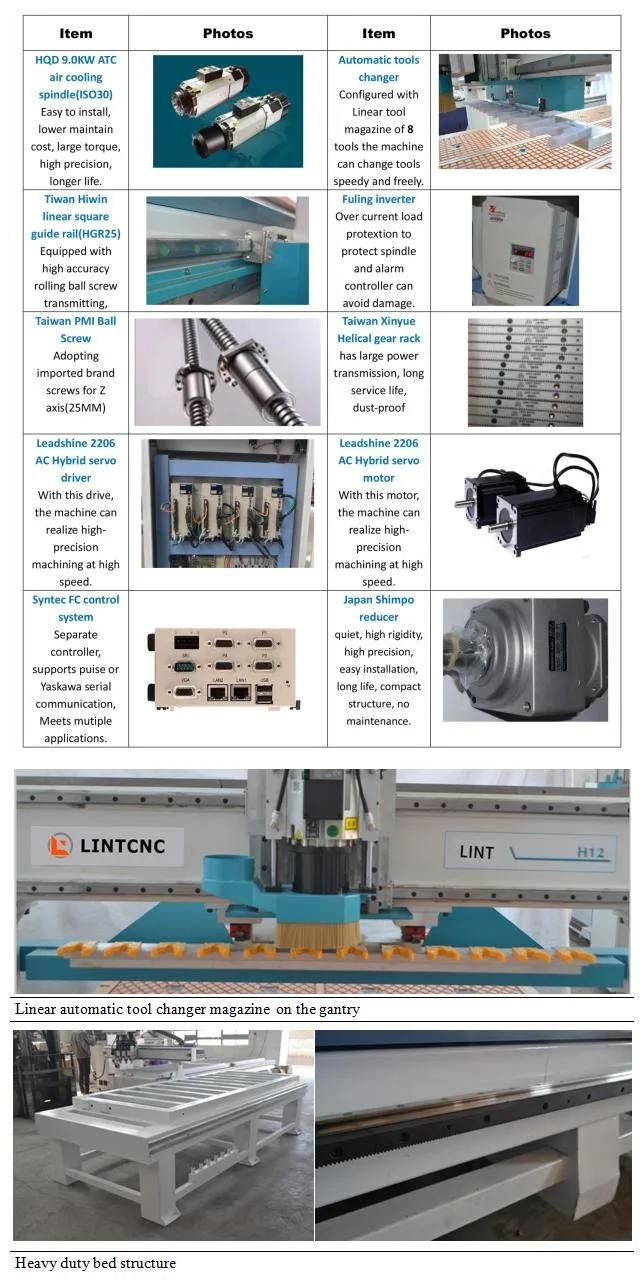

Parameter

Model No.	Wood CNC Router
Table Size	1300mm*2500mm
Max. feeding height of Z axis	200mm
Table Structure	Vacuum table with vacuum pump
Machine body	Weld steel
X Y Z axis Transmission	X,Y axis by helicia gear rack, Z axis by TBI ball
X Y Z Guide rail	Hiwin linear square Guide Rail
Spindle Power	9.0KW ATC Air cooling spindle
Max.Spindle Speed	85000 rpm/min
Max. Traveling Speed	85000mm/min
Max. Working Speed	50000mm/min
Processing Accuracy	±0.025mm
Reposition Accuracy	≤0.025mm
Driving System	Leadshine Servo motors and drivers
Command Language	HPGL, G Code
Control System	NCSTUDIO/MACH3/DSP
Working Voltage	AC110/220V, 50/60HZ
Net Weight/Gross Weight	1850KGS
Package Dimension	3300x1950x1950mm

.
Application Industries:

Wood processing: processing of various furniture such as door, window, cabinet, craft wood doorscreen and so on.
Advertisement: engraving and cutting various labels and number plate.
Art craft: engraving characters of any languages and graphics on souvenirs.

Applicable materials:

Wood, aluminium board, plastic, density board, wave board, PVC, acrylic,crystal, light marble and
other nonmetal materials  ect...

Prccessing effect:
It can manufacture the following effects: relief, shadow, enchasement and so on

Our company
Shandong Lintianzhiyuan CNC Equipment Co., Ltd. is famous in CNC and laser equipment, located in Jinan, Shandong. Our company integrates the R&D, production, sale and maintenance services. We depend on high-tech and high-quality products to build the world brand.Our main products: large-scale (automatic tool change) CNC woodworking engraving machine, CNC advertising engraving machine, CNC marble engraving machine, CNC plasma cutting machine, CNC glass engraving machine, CNC jade engraving machine, CNC metal mold machine, laser cutting machine, laser cutting bed, laser seal engraving machine and computer cutting plotter product.



Good Feedback



FAQ
1) This is the first time I use this kind of machine, is it easy operate?

There is English manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or Skype.

2)Can you recommend a CNC ROUTER MACHINE to me,thanks?

Yes, In order to give you a suitable router machine, pls tell me the max working area, materials
for processing and the thickness for materials processing engraving or cutting.
Then perfect suitable cnc router will be recommended

3) If machine have any problem after I ordered it, how could I do?

 Free parts send to you in machine warranty period if machine have any problem.
 Free after-sales service life for machine, please feel free contact us if your machine have
any problem.
we will give you 24hours service from phone and Skype.
