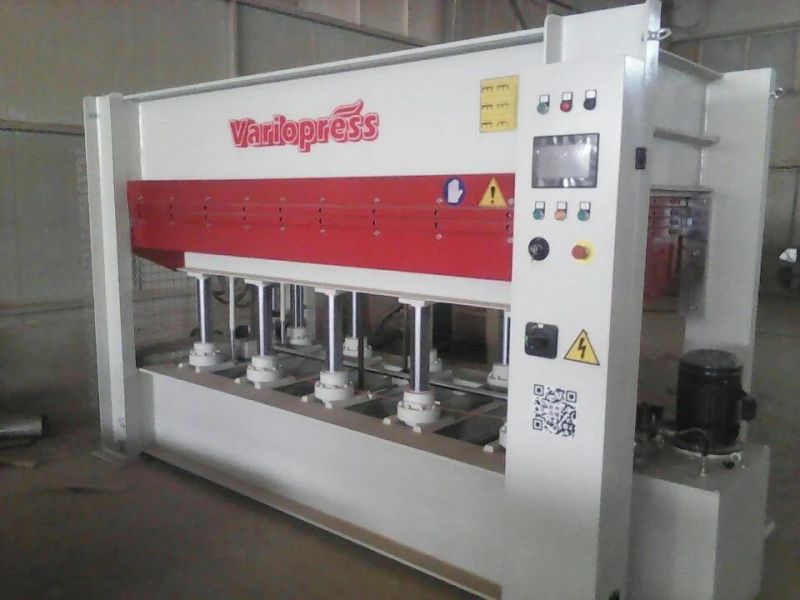

2021 Hot Sale Laminated Hot Press Machine
Foshan City Vario Machinery Co., Ltd.- Warranty:One Year
- Work Forms:Hydraulic Pressure
- Processing Technics:Hot Press
- Structure:Pillar
- Pressing Shape:Flat Press
- Platen Surface Pressure:Medium Pressure
Base Info
- Model NO.:MY214X8,16(3)H1RC(S)
- Pressing Layer:Multi Layer
- Work Mode:Continuous
- Controlling Mode:CNC
- Automatic Grade:Automatic
- Certification:CE
- After-sales Service:Mainframe One Year,Electrical 6 Months
- Model:My214X8,16(3)H1RC(S)
- Total Pressure:1600kn
- Working Layers:3
- Unit Pressure:5kgf,Cm2
- No.& Size of Hot Platen:4-2500X1300X42mm
- Opening:120mm
- No.& Diameter of Cylinder:10-85mm
- Heating Method:Electric Heated with Thermal Oil
- Installed Power:52.75kw
- Transport Package:Plastic Film
- Specification:3810x1710x2300
- Trademark:variopress
- Origin:Shunde, Foshan, China
- HS Code:8465990000
- Production Capacity:30sets,Month
Description
Basic Info.
Model NO. MY214X8/16(3)H1RC(S) Pressing Layer Multi Layer Work Mode Continuous Controlling Mode CNC Automatic Grade Automatic Certification CE After-sales Service Mainframe One Year,Electrical 6 Months Model My214X8/16(3)H1RC(S) Total Pressure 1600kn Working Layers 3 Unit Pressure 5kgf/Cm2 No.& Size of Hot Platen 4-2500X1300X42mm Opening 120mm No.& Diameter of Cylinder 10-85mm Heating Method Electric Heated with Thermal Oil Installed Power 52.75kw Transport Package Plastic Film Specification 3810x1710x2300 Trademark variopress Origin Shunde, Foshan, China HS Code 8465990000 Production Capacity 30sets/MonthProduct Description
Laminating hot press is fit for the furniture factory or panel secondary processing plant, which can make lamination for furniture panel,building partition, wooden door or laminate all kinds of decorative material on man-made board. It also can be used for drying or leveling veneer.

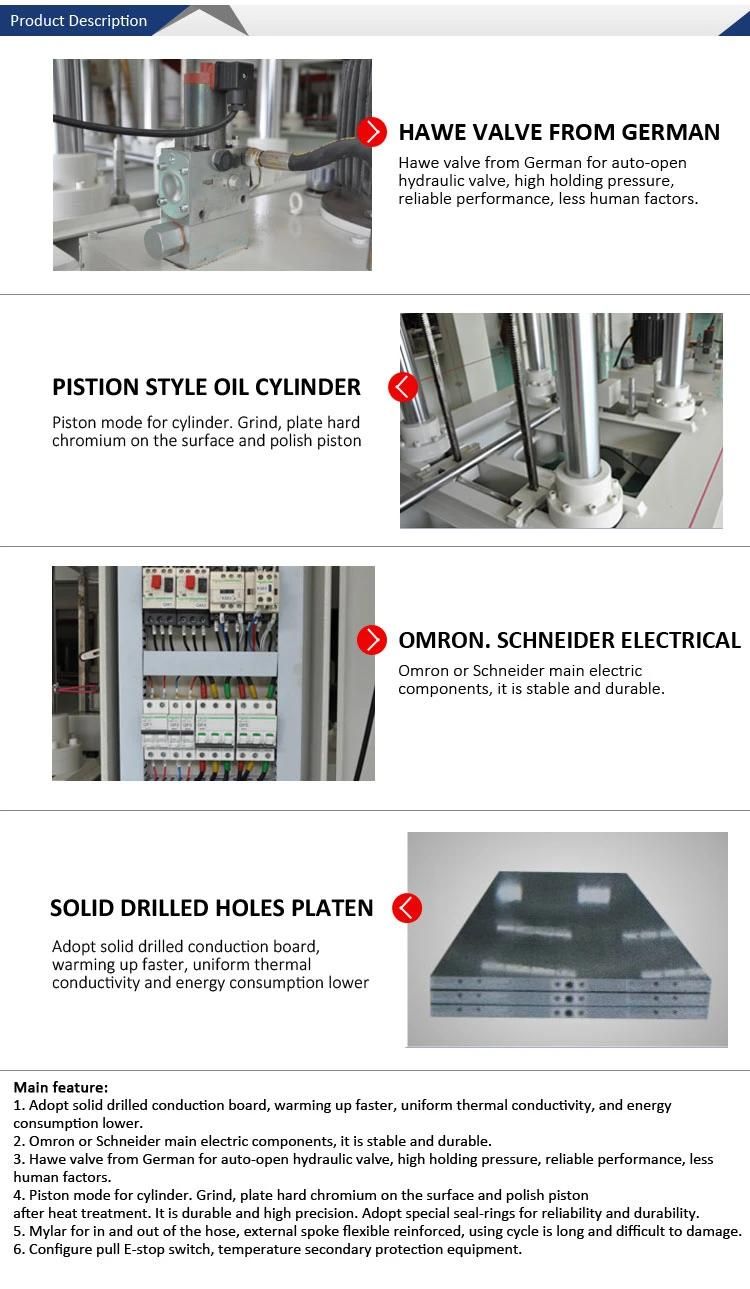

Main features:
1. Adopt solid drilled conduction board, warming up faster, uniform thermal conductivity, and energy consumption lower.
2. Omron or Schneider main electric components, it is stable and durable.
3. Hawe valve from German for auto-open hydraulic valve, high holding pressure, reliable performance, less human factors.
4. Piston mode for cylinder. Grind, plate hard chromium on the surface and polish piston
after heat treatment. It is durable and high precision. Adopt special seal-rings for reliability and durability.
5. Mylar for in and out of the hose, external spoke flexible reinforced, using cycle is long and difficult to damage.
6. Configure pull E-stop switch, temperature secondary protection equipment
Technical parameter:
Model | BY214X8/16(3)H1RC(S) | BY214X9/16(3)H1RC(S) |
Total pressure | 1600kN | 1600kN |
Working layers | 3 | 3 |
Unit surface pressure | 5kgf/cm2 | 4.1kgf/cm2 |
Platen No.& Size | 4-2500x1300x42mm | 4-3000x1300x42mm |
Opening | 120mm | 120mm |
Cylinder No.& Diameter | 10-φ85mm | 10-φ85mm |
Heating way | electric heated with thermal oil | electric heated with thermal oil |
Installed power | 52.75kw | 77.5kw |
Closed speed | 24mm/s | 24mm/s |
