• Model NO.：DT1000-6S
• Color：Customized
• Total Power：11.65kw
• Max Working Width：1000mm
• Transport Package：Negotiable
• Specification：6 STATIONS ROLLERS
• Trademark：OSETMAC
• Origin：China
• HS Code：8465930000
• Production Capacity：2000PCS,Year

Basic Info.

Model NO. DT1000-6S Color Customized Total Power 11.65kw Max Working Width 1000mm Transport Package Negotiable Specification 6 STATIONS ROLLERS Trademark OSETMAC Origin China HS Code 8465930000 Production Capacity 2000PCS/Year

Product Description

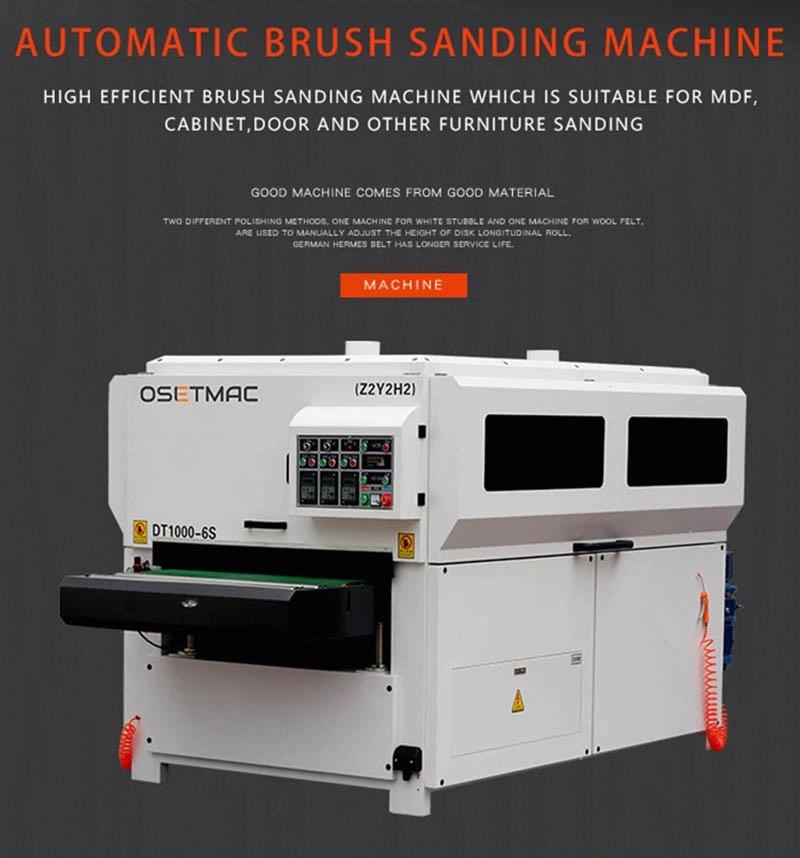

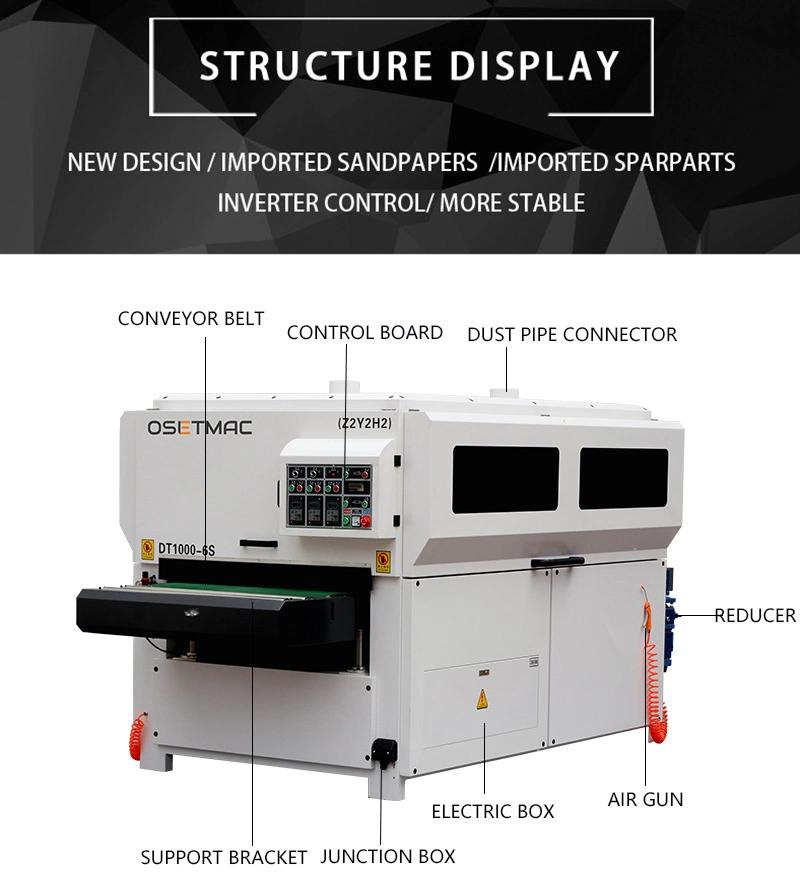

OSETMAC Automatic Brush Sanding Machine DT1000-6S for Cabinet and Door


Brush Sanding Machine Roller LayoutDifferent layout of brush rollers in order to meet different sanding requirement. We also support customization for your special requirement. Z2Y2H2 is the most seller now because it can solve different directions sanding problem. 4 units, 6 units are most popular models, but 8 units and 10 units are also available if you need.

Brush Sanding Machine Specifications



Model	DT1000-6S (Z2Y2H2)
Max Working Width	1000mm
Working Thickness	10-150mm
Min Working Length	≥350mm
Roller Speed	Inverter Control
Conveyor Speed	5-20m/min
Roller Diameter	300mm
Total Power	11.65kw
Straight Roller Motor	2.2kw * 2
Conveyor Motor	1.1kw
Lifting Motor	0.55kw
Disc Motor	1.5kw
Disc Swing Motor	0.55kw
Vertical Roller Motor	1.5kw * 2
Vertical Roller Swing Motor	0.55kw
Packing Dimension	3100*1760*1890mm
Net Weight	1550KG
Using Dimension	3650*1760*2160mm
Wooden Case Dimension	3180*1830*2150mm
Wooden Case Weight	180KG
Gross Weight	1730KG

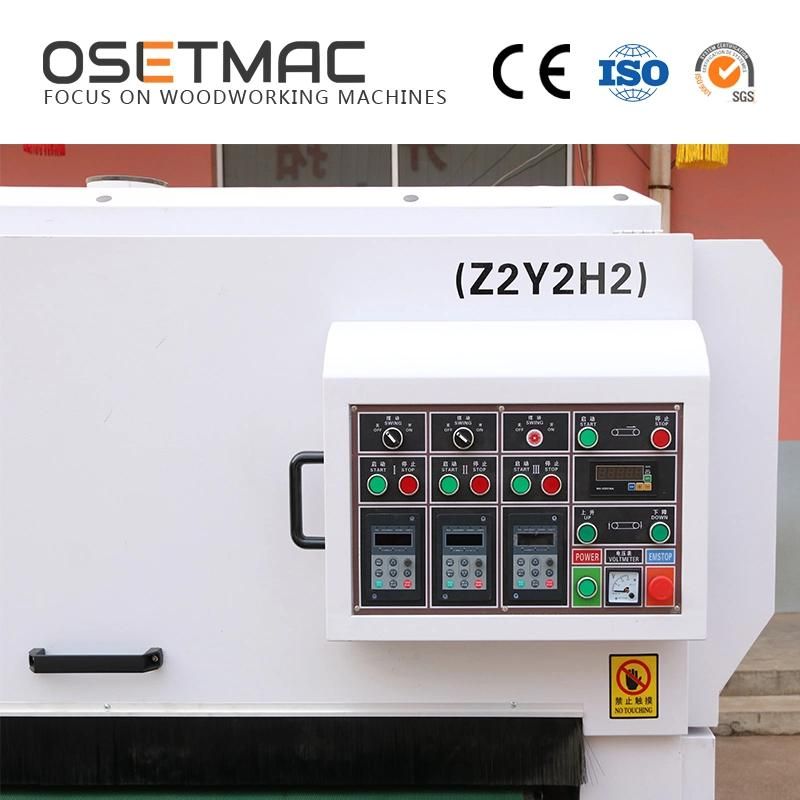

Brush Sanding Machine Details Show1. Rotatory control board

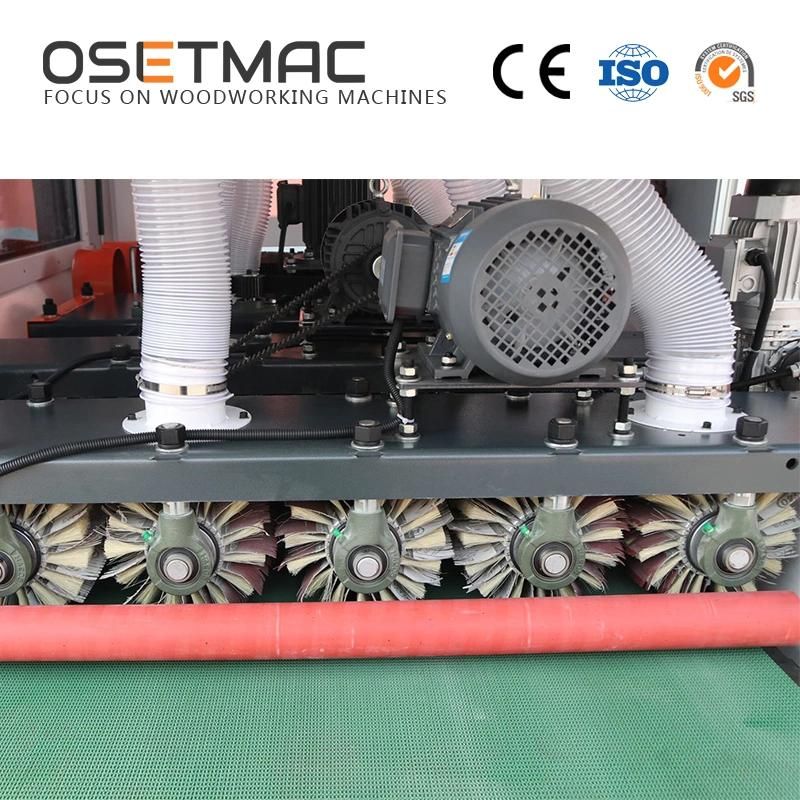

It is very easy to control the machine. Six units rollers' speed are controlled by three inverters and the speed of the rollers are easy to control by the switch on the control board.Workers can adjust the speed according to different materials.2. Cross Rollers Two group of cross rollers (total 9 pieces) rotate individually and move forward at the same time, so that to make sure of the grinding effect of the surface and transverse groove.

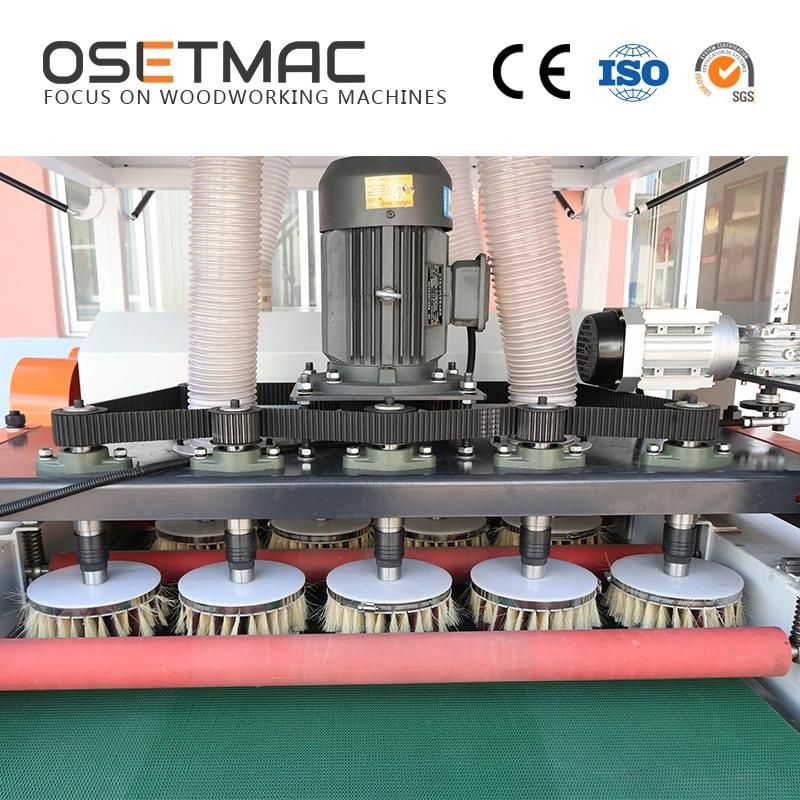

3. Disc Brushes Two groups of disc brushes (total 9 disc brushes) rotate in opposite directions, and the speed of the roller is adjustable by frequency control. With the board own movement and the disc brushes rotating, the machine can realize the sanding of uneven surface and corner from different angles.

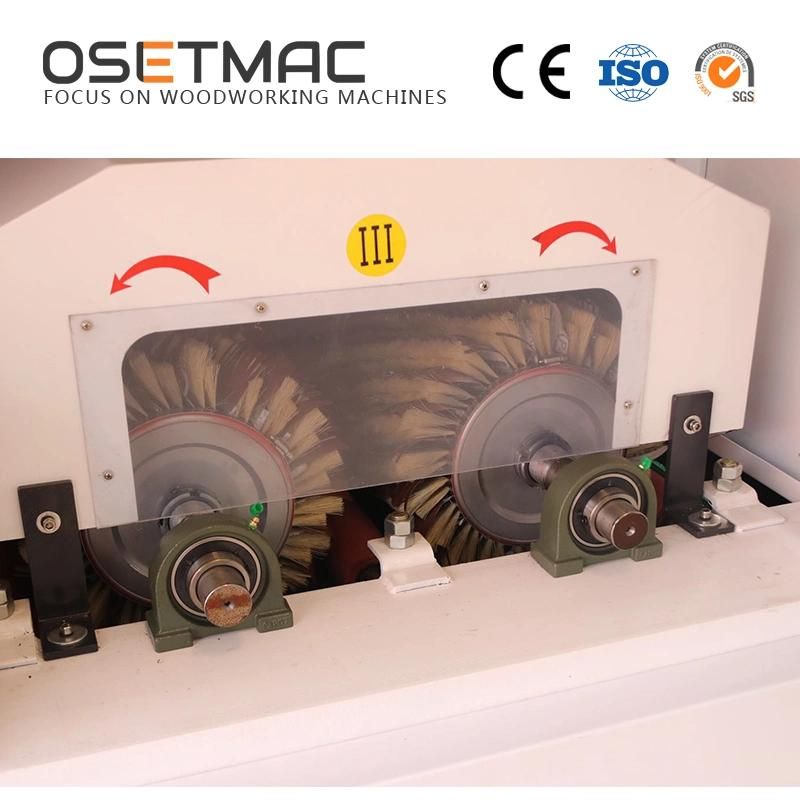

 4. Lengthways Rollers Two groups of long brush rollers are counter-rotating and can be lifted individually, which guarantee the sanding effect of all-round uneven surface and R-angle.
