• Model NO.：GTCO
• Certification：CE, ISO
• Work Forms：Hydraulic Pressure
• Length：2600mm
• Max.Opening：700mm
• Product Name：Log Debarker
• Support Roller：Yes
• Power：57.5W
• Single Roller Diameter：200mm
• Double Roller Diameter：278mm
• Min.Opening：100mm
• Weight：8500kgs
• Transport：Container
• Delivery Time：20days or So
• Dimension：6000*2200*1500mm
• HS：8479899990
• Transport Package：Stardard Exporting Packing
• Specification：4500*2200*1500mm
• Trademark：GTCO
• Origin：China
• HS Code：8479899990
• Production Capacity：2000sets,Year
• Package size per unit product：6000.00cm * 2200.00cm * 1500.00cm
• Gross weight per unit product：13000.000kg

Basic Info.

Model NO. GTCO Certification CE, ISO Work Forms Hydraulic Pressure Length 2600mm Max.Opening 700mm Product Name Log Debarker Support Roller Yes Power 57.5W Single Roller Diameter 200mm Double Roller Diameter 278mm Min.Opening 100mm Weight 8500kgs Transport Container Delivery Time 20days or So Dimension 6000*2200*1500mm HS 8479899990 Transport Package Stardard Exporting Packing Specification 4500*2200*1500mm Trademark GTCO Origin China HS Code 8479899990 Production Capacity 2000sets/Year

Packaging & Delivery

Package size per unit product 6000.00cm * 2200.00cm * 1500.00cm Gross weight per unit product 13000.000kg

Product Description

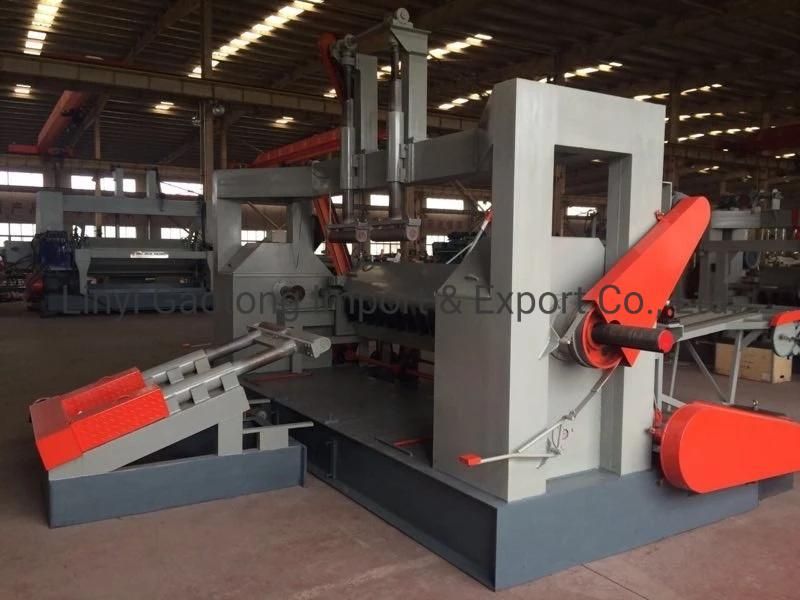

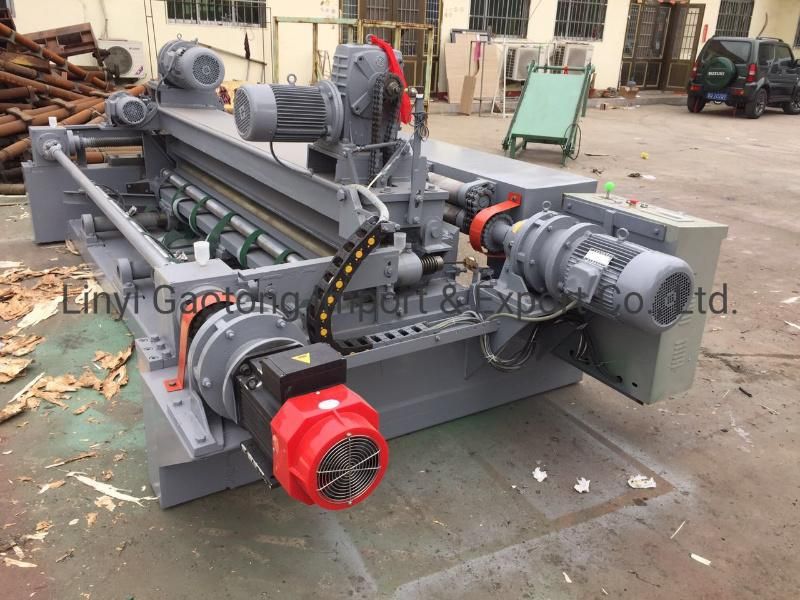

1300mm 2600mm Automatic Hydraulic Wood Veneer Log Debarker Machine for Plywood Veneer Production Line

2600mm Product Parameters:


Rotary knife length	2800 mm
Max.opening	700mm
Min.opening	100mm
Single roller diameter	178mm
Double rollerdiameter	200mm
Hydraulic system power	5.5kw
Support roller	yes
Total power	31.5kw
Product dimension	6000*2100*1700 mm
Weight	8.5T
Payment terms	T/T 30%,Balance before leave factory
Delievry time	In 20days

1.The hydraulic driven feed mechanism can be fast and efficient completion of the logs remove the bark to save labor and

raise working efficiency.

2.The transmitting mode is ball screwing ( servo motor supply the power to gearbox, gearbox transmit the torque to ball screw,
then drive the tool carriage forward and back).

3.It uses hydraulic knife assembling system, so can reduce the labor need and increase the productivity.

4.Big-diameter wear-resistant and grooved roll with bark to increase the barking speed.

5.High quality steel profile to ensure the stability.

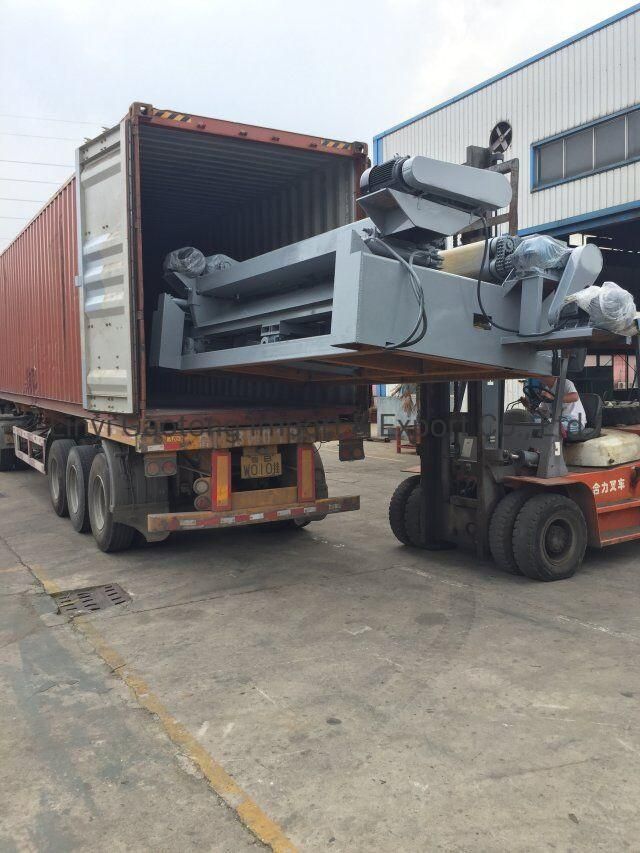

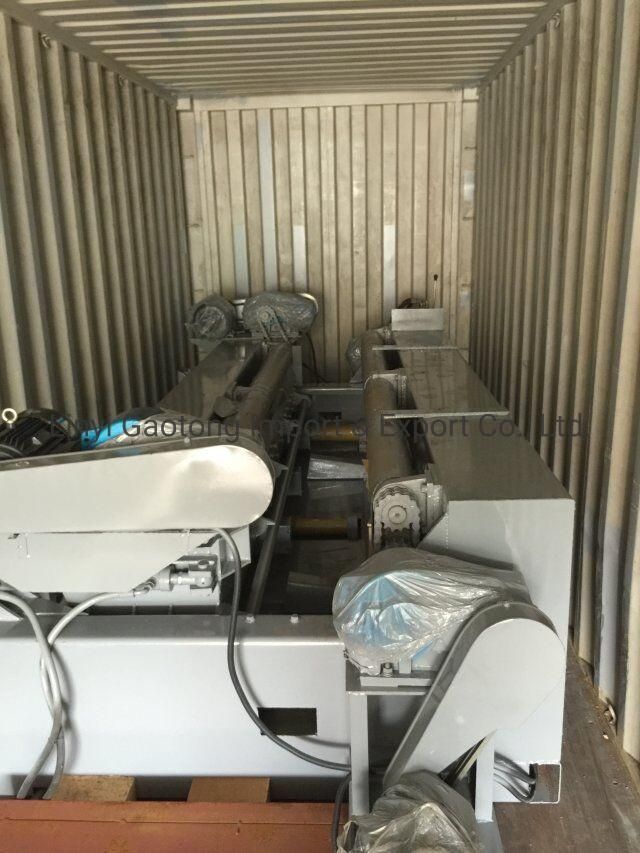

Packing and Shipping

Packaging Details
stretch film or as your request
Delivery Time :Shipped in 15 days after payment

Our Serive

1. more than 20 years production experience

2. Certifcate notaried

3. 24 hours service
