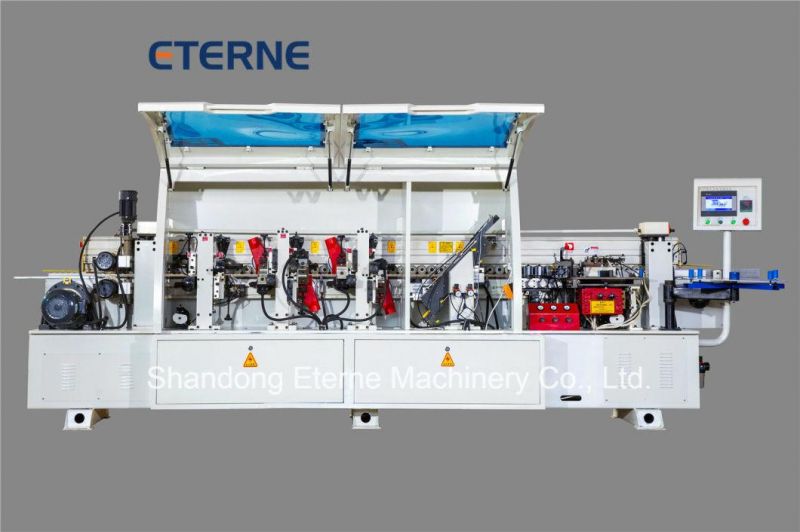

Contour Automatic PVC Edge Banding Woodworking Edging Machine (ET-368)

Shandong Eterne Machinery Co., Ltd.
  • Type：Linear Edge Banding Machine
  • Edging thickness：0.4-3mm

Base Info

  • Model NO.：ET-368
  • Automatic Grade：Automatic
  • Panel Feeding Speed：13m,min
  • Panel Thinkness：10-60mm
  • Min.length panel：120mm
  • Min.width panel：60mm
  • Manufacturing Principles：Glue Tank Underneath
  • Customized：Customized
  • Model：Et360ycc

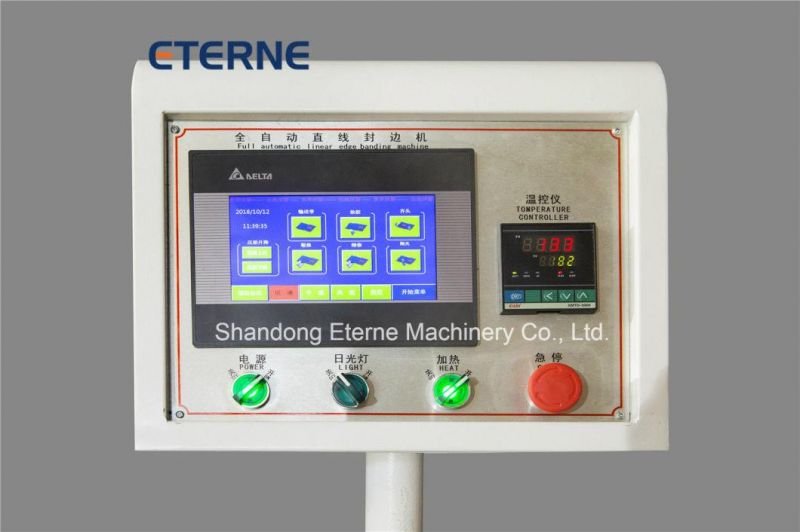

  • PLC System：Delta Brand-Taiwan
  • Guide Rail：Hiwin-Taiwan
  • Electric Element：Airtac-Taiwan
  • Transport Package：Plywood Box with Strength Film
  • Specification：5700*930*1600 mm
  • Trademark：ET
  • Origin：China
  • HS Code：8465940000
  • Production Capacity：10000,Year
  • Package size per unit product：5900.00cm * 900.00cm * 1600.00cm
  • Gross weight per unit product：2000.000kg

Description

Basic Info.

Model NO. ET-368 Automatic Grade Automatic Panel Feeding Speed 13m/min Panel Thinkness 10-60mm Min.length panel 120mm Min.width panel 60mm Manufacturing Principles Glue Tank Underneath Customized Customized Model Et360ycc PLC System Delta Brand-Taiwan Guide Rail Hiwin-Taiwan Electric Element Airtac-Taiwan Transport Package Plywood Box with Strength Film Specification 5700*930*1600 mm Trademark ET Origin China HS Code 8465940000 Production Capacity 10000/Year

Packaging & Delivery

Package size per unit product 5900.00cm * 900.00cm * 1600.00cm Gross weight per unit product 2000.000kg

Product Description

Contour automatic pvc edge banding woodworking edging machine (ET-368)
1. Brief Introduction:

1) Used for different plate: MDF, block board, particle board, solid wood board, polywood, polymer plate, fire board etc.

2) Banding edge for desks,carbinet,wardrobe and stright line furniture.

3) Tape material can be PVC,melamine, veneer etc.

4) Can save lots of labors and cost, especially suitable for suitable for medium and large scale users.

5) Concentrated modern design for automatic woodworking production line.

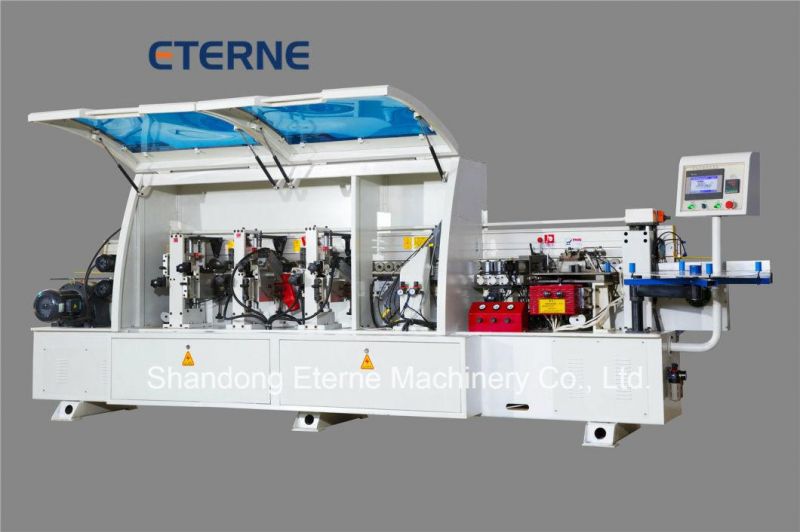

Contour Automatic PVC Edge Banding Woodworking Edging Machine (ET-368)
Contour Automatic PVC Edge Banding Woodworking Edging Machine (ET-368)

2. Specification: ( color, function and parameters can be customized)

ModelET-368
Edge belt thickness0.4-3mm
Edge belt width12-62mm
Workpiece thickness10-60mm
Feeding speed12-20 m/min
Heating power2 kw
Pre-heating power350 w
Conveyor belt1.5 kw
Pre-milling power2.2 kw*2, 12000 r/min
Glue power0.75kw
End trimming0.37kw*2, 12000r/min
Rough trimming0.75kw*2, 18000r/min
Fine trimming0.75kw*2, 18000r/min
Buffing0.37w*2,  1350r/min
Working pressure0.7 Mpa
Total power15 kw
Dimension 5900*1000*1600 mm
Net Weight2000 kg
 3. Features :


1) Multi-Fuction: Linear edge banding machine with Pre-milling--gluing--end trimming--rough trimming--fine trimming--scrapping--buffing.

2) Pre-milling is equipped with double trim-blades working on the waved effect in order to revise the plate before the following process.
 3) Gluing and press mechanism adopts glue melting device to gelatinize the plates and tape uniformly, meanwhile make sure they can be conglutinated firmly.

4) End-trimming mechanism is to cut the forward and rear tape after gluing and press process by the movement of the precise guide track, it is with automatic tracking and high frequency motor fast cutting structure to ensure the cutting surface smoothly.

5) Rough &Fine Trimming unit, with two individual high frequency motors, trim the exceeding edge on the top and bottom side of the panel, ensure both sides of the edge smooth and even.

6) Contour Tracking:Profiling unit is to make board end more smooth and aesthetic.
 7) Slotting unit, it is a optional function, used to slot out grooves on panel to install glass, back panel etc.
8) Scraping unit for a perfect finishing of the applied edge.

9) Buffing unit is equipped with cotton polishing wheels to make smooth surface by end-polishing.

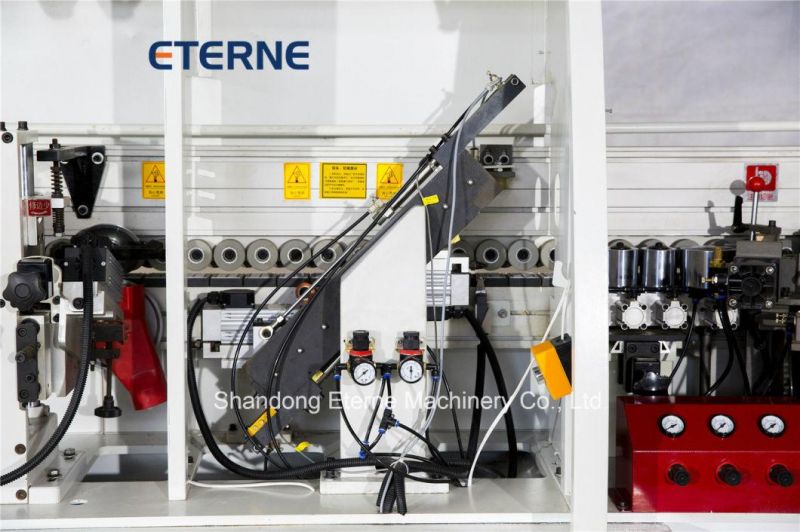

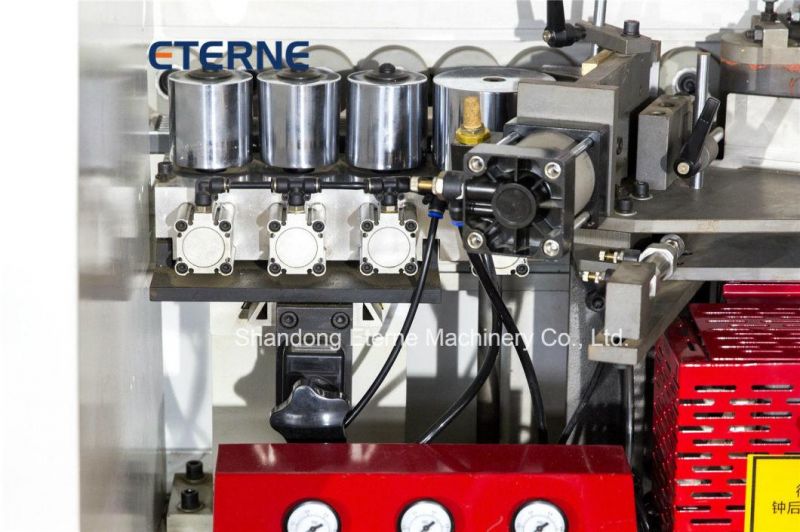

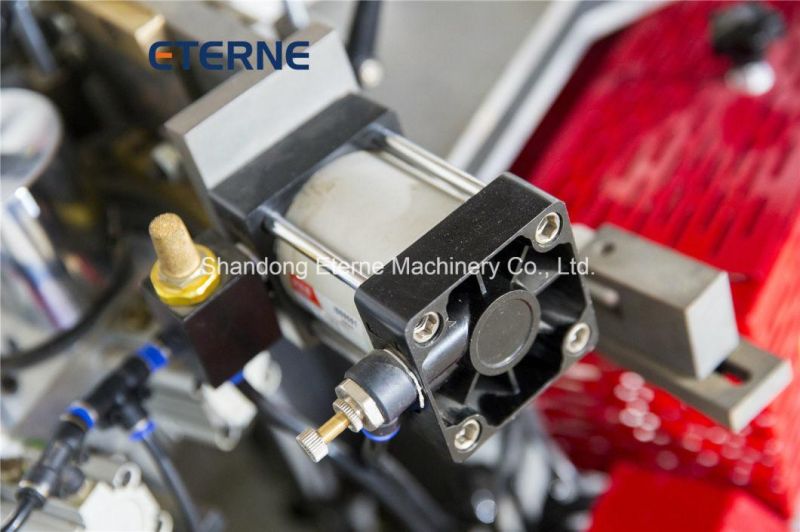

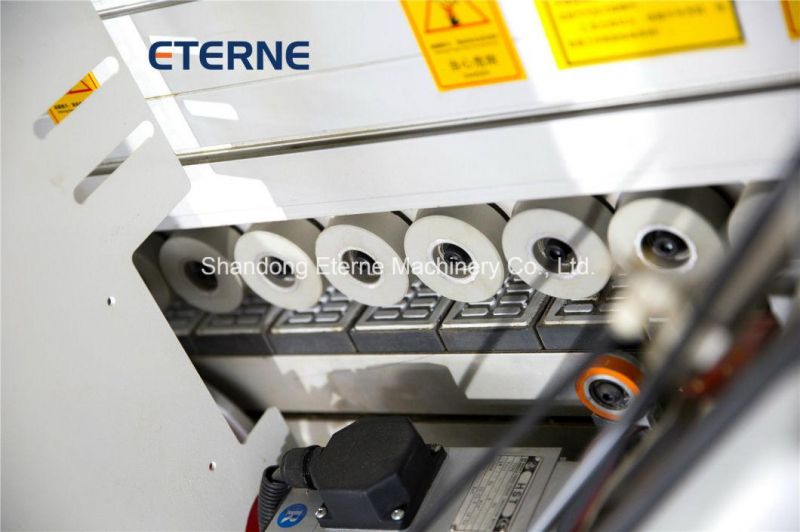

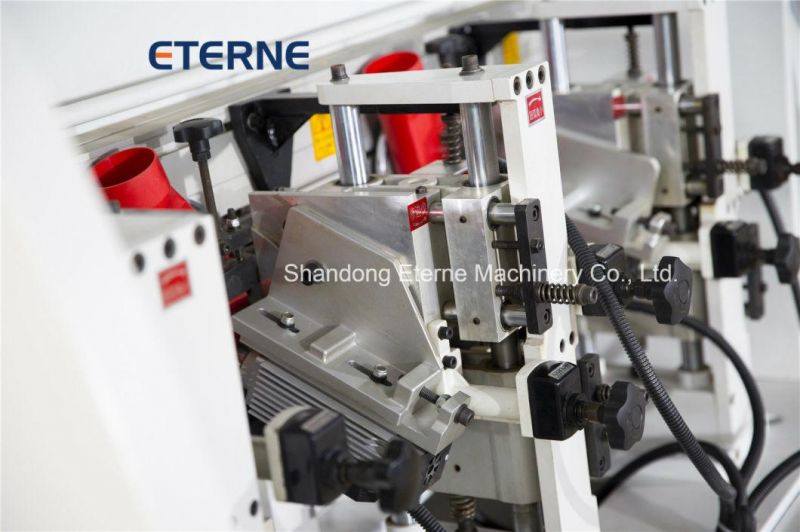

4. Pictures and details

Contour Automatic PVC Edge Banding Woodworking Edging Machine (ET-368)

Contour Automatic PVC Edge Banding Woodworking Edging Machine (ET-368)

Contour Automatic PVC Edge Banding Woodworking Edging Machine (ET-368)
Contour Automatic PVC Edge Banding Woodworking Edging Machine (ET-368)
Contour Automatic PVC Edge Banding Woodworking Edging Machine (ET-368)
Contour Automatic PVC Edge Banding Woodworking Edging Machine (ET-368)
Contour Automatic PVC Edge Banding Woodworking Edging Machine (ET-368)



5.Delivery and Package



Contour Automatic PVC Edge Banding Woodworking Edging Machine (ET-368)


1) No matter container shipping or LCL shipping, the machine will be packaged with standard plywood case and plastic flim rolling all around the machine for anti-dust.

2) Usually, If have machine in stock, it can deliver 2 days after deposit, if no, can be deliver within 7 days after deposit.

6. Why Choose Us
  1. Factory direct, with more than 10 years woodworking machinery production experience.
  2. Can do OEM/ODM according to your request.
  3. Engineer is available to help commissioning overseas.
  4. Within 24 hours response if any enquiry and quick after-sales service system.
  5. With own R&D strength .
