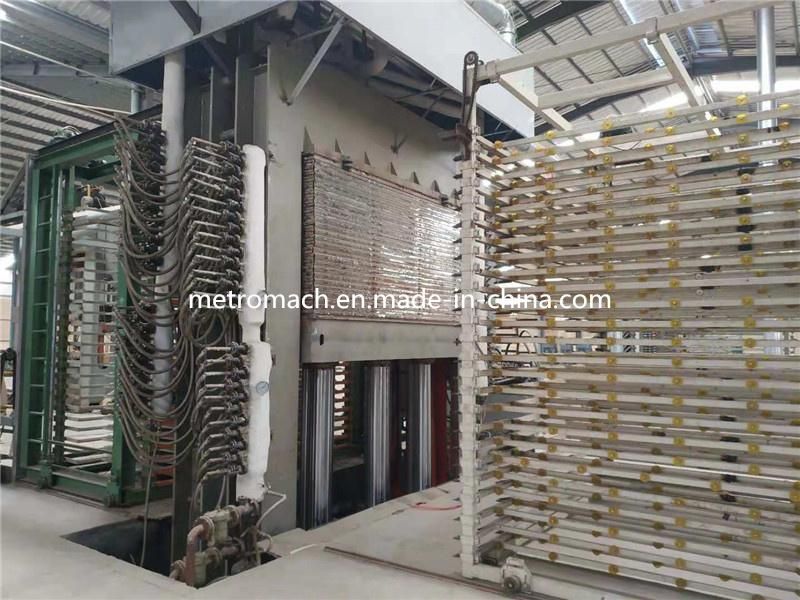

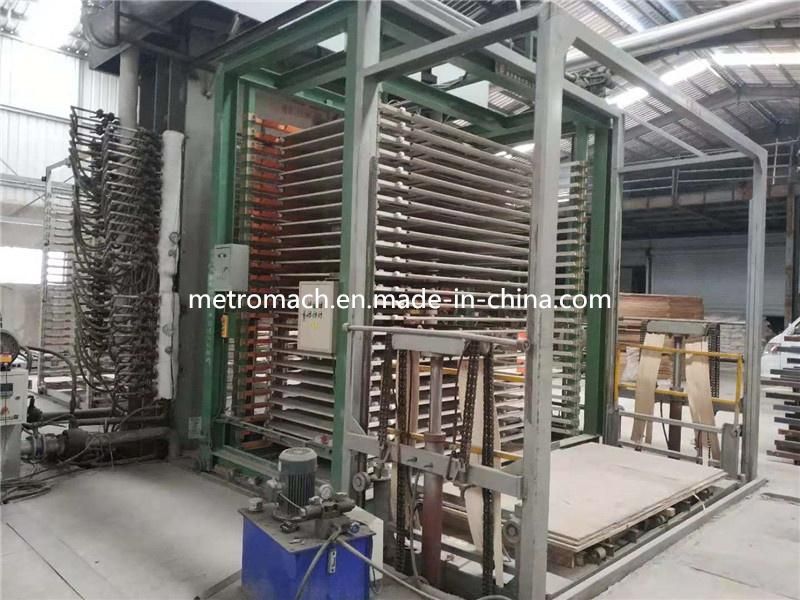

Woodworking Hydraulic Hot Press Machine for Plywood
Linyi Sin San Lin Smart Machinery Co., Ltd.- Work Forms：Hydraulic Pressure
- Processing Technics：Hot Press
- Structure：Frame Type
- Pressing Shape：Flat Press
- Platen Surface Pressure：High Pressure
- Pressing Layer：Multi Layer
Base Info
- Model NO.：BY214x8,4-15ZIID
- Work Mode：Continuous
- Controlling Mode：CNC
- Automatic Grade：Automatic
- Certification：CE, ISO, FDA
- Pressure：400-800t
- Distance Between Hot Platens：60-150mm
- Diameter of Cylinder：220-360mm
- Allowed Pressure：25MPa
- Transport Package：Wrapping Film
- Specification：31000KGS
- Trademark：Metro
- Origin：Shandong, China
- HS Code：8479300000
- Production Capacity：50set,Month
Description
PLYWOOD HOT PRESS MACHINEmodel BY214X8/4-15ZIID nominal gross pressure 400-800TON direction of feeding plate HORIZONTAL distance between hot platens 60-150mm / 80-120mm numbers of hot platens 5-15 layers / 10-20 layers dimension of hot platens 2700*1370*52mm
2700*1370*42mm numbers of cylinder 2-8pcs diameter of cylinder Φ220-360mm stroke of cylinder 200mm pressurization ≤25Mpa the position of cylinder up closing time 13s / 15-30s / 30-60s max temperature <210 total weight 31000kgs stroke of cylinder 200mm high pressure pump flowing about89L/min allowed pressure ≤25Mpa power 18.5kw control method automatic pump station
Pre-sale
1.Free consultation about the equipment.
2.Reasonable purchasing plan and the production line designing plan are offered according to the clients' special requirment to help you to select the most suitable machinery.
3.Welcome to visit our factory and check our machine.
During-sales
1. We inspect and test the machine before delivery.
2.We are willing to freely tran your technicist and first-line operator.
After-sales
1.Engineers are available to service overseas.2.Videos about installing and debuging the equipment
Your Success Is Our Business!
2700*1370*42mm
Hot platen:
1. it is drilled from excellent carbon solid steel and it is high precision, high strength and durable.
2. it is manufactured on special workable., so as to keep the hot platen easy to operate.
Heating system
1. It can be heated by steam boiler, oil heater or electric oil heater.
2. We recommend oil type boiler as the temp can be more stable.
Cylinder:
1. it is made in excellent carbon solid steel and it is high strength and durable.
2. It uses high quality oil envelop so as to avoid of oil leaking.
Control system
1. PLC control
2. It can lift the hot platen, close the seperation, add the pressure, keep the presssure, keep time, descend the hot platen and so on.
