Heavy Duty Wood Planing Machine 1300mm Wood Thickness Planer

Qingdao Zhongding Machinery Co., Ltd.
  • Type：Single-sided Pressure Planer
  • Working Depth：100-200mm
  • Working Width：1000-2000mm
  • Drivetrain：Feed Drivetrain
  • Enter Method：Mechanical
  • Motor Power：＞10Kw

Base Info

  • Model NO.：MB1013
  • Cutter Shaft：3
  • Spindle Speed：＞5000rpm
  • Process Type：Heavy Processing
  • Certification：CE, ISO
  • Transport Package：Plywood Case
  • Specification：1205*1670*1470mm
  • Trademark：ZD
  • Origin：China
  • HS Code：84659200
  • Production Capacity：2 Sets,Week

Description

Basic Info.

Model NO. MB1013 Cutter Shaft 3 Spindle Speed ＞5000rpm Process Type Heavy Processing Certification CE, ISO Transport Package Plywood Case Specification 1205*1670*1470mm Trademark ZD Origin China HS Code 84659200 Production Capacity 2 Sets/Week

Product Description

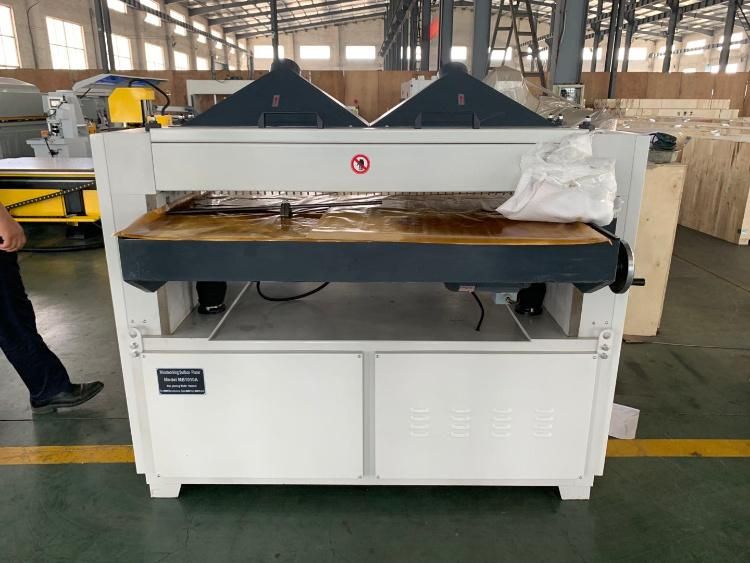

Heavy Duty Wood Planing Machine 1300mm Wood Thickness Planer

Heavy Duty Wood Planing Machine 1300mm Wood Thickness Planer



Technical Specification:

ModelMB1013A
Max. Planing width1300mm
Planing thickness8-200mm
Min. Planing length300mm
Max. Planing amount4mm
Automatic feeding speed8;12m/min
Spindle speed4500-4600r/min
Spindle motor power15 kw
Feeding motor power3 kw
Lifting motor power0.75kw
Spindle cutting diameterΦ125mm
Overall dimension1205*1670*1470mm
Net. weight1650kgs

400mm, 500mm, 630mm, 1000mm width are also available.

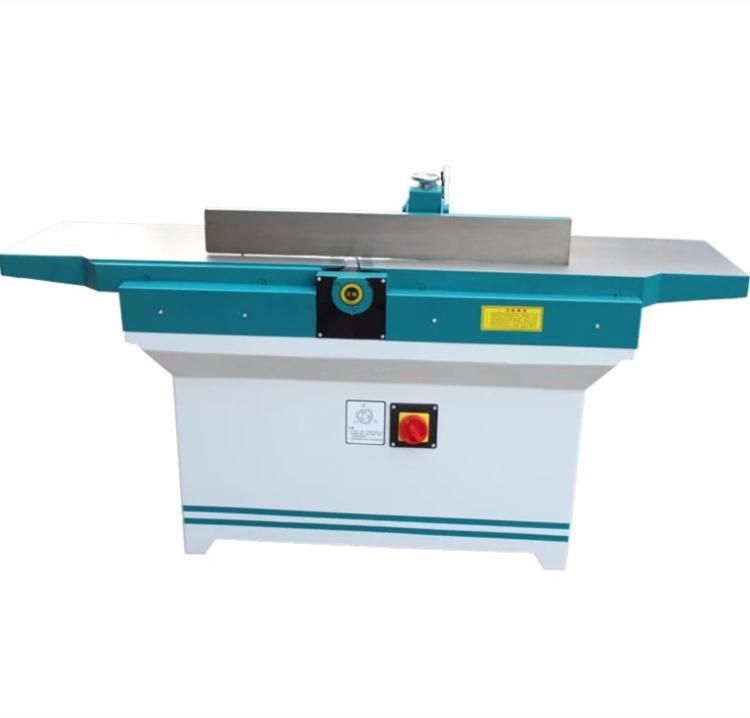

Surface planer:

Heavy Duty Wood Planing Machine 1300mm Wood Thickness Planer

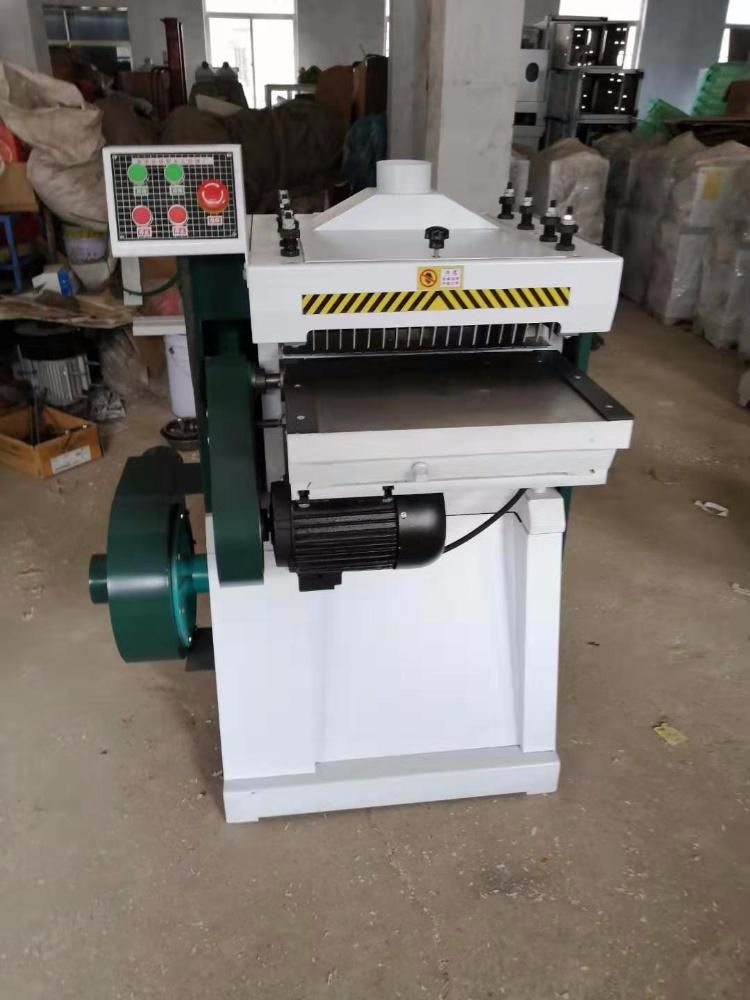

Double sided planer:
Heavy Duty Wood Planing Machine 1300mm Wood Thickness Planer

Four sided planer:
Heavy Duty Wood Planing Machine 1300mm Wood Thickness Planer

For more details, pls feel free to contact us.
