• Model NO.：1325
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Customized
• After-sales Service：1 Year
• Working Area：1300*2500*200mm
• Spindle Power：Air Cooling Spindle 4.5kw 3 Pieces
• Max. Idling Speed：35m,Min
• Max. Working Speed：25m,Min
• Repositioning Accuracy：0.05mm
• X Y Z Working Accuracy：< 0.02mm
• Spindle Rotating Speed：600-18000rpm
• Operation Language：G Code (Plt, Mmg, Uoo, BMP)
• Control System：Ncstudio Control System
• Key Words：CNC Router
• Transport Package：Exporting Plywood Package
• Specification：CE. SGS
• Trademark：ZHONGKE
• Origin：Jinan, China
• HS Code：8465990000
• Production Capacity：1000 Sets Per Year

Basic Info.

Model NO. 1325 Certification CE, ISO Customized Customized Condition New Color Customized After-sales Service 1 Year Working Area 1300*2500*200mm Spindle Power Air Cooling Spindle 4.5kw 3 Pieces Max. Idling Speed 35m/Min Max. Working Speed 25m/Min Repositioning Accuracy 0.05mm X Y Z Working Accuracy < 0.02mm Spindle Rotating Speed 600-18000rpm Operation Language G Code (Plt, Mmg, Uoo, BMP) Control System Ncstudio Control System Key Words CNC Router Transport Package Exporting Plywood Package Specification CE. SGS Trademark ZHONGKE Origin Jinan, China HS Code 8465990000 Production Capacity 1000 Sets Per Year

Product Description

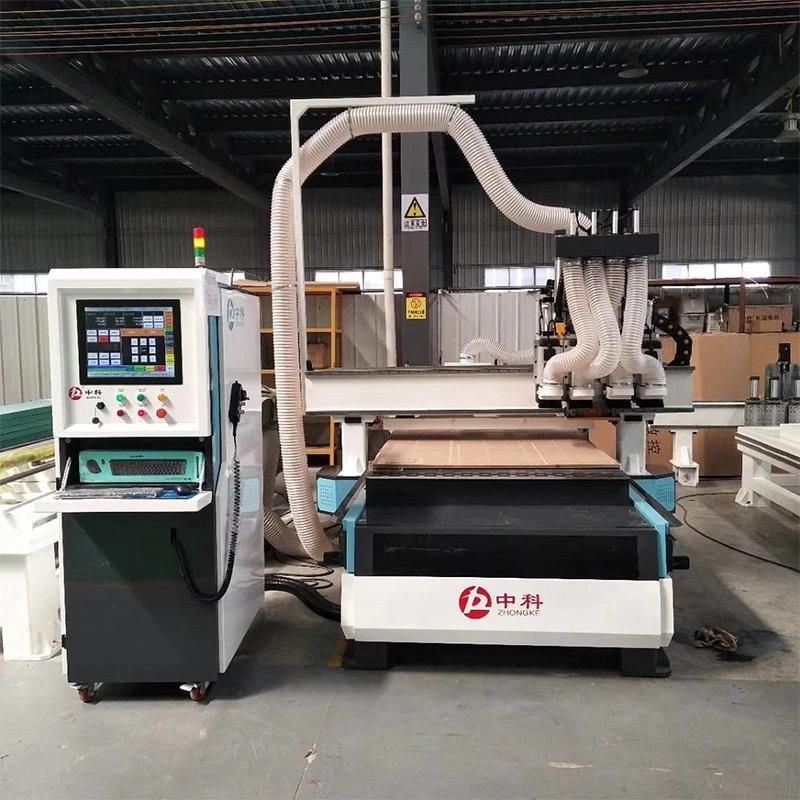

This machine belongs to a kind of simple auto changing tools cnc router, it can changing 4 pieces cutters and for producing wood doors, cabinets doors, cabinets body, MDF board cutting, etc. If so it can save the time for changing cutters

Feature
1. Simple operation and installation, when delivery we will provide the videos for training.
2. More steady and strong equipped bed structure with thick steel.

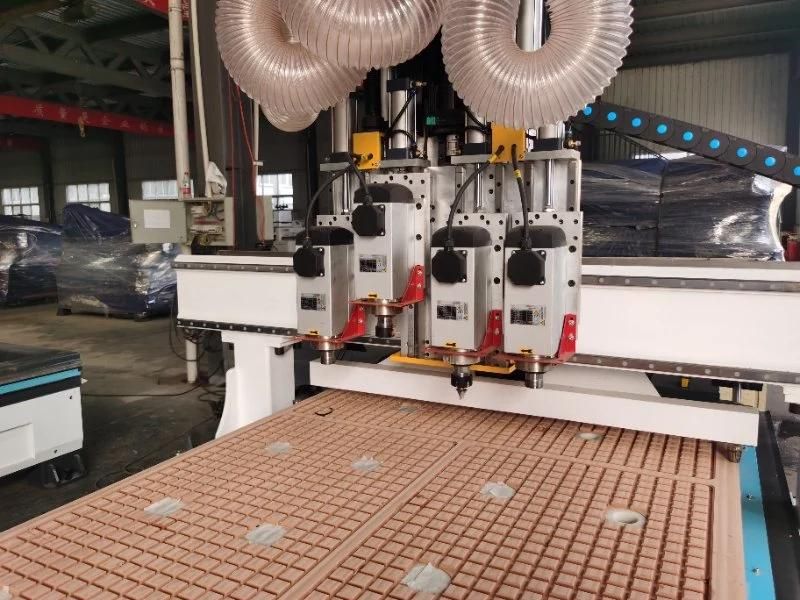

3. Equipped with three pieces 3.5KW air cooling spindle, can be optional air cooling spindle, more powerful, enough to cut more thickness materials.
4.The pressing handle oiling system, just pushing the handle then can realize the whole machine oiling, very convenient
5. Dust collector, helping to suck the dust, milling dust, keeping the machine clean.
6. Ncstudio control system, can be optional DSP control system.

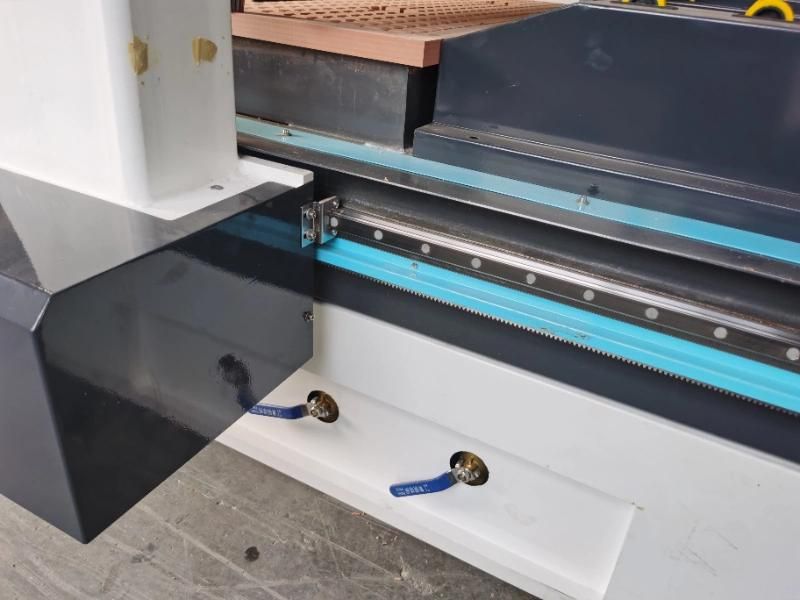

7.Taiwan HIWIN square guide rail, high precision and long life time, rack and pinion transmission, high speed.

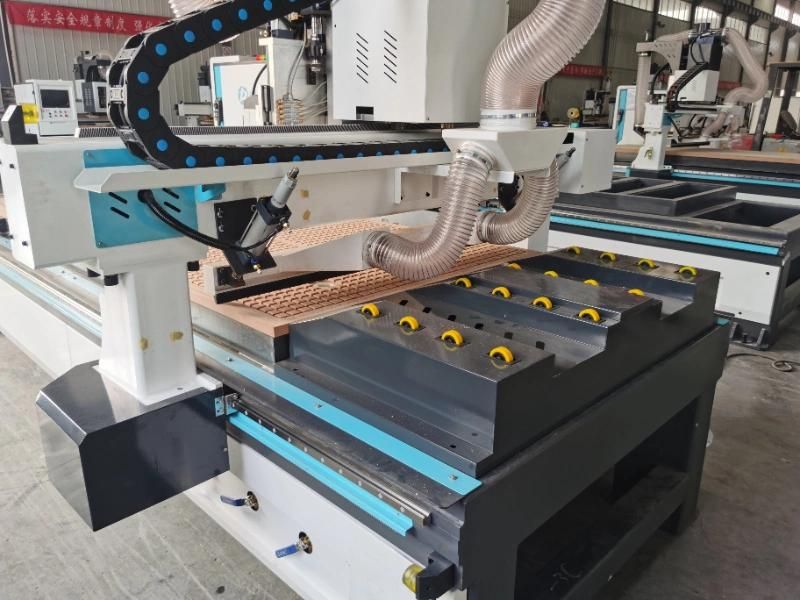

8. Vacuum adsorption table with 5.5KW vacuum pump, it can adsorb the materials on the table , more stable when engraving wood doors.
9.Function of re-carving after break point and power off, reducing the materials wasting.
10.Good software compatibility, all kinds of CAD/CAM ,such as Typ3 , ArtCam, Castmate, UcanCam,Artcut engraving software, Coredraw, etc.


Specification

Model	ZK1325
X,Y,Z axis working area	1300*2500*200mm
Whole structure	Welded Steel gantry structure
Table surface	vacuum table with 7.5KW vacuum pump
X,Y,Z structure	Taiwan HIWIN Square linear guide rail
X,Y structure	Rack and pinion transmission, high speed and more stable; Y -double motor drive
Z structure	Imported ball screw, high precision
Max. idling speed	50m/min
Max. working speed	25m/min
Repositioning Accuracy	±0.05mm
X Y Z working Accuracy	< 0.02mm
Spindle	3.5KW air cooling spindle(Optional: water cooling spindle)
Spindle rotating speed	600-18000rpm/min
Diameter of tools	Φ3.175 -Φ20
Collect size	ER 25
Operation language	G code (plt, mmg, uoo, bmp)
Driving system	hybrid servo motor or servo motor
Operating system	Ncstudio control system
Working voltage	380V/3phase
Software	UcancamV8 / Type3 / Artcam software (option)

Application
1.Furniture decoration industry: large area plate plane carving, wood carving and board type furniture carving. Solid wood art mural, solid wood door, cabinet door sculpture.
2.Wood products processing: sewing machine desktop, electrical counter desktop, sports supplies equipment.

3.Instrument industry: 3d curved surface, shape cutting.

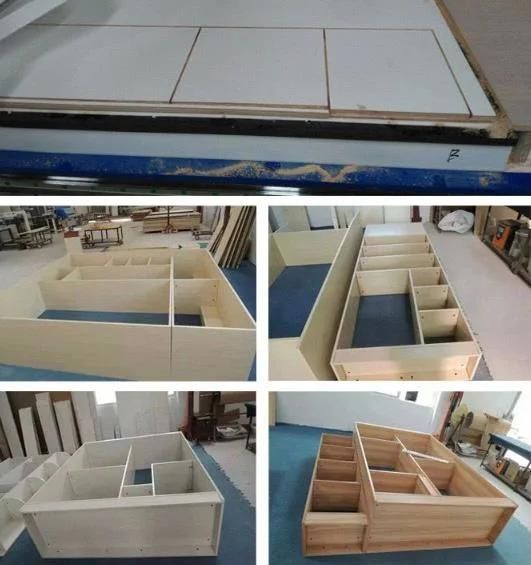

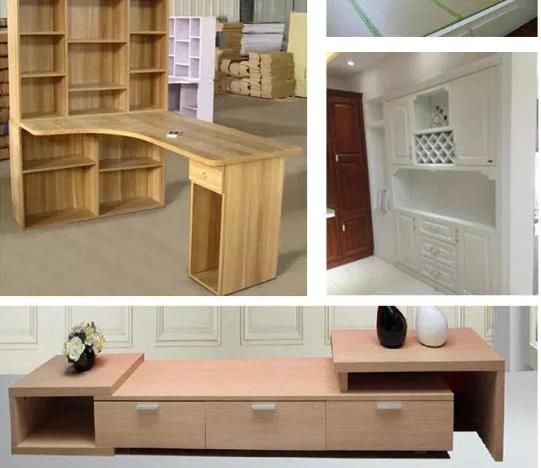

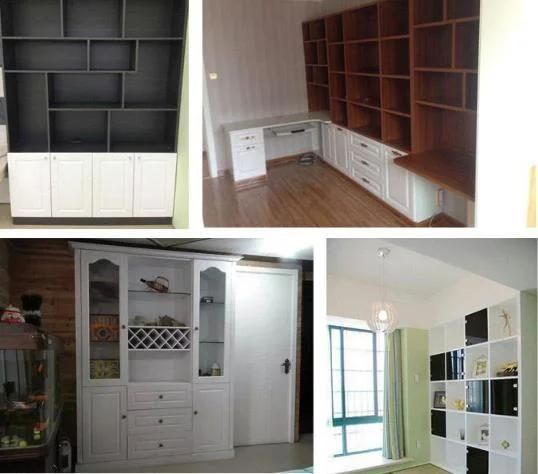

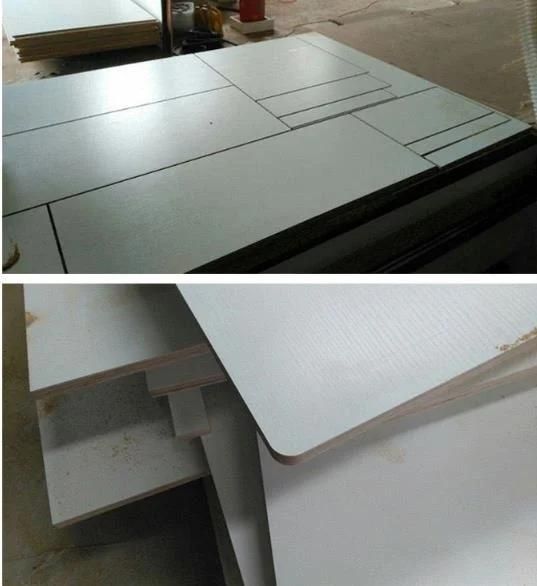

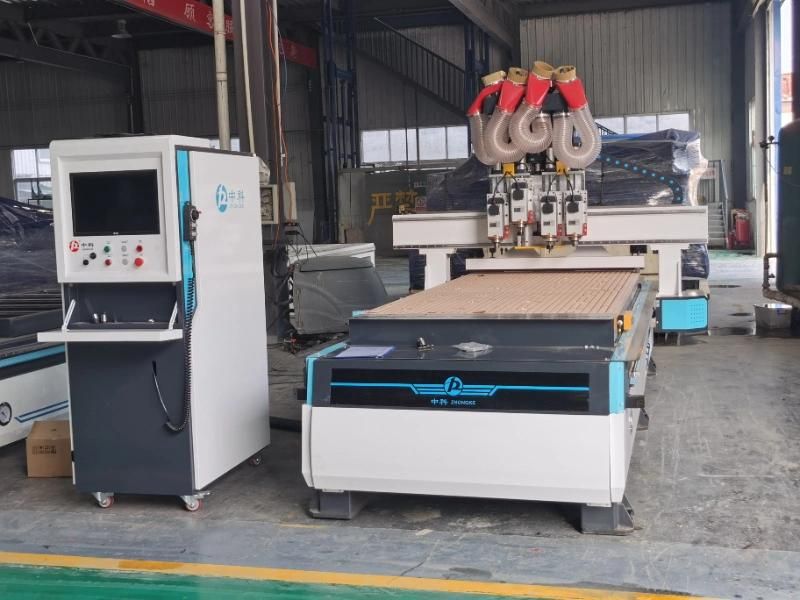

Sample photos

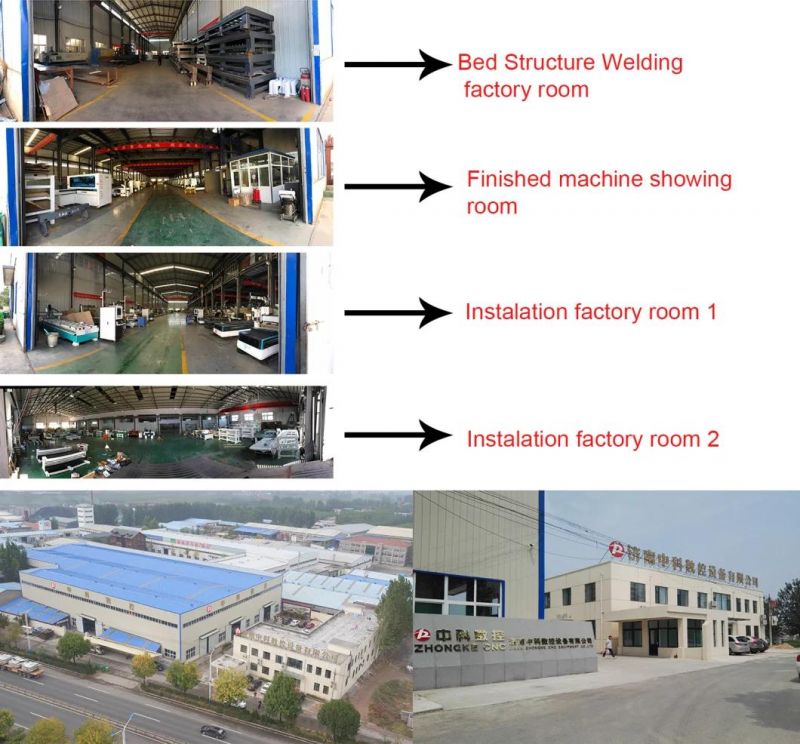

Company photo
