• Model NO.：DTL-80DS
• Color：Customized
• Total Power：5.23kw
• Voltage：380V,50Hz,3pH
• Transport Package：Wooden Case
• Specification：2 brush rollers and 2 sanding roller
• Trademark：OSETMAC
• Origin：China
• HS Code：8465930000
• Production Capacity：2000set,Year

Basic Info.

Model NO. DTL-80DS Color Customized Total Power 5.23kw Voltage 380V/50Hz/3pH Transport Package Wooden Case Specification 2 brush rollers and 2 sanding roller Trademark OSETMAC Origin China HS Code 8465930000 Production Capacity 2000set/Year

Product Description

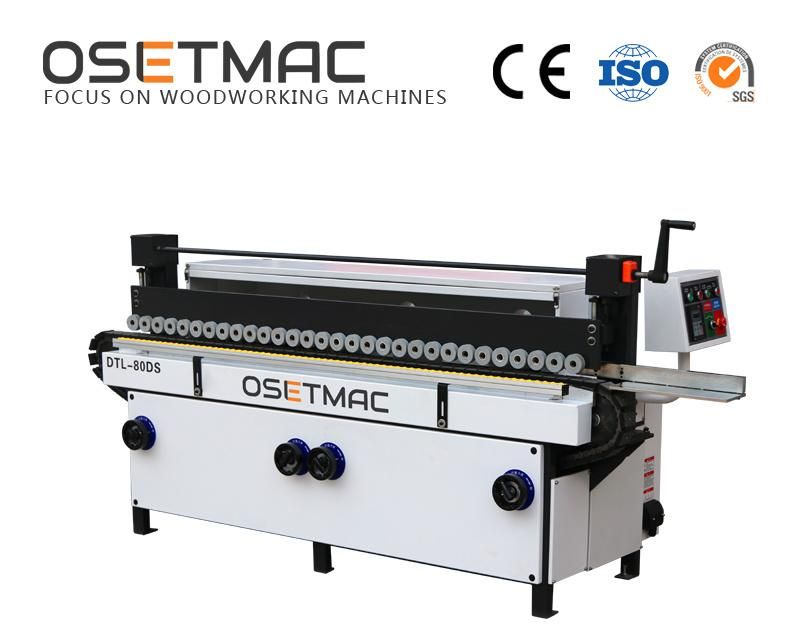

OSETMAC Side Sanding Machine DTL-60DS for Plywood, MDF and Veneer

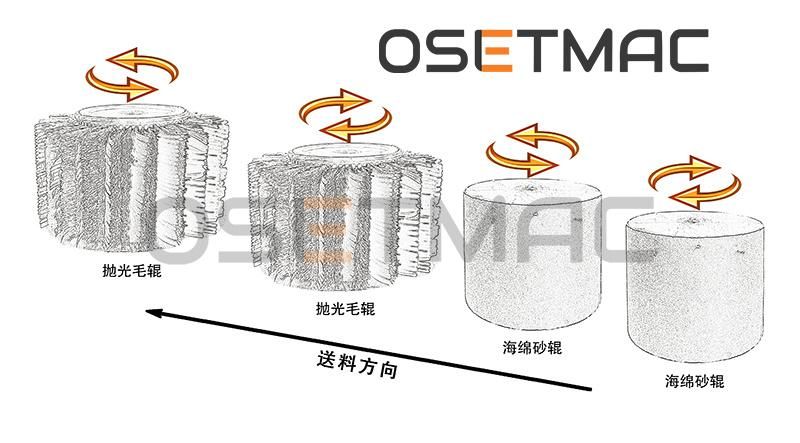

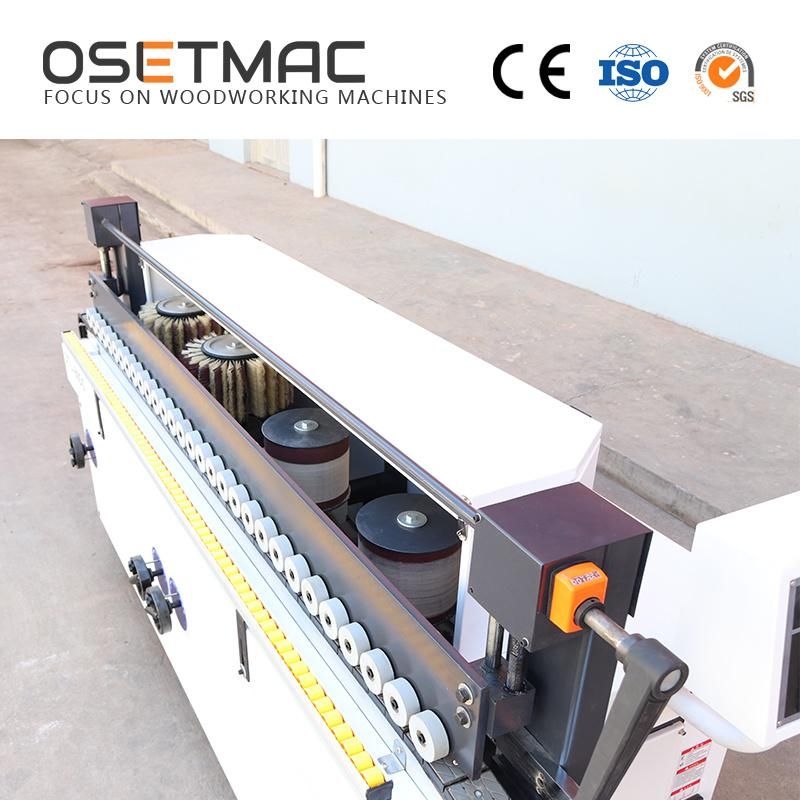

OSETMAC Side Sanding Machine Roller Layout
 OSETMAC Side Sanding Machine Specifications

Model	DTL-80DS
Working Width	≥50mm
Working Thickness	5-40mm
Height Of Sanding Roller	150mm
Diameter Of Sanding Roller	180mm
Height of Brush Roller	150mm
Diameter Of Brush Roller	300mm
Speed Of Rollers	Frequency Control
Speed of conveyor	12m/min
Total Power	5.23kw
Power Supply	380V/50Hz
Main motor	0.75kw * 4
Conveyor motor	0.75kw
Channeling motor	0.37kw * 4
Packing Dimension	2900*1000*1200mm
Net Weight	690kw
Wooden Case Dimension	2950*1100*1330mm
Wooden Case Weight	125kg

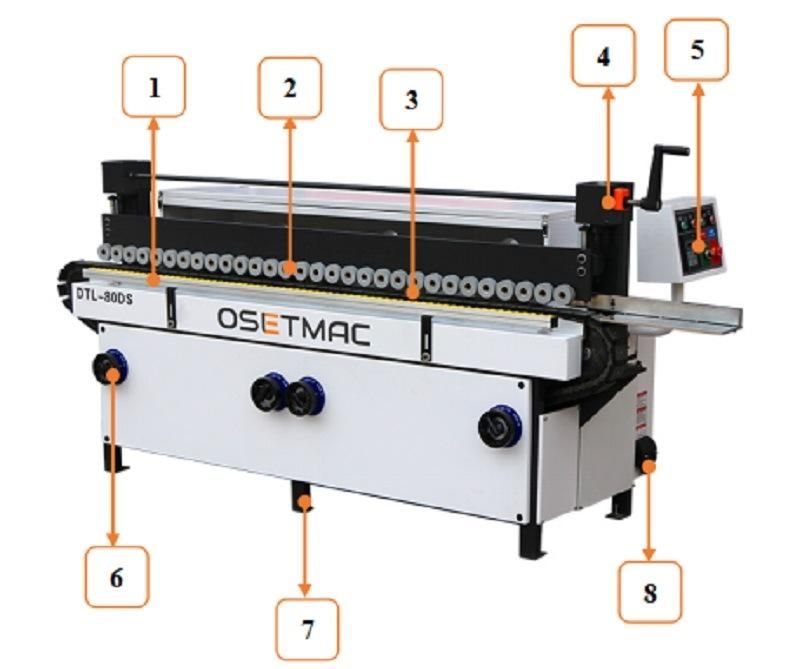

OSETMAC Side Sanding Machine Details Show





1	Slide rail	It can stretch according to the size of the sanding materials

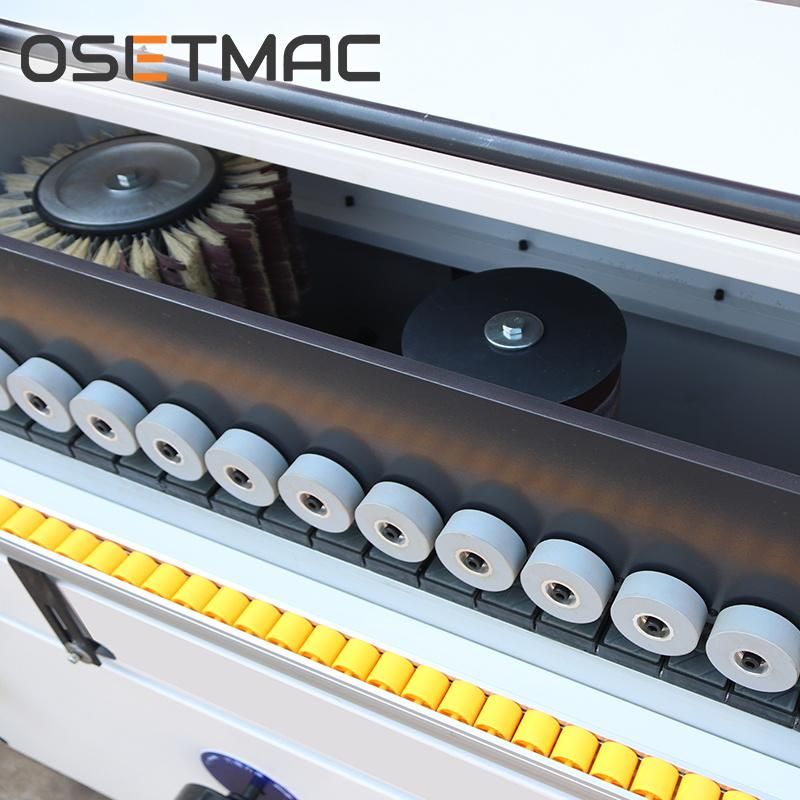

2	Press Roller	To press the sanding material
3	Conveyor	Automatic feeding conveyor makes the machine more efficient
4	Press Roller Lifting Digital Display Handle	To show the thickness of the sanding material
5	Control Panel	Easy operating control panel to control the working of the machine
6	Roller Adjusting Handle	To adjust the distance between the sanding rollers and the sanding material
7	Foot Screws	To make the machine stable when it works
8	Junction Box	To connect power

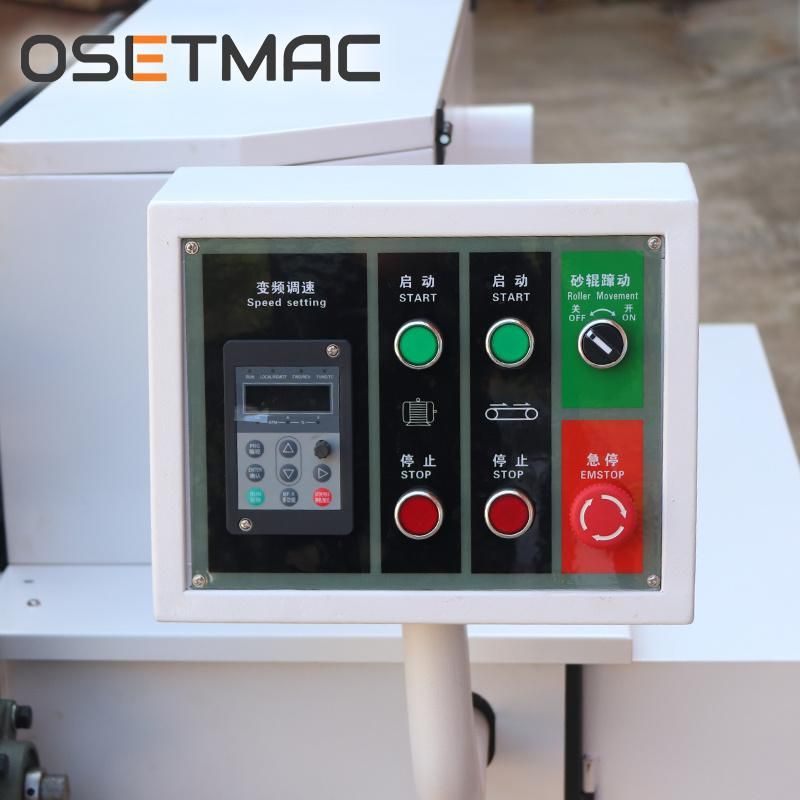

(1) The control panel with a rotating design is easy to operate and it is easy to ajust the speed of rollers rotating by the inverter on the panel.

(2) We can provide the sandpaper from 80-600 grades, and we provide customized services according to your requirements.

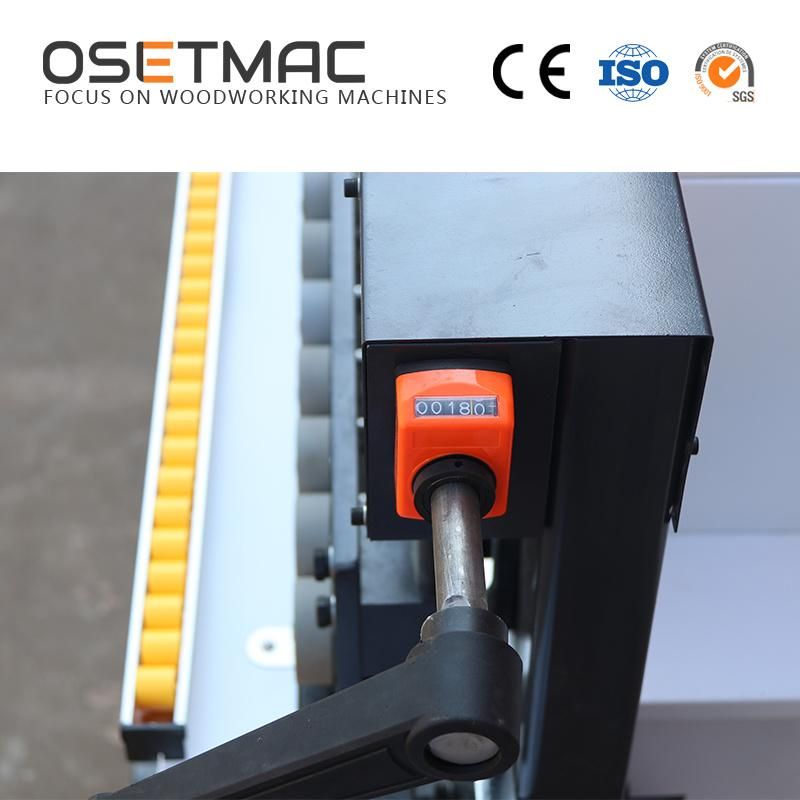

(3) This side sanding machine uses a digital display handle to adjust the lifting, and the height can be accurate to millimeter.


(4) This side sanding machine is equipped with a stretchable slide rail, which can be adjusted according to the width of the sanding material.



(5) The sanding rollers on this side sanding machine is electric lifting, which makes the machine more stable and guarantees the sanding effect.
