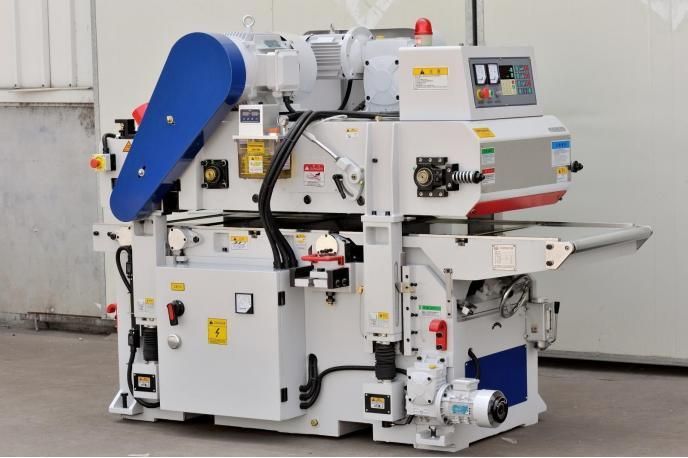

MB206h Double Side Planer Moulder Woodworking Machinery for Solid Wood

QINGDAO SOSN MACHINERY CO., LTD.
  • Warranty：2 Years
  • Type：Double-sided Pressure Planer
  • Working Depth：100-200mm
  • Working Width：630mm
  • Drivetrain：Feed Drivetrain
  • Enter Method：Mechanical

Base Info

  • Model NO.：MB206H
  • Motor Power：30kw
  • Cutter Shaft：Helical Cutter
  • Spindle Speed：5000rpm
  • Process Type：Heavy Processing
  • Certification：CE, ISO
  • After-sales Service：Video ,Email,Phone
  • Model：MB206h
  • Total Power：30kw
  • Processing Width：630mm
  • Processing Thickness：150mm
  • Using：Woodworking, Wood Flooring, Double Side Planing
  • Product：Wood Floor, Door Frame, Timber
  • Voltage：380V Can Customer Made
  • Place of Origin：Qingdao, Shangdong Province
  • Transport Package：Wooden Case
  • Specification：2800kg
  • Trademark：SOSN
  • Origin：China
  • HS Code：84659200
  • Production Capacity：300sets,Month

Description

Specification of double side planer moulder MB206HWorking width 630 mmWorking thickness150 mmMin. working length 260 mmMax. cutting depth (upper spindle )7 mmMax. cutting depth (bottom spindle )5 mmTool cutting circle diameter 101 mmSpindle speed 5000 r/minFeed speed 6-26 m/minUpper & bottom spindle motor 15/11kwFeed motor 4 kw Machine weight 2800kg

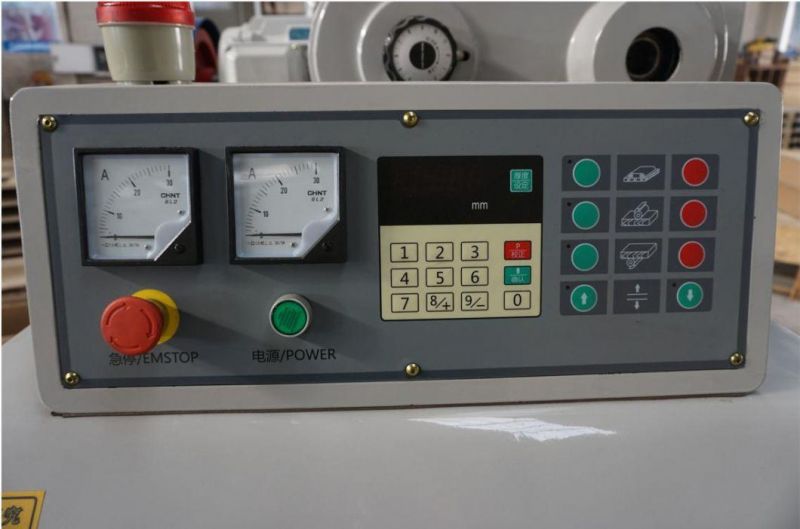

   ---Digital position control
the thickness of cut can be controlled by a digital positioning control.once the preset position is reached ,the table elevation stops automatically.it us very accuracy and the operation is very easy .
*feeding system with frequency converter control for adjusting speed

MB206h Double Side Planer Moulder Woodworking Machinery for Solid Wood

Automatic lubricator
MB206h Double Side Planer Moulder Woodworking Machinery for Solid Wood

Digital position control
the thickness of cut can be controlled by a digital positioning control.once the preset position is reached ,the table elevation stops automatically.it us very accuracy and the operation is very easy .
*feeding system with frequency converter control for adjusting speed

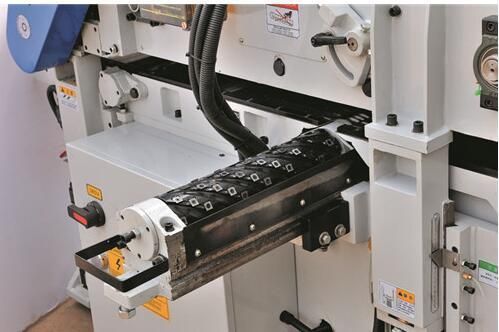

MB206h Double Side Planer Moulder Woodworking Machinery for Solid Woodoptional spiral cutter head
*the spiral cutter head is precision machined provides extremely fine surface of cut with minimum noise.the helical cutter head is fitted with T.C.T knife bits

MB206h Double Side Planer Moulder Woodworking Machinery for Solid Wooddurable working table
*the table surface is hard chrome plated and precision ground for extremly smooth feeding and maximum wear resistance
*the four table rollers provide superior feeding performance

MB206h Double Side Planer Moulder Woodworking Machinery for Solid Woodwell laid -out pressure spikes
*the pressure spikes are in an overlapped layout with a minimum of gaps that hold the work pieces firmly and ensuring shake-free feeding ,even for short workpieces

MB206h Double Side Planer Moulder Woodworking Machinery for Solid Woodcasting iron for machine body
*machine frame and working table adopt quality casting iron ,which canm keep the stable performance and good accuracy

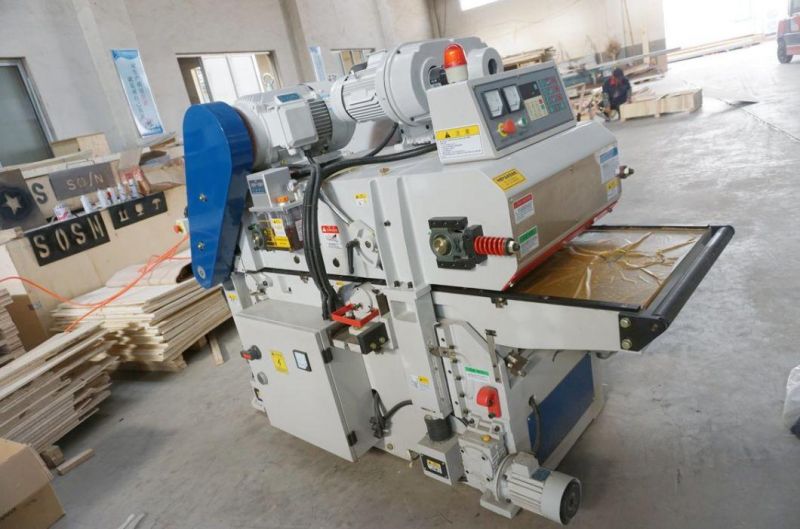

 Machine in factory :
MB206h Double Side Planer Moulder Woodworking Machinery for Solid WoodMB206h Double Side Planer Moulder Woodworking Machinery for Solid Wood
samples:
MB206h Double Side Planer Moulder Woodworking Machinery for Solid Wood
other related machines:

MB206h Double Side Planer Moulder Woodworking Machinery for Solid Wood

1. Lead Time?
Within 15 days for regular stock machine after receiving down payment.
30days for customized machines,
2. Warranty ?
2 years for machine, 2years for the core components.
3. Spare Parts?
Unified standards spare parts are available anytime.
4. Voltage?
Regular voltage 380v, 50hz; customized voltage is available.
5. After-sale Service?
24 hours technical support by email, call and video.
our engineer is available to visit at your expenses of accommodation and round tickets.
6. Why us?
1). 22ears experience in woodworking machinery since 2000
2). Our own casting workshop to insure extra heavy one-piece cast iron machine body for maximum stability and rigidity. Control quality from raw material.

welcome your inquriy anytime !!!
