Woodworking Machinery Veneer Panel Plywood Furniture Heat Hydraulic Hot Press Machine
Qingdao Haozhonghao Woodworking Machinery Co., Ltd.- Warranty：1 Year
- Work Forms：Hydraulic Pressure
- Processing Technics：Hot Press
- Structure：Frame Type
- Pressing Shape：Flat Press
- Platen Surface Pressure：Medium Pressure
Base Info
- Model NO.：BY214*8,20(5)
- Pressing Layer：Multi Layer
- Work Mode：Continuous
- Controlling Mode：Artificial
- Automatic Grade：Semiautomatic
- Certification：ISO
- Transport Package：Plastic Film
- Specification：3750*1450*2450MM
- Trademark：HZH
- Origin：Qingdao
- HS Code：84659900
- Production Capacity：20sets,Month
Description
Basic Info.
Model NO. BY214*8/20(5) Pressing Layer Multi Layer Work Mode Continuous Controlling Mode Artificial Automatic Grade Semiautomatic Certification ISO Transport Package Plastic Film Specification 3750*1450*2450MM Trademark HZH Origin Qingdao HS Code 84659900 Production Capacity 20sets/MonthProduct Description

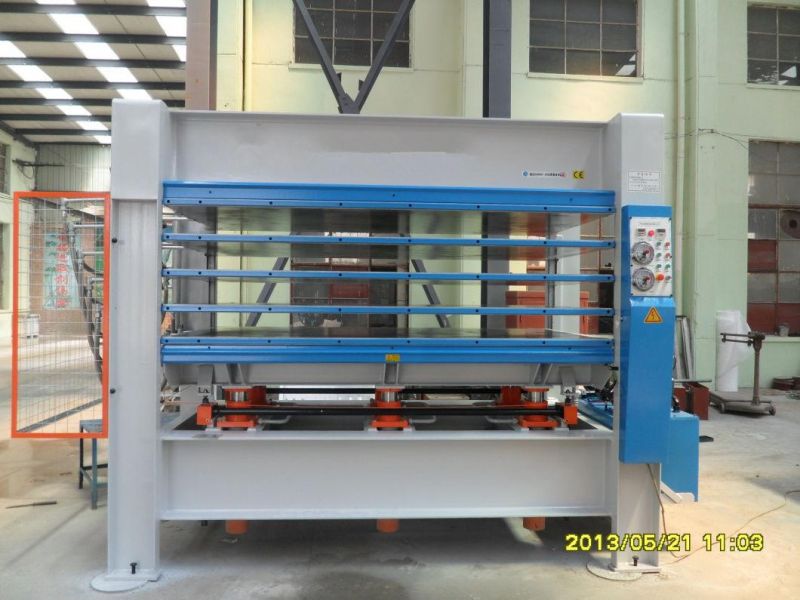

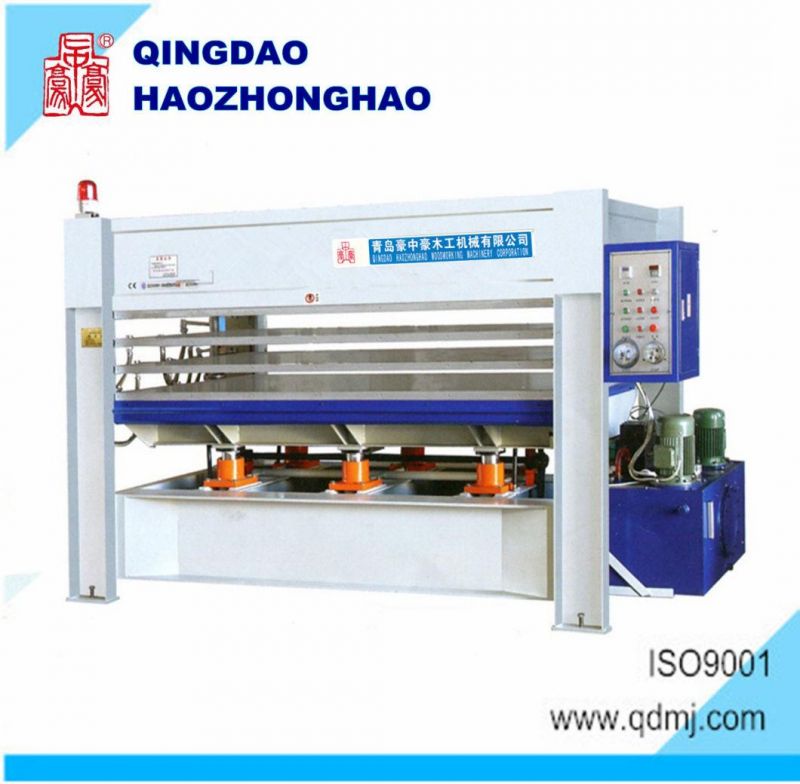

Woodworking plywood furniture hydraulic Hot press machine| Model | BY214*8/20(5) |
| Nominal pressure | 200T |
| Dimension of hot platens | 2500*1300*42mm |
| Service opening | 80mm |
| Layer | 5 |
| Number of cylinders | 6 |
| Diameter of cylinders | 130mm |
| Power | 7kw |
| Heating Power(thermal oil furnace) | 55.5kw |
| Overall size | 4100*1650*2500mm |
| Net weight | 11500kg |
Designed for hot pressing, stickers veneer, veneer furniture panels, door panels, HDF, chipboard etc.
They are used in industries working with board materials, furniture production of any capacity.
• reamed steel plate with high quality
• Equipped with the high and low pressure gauge controller
• Temperature control is carried out pressing thermostat
• The press is equipped with an automatic timer on the outdoor table
• Hydroelectric include and easy to install and operate

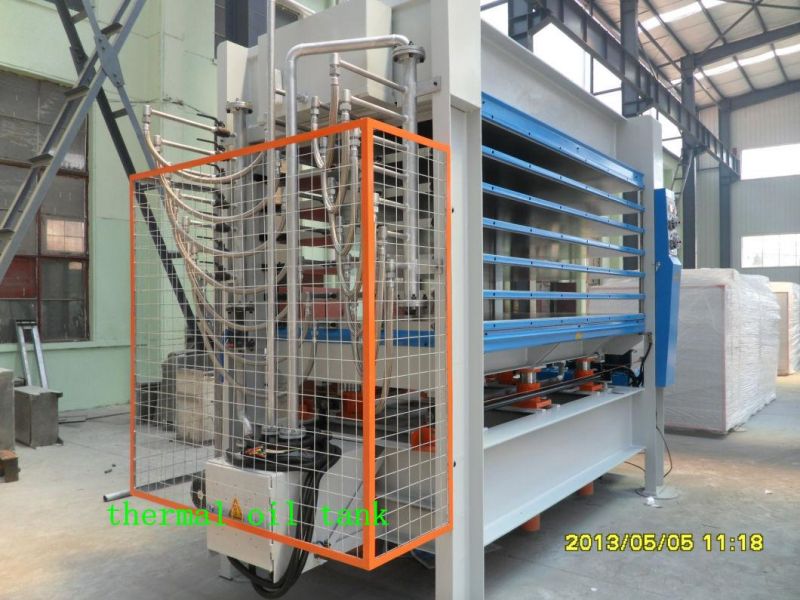

• Boiler heating plates based on heating conduction oil
Packing&Delivery
Package: Plastic film package.
Delivery: About 30 days after receive the down payment.
