• Model NO.：SZLH660
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Green
• Capacity：1.5-2t,H
• Power：132kw
• Usage：Making Biomass Pellets
• Transport Package：Plywood Box
• Specification：2500x1300x1900mm
• Trademark：Kingoro
• Origin：China
• HS Code：8474802000
• Production Capacity：100

Basic Info.

Model NO. SZLH660 Warranty 1 Year Customized Customized Condition New Color Green Capacity 1.5-2t/H Power 132kw Usage Making Biomass Pellets Transport Package Plywood Box Specification 2500x1300x1900mm Trademark Kingoro Origin China HS Code 8474802000 Production Capacity 100

Product Description

1.5-2t/h vertical ring die wood pellet machine with 132kw

Product Application

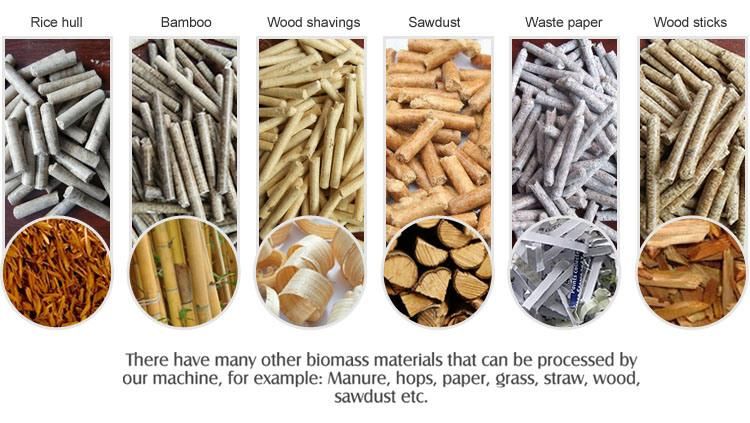

Through the method of physical extrusion, the vertical ring die pellet machine can make all kinds of biomass raw material into pellet. Raw material is feeding vertically and is directly in place, with stationary die and rotary pinch roller. Double ring type, can use both. The mould is in vertical structure, which is good for heat dissipation. With independent lubricating, no need to stop machine for special maintenance. It is widely used in biomass burning factory, power plant, wood processing plant, chemical plant, food products factory, winery plant etc.



Model	Power (kw)	Capacity (t/h)	Size (mm)
SZLH470	55	0.8-1.0	2000x1550x1680
SZLH560	90	1.2-1.5	2600x1300x2300
SZLH660	132	1.5-2	2500x1300x1900
SZLH760	160	1.5-2.5	3000x1500x2600
SZLH850	220	2.5-3.5	3780x1700x2950

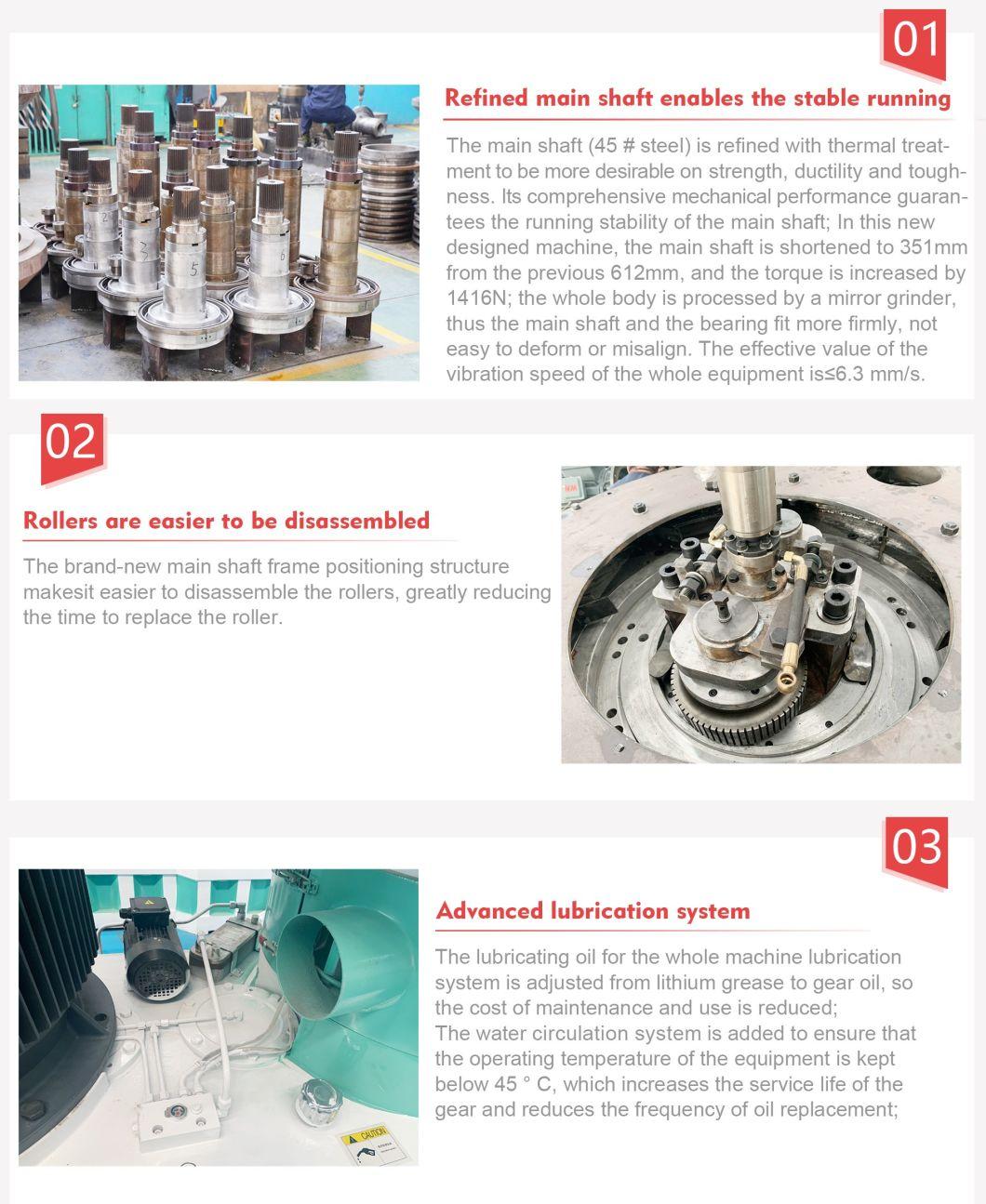

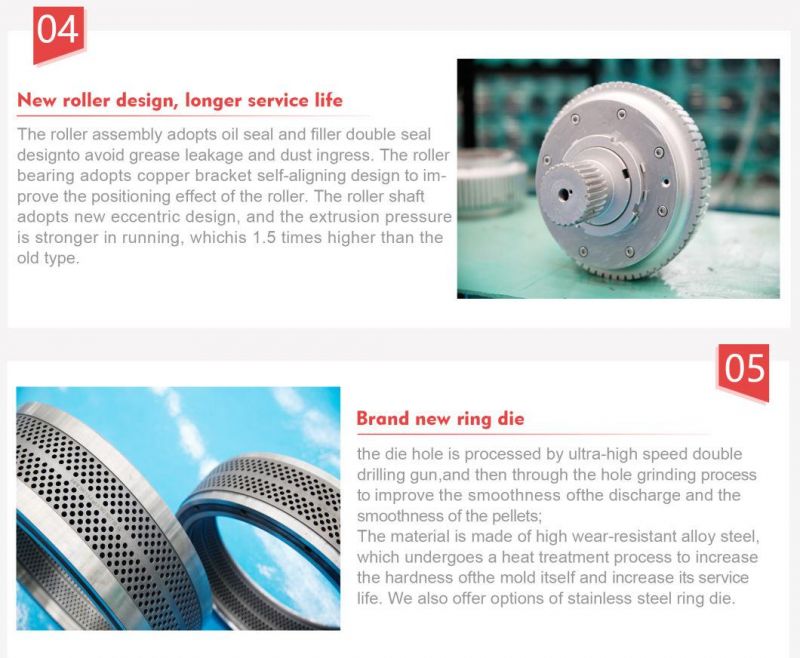

Main Features

1) Raw material is feeding vertically and is directly in place, with stationary die and rotary pinch roller,the material is centrifugal and equipspaced around the die.

2) The die is double ring type, with vertical structuer,pelletizing room is also used for cooling,more options, and more gains.

3) The independent ejection device ensures the forming rate of pellet, the good design lowers the consumption and enhances the efficienty. it works 24 hours and lubricates automatically.

4) The main load-carrying component used high alloy wear resistant materials. the wearing parts lifetime doubles compared with other similar products.



Customer Visit

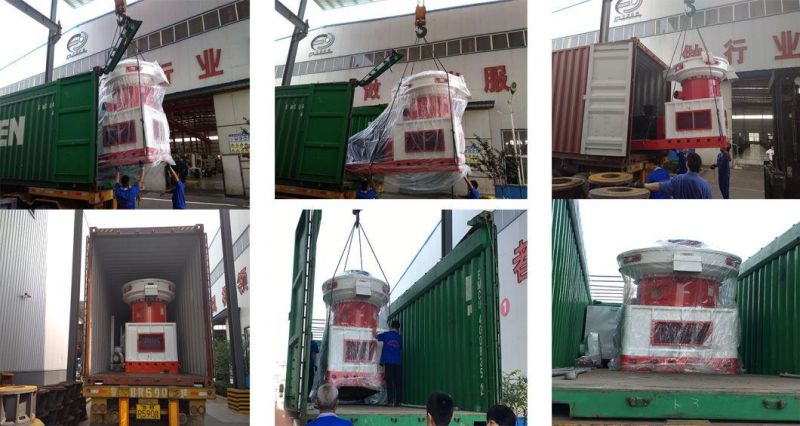

 Packing And Delivery

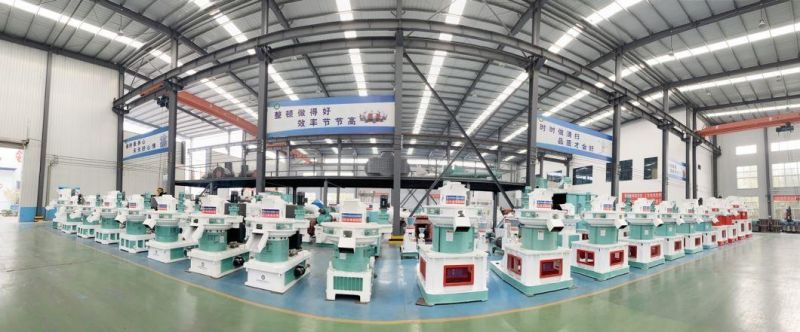

 Picture Of Our Factory


 FAQ

1.We need to know the following information to give a quote and solution

1)What is your raw materials? (to confirm mould pressure ratio of machines )
2) What is the moisture content of your raw material?
3)How many output capacity do you want per hour / month/ year?
Note: If the moisture is high, you need a dryer, becuase the suitable moisture content to enter pellet machine is 10-15%.
And please provide us above detailed information, then we would design the most suitable production line with reasonble offers.

2. Q: How long is your guarantee?

A: 12 months warranty but except quick wearing parts.

3. Q: Will you send engineers to install the machines?

A: Of course. Our company has professional installation engineers team and specialized after-sale service team.
When the machines arrive your factory, we will send our installation engineers to your factory
Our engineers will Guide you to install the machines and training your workers how to operate the machines and maintain the machine.

4. Q: Voltage requirement ?
A: Our machines can use 380V, 220V, 240V, 415V, 480V, and 50Hz, 60Hz.
