• Model NO.：SX1325A-3
• Customized：Customized
• Condition：New
• Color：Customized
• Usage：CNC Router for Engraving
• Traveling Size：1300*2500*200mm
• Worktable Structure：0.05mm
• Drive Type：X,Y Axis Rack and Pinion Drive Z-Axis Screw Drive
• Driving System：Servo Motor
• Control System：Syntec
• Max. Traveling Speed：50m,Min
• Max Working Speed：20m,Min
• Spindle Power：6.0kw+4.5kw*2 Air Cooling
• Run Command：G Code
• Transport Package：Standard Wooden Case Package
• Specification：1300mmx2500mmx150mm
• Trademark：SOSN
• Origin：China
• HS Code：84649090
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. SX1325A-3 Customized Customized Condition New Color Customized Usage CNC Router for Engraving Traveling Size 1300*2500*200mm Worktable Structure 0.05mm Drive Type X/Y Axis Rack and Pinion Drive Z-Axis Screw Drive Driving System Servo Motor Control System Syntec Max. Traveling Speed 50m/Min Max Working Speed 20m/Min Spindle Power 6.0kw+4.5kw*2 Air Cooling Run Command G Code Transport Package Standard Wooden Case Package Specification 1300mmx2500mmx150mm Trademark SOSN Origin China HS Code 84649090 Production Capacity 100 Sets Per Month

Product Description

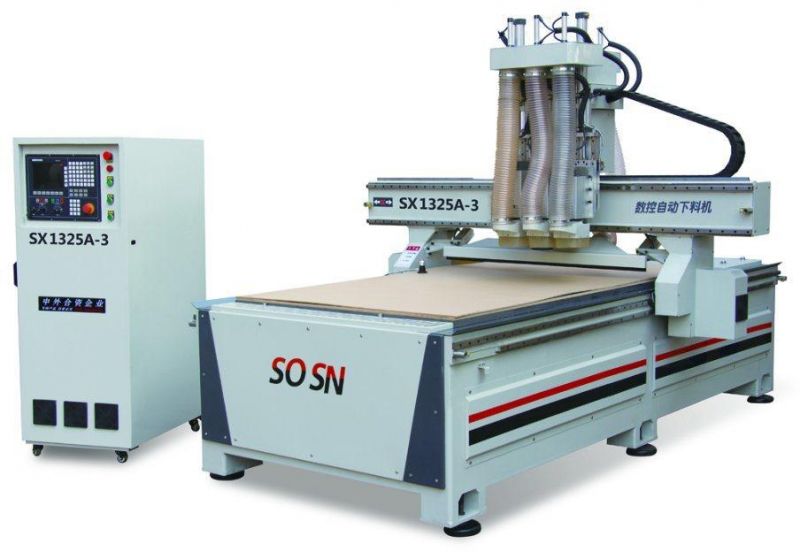

 Woodworking Machinery Three Head CNC Router for Wood Cutting and Engraving



1.Main configuration and function

Economic woodworking cnc router.adopt Italy spindle,Germany screw racks,
Taiwan HIWIN 30 guide rail,a high cost performance products.


1) Standard double spindles,do grooving,can also install different tools ,make the cutting,drilling,engraving together first spindle,reduce changing tools time , improve working efficiency.

2) Imported components,such as France Schneider electric components,and precision gear box,stable     performance.

3) The body through annealing treat,body stability and not defotion.

4) Worktable is vacuum,can adsorb all kinds of materials.

5) Move fast,high efficiency.Carving fine without sawtooth wave,the bottom surface is smooth,clear outline.

6)Adopt Italy original rack,Taiwan HIWIN guide rail,cutting speed fast ,cutting surface is smooth


Workable processing	1300*2500*200mm
Max working size	1220*2440*150
Platform size	1300*2500mm
Transmission	XY axis Germany HERION rack drive Z-axis Taiwan TBI screw
Servo motor	YAKO servo
Table structure	vac-sorb
Spindle power	6kw+4kw*2
Spindle speed	0-18000r/min
Max traveling speed	45m/min
Max working speed	30m/min
Voltage	AC380/3PH/50HZ
control system	Syntec

2.Applicable industries and materials

1) Furniture: wooden doors, cabinets, panel, office furniture, furniture doors and
   windows

2) Woodwork:Speaker, game cabinet, computer desk

3) Decoration industry:acrylic, PVC, density board, organic glass and others

3.At Guangzhou exhibition

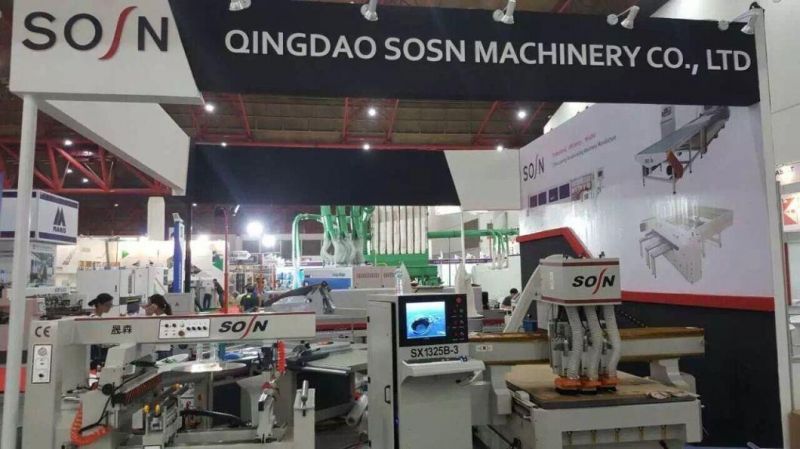

4.At Indonesia exhibition 2016



5.At Shanghai exhibition



6.Here we promise these :
1,One stop service for all kinds of woodworking machines for you
2, High cost performance with reasonable price and our best quality
3,15-20 days delivery time
4,Excellent after-sale services
5,24 hours technical support through email or calls.
6,Not only business, hope to make good friend with you
7,No worries any more.

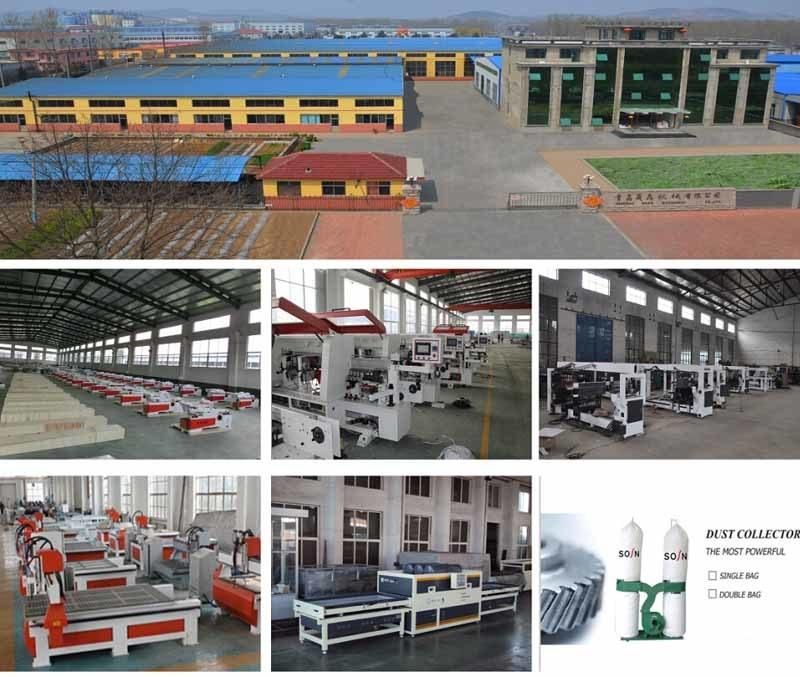

7.Welcome to our factory !



Anything I can do here for you,pls feel free to let me know.
It's my pleasure to serve you !
