Product Description

Drum Chipper for MDF, Particle board, Wood, Log, Timber, Veneer
Introduction

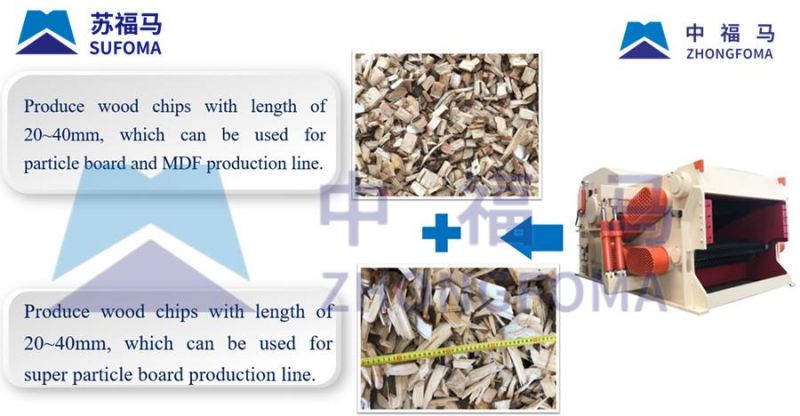

Drum chipper is the traditional product of our company. It is widely used by domestic and oversea customers because of its good performance, top quality and other advantages. The drum chipper is the special equipment for producing perfect chips. It is used in paper plant, particle board plant, fiber-board plant and chips bases. By which, logs and small wood are cut into high quality chips with even length and uniform chip thickness, it is also suitable for the chipping of branches and twigs, planks and etc. The chip length is different in accordance with the requirement of paper plant, particle board and fiber-board industries, so in order to meet this need, our company improve different kind of drum chippers recently, and the new type machine has more advantages. All the features show that it is an ideal equipment for chip production which can be uses all over the world.

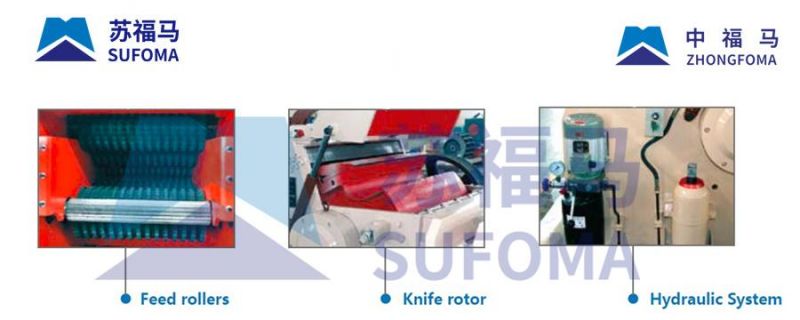

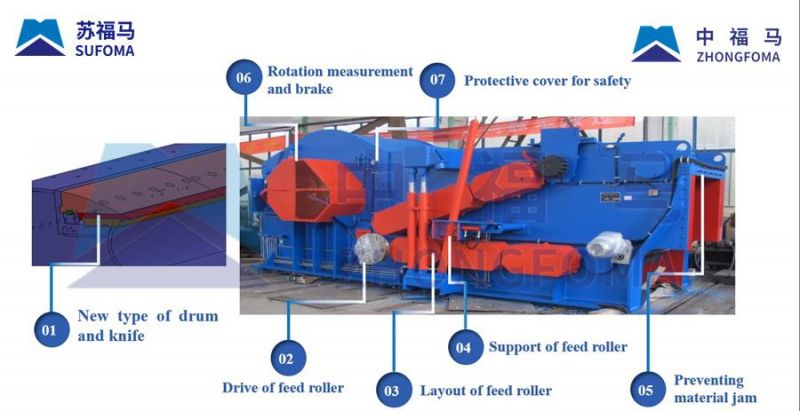

Main compose of drum chipper





1. The machine base is a welding structure with high strength steel plate serving as a support of the whole machine.

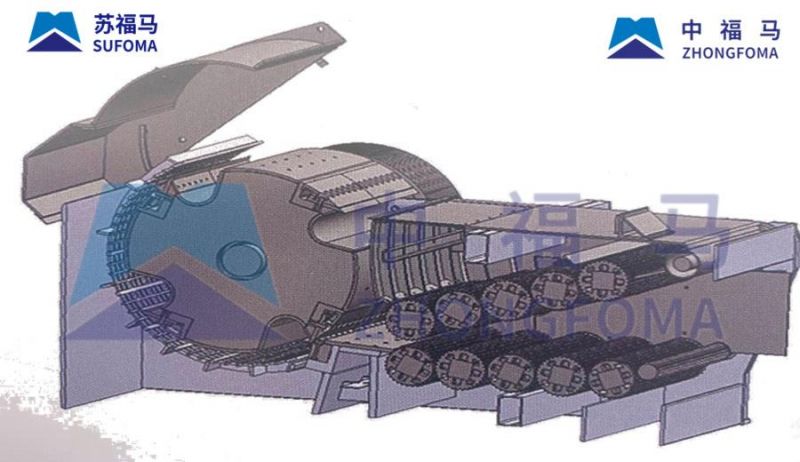

2. The knives (2,3 or 4) are installed to the roller via clamping plate by special knife bolts. The upper feed rollers assembly, with the help of hydraulic system, can float up and down over the material to be cut within certain range, according to the thickness of the material. Wood chips are discharged from the bottom of the machine after passing through screen holes, oversized chips will be re-chipped in the machine.
3. Hydraulic system: the oil pump supplies the cylinder with pressure oil, and open the drum cover for easy knife change; and lift the upper feed roller to facilitate the adjustment of the clearance between rotor knives and bed knives, and ease the

Main characteristics of drum chipper

1. Adopted to a variety of raw materials: Our drum chipper has a wide range of adoptability in cutting wood and non-wood materials
2. Strict quality control in entire process, which start from design, manufacture to after sale service: Decades of experience to manufacture chipper, and strict industry standard. Selected raw materials, Strict quality control to the outsource fittings. Electric elements, hydraulic element are high quality brands at home and abroad. Large precise equipment ensures us manufacturing quality chipper.
3. Lower operating cost to the users: The design ensures the chipper can be faster and easier to maintenance, reduce operating cost.

Main technical data


Speciifcations/Model	BX218D	BX2110	BX2113	Bx2113/11	BX2113/13	BX2116	BX2120
Rotor diameter (mm)	800	1000	1300	1300	1300	1600	2000
Number of rotor knives (pieces)	2	2x2	2	3x2	4x2	4x2	3x2
Feed opening (mm)	240x750	330x1050	400x700	400x1050	400x1250	600x1250	850x1250
Max diameter of raw material (mm)	160	210	230	230	250	310	370
Chip length (mm)	30	30	38	30	30	30	35
Capacity (m3/h)	38	75	34-64	100	132	185	190
Main drive motor power (kW)	132	220	200-250	315	450	710	1000
Feed roller motor power (kW)	4x2	7.5x2	7.5x2	11x2	11x2	18.5x2	22x2
Pump motor power (kW)	0.55	2.2	2	2.2	2.2	4	3
Machine net weight (kg)	7300	12500	11800	14500	20540	32000	55000
Overall dimension/LxWxH (mm)	4670x2150x1500	4340x3550x1500	3670x2517x2050	3485x2860x1830	5484x5400x1860	4360x3150x2200	7970x7150x2750
