• Model NO.：MY994X8,5C
• Pressing Layer：Single Layer
• Work Mode：Continuous
• Controlling Mode：CNC
• Automatic Grade：Automatic
• Certification：CE
• After-sales Service：Mainframe One Year,Electrical 6 Months
• Model：My994X8,5c
• System Air Pressure：≤0.5MPa
• Working Layer：1
• Working Table Effective Size：2300X1100mm
• Platen No.& Diameter：2-2500X1300X42mm
• Opening：200mm
• Cylinder No.& Diameter：6-φ150mm
• Controlled Way：Automatic, PLC Man-Machine Interface Control
• Installed Power：41.85kw
• Closed Speed：25mm,S
• Transport Package：Film
• Specification：CE
• Trademark：variopress
• Origin：Shunde, Foshan, China
• HS Code：8465990000
• Production Capacity：30sets,Month

Basic Info.

Model NO. MY994X8/5C Pressing Layer Single Layer Work Mode Continuous Controlling Mode CNC Automatic Grade Automatic Certification CE After-sales Service Mainframe One Year,Electrical 6 Months Model My994X8/5c System Air Pressure ≤0.5MPa Working Layer 1 Working Table Effective Size 2300X1100mm Platen No.& Diameter 2-2500X1300X42mm Opening 200mm Cylinder No.& Diameter 6-φ150mm Controlled Way Automatic, PLC Man-Machine Interface Control Installed Power 41.85kw Closed Speed 25mm/S Transport Package Film Specification CE Trademark variopress Origin Shunde, Foshan, China HS Code 8465990000 Production Capacity 30sets/Month

Product Description

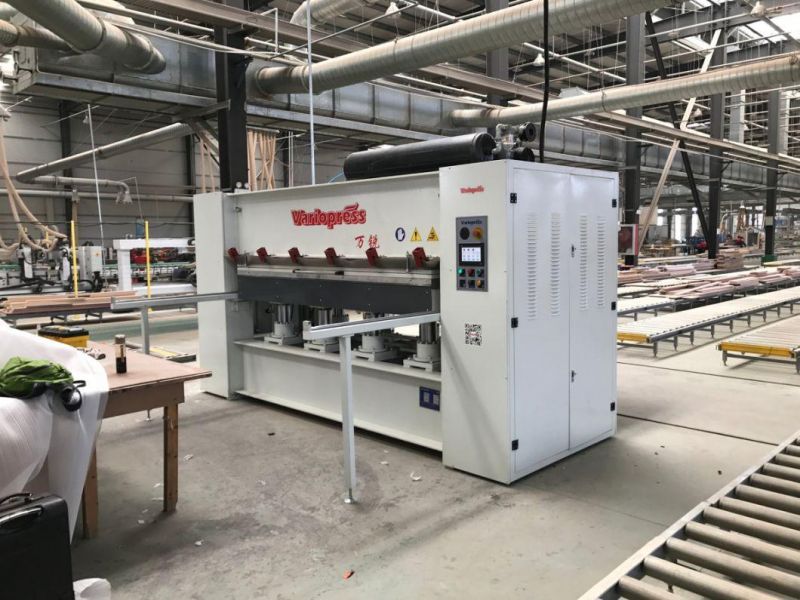

membrane press feature:
This series of equipment is designed for manufacturing room doors and cupboard plates,  which can be used for film the veneer of door core-boards. This can realize many functions( cold and hot pressing machine, filming single side or double sides of solid wood door plates)

1. The equipment frame is welded with quality steel materials. without deformation and high stability.
2. Use International branded Omron PLC touch screen control, easily operation,every parameter can be read through touching screen, leading technology and high automatic level.
3. Select domestic straight-through vacuum pump with Germany technology. High quality and steady usage.
4. The electrical system use international branded products,such as Schneider, Omron .
5. Hydraulic system use Italy Atos, Japan Yuken system.
6. The temperature uniformity of heated surface and the heating efficiency are highly improved by using the heating oil as the heating medium.

Technical parameter:

Model	MY994X8/5C
Working table effective area	2300x1100mm
Platen No.& size	2-2500x1300x42mm
Opening	200mm
Cylinder No.& diameter	8-125mm
Heating way	electric heated with thermal oil
Platen opening way	automatic
Installed power	41.85kw
Air source pressure	0.5Mpa
Loading way	moveable frame
