• Model NO.：BXQ1814,38XD
• Controlling Mode：CNC
• Power Source：Electric
• Processing Accessory：Wood Veneer
• Certification：CE, ISO, FDA
• Transmission Way：Single Roller Moving
• Function：Wood Veneer Peeling and Clipping
• System Language：English,Spanish,Russian
• Size：4feet
• Color：White
• Motor：Siemens
• Installation Way：Without Foundation
• Wood Species：Hard or Soft Woods
• Working Voltage：380V,415V,440V
• Delivery Way：Container
• Transport Package：Container
• Specification：4900x1900x1550mm
• Trademark：METRO
• Origin：China
• HS Code：8465960000
• Production Capacity：100sets,Year

Basic Info.

Model NO. BXQ1814/38XD Controlling Mode CNC Power Source Electric Processing Accessory Wood Veneer Certification CE, ISO, FDA Transmission Way Single Roller Moving Function Wood Veneer Peeling and Clipping System Language English/Spanish/Russian Size 4feet Color White Motor Siemens Installation Way Without Foundation Wood Species Hard or Soft Woods Working Voltage 380V/415V/440V Delivery Way Container Transport Package Container Specification 4900x1900x1550mm Trademark METRO Origin China HS Code 8465960000 Production Capacity 100sets/Year

Product Description

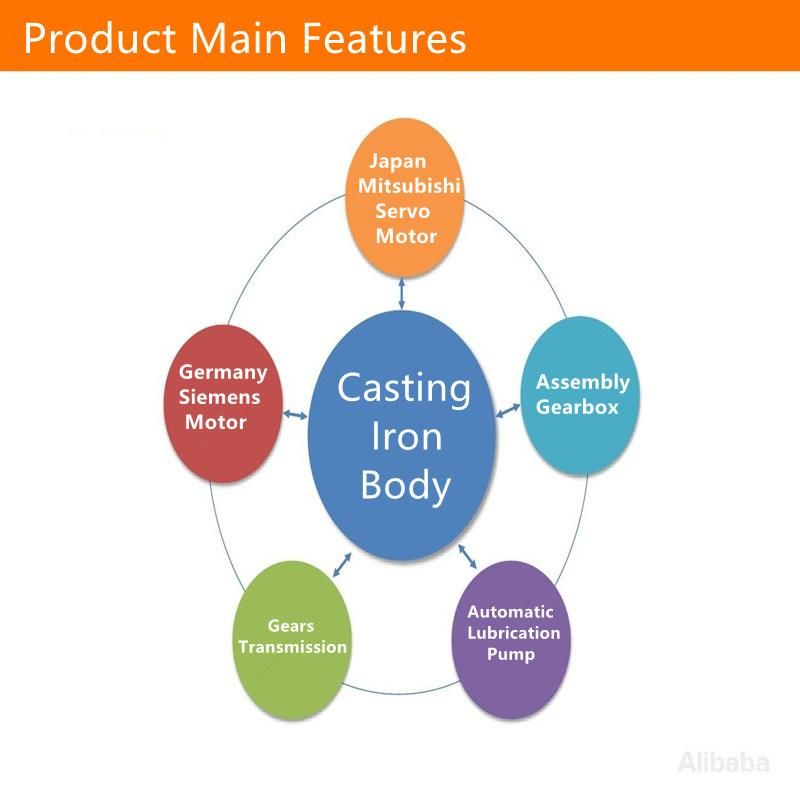

Plywood veneer peeling machine with casting frameMain features:
1.2018 all new generation research & design WITH CASTING IRON BODY.
2.Long working life no deformation and stable working.
3.Save 40% - 60% of power, reduce production cost.
4.Veneer double sides smooth and thickness evenness less than 0.05mm.
5.Double motors rollers, speed stable, overcome the unstable Indian voltage.
6.Bigger power inverter and English language PLC control system.
7.Double rollers moving make sure the veneer peeling more stable to get best quality wood veneer.
8.Automatic electrical lubrication system for all important mechanical parts.
9.Automatic air cylinders dropper for final log to save production time.
10.Assembled gearbox and Japan NSK bearings.
11.Best quality linear guide bar, high precision.
13.Exclusive manufacturer adopt the Japan mitsubishi servo motor and system to work with the Germany siemens motors.
14. Exclusive mfr adopt the gears transmission instead of chains transmission, higher efficiency, more stable.
Technical specifications:

Item	Specifications	Remark
Machine model	BXQ1814/38XD
Max. peeling length	1400mm	Roller length 1500mm
Max. peeling diameter	Φ380mm	Max.opening Φ380mm
Min. peeling diameter	Φ32mm	Cross roller can be Φ 28mm
Peeling speed range	0-55m/min	Frequency adjustable speed
Veneer thickness range	0.5-3.6mm	Double sides smooth

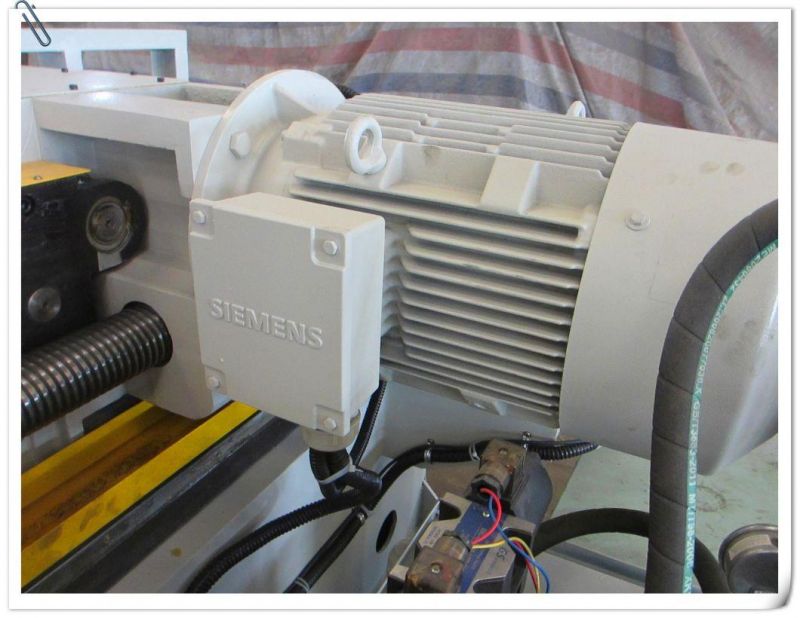

Double rollers motor power	15Kw	Germany Siemens
Single rollers motor power	15Kw	Germany Siemens
Feeding motor power	11Kw	Japan Mitsubishi Servo motor
Double rollers speed reducer	Assembled gearbox	Working stable, free maintenance
Single rollers speed reducer	Assembled gearbox	Working stable, free maintenance
Feeding screw speed reducer	Assembled gearbox	Working stable, free maintenance
Rollers specification	Φ125mm diameter	High frequency quenching treat Two sections, thicker chroming.
Machine structure material	Q235B	40mm thickness steel plate
Peeling knife size	1500x180x16mm	Japan tech
Machine overall dimension	4500x1900x1500mm	Installation dimension
Machine weight	6800Kgs	Net weight

Part of working cases show:
