Sanding Machine / Sander for MDF, Particle Board, Chipboard and OSB
Sufoma Machinery Co., Ltd.- Type：Sanding Machine
- Automatic：Automatic
- Certification：ISO
- Width：1300mm~3250mm
- Feeding Speed：Max.150m,Min
- Transport Package：Wooden Case
Base Info
- Model NO.：BSG-V, BSG-V4i
- Specification：4ft, 6ft, 7ft, 8ft, 9ft
- Trademark：SUFOMA
- Origin：Suzhou, Jiangsu, China
- HS Code：8465930000
- Production Capacity：100 Sets,Year
Description
Equipment weightt 22~39 24~43 26~45 28~48
Main technical specifications

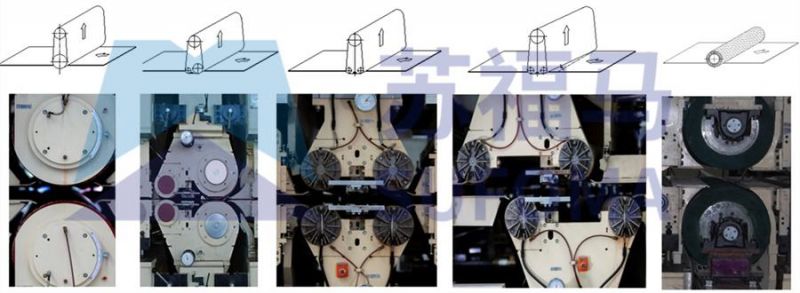

1. Multiple modules available
2. Super rigidity frame

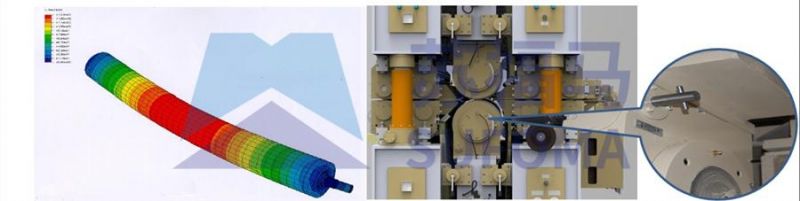

1) Cantilever beam precise control based on finite element model;
2) Advanced frame stress relief treatment;
3) High precision locking device
3. High interchangeable modular design
4. Contact drum roller
1) Big diameter contact roller with seamless eccentric device to ensure high running precision;
2) Special surface treatment of the drum roller;
3) Easy one-side adjustment of the contact drum roller.
5. Sprint system

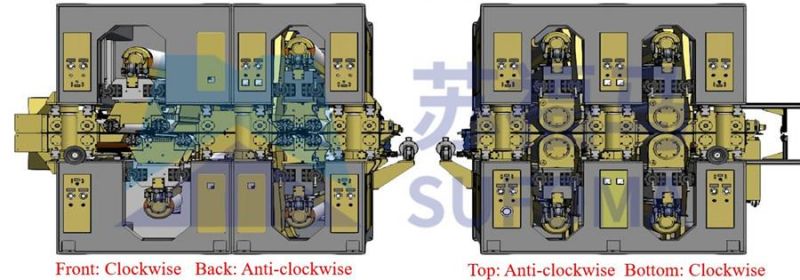

1) Combination of clockwise sanding and anti-clockwise sanding;
2) Angle Sprint system;
3) All-inclusive finishing effect and uniform surface quality.

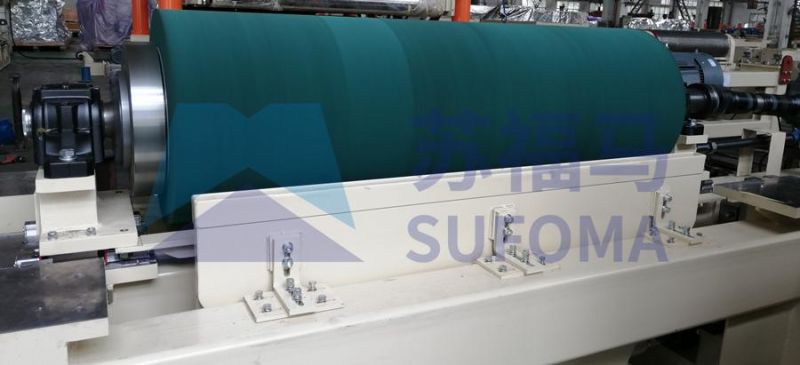

6. Polishing head
The polishing head with Non-woven cloth roller from 3M company gives a perfect finishing of the board with equal sanding effect of 180-240 grit sanding belt, but saving electricity cost up to 80%.
7. Highly efficient transmission
8.Dual air cell tension device to offset circumference tolerance of sanding belt
9. Highly efficient transmission with low heat generation; Pneumatic clamp feeding system
10. Mechanical lifting
11. Triple blocking for multiple board feeding
1) Laser thickness measurement;
2) Microswitch;
3) Blocking blade plate.

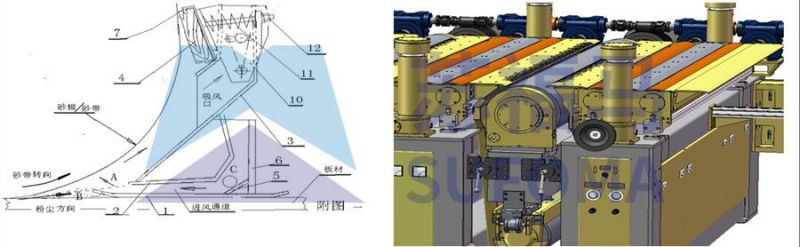

12. Dual suction opening in the dust removal system; Constant air compensation
13. Intelligent control system
1) Mainstream PLC with HMI, Profibus Communication;
2) Monitoring device: Temperature, vibration (Optional) Linear speed, Trend analysis, Malfunction diagnosis.
