Wood Chevron Machine/Diamond Floor Double End Tenoner/Chevron Parquet Flooring Double End Tenoner/ 45/60 Degree Double End Mortising in Angle/

Suzhou Trillion Shine Import & Export Co., Ltd.
  • Warranty：1 Year
  • Type：Making Chevron Parquet Floor
  • Spindle Layout：Horizontal
  • Spindle Number：Double-Spindle
  • Feed Mode：Mechanical
  • Controlling Mode：Artificial

Base Info

  • Model NO.：MX2120
  • Certification：CE, ISO
  • Customized：Customized
  • Condition：New
  • Color：Customized
  • Aplication：Used for Chamfering and Making The Tongue and Gro

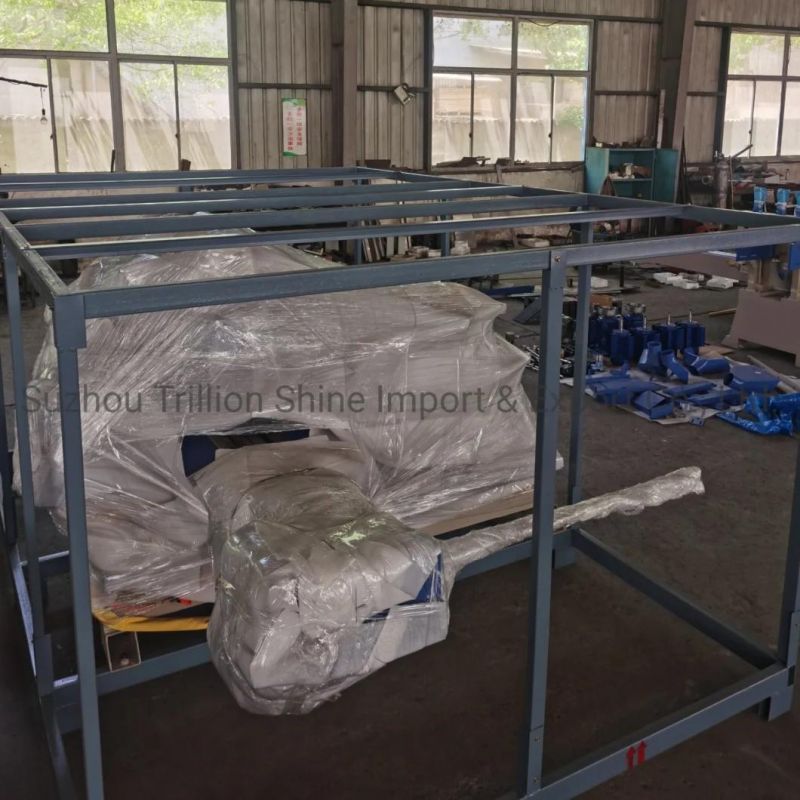

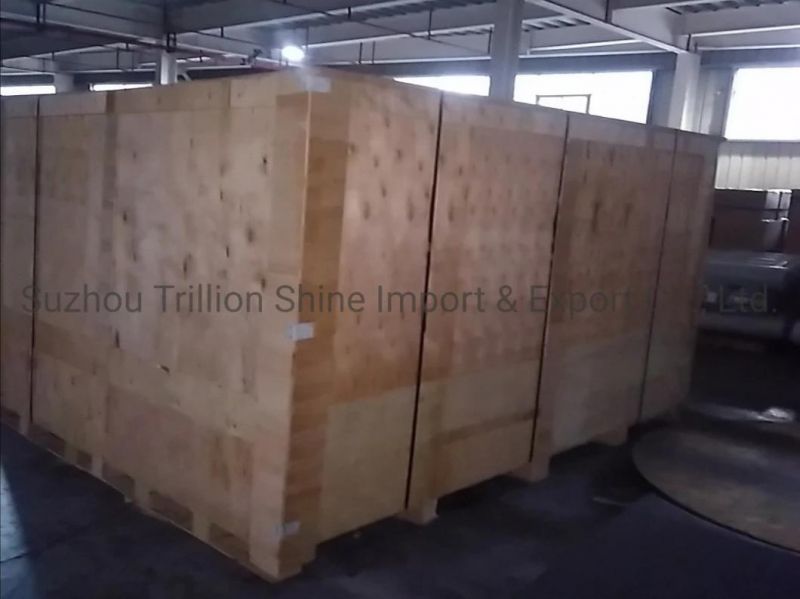

  • Transport Package：Iron Rack+Plywood Case
  • Trademark：TRILLION SHINE
  • Origin：China
  • Production Capacity：5, 000 Sets,Year

Description

Basic Info.

Model NO. MX2120 Certification CE, ISO Customized Customized Condition New Color Customized Aplication Used for Chamfering and Making The Tongue and Gro Transport Package Iron Rack+Plywood Case Trademark TRILLION SHINE Origin China Production Capacity 5, 000 Sets/Year

Product Description

Double end-tenoner for chevron flooring
It is used for chamfering and making the tongue and groove for chevron flooring.

Main Features
High precision production processing.
Feeding by frequency conversion control.
Adopts advanced linear guide.

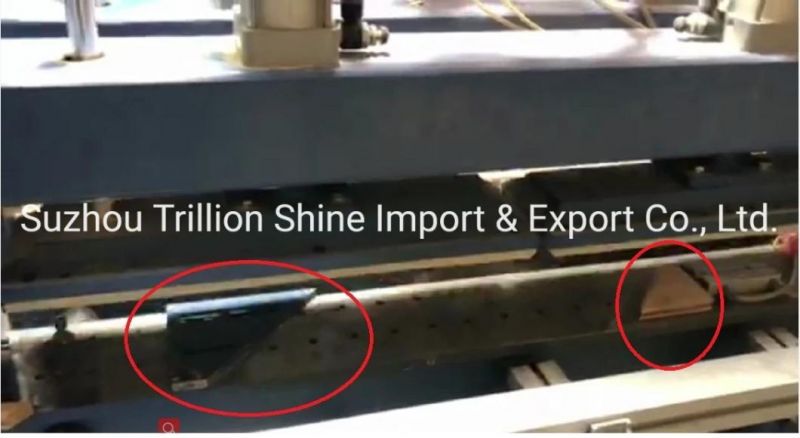

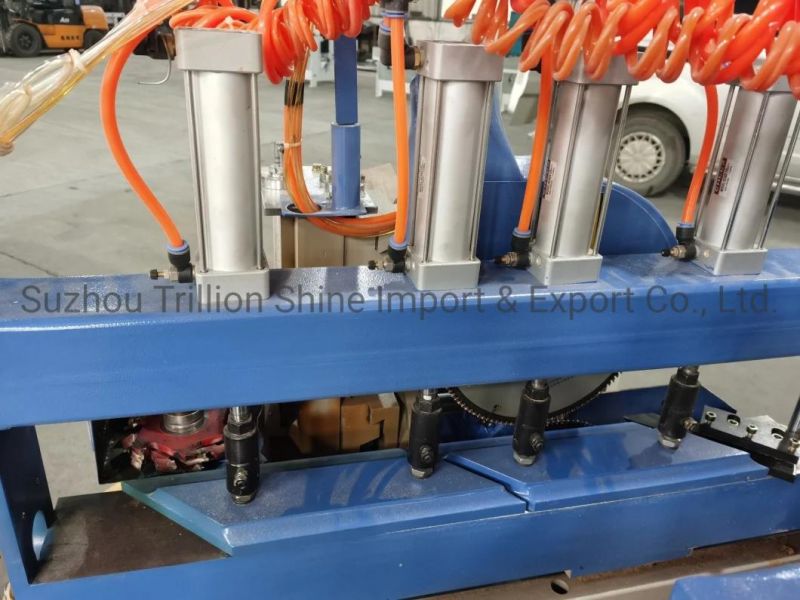

Uses 8 units of pneumatic cylinders to pinch raw board;

All adjusting shafts are equipped with counters

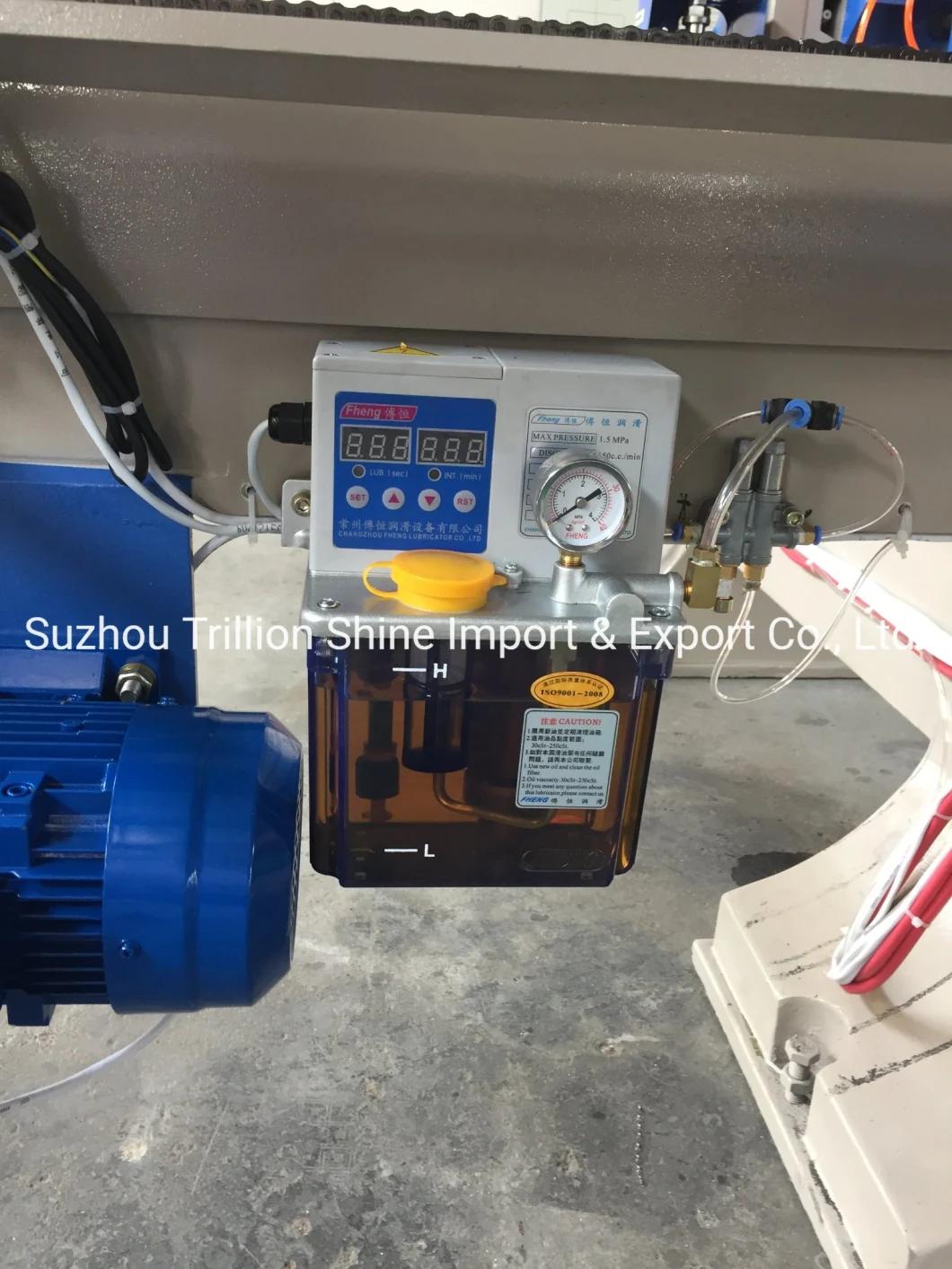

The chain and guides lubricated by a self-oil feeder

Technical specifications

Processing 45 degree cutsLength approx. 410-1050 mm
Width approx. 550-100 mm
Processing 60 degree cutsLength approx. 350-950 mm
Width approx. 600-120 mm
Processing 90 degree cutsLength approx. 300-900 mm
Width approx. 800-900 mm
Processing thicknessWithin 50 mm
Motor for Saw blades2.2 kw x 4 units
Saw blades rotation speed2840 rpm
Tilting angle saw blades0-20°

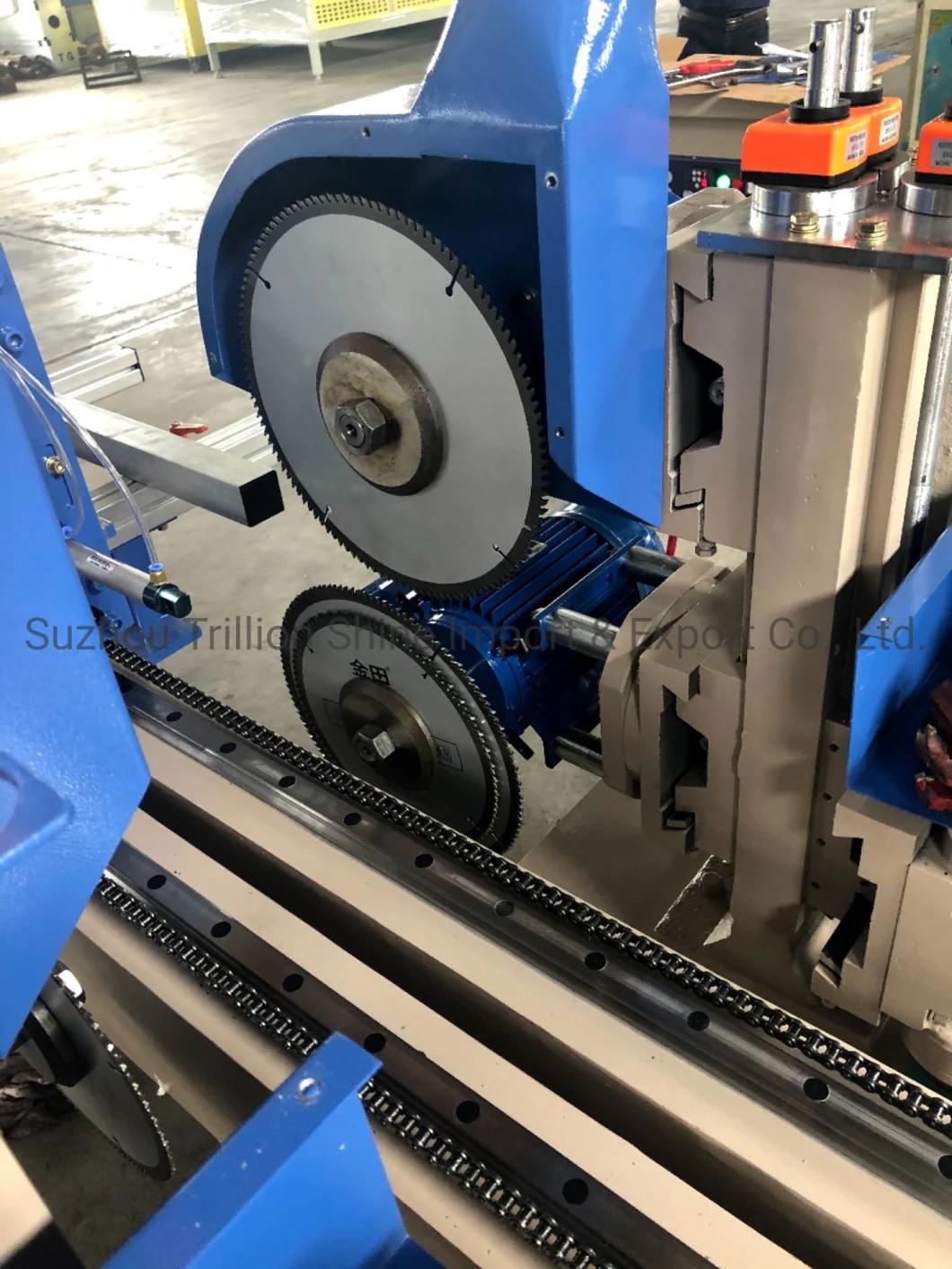

Saw blade 1OD: 300 mm, ID:25.4 mm, 4 pieces
Saw blade 2OD: 250 mm, ID:25.4 mm, 1 piece
Motor for mortising tools3kw x 2 units
Notching tool rotation speed8000 rpm
Feed motor1.1 kw, Inverter control
InverterTaiwan Shihlin
Feed speed0-10 m/min adjustable
Dia of sawdust pipe100mm
Dia of suction inlet100mm
Photoelectric switchOmron
Overall dimensions3200 x 2300 x 1400 mm
Net weightabout 2000 kg

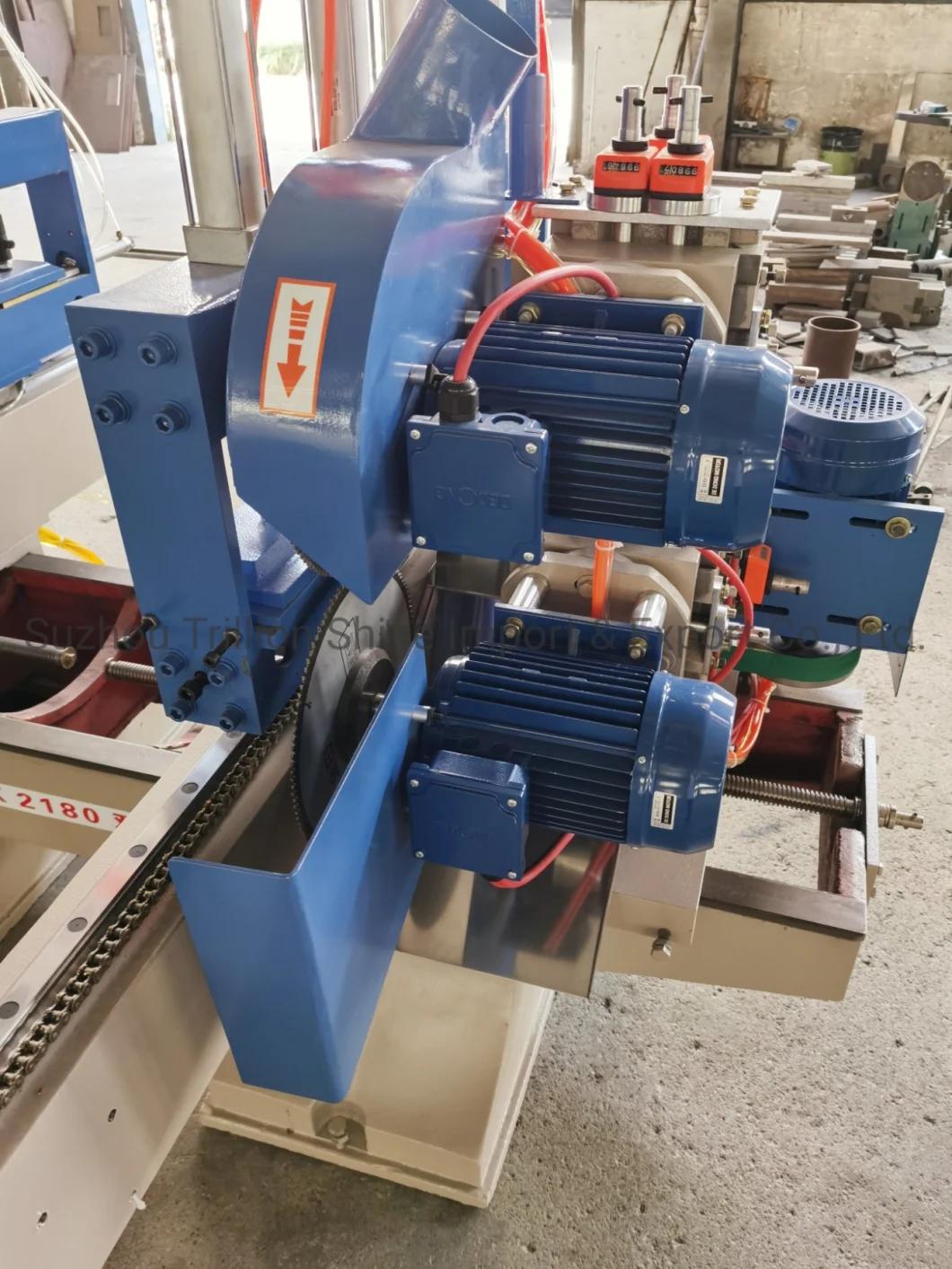

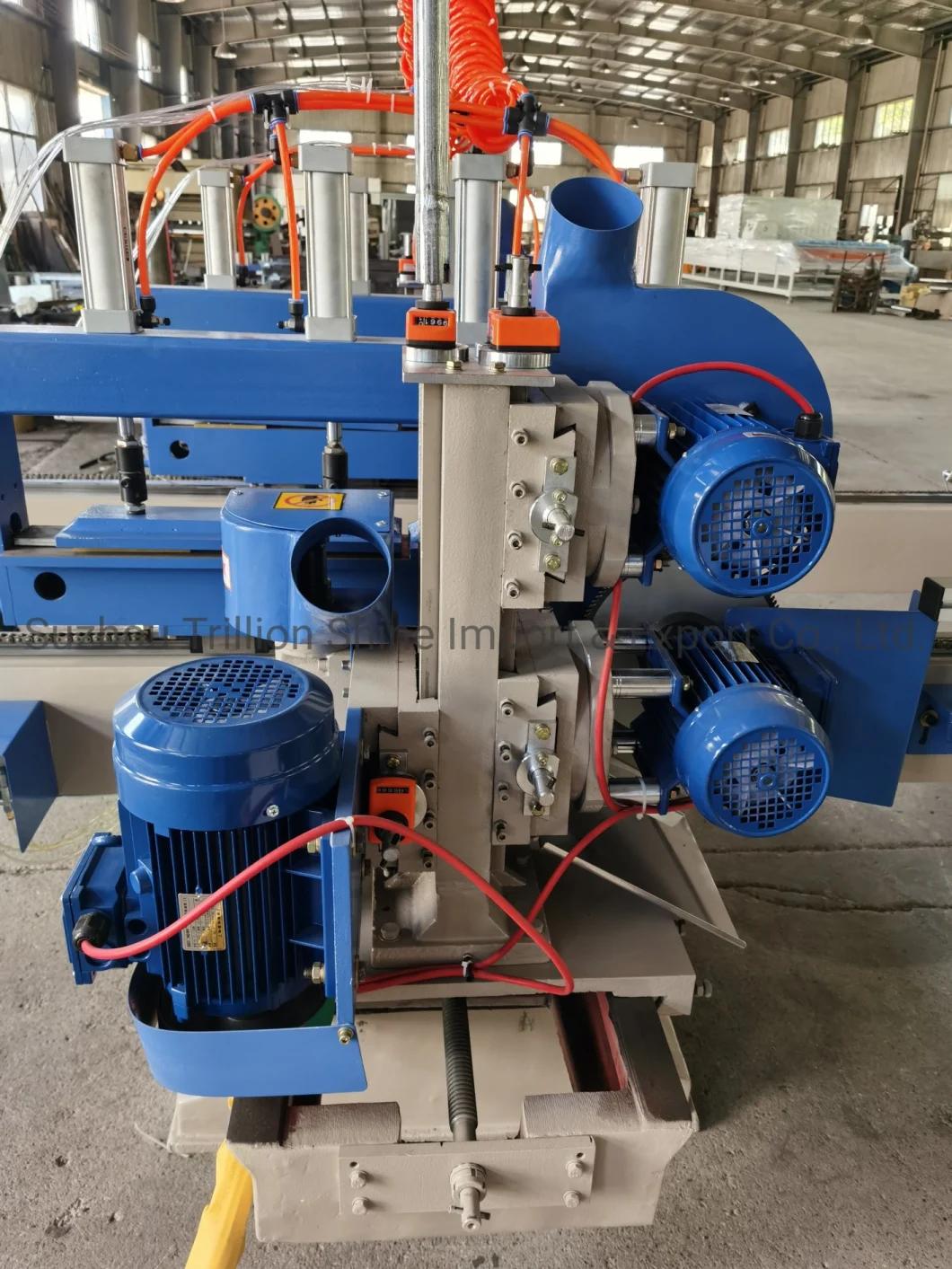

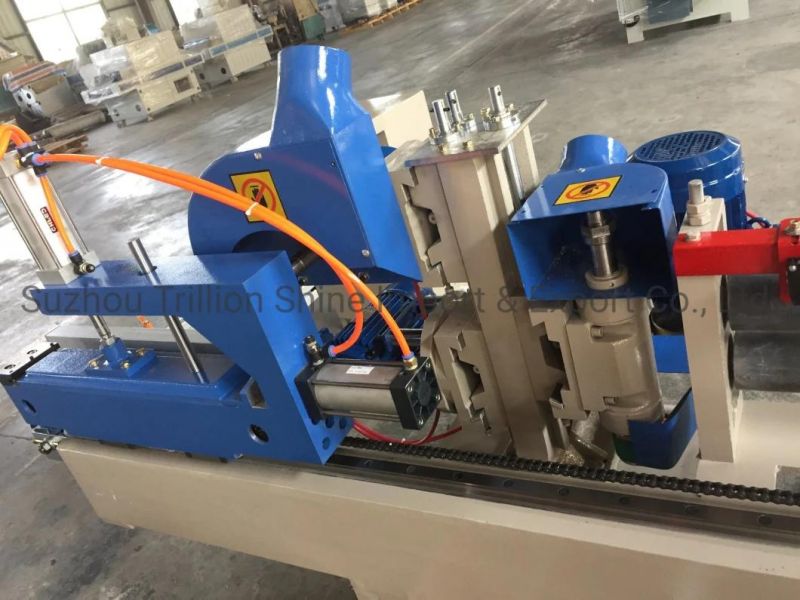

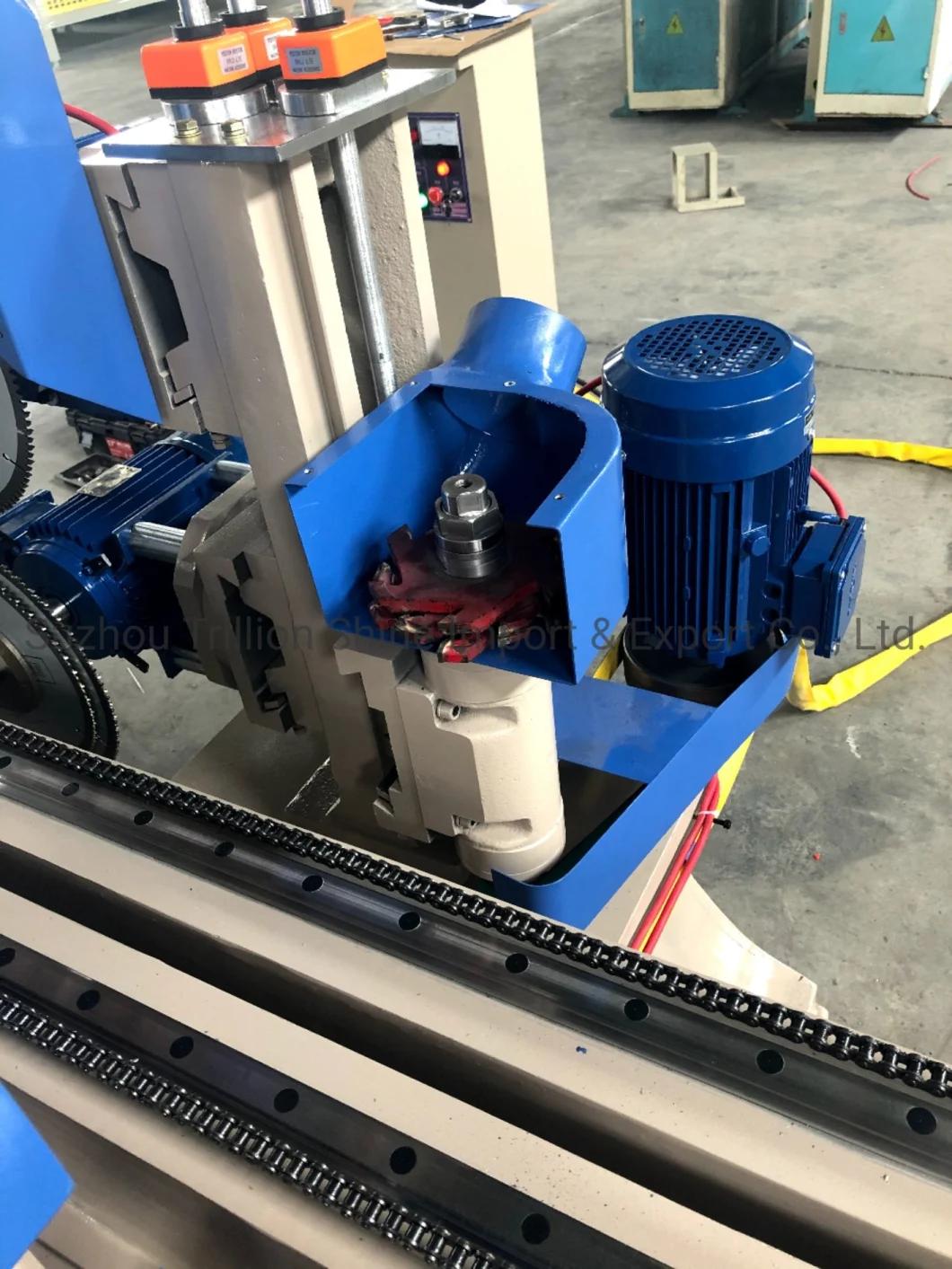

Detail photos:

Wood Chevron Machine/Diamond Floor Double End Tenoner/Chevron Parquet Flooring Double End Tenoner/ 45/60 Degree Double End Mortising in Angle/Wood Chevron Machine/Diamond Floor Double End Tenoner/Chevron Parquet Flooring Double End Tenoner/ 45/60 Degree Double End Mortising in Angle/Wood Chevron Machine/Diamond Floor Double End Tenoner/Chevron Parquet Flooring Double End Tenoner/ 45/60 Degree Double End Mortising in Angle/Wood Chevron Machine/Diamond Floor Double End Tenoner/Chevron Parquet Flooring Double End Tenoner/ 45/60 Degree Double End Mortising in Angle/Wood Chevron Machine/Diamond Floor Double End Tenoner/Chevron Parquet Flooring Double End Tenoner/ 45/60 Degree Double End Mortising in Angle/Wood Chevron Machine/Diamond Floor Double End Tenoner/Chevron Parquet Flooring Double End Tenoner/ 45/60 Degree Double End Mortising in Angle/


Wood Chevron Machine/Diamond Floor Double End Tenoner/Chevron Parquet Flooring Double End Tenoner/ 45/60 Degree Double End Mortising in Angle/



Wood Chevron Machine/Diamond Floor Double End Tenoner/Chevron Parquet Flooring Double End Tenoner/ 45/60 Degree Double End Mortising in Angle/Wood Chevron Machine/Diamond Floor Double End Tenoner/Chevron Parquet Flooring Double End Tenoner/ 45/60 Degree Double End Mortising in Angle/Wood Chevron Machine/Diamond Floor Double End Tenoner/Chevron Parquet Flooring Double End Tenoner/ 45/60 Degree Double End Mortising in Angle/

FAQ
1. Can we use this machine for 90 degree cuts, 30 degree cuts, and 45 degree cuts?
Yes, you can use this machine for 90 degree cuts, 30 degree cuts, and 45 degree cuts...just need to change level blocks.
2. What tooling comes with the unit. Does it come with cutting tools and saw blades? What type of tooling is it? Insert, high speed steel, diamond?
Saw blades (5pcs.) will come with the machine, the material is tungsten steel(hard alloy).
Customers prepare the cutting tools by themselves because the standard will be different for different markets and different kinds of flooring, even tongue and groove are different between laminate flooring and solid wood flooring
3. Can you ship cutting tools with the machine
If you need us to ship cutting tools with the machine, please send us the drawings of cutting tools or courier your flooring sample to us.

What services to offer:
1. Provide customerization.
2. One year warranty for the machine. Liftetime after-sales service and technical support.
3. Professional team for guiding installation& commissioning.
