1325 Atc CNC Router with 8 Tools Automatic Change Tools Highly Automatic Nesting Solution with Automatic Loading and Unloading System
Jinan Sea Eagle Cnc Machinery Co., Ltd.- After-sales Service:Yes
- Warranty:3 Years
- Condition:New
- Certification:ISO, CE
- CNC or Not:CNC
- Voltage:380V
Base Info
- Model NO.:1325,2030,2040
- Tools:Quantity
- Motor:Servo
- Spindle:9kw Atc Spindle
- Transport Package:Plywood
- Specification:1325
- Trademark:sea eagle
- Origin:China
- HS Code:84659900
- Production Capacity:1000
Description
Working area

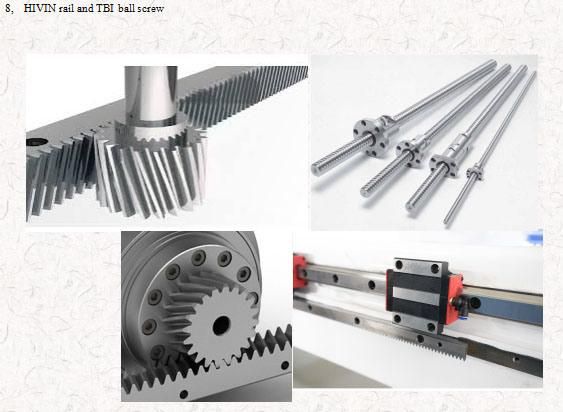

Working areaX 1,300mm Y 2,500mm Z 210 mm Transmission system X Hiwin square rail,-No.25, Helical - Rack & Pinion Y Hiwin square rail,-No.25, Helical - Rack & Pinion Z ball screw ,Hiwin square rail. Spindle Power 9 kw CC Spindle with 12 pcs tools Inverter YASKAWA Rotating Speed 24000rpm Cooling Type water- cooling pump / air -cooling Drive systems X,Y,Z YASKAWA Precision <0.01mm Positioning accuracy <0.01mm idling speed 0~24000mm/min Max speed 90m/min Working speed 30m/min

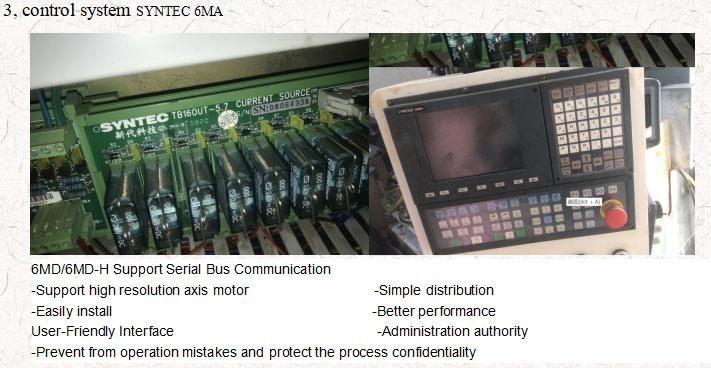

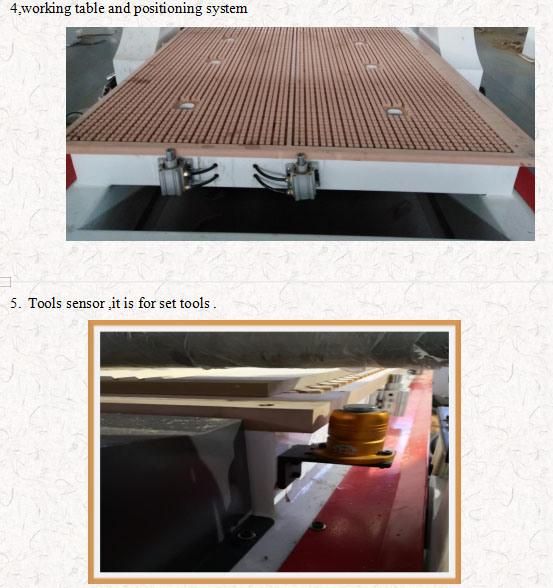

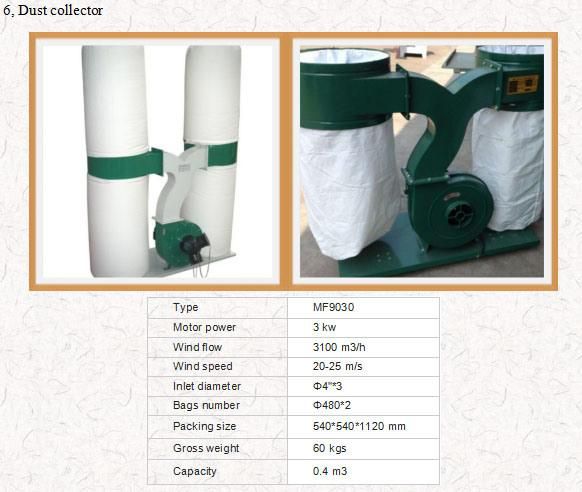

Machine bodySteel structure Table,Seamless welded steel structure / Lathe bed welded with thick square tube and slot steel, table vacuum adsorption table.double table Control System LNC control system, or SYNTEC system, mach3 Working Voltage AC380V±30V, 50HZ Command Code G Code, *.mmg, *.plt, *.eng Tool sensor system Available Packing Plywood case Net Weight 3600KG Packing Size 4000*1970*1930(mm) Gross Weight 4000KG dust collector 5.7 kw 380V Reducer system Timing Pulley
Product Uses

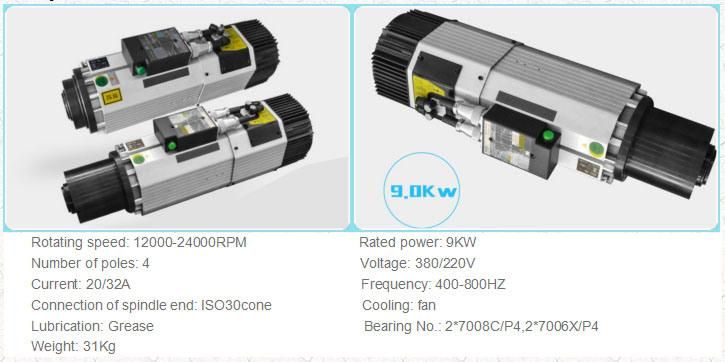

1, spindle
samples

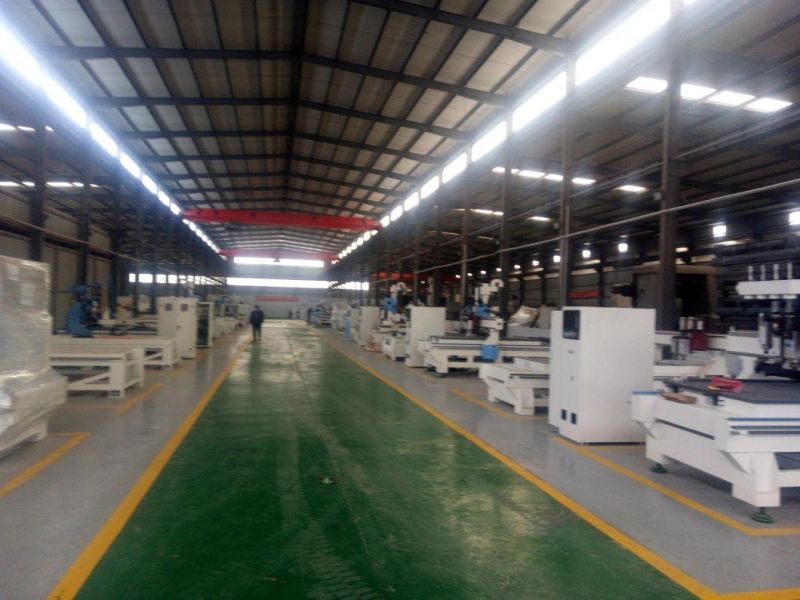

our workshop
Working area
Machine body
Product Uses
1, spindle
samples
our workshop
