High Quality Wood Pallet Block Making Machine for Pallets Feet
Zhengzhou Invech Machinery Co., Limited- Certification：CE
- Capacity：4-6m3,24hrs
- Raw Materials：Sawdust,Shavings,Chips
- Blocks Density：550-700kg,M3
- Name：Wood Block Machine
- Transport Package：Wooden Case
Base Info

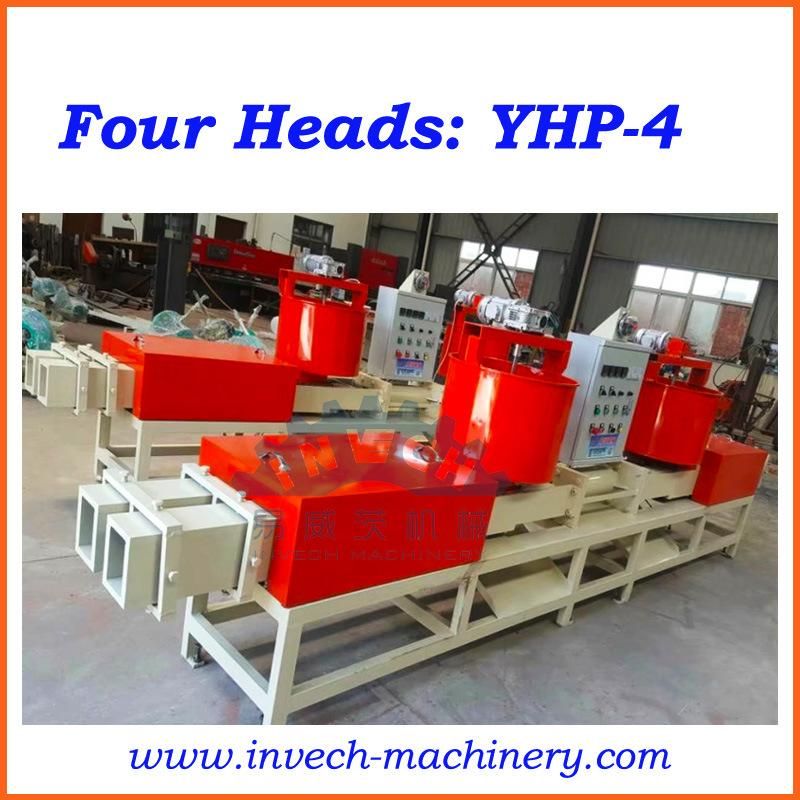

- Model NO.：YHP-4
- Specification：7-10M3
- Trademark：INVECH
- Origin：China
- HS Code：8479300000
- Production Capacity：100sets,Month
Description
Basic Info.
Model NO. YHP-4 Specification 7-10M3 Trademark INVECH Origin China HS Code 8479300000 Production Capacity 100sets/MonthProduct Description
High Quality Wood Pallet Block Making Machine for Pallets Feet1)Equipment disposition
Generally four hot presses are a production line, must provide the dryer, the gluing machine, grinder each. (dryer, gluing machine, crusher and so on supporting facility customer buys in addition).
2)Personnel disposition
Production personnels 4-5 person per shift. And raw material sort (screening), drying, spreads 2-3 people, looked that machine 2 people (a person may look at two machines).
3)Production cycle:
After confirmation order form and payment advanced payment, 40 super craftsmen ship factory delivery.
4)Equipment investment recoupment period:
10- 12 months.post-sale service:Our factory is responsible for the technical training, and provides the consummation the post-sale service.
2)Technical Parameters

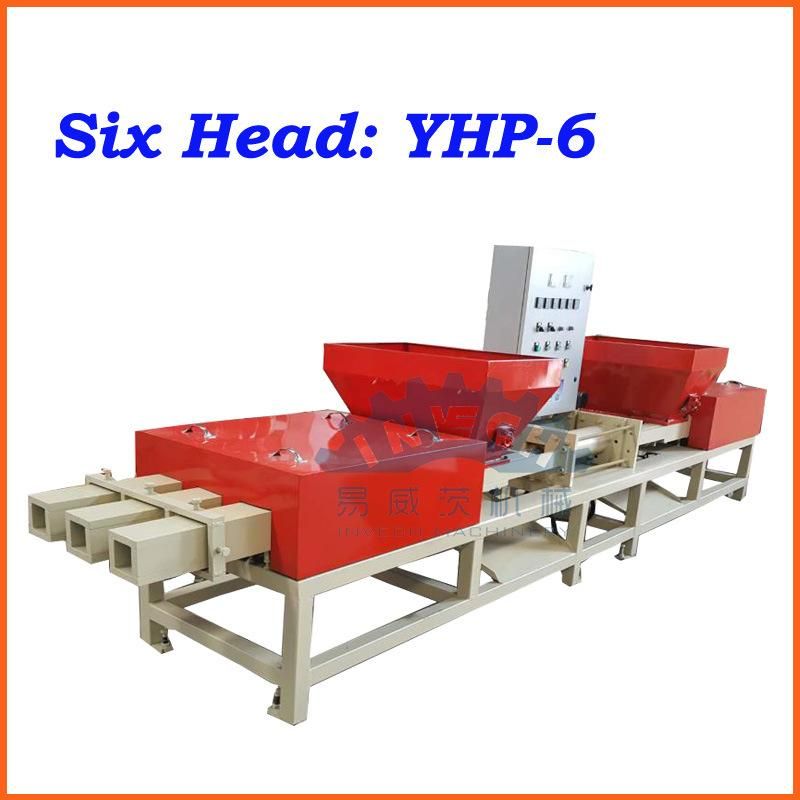

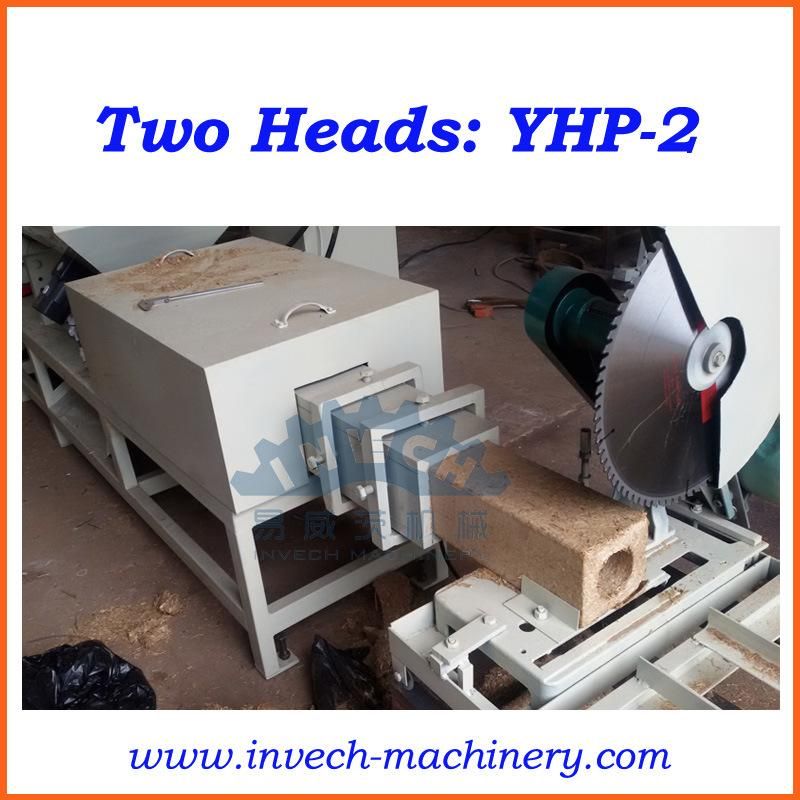

| Model | Double Head | Four Head | Six Head |
| Size | 4900*660*1800 | 4900*800*1800 | 4900*940*1800 |
| Capacity | 2-3m3/24h | 4-5m3/24h | 6-8m3/24h |
| Glue water amount | 100-120kg/m3 | 100-120kg/m3 | 100-120kg/m3 |
| Density | 550-600kg/m3 | 550-600kg/m3 | 550-600kg/m3 |
| Weight | 1000kg | 1500kg | 2200kg |
| Power | 15kw | 18-22kw | 24-30kw |
