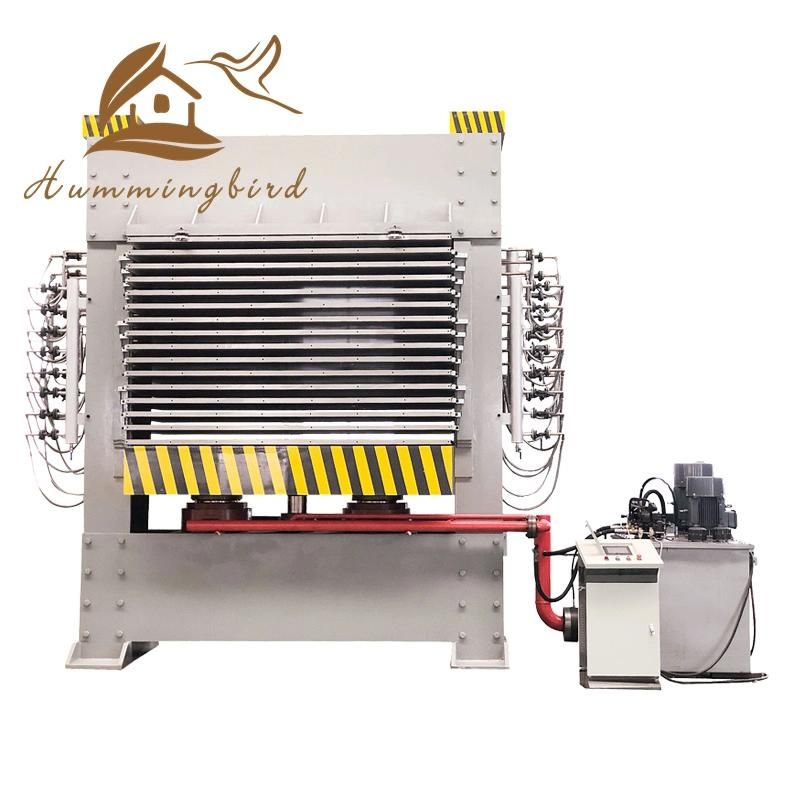

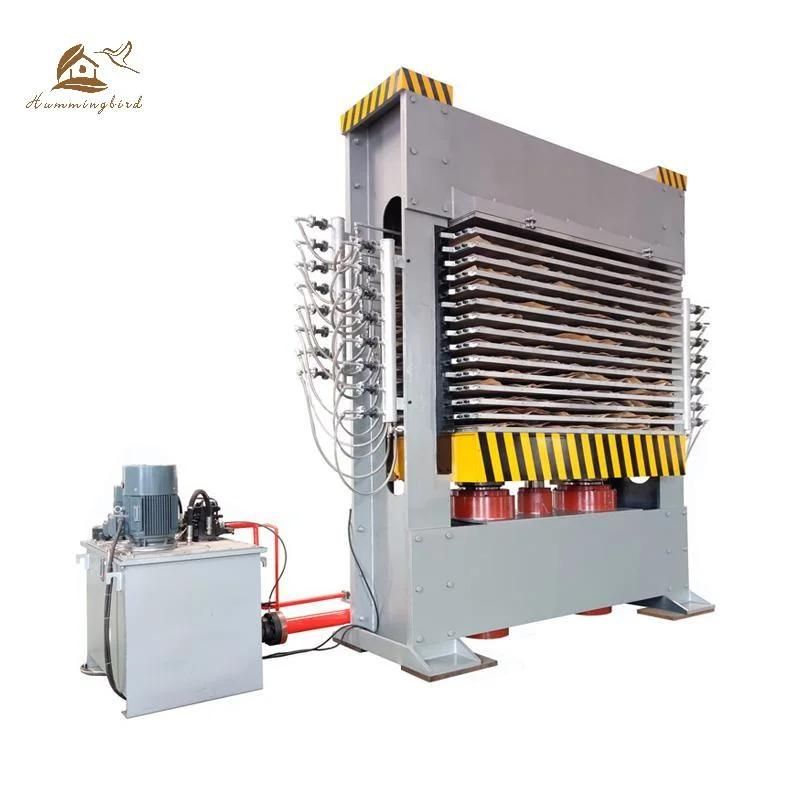

600 Tons 15 Layers Hot Press Machine for Particle Board Production Machines and Veneer Laminating Board
Shandong Hummingbird machinery Co., Ltd.- Warranty：2 Year
- Type：Hot Press Machine
Base Info
- Model NO.：HPM-022
- Automatic：Automatic
- Certification：CE, ISO
- Condition：New
- Power (Kw)：26
- Cylinder：360mm*1050*2PCS
- Weight：35000kg
- Max Opening：1800mm
- Size：3600*1370*4000mm
- Stand Plate Width：370mm*4
- Hydraulic System：Taiwan ,Italian
- Hot Platen Size：2700*1370*42mm
- Weight (Kg)：35000 Kg
- Layer Spacing：70mm
- Simultaneously Closing System：2 Groups
- Transport Package：in Nude or Plywood Box
- Specification：3550*1370*4200mm
- Trademark：Hummingbird
- Origin：China
- Production Capacity：30sets,1 Month
Description
Model
YQHP4X8/500/15
Max pressure
500 Tons
Board feeding direction
Transverse
Layers
15Layers
Layer spacing
70mm
Number of hot press plate
16pcs
Hot press plate size
2700*1370*42mm
Cylinder
2*ø360mm*1050mm
1*ø180mm*1050mm
Stroke
1050mm
Compression resistance
≤25 Mpa
Total Power
7.5KW+18.5kw
Low pressure pump flowing
250ml/r*1pcs
high pressure pump flowing
10ml/r*1pcs
Overall dimension
3550mm*1370mm*4650mm
Working methods
Full automatic
Composite frame
Assembled
Upper and bottom beam
900mm
Middle beam
400mm
Thickness of the frame
35 mm
Weight
About 33Tons

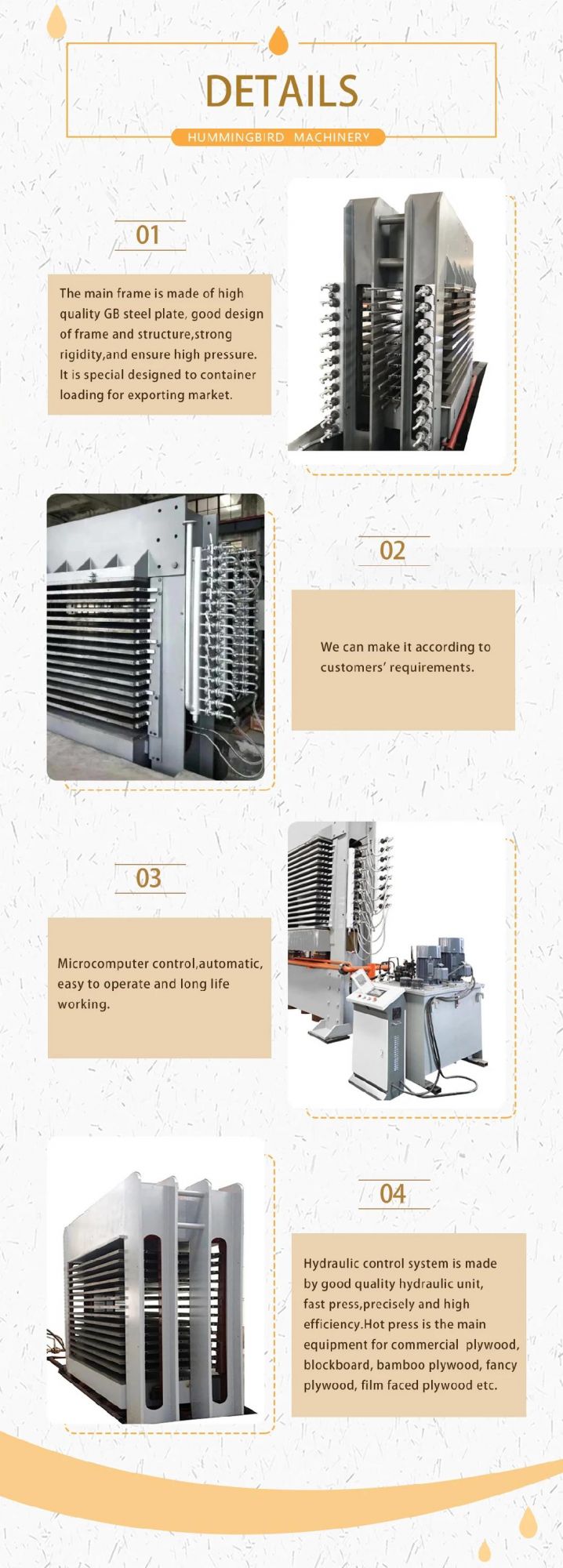

Product Details

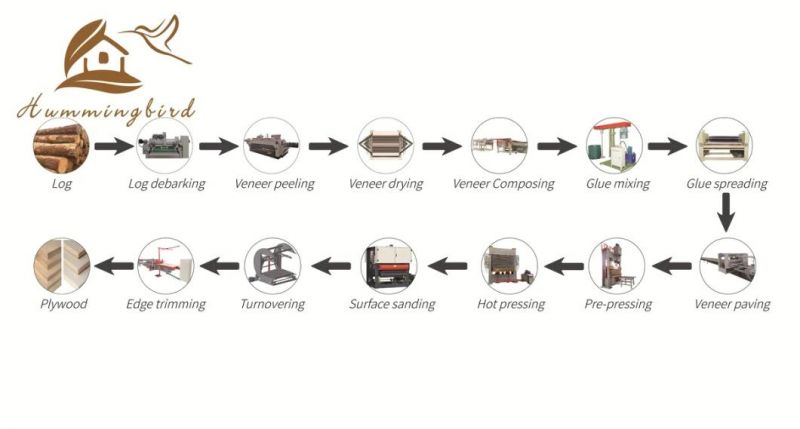

Processes of plywood machinery production line
We have the whole plywood production line, please click on our home page for more information

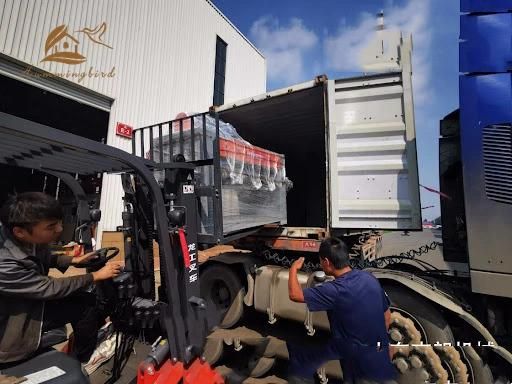

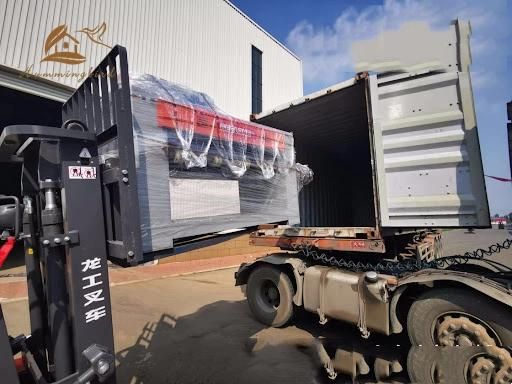

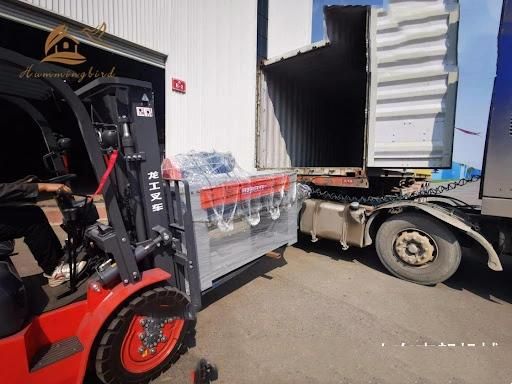

Packaging & Shipping
Company Profile
Shandong Hummingbird Machinery Co., Ltd., formerly known as Linyi Xinkun Machinery Co., Ltd., is located in the plywood base of Linyi City, Shandong Province, specializing in the production and research and development of woodworking machinery for more than 10 years. We are a manufacturer of wood working machinery with well-equipped testing facilities and strong technical force.We offer you qualified products and service with a complete equipment solutions. We also welcome OEM and ODM orders.We can offer you not only a complete equipment solutions to your plan but also good technology service. Engineers available to service machinery overseas and after-sales service provided in our company.
Was established. Based on the principle of integrity and quality, we bring the concept of good mechanical products and prefabricated houses to the world. In line with the concept of service first, we sincerely look forward to cooperating with you, hoping to help you further in your career!
FAQ
1. Q:A FACTORY OR A DEALERS?
A:We are a factory who have been producing wood based panel machinery for 20years.
2. Q:QUALITY CONTROL?
A: Each machine will be tested three times before delivery.
3. Q:DELIVERY TIME?
A: 30-90 days upon receiving deposit.
4. Q:Factory Layout Design?
A:We have engineer team to make layout drawing for customers for free.
5. Q: After-sales Service?
A: We have technician team to help customers on installation.
6. Q:WARRANTY?
A: One-year warranty,and we supply parts and service all the time.
7. Q:PAYMENT TERMS?
A: T/T, L/C are accepted.
8. Q:MOQ?
A: The MOQ is 1 set.
