• Model NO.：ERM1530
• Motor：Servo,Stepper
• Rail：Taiwan PMI,Hiwin,Shac
• Software：Artcam,Jdpaint
• Table：T-Slot and Vacuum Table
• Spindle Power：3.5,4.5,6kw
• Spindle Brand：Hqd
• Payment Item：30% in Advance, 70% Before Shipment
• Package：Water-Proof Film and Plywood
• Transport Package：Plywood
• Specification：1500*3000mm
• Trademark：Eastrise
• Origin：Jinan, China
• HS Code：8465990000
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. ERM1530 Motor Servo/Stepper Rail Taiwan PMI/Hiwin/Shac Software Artcam/Jdpaint Table T-Slot and Vacuum Table Spindle Power 3.5/4.5/6kw Spindle Brand Hqd Payment Item 30% in Advance, 70% Before Shipment Package Water-Proof Film and Plywood Transport Package Plywood Specification 1500*3000mm Trademark Eastrise Origin Jinan, China HS Code 8465990000 Production Capacity 5000 Sets/Year

Product Description

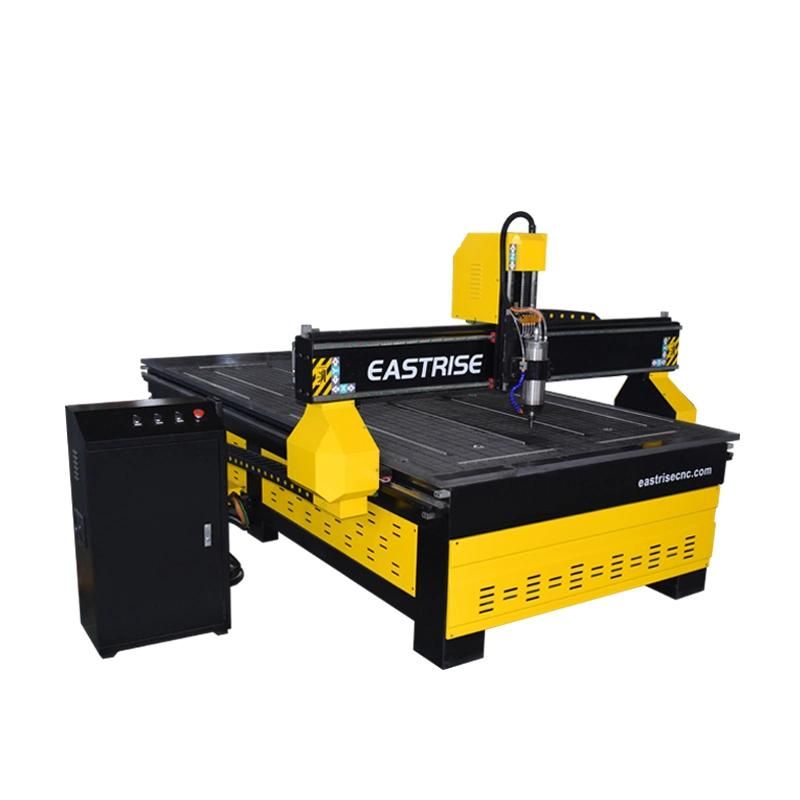

DSP System 3D Wooden door Cutting Engraving 1325 1530 CNC Router price

Application

Applicable industry: wood furniture ,wooden crafts processing industry, suitable for large panel
cutting,large relief carving products and large carpentry engraving.
Applicable material: solid wood panel, artificial board,Acrylics , PVC,MDF,Plexiglass, plastic .
etc non-metal panels.

Advantage

1.The three axis adopts the Taiwan straight square rail Big power ,anti-dust  water cooling spindle., Small noise,
strong and powerful,maintenance free, can achieve  continuous operation.
2.Intelligent processing cross-border protection, Preventing body collision due to processing format reach out
working size
3.Intelligent high-speed module high-speed operation, can achieve power recovery, breakpoint continued carving,
the next day processing, convenient and easy.
4.Type3/Artcam/Castmate/PRO-e/Ug/CAD/Illustrator softwares compatible:Advanced professional control system,
compatible with a variety of software Type3/Artcam/Castmate/PRO e/Ug/CAD/Illustrator

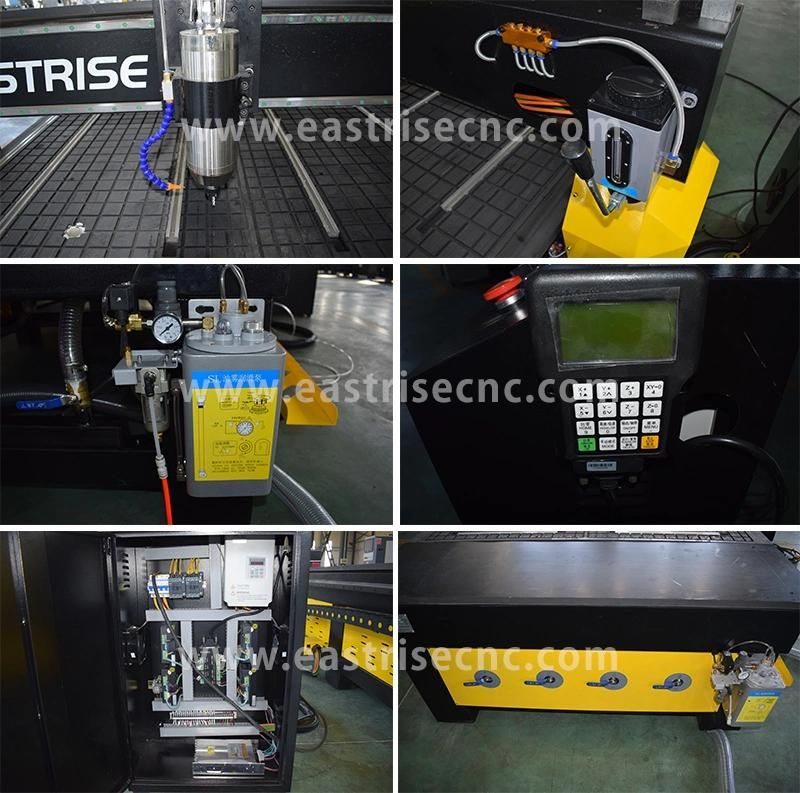

Features

1.Working area:1300*2500*200mm
2.3.5KW/4.5/6KW HQD air cooling spindle
3.Nc-studio/DSP/Mach3 control system
5.Mist cooling sprayer for working on metal
6.Taiwan linear guide rail
7.Taiwan TBI high precision ball screw
8.T-slot vacuum table
9.Servo/stepper motor and driver
10.Fuling/Best/Delta inverter
PS :We can customize different size and different configurations for you.

Technical parameters

Model	ERM1530
Working size	1500*3000mm
Max feeding height	200mm(or customized)
Max traveling speed	20m/min
Transmission	High precision Ball screw
Software environment	WindowsXP/7/8/10
Power without spindle	2KW
Voltage	220V/1P,380V/3P
Recognizing language	G code(nc),mmg,plt,eng,dxf
Spindle speed	6000-24000rpm/min

Machining

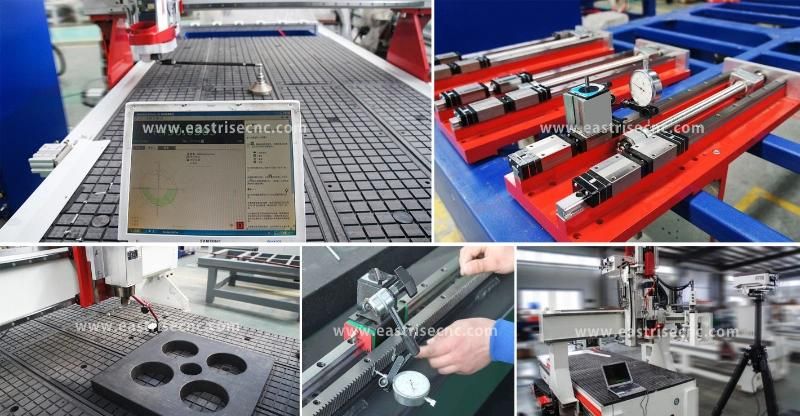

Testing


Certificates

Exhibition

Technical Department

FAQ

1.How long is your machine's warranty?

3 years

2.How about your after-sales service ?

Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.

3.How can we install the machine?

English version manual and operation video CD disk.

4.How about the payment terms?

30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal

5.How about package of shipment?

Inner packing:water-proof film
Outter packing:plywood case
Bottom:strong steel tube
