• Model NO.：MJ143C
• Customized：Customized
• Condition：New
• Color：Customized
• Name：Multi Rip Saw Machine
• Model：Mj143c
• Total Power：25.7kw
• Feeding Speed：6-24m,Min
• Max Working Width：250mm
• Min Working Length：210mm
• Max Working Thickness：100mm
• Spindle Speed：3600r,Min
• Weight：1600kg
• Transport Package：Wooden Case
• Specification：2300*1080*1400mm
• Trademark：HiWinstar
• Origin：China
• Production Capacity：100set,Month

Features
1.This machine adopts the upper 5 sets and the lower 2 sets of power wheel feeding, turbine reducer drive, universal joint drive, strong, synchronous feeding, more smooth.
2.The pressure of the upper feed wheel is controlled by the pressure cylinder, which can be adjusted freely depending on the soft and hard condition of the wood.
3.Feeding wheel type feeding is economical and safe, good control and maintenance; the pressure type of pressing material has a large thickness, up to 30mm, even if the thickness of the wood varies greatly, the pressure of the pressing material can be balanced.
4.Feeding speed can be adjusted without any step, and it can be adjusted with the softness of wood.
5.Use smaller and thinner saw blades at the same sawing height, greatly reducing wood loss and saving on the cost of buying saw blades.
6.The special saw plate is fixed and installed, making it easy to manufacture and install the saw plate.
7.The saw blade lifting protection device can make the saw blade and the feeding wheel rise and fall synchronously and safely to prevent the saw blade and the feeding wheel from being damaged by mistake.
8.The main shaft is made of special alloy steel material, which has been subjected to multiple heat treatments and precision grinding.
9.High precision bearings, load resistance and long life.
10.Upper and lower safety film sets to protect the safety of operators.
11.The table top and the guide plate are plated with hard chrome for durability.

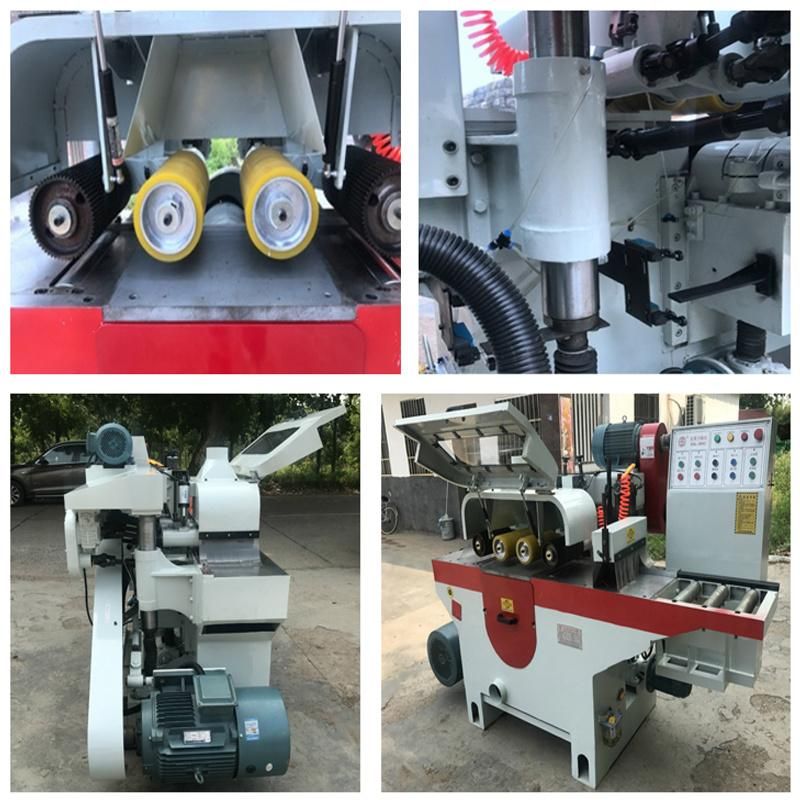

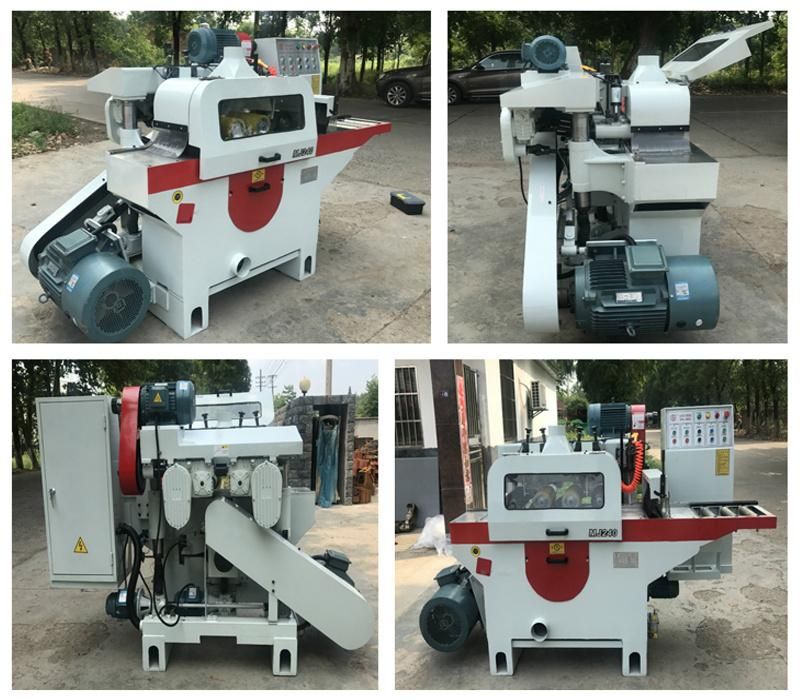

Detailed Pictures

Application
The machine is specially designed for material modification, wood strip and wood core board. According to the pre-adjusted size, a plurality of wooden strips can be sawed and fed by the feeding wheel, and the upper and lower feeding wheels are used to synchronously feed the material.

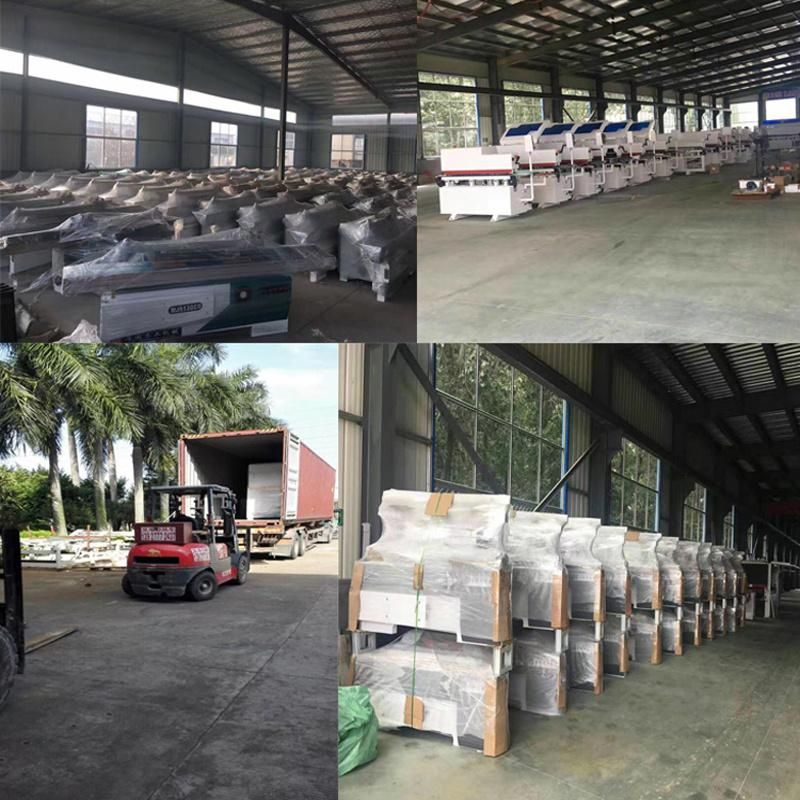

Packaging & Shipping

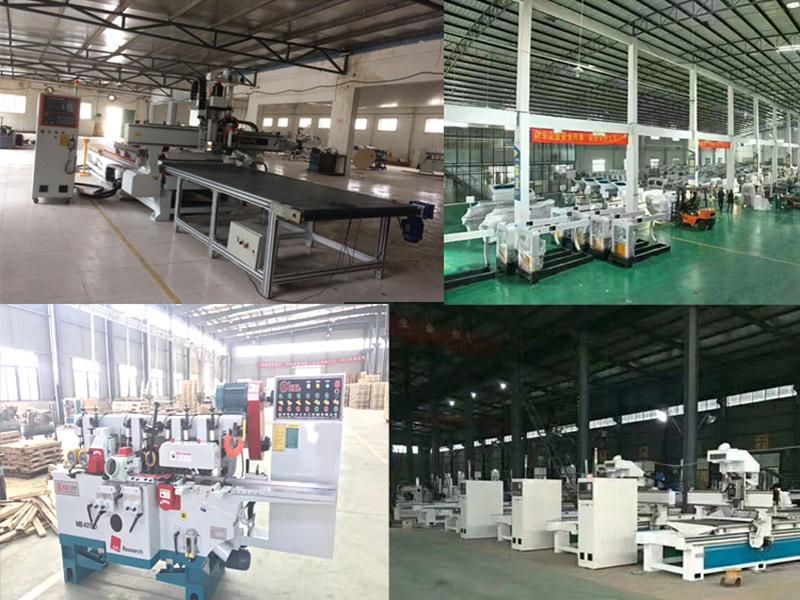

Company Information


FAQ
1,Can you offer good price with fine quality also?

Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Becasue we are always expecing long term business.Regarding the price.
we are not sure if it is lowest or highest,But we will be offering reasonble.We don't want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines

2,We will be protetcted if we are paying for orders?

Surely yes,we have been exported 1000000$ different wood machine every year,We received the payment,we should produce for you and ship to you without delay. It is honesty and reputy.We could understand that you paid,you want to see machines soon and use soon. and these years alibaba trade assurance you could rely on,you will be protected very well.


3,What's your warranty? can you do more service for us? we wish woud be protected after purchasing machine.
We are pleased to give life continious aftersales service. within 12 months, if spareparts broken,we will send you new for change. we would like to help to solve any troubles when you use machine at any time.and don't be worried,we will keep opening 24 hours for all customers problem or difficilaty. we must help to make solutions within 48 hours .

4,What's your production time? we want faster shipping time also.

mostly machine we have in stock, some machine we produce need about 7-10days. make fast shipment always. shipping time depends on shipping company.
