• Model NO.：P03,P04
• Dimension(L*W*H)：3250*1250*1700
• Max.Board Thickness：30mm
• Speed of Spreading：30m,Min
• Driving Method：Gear and Chain
• Coating Roller Diameter：245mm,310mm,410mm
• Coating Roller Length：1400mm,2700mm
• Colour：Customized

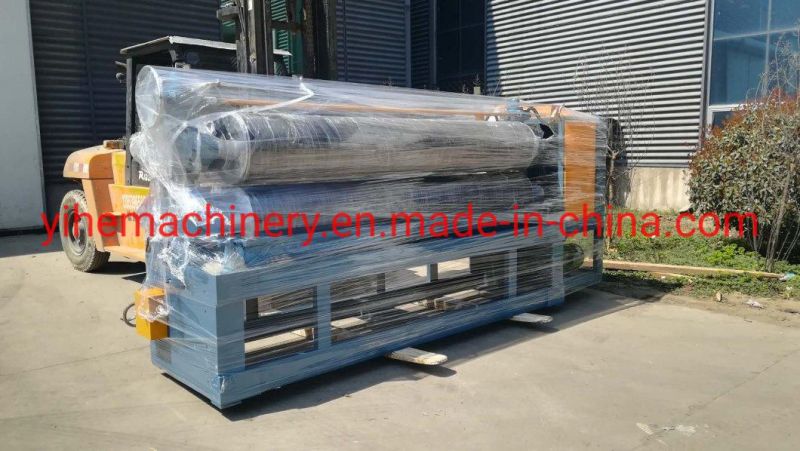

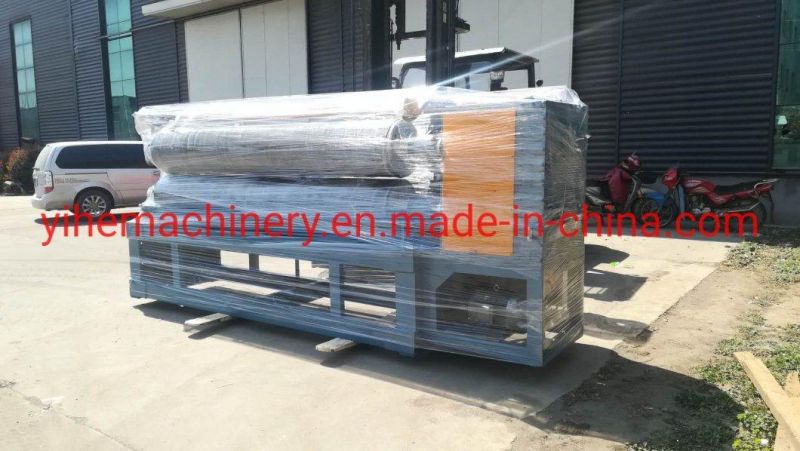

• Transport Package：Plywood Pallet
• Specification：3250*1250*1700mm
• Trademark：YIhe
• Origin：China
• Production Capacity：100 Pieces,Year

Basic Info.

Model NO. P03/P04 Dimension(L*W*H) 3250*1250*1700 Max.Board Thickness 30mm Speed of Spreading 30m/Min Driving Method Gear and Chain Coating Roller Diameter 245mm,310mm,410mm Coating Roller Length 1400mm/2700mm Colour Customized Transport Package Plywood Pallet Specification 3250*1250*1700mm Trademark YIhe Origin China Production Capacity 100 Pieces/Year

Product Description

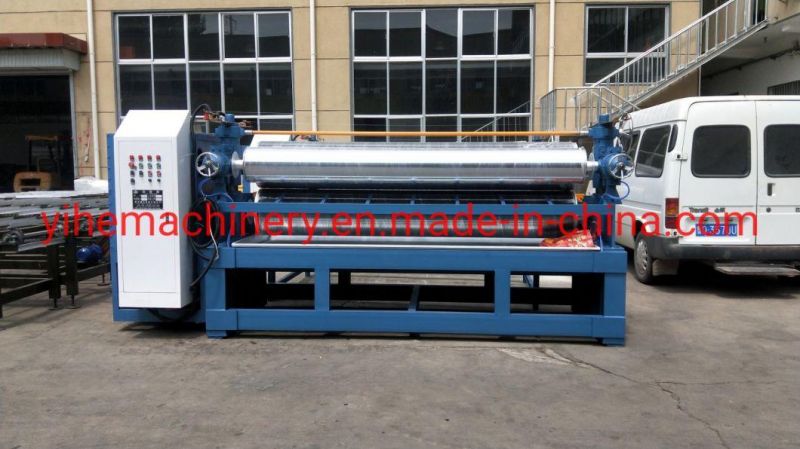

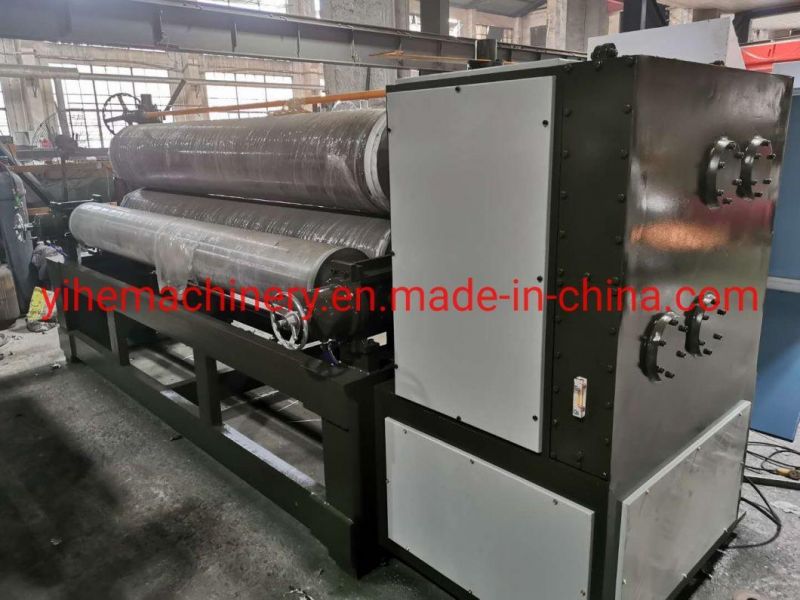

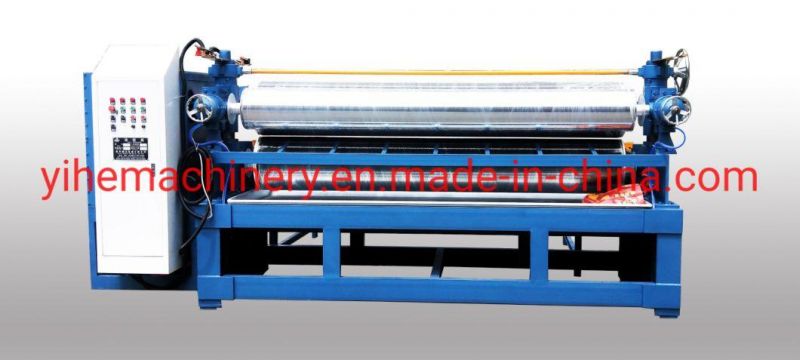

Plywood machine Double Sides Air piston Heavy Duty Glue Spreader machine for Plywood/ CNC Glue Coating Machine, CNC Gluing Machine
Air piston Heavy Duty Glue Spreader machine veneer glue spreader applies to plywood, multilayer board, veneer,core-board for single-side or double-side glue, using the purely natural rubber, Precision machining by lathe and grinding machine, The utility model has the advantages of uniform glueing, simple operation, an adjustable amount of glue spreader etc. Diameter 4ft glue spreader has the features of glueing, no marking and simple operation. It is also the preferred equipment for the decorative panel.












Technical parameters:


Model	Single-side glue spreader	Double side glue spreader
Roller quantity	3	4
Line speed	30m/min	20-30m/min
Coating roller diameter	245mm,310mm,410mm	245mm,05mm,310mm,410mm
Coating roller length	1400mm/2700mm	1400mm/2700mm
Squeeze diameter	273mm,319mm	219mm,273mm
Squeeze length	1400mm/2700mm	1400mm/2700mm
Motor power	3kw,4kw,5.5kw	3kw,5.5kw
Max.board thickness	30mm	30mm
Driving method	Gear and chain	Gear and chain

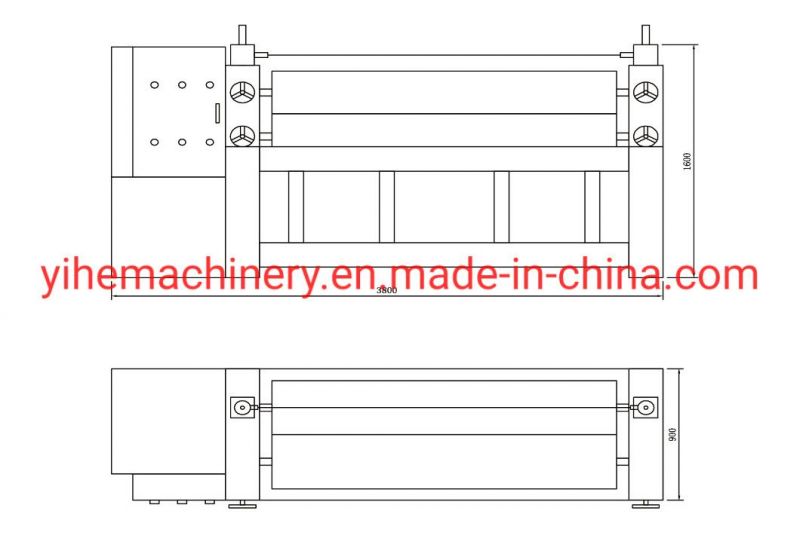

Dimension	3250mm*1250mm*1700mm	3250mm*1250mm*1700mm
Weight	1350KG	1500KG

Features:

1. It has various uses, it can be used for core veneer,multi-layer board, plywood, blockboard and so on.
2. It has coating averagely, high productivity, saves glue, saves staff and saves cost.
3. Increasing the utilization of glue and decreasing and minimize glue consumption.
4. The safety device is able to iimmediate stop the machine whenever the danger occurred.
5. The rubber roller is made by the high quality natural rubber, the squeeze roller is chromate treatment seamless steel pipe, the roller surface is covered by stainless steel, never has the rust bec of glue corrosion.

https://yihemachinery.en.made-in-china.com/product/YSRExBfUTVrz/China-4FT-Single-Power-Spindleless-Veneer-Peeling-Machine-for-Plywood-Making.html

 About us:
Shandong Linyi Jianye Shunda machinery CO., LTD.
yihemachinery.en.made-in-china.com

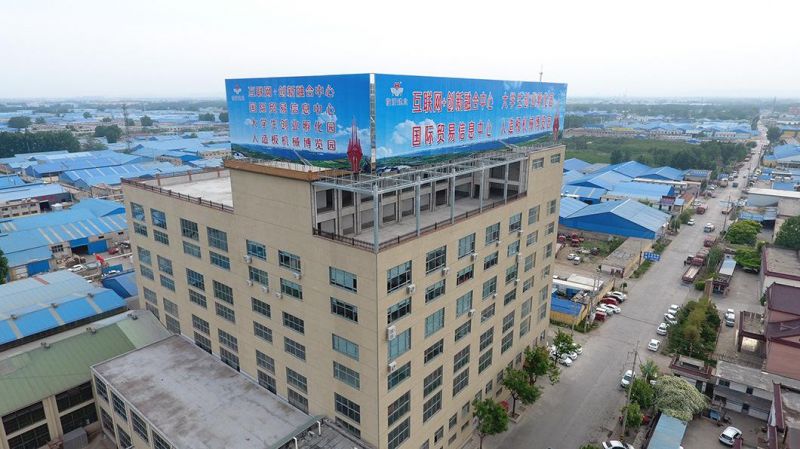

 Shandong Linyi Jianye Shunda Machinery Co., Ltd.(formerly Linyi Jianye Machinery Factory)founded in 1991, is a set of production, sales, service, reach and development as one of the multi-company and multi-category professional manufacturers of wood machinery, It is a modern management services company, under the construction industry Shunda Machinery Manufactur of Zhu Bao Branch, Jianye Rubber Products Factory and Jinze import and Export Co., Ltd.
After more than 20 years of continuous development and growth, under the sincere cultivation of the vast number of customers and the joint efforts of all the employees of the company, Now we have the brand of "Yihe" and six categories of series. Glue spreader machine series, drying machine series, hot press machine series, sawing machine series, in the patchwork (scraper) series and rubber products series. Become more than 40 kinds of products of large and medium-sized wood machinery professional manufacturers.



  The company always adheres to the service aim of the brand, high efficiency, honesty and pragmatism, and sincerely expects to cooperate, develop and progress with domestic and foreign businessmen. With sophisticated equipment, advanced processing technology and perfect testing methods, the company continuously improves its technical level and strives to provide satisfactory professional and personalized wood-based panel machinery manufacturing and service for the vast majority of wood processing enterprises at home and abroad. Domestic and foreign businessmen are welcome to visit.
