Tony High-Efficiency and Good Service Rubber Wood Sawdust Pellet Pressing Machine Wood Pellet Mill Biomass Pelletizing Machine Chips Pellet Machine Tyj850-II

Shandong Tony Environmental Protection Sci-Tech Co., Ltd.
  • Type：Ring Die Pellet Machine
  • Voltage：380V
  • Automatic Grade：Automatic
  • Controlling Mode：Artificial
  • Energy Saving：Energy Saving
  • Certification：CE, ISO

Base Info

  • Model NO.：TYJ850-II
  • Warranty：1 Year Except The Spare Parts
  • Customized：Customized
  • Condition：New
  • Color：Green and White
  • After-sales Service：All Working Life Service
  • Power：220kw
  • Capacity：3-4tons,Hr
  • Transmission：Reducer Transmission
  • Lubrication：Automatic Lubrication System
  • Installation：Manual,Video Chat,Engineer Guide
  • Optional Voltage：380V,415V,440V
  • Wearing Parts：Die and Roller
  • Bearing：Hrb Brand
  • Raw Material：Agricultural&Wood Waste
  • Ideal Moisture：10-15%
  • Pellet Diameter：4-12mm
  • Transport Package：Iron Case
  • Specification：2680*1300*2080
  • Trademark：TONY
  • Origin：China
  • HS Code：8479300000
  • Production Capacity：100sets,Month

Description

Function of Vertical Ring Die wood sawdust pellet pressing machine

Ring Die pellet mill machine is also named as biomass or wood pellet machine/pellet mill/pellet press. It is designed to make biofuel / biomass fuel pellets for burning..

Features of wood sawdust pellet pressing machine With Reducer Transmission

★Upward mould, special structure; vertically feeding, never buff placer, feeding material with wide inlet, and easier heat dissipation.
★Die static, roller rotating, material centrifugation, distributed around evenly; because of the die high side, the material can be kicked back to the pressure room.
★Double-layer die, up and down dual-use, high capacity, saving energy.
★ Adjust the length of pellets and briquette with frequency conversion, which is the separate device in the machine, * the speed depends on the length of finished products.
★Grease filtrated, automatic lubrication and link compaction.

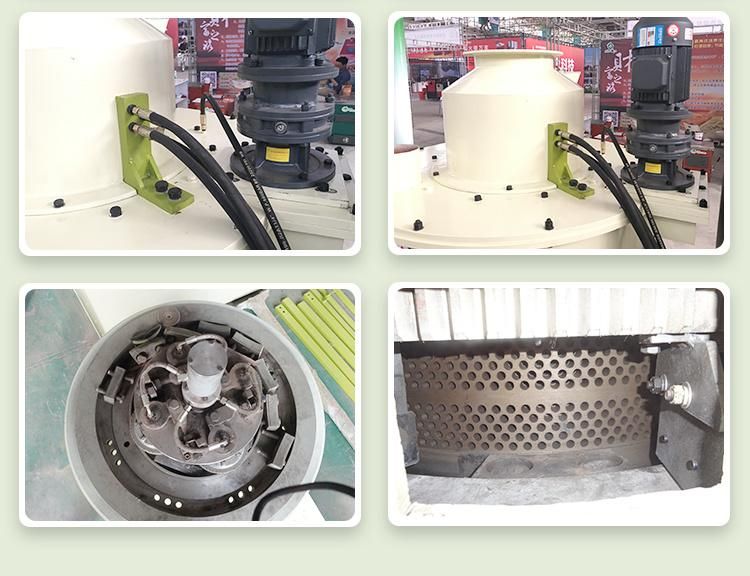

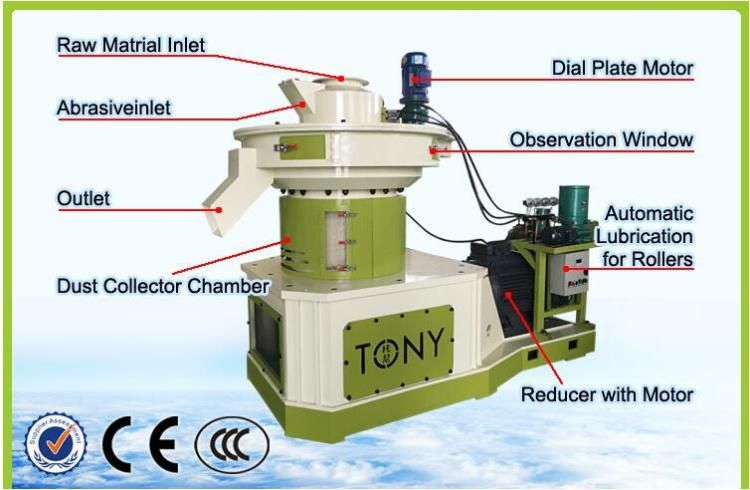

Details of wood sawdust pellet pressing machine TYJ720-II

Tony High-Efficiency and Good Service Rubber Wood Sawdust Pellet Pressing Machine Wood Pellet Mill Biomass Pelletizing Machine Chips Pellet Machine Tyj850-II
Tony High-Efficiency and Good Service Rubber Wood Sawdust Pellet Pressing Machine Wood Pellet Mill Biomass Pelletizing Machine Chips Pellet Machine Tyj850-II

Raw Materials of Pellet Mill

Suitable Raw Materials: It can process various kinds of biomass raw materials such as wood, trunck, branch, sawdust, straw, rice husk, bamboo sawdust, peanut shell, bagasse waste, alfalfa, a variety of crop stalk and other agricuntural waste, etc. If you are not sure how your materials perform in pelletizing, you can send us some sample of the material and we can help you test the pelletizing process and send you the final products.

Requirements for raw material:
Size: Less than 5mm.
Miosture: Better to be 10%-15% (Moisture is one of the most influential factors which desides pellet quality good or bad)

Final Pellets From Vertical Ring Die Pellet Mill:
Diameter Size: 4mm, 6mm, 8mm, 10mm, 12mm

Tony High-Efficiency and Good Service Rubber Wood Sawdust Pellet Pressing Machine Wood Pellet Mill Biomass Pelletizing Machine Chips Pellet Machine Tyj850-II

Main Spare Parts

Tony High-Efficiency and Good Service Rubber Wood Sawdust Pellet Pressing Machine Wood Pellet Mill Biomass Pelletizing Machine Chips Pellet Machine Tyj850-IITony High-Efficiency and Good Service Rubber Wood Sawdust Pellet Pressing Machine Wood Pellet Mill Biomass Pelletizing Machine Chips Pellet Machine Tyj850-II

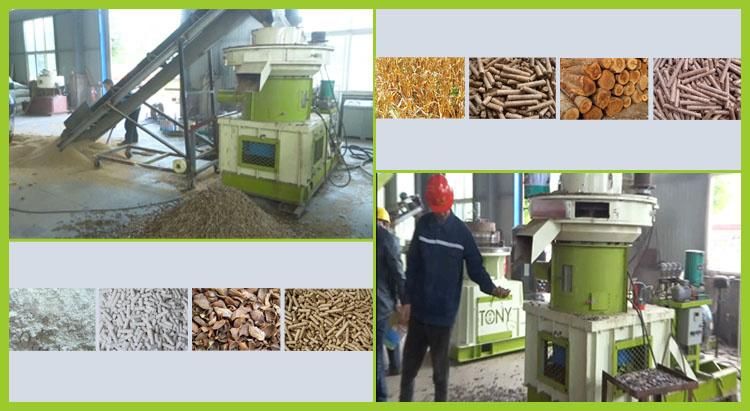

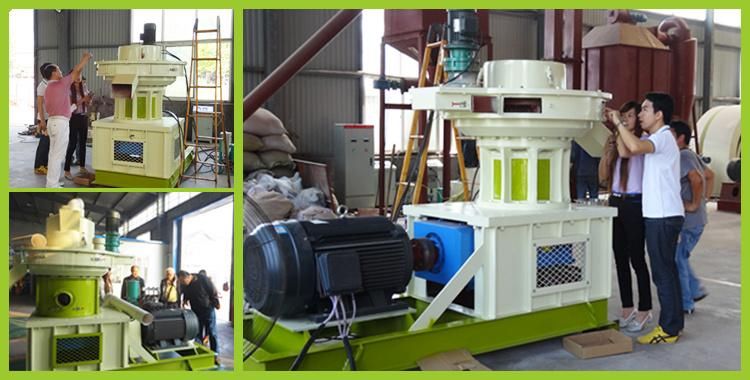

Wood pellet mill test
Tony High-Efficiency and Good Service Rubber Wood Sawdust Pellet Pressing Machine Wood Pellet Mill Biomass Pelletizing Machine Chips Pellet Machine Tyj850-IIWelcome every friend who are interested in pellet machine to visit our company. Our pleasure to show how a machine working to make pellets.
Tony High-Efficiency and Good Service Rubber Wood Sawdust Pellet Pressing Machine Wood Pellet Mill Biomass Pelletizing Machine Chips Pellet Machine Tyj850-II
Company Information

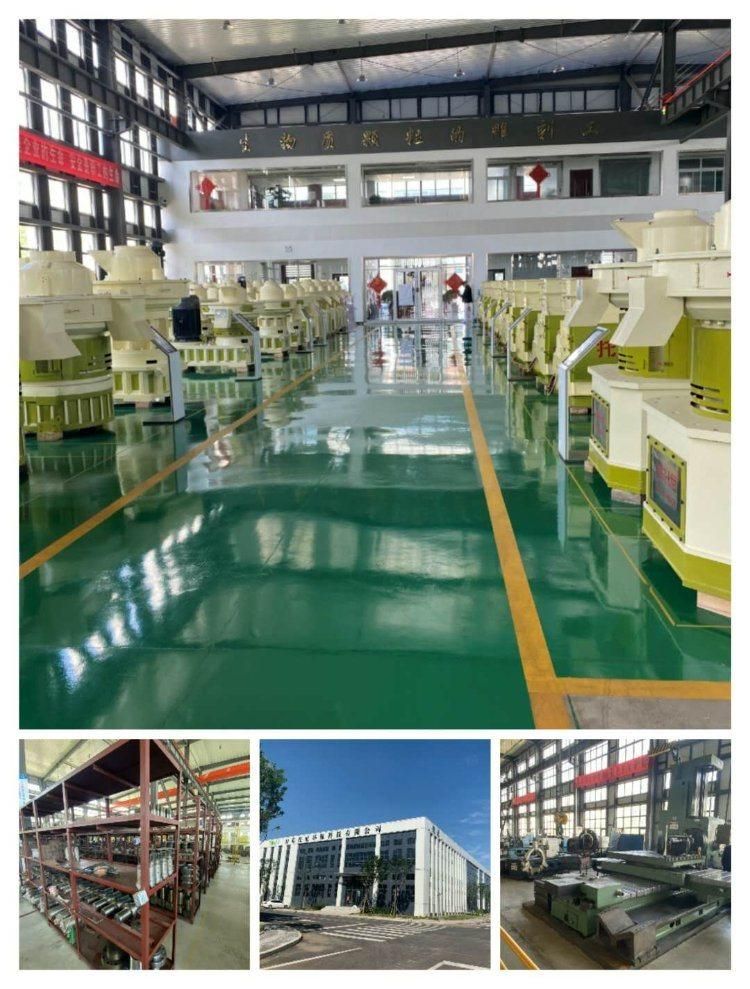

Tony High-Efficiency and Good Service Rubber Wood Sawdust Pellet Pressing Machine Wood Pellet Mill Biomass Pelletizing Machine Chips Pellet Machine Tyj850-IIWorkshop and Warehouse
Tony High-Efficiency and Good Service Rubber Wood Sawdust Pellet Pressing Machine Wood Pellet Mill Biomass Pelletizing Machine Chips Pellet Machine Tyj850-IICertifications
Tony High-Efficiency and Good Service Rubber Wood Sawdust Pellet Pressing Machine Wood Pellet Mill Biomass Pelletizing Machine Chips Pellet Machine Tyj850-II

Related Products

We mainly manufacture pellet mill  as following:
1. The SKJ Series flat die pellet mill/feed pellet mill with the volume 100kg to 4 ton per hour.
2.TheTY Series ring die pellet mill / feed pellet mill with the volume 800kg to 5 ton per hour.
3.The SKJD Series Pellet Mill with Diesel Engine with volume 100kg to 400kg/h.
4.The SKJT Series Pellet Mill with Tractor Engine with volume 80kg to 400kg/h.
5.Hammer Mill
6.Wood crusher
7.Wood chipper
8.Drum dryer
9.Packing machine
10.Whole pellet making production line from the volume 0.5 ton to 20 T/h.

How to inquire about our pellet machine/pellet mill/pellet press or pellet line?
When sending inquiry, pleases remember to write down the following information:
1. What's the capacity you plan to produce?
2. What's the raw material?
3. What's the size of the raw material?
4. What's the moisture content of your raw materials?
5. What's the final pellet size do you want?
6. What's your country voltage?
