• Work Mode：Continuous
• Controlling Mode：Artificial
• Automatic Grade：Semiautomatic
• Transport Package：Pearl Wool and Film
• Trademark：QIULIN
• Origin：China
• HS Code：8465990000

Basic Info.

Work Mode Continuous Controlling Mode Artificial Automatic Grade Semiautomatic Transport Package Pearl Wool and Film Trademark QIULIN Origin China HS Code 8465990000

Product Description

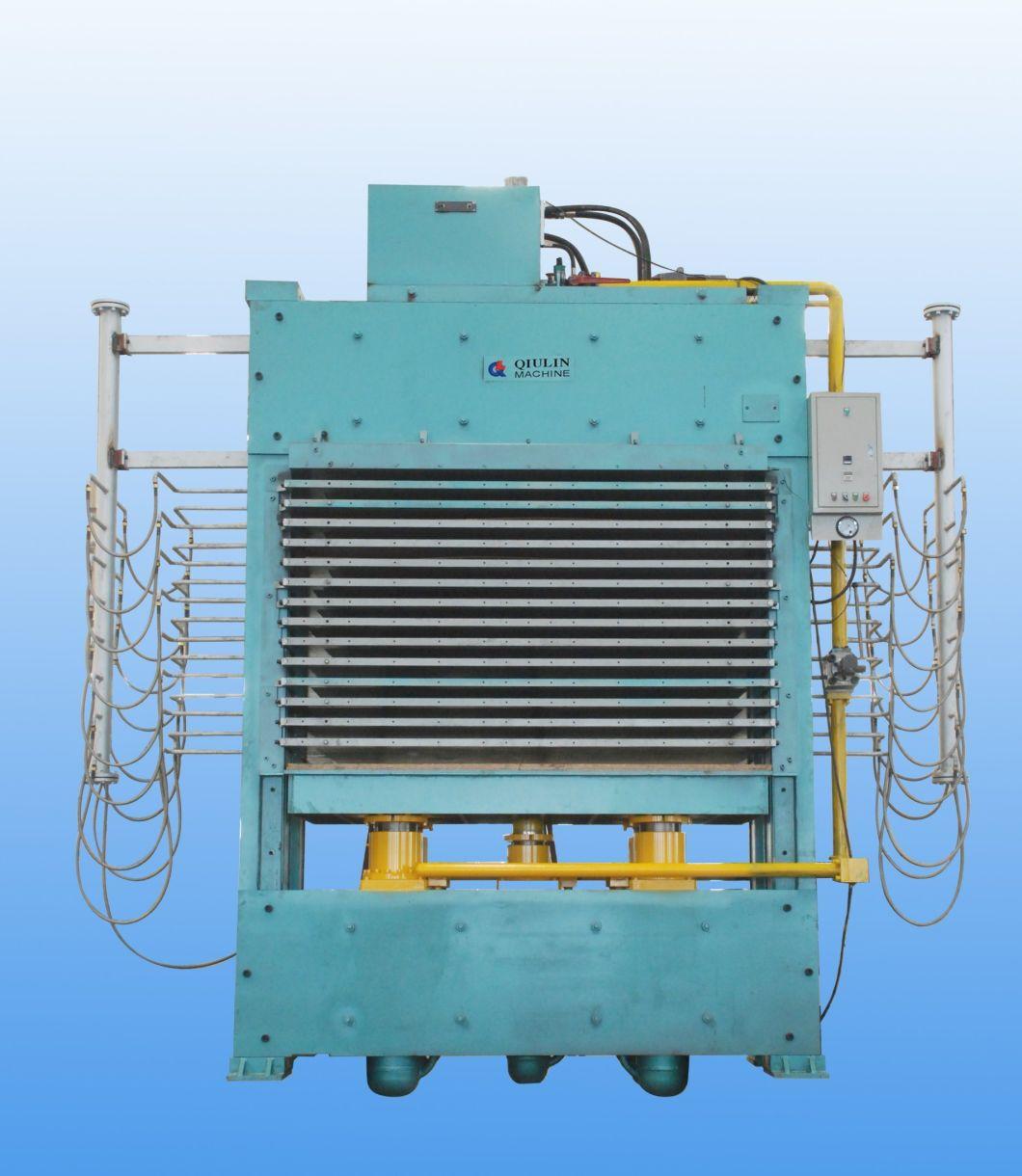

	BY214x8/60(12)Z3C	BY214x8/60(15)Z3C	BY214x8/60(20)Z3C	BY214x8/60(25)Z3C with drying plate rack
Total pressure	6000KN	6000KN	6000KN	6000KN
Working layers	12	15	20	25
Max.pre.int. of valid working width	16.2kgf/cm2	16.2kgf/cm2	16.2kgf/cm2	16.2kgf/cm2
Platen & size	13-2700x1370x42mm	16-2700x1370x42mm	21-2700x1370x42mm	26-2700x1370x42mm
Opening	80mm	70mm	120mm	80mm
Cylinder No. & diameter	1-Φ190mm 4-Φ240mm	1-Φ190mm 4-Φ240mm	1-Φ190mm 4-Φ240mm	1-Φ190mm 4-Φ240mm
Heating way	The user prepare the heating source	The user prepare the heating source	The user prepare the heating source	The user prepare the heating source
Platen open way	Automatically,threetimes release pressure	Automatically,threetimes release pressure	Automatically,threetimes release pressure	Automatically,threetimes release pressure
Installation power	15.75kW	15.75kW	22.75kW	22.75kW
Closing speed	65mm/s	65mm/s	65mm/s	32mm/s
Overall size	5490x1660x5220mm	5490x1850x5510mm	5250x1860x6310mm	5490x2215x8220mm
Gross weight	37800kg	35350kg	42000kg	62000kg

Advantage:
1.It can lift the hot platen,close the separation,add the pressure,keep the pressure,keep time, descend the hot platen and so on.
2.As to the oil heater,it is adjustable,safe, uniform temperature,energy saving and so on.
3.Cylinder:It is worked through excellent CNC precision machine tool.
4.It uses high quality oil seals to make sure good sealing.
1.Delivery and Package:
-We will take care of your machinery packages well.
-Our workers will make sure your machine clean before package.
-We will add stretch film for the whole machine and spare parts for delicate protection.
-We will make export standard strong wooden box case package as your request for the knocked down parts of machines.

2.Guarantee:
The main machine is guarantee for 12 months and the electric elements is guaranteed for 6 months.Within guarantee under normal using and maintenance.If the machine has something problem because of our quality fault you will get spare part for free. After the guarantee, you will get the cost price for accessories.You will also get technical support and service all the time.

3.Technical Support:
-Technical support by Phone,Email,Wechat 24 hours online
-We provide English version manual.
-Engineer available to service machinery overseas.

4.After sales service:
Our machine is installed and tested well before delivery.You can operation the machine immediately after received machine.If you don't know how to use the machine,we will offer you cost training until you can use machine freely.And if there is still any question, please contact us by Email, Phone, and we chat online service at any time.
