• Model NO.：TD-9462AP
• Energy Saving：Not Energy Saving
• Warranty：1 Year
• Customized：Customized
• Condition：New
• After-sales Service：Yes
• Dimension：5000*2530*2200mm
• Total Motor Power：31kw
• Voltage：380V 50Hz 3 Phase
• Transport Package：Stretch Film with Foam
• Trademark：TQS
• Origin：Foshan, China
• HS Code：84659500

ModelTD-9462APMax. working length2450mmMin. working length220mmWorking thickness8-50mmDrill rows quantityUpper 4pcs, down 6pcs, right 1pcs left ,1pcsSpindle quantity of the machine264pcsSpindle speed2840rpmMax. hole diameterΦ13mm (multiple) Φ35mm (single)Diameter of drill colletΦ10mmSystemLunix3D design in systemsupportDXF formatsupportWifiintegrated. can do remote controlThe control system

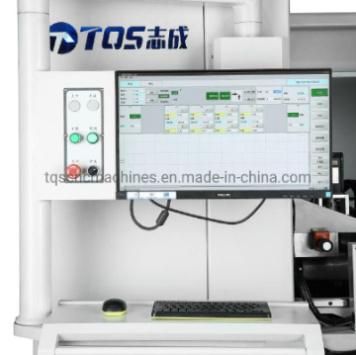

Adopt industrial computer control, with Lunix system, integrated with WIFI function, come with the 19 inch touch screen.
The system is BUS control type, so can ensure the precised row positioning, and the final working accuracy.
Support the DXF document, with special setting layers in the Autocad, just one click and start the working procedure.
3D design also available in the system, the operator can do the deign in the system, then get the processing code.Belt type automatic feeding device

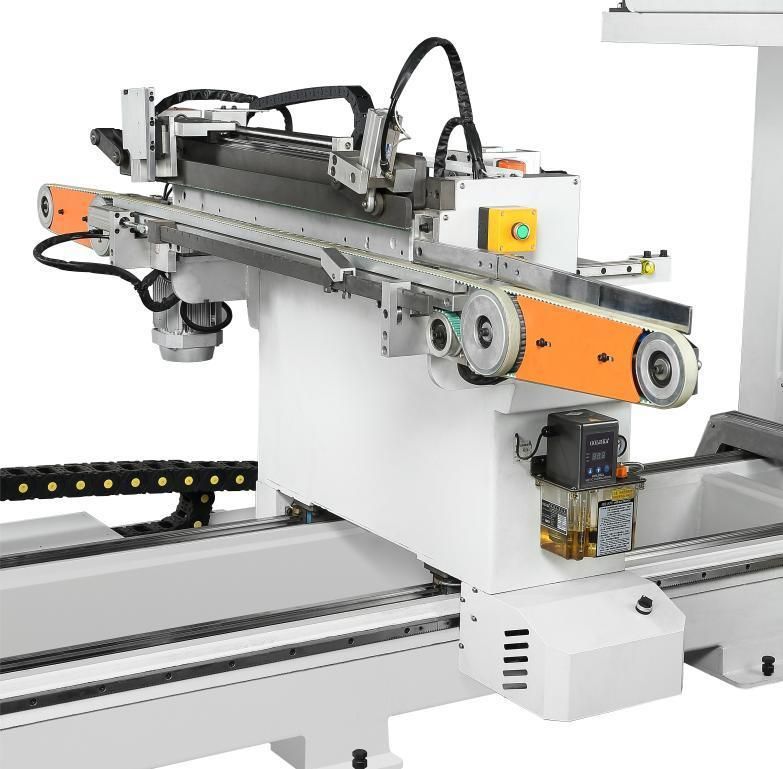

The machine adopts belt type automatic feeding device. Two feeding styles can be chosen: through feeding ( in the production line or two operators), cycle feeding (single machine with single operator).

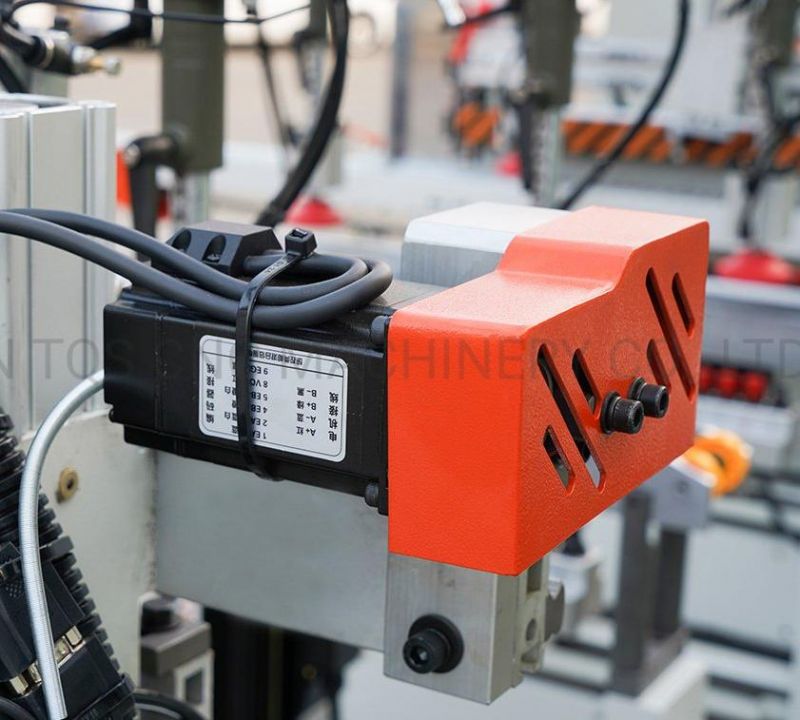

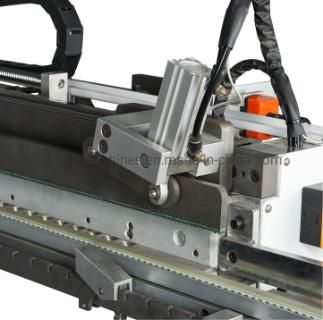

The board position flips are driven by AC Servo, though the ball screw, the operator just need set the board size in the system, then the flip will approach the position automatically.The Movement of vertical rows
Horizontal movements of vertical rows are driven by AC servo through rack and pinion.

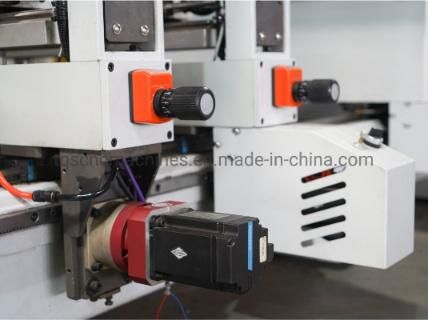

The longitudinal movements of each drilling unit are driven by AC servo through ball screw.
The operator is just setting the drilling depth by manual, then can achieve one click machining for all vertical holes.illustration of each row

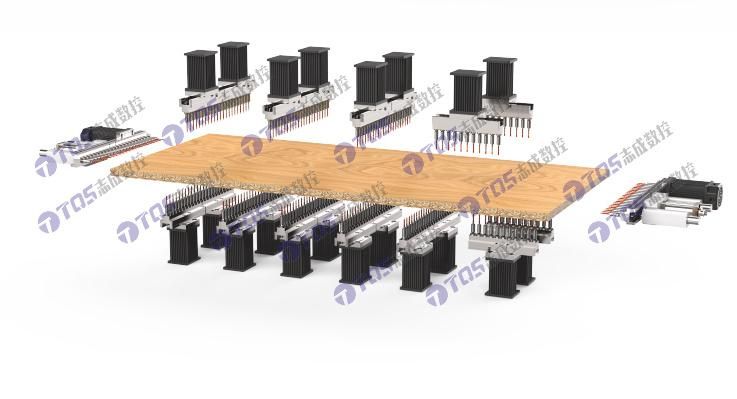

The machine come with upper 4 rows, down 6 rows and 2 pcs horizontal rows.
All the vertical rows are integrated with two individual drilling packs, which can do 0-90^o rotating.


1. What's your guarantee? Which type after sale service can you provide to us?
All the machine, we can offer the 1 year guarantee to our customers; any parts damaged due to the quality issue, we will send the parts via DHL, Fedex or air shipment urgently.
After sale service: if you purchased our CNC nesting center or edge bander, and we don't have any dealer or agent in your region, we will send our engineer to your site for installation and training ( you should pay the round-trip flight ticket, salary of engineer- each day 100.00USD, also take charge of the local accommodation. ). Considering the situation, we can do the online training.  Also any small issues, you can knock us online, we will offer the rapid action to your concerns.
2. Which type payment term can you accept? How could we keep our capital safe?
We can accept the T/T and L/C at sight. We have more than 10 years exporting experience, so we know more about the capital safty concern of our customer. We will offer the video call or pictures to your side, during our loading, then you can check what we have done for the loading, if any cheating, then you can control your payment (T/T or L/C).
3. What is the leading time, if we did the payment to your side?
The leading time of most common machines, will be 10-25 days after collecting the down payment / copy of L/C. Specially designed production will take little bit longer time.
4. Can you accept some O.E. M service to us? or any other service could you do for us?
We have more than 15 years experience in the woodworking machinery industry, also have more than 5 experienced engineers, so we can do the special design according to your requirement.
Also, our exporting team has more than 10 years of experience in this field, so they can help you to purchase relevant products, parts, or tools, which can save your time and your cost.
