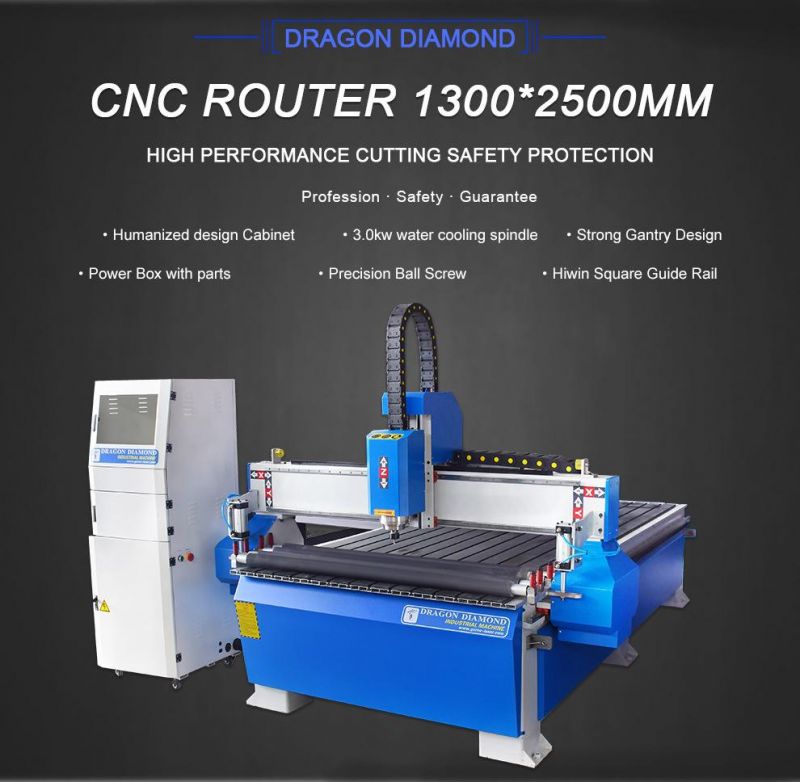

3D Woodworking Furniture CNC Engraving Cutting Carving 3 Axis Wood Router 1325 CNC Machine
Guangzhou Dragon Diamond Technology Co., Ltd.- Warranty：24 Months with 24 Hours on-Line Technical Support
- Type：Vertical Uniaxial Wood Router
- Spindle Layout：Spindle Over
- Spindle Number：Single-Spindle
- Feed Mode：Mechanical
- Controlling Mode：CNC
Base Info
- Model NO.：LZ-1325+rolling
- Certification：CE
- Customized：Customized
- Condition：New
- Color：Customized
- After-sales Service：24 Months with 24 Hours on-Line Technical Support
- X,Y,Z Traveling Area：1300mm*2500mm*200mm
- Table Size：1440mm*2830mm
- Table Structure：T-Slot Table
- Guider：Taiwan Hiwin Square Rail
- X,Y,Z Guide Rail：Taiwai Hiwin Square Rail
- Spindel Power：3.0kw Water Cooling Spindle
- Control System：Nc-Studio Control System(DSP)
- Working Voltage：AC380V, 50Hz
- Max Spindle Speed：24000rpm
- Working Speed：8m,Min
- Reposition Accuracy：0.03mm
- Command Code：G Code*.U00*.Mmg*.Plt
- Transport Package：Wooden Packing
- Specification：Pcking size: 3200X2200X1800mm
- Trademark：Dragon Diamond
- Origin：China
- Production Capacity：50 Set,Sets Per Month
Description
Basic Info.
Model NO. LZ-1325+rolling Certification CE Customized Customized Condition New Color Customized After-sales Service 24 Months with 24 Hours on-Line Technical Support X,Y,Z Traveling Area 1300mm*2500mm*200mm Table Size 1440mm*2830mm Table Structure T-Slot Table Guider Taiwan Hiwin Square Rail X,Y,Z Guide Rail Taiwai Hiwin Square Rail Spindel Power 3.0kw Water Cooling Spindle Control System Nc-Studio Control System(DSP) Working Voltage AC380V, 50Hz Max Spindle Speed 24000rpm Working Speed 8m/Min Reposition Accuracy 0.03mm Command Code G Code*.U00*.Mmg*.Plt Transport Package Wooden Packing Specification Pcking size: 3200X2200X1800mm Trademark Dragon Diamond Origin China Production Capacity 50 Set/Sets Per MonthProduct Description
3D Embossment Wood Working Engraving Cutting Carving CNC Router 1325 CNC Machine price
PRODUCT PARAMETER| NO. | Model | Lz-1325+Rolling Cylinder |
| 1 | Working Area | 1300x2500x200mm |
| 2 | Packing Size | 2180x2130x1880mm |
| 3 | Working Table | T slot Aluminum Table |
| 4 | Spindle | 3KW Water Cooling Spindle |
| 5 | Cooling System | Water cooling |
| 6 | Control System | NC Studio |
| 7 | Inverter | Sunfar |
| 8 | Transmission | X,Y Rack,Z-ball screw |
| 9 | Guide Rail | Taiwan Square rail |
| 10 | Ball Screw | TBI ball screw from Taiwan |
| 11 | Drive System | Leadshine driving system and stepper motor |
| 12 | Body | Welded steel T type structure as a whole |
| 13 | Spindle Speed | 24000RPM |
| 14 | Control Software | Artcam/Type3,other CAD/CAM |
| 15 | Traveling Speed | 10m/min |
| 16 | Working Speed | 8m/min |
| 17 | Reposition Accuracy | 0.03mm |
| 18 | Command Code | G Code*.u00*.mmg*.plt |
| 19 | Voltage | AC220V/380V,50Hz/60Hz |
Please feel free to contact us for more information!Web: dragondiamondcnc.en.made-in-china.comCNC Router/Laser Engraving machine/Laser Cuttingmachine/laser Marking Machine/Plasma Cutting Machine
