• Model NO.：YQVD
• Cylinder：100*1050mm*2PCS,4*120mm*1050mm
• Board Feeding Direction：Transverse
• Layers：15
• Layer Spacing：70mm
• Quantity of Hot Platen：16PCS
• Hot Press Plate Size：1400*2700*40mm,2700*1370*42mm
• Over Dimention：1400*3200*2520mm,3450*1370*3200mm
• Weight：4.5t,120t
• Power(W)：5.5kw,18.5kw
• After-Sales Service Provided：Field Installation, Commissioning and Training
• After Warranty Service：Video Technical Support
• Transport Package：According Customer Request
• Specification：3450*1370*3200MM
• Trademark：YUEQUN
• Origin：China
• HS Code：8479300000
• Production Capacity：20 Sets,Month

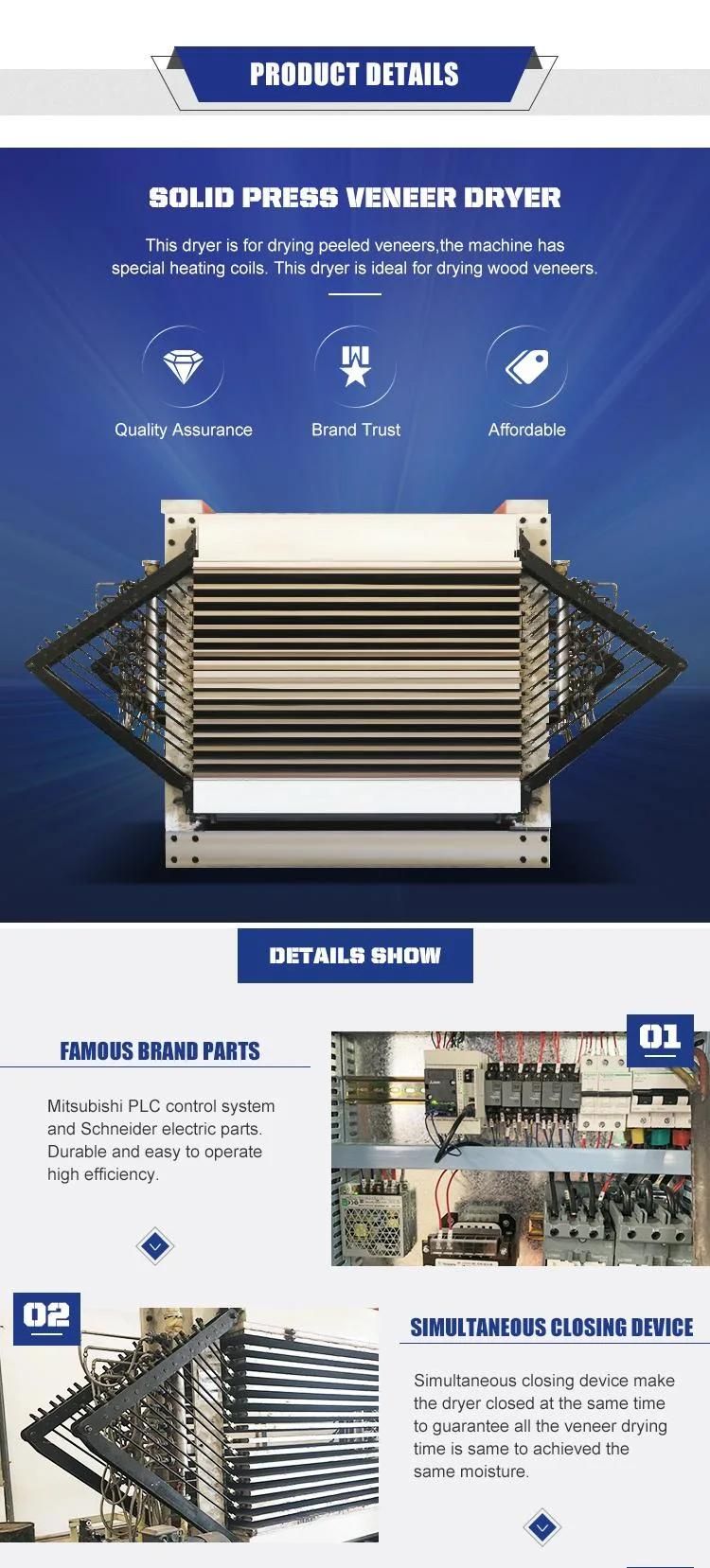

Solid press veneer dryer machine

Model

YQVD120

Total pressure

120 TONS

Board feeding direction

Transverse 2700mm size

Layers

15 Layers

Layer spacing

70 mm

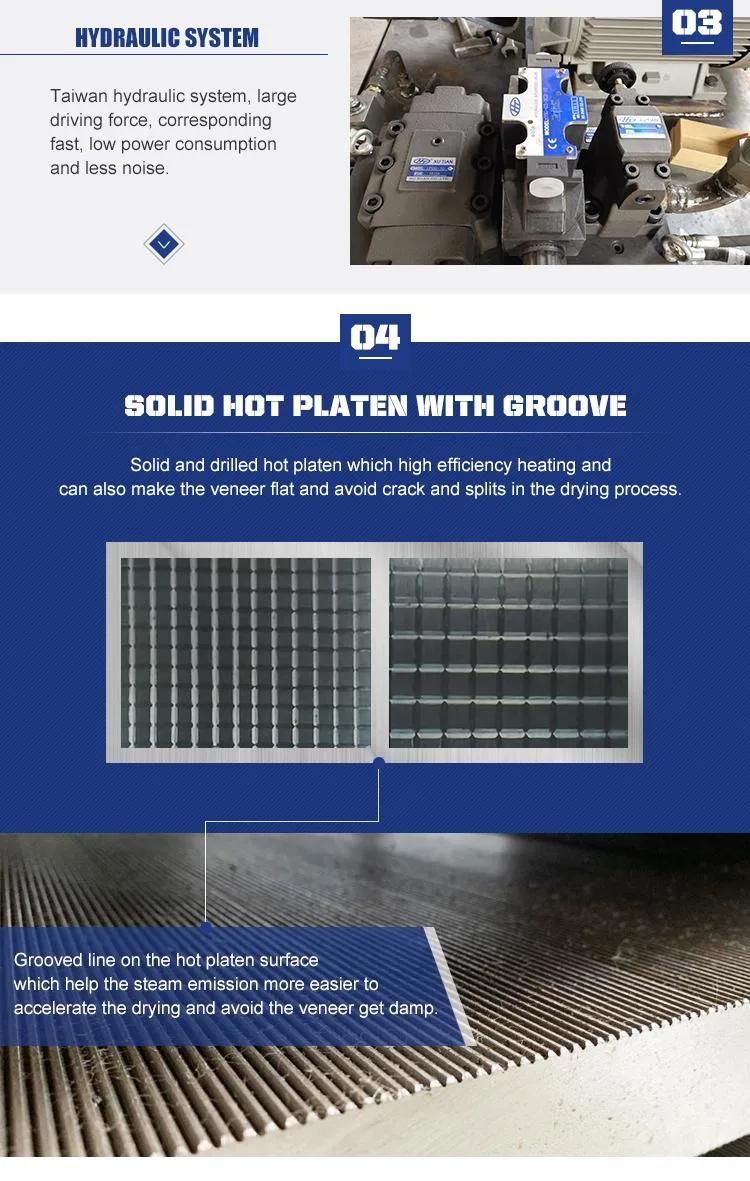

Hot press plate

Number of hot press plate: 16pcs

Size:2700*1370*42mm(Short Groove 30*30mm)

Material:Q235

Cylinder for hotpress machine

2*ø180mm

Wuxi cylinder, solid steel

Seal: 5 rubber seals per pcs of cylinder

Stroke: 1050mm

Hydraulic system from Taiwan

Compression resistance: 25 Mpa

Pump flowing: 116 ml/r*1pcs(Shanghai Double pump)

Power: 15KW

Automatic

Overall dimension

3550mm*1370mm*4400mm

Simultanous device

2 groups

Cylinder stability

Gear and rail

Weight

About 26.5 Tons

Thickness of the frame

Composite frame: Assembled

Upper and bottom beam: 500mm

Main body: 30mm

Connect platen: 16mm, 20mm, 25mm

Advantages:

1. Double roller drive ensure good stability and high uniformity peeler

2. Taiwan HIWIN linear guide railo ensure the veneer more smooth and uniform

3. Japan bearing ensure smooth and steady operation of machine

4. T10 reducer-low vibration,smooth and steady transmission,low noise.

5. Hydraulic knife holder saving manpower,simple operation and automation

6. Automatic adjust knife sewing--double convex rail design structure,more accurate,faster and more stable than original single convex rail adjustment,and no manual screw adjustment workers,saving manpower.

Why Choose Us:

(1)   lasering your logo on products and designing logo is free
(2)   Delivery time within 30days
(3)   No else charge
(4)   MOQ≥1
(5)   Provide products quotation
(6)   Provide Packaging customization service
(7)   SupportWechat/Email/whatsapp

Pre-sale service
1) Provide the free consultation of equipment

2) Provide the standard device and the flow chart
3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
4)Welcome to visit our factory
Service during the sales
1) Inspect the machine before leaving the factory

2) Oversea install and debug the equipment
3) Train the first-line operator
After sales service

1) 24 hours online service

2) Provide the VIDEO with install and debug the equipment
3) Provide technical exchanging
