• Model NO.：GTCO
• Structure：Frame Type
• Pressing Shape：Flat Press
• Platen Surface Pressure：High Pressure
• Pressing Layer：Multi Layer
• Work Mode：Continuous
• Controlling Mode：CNC
• Automatic Grade：Automatic
• Certification：CE, ISO, FDA
• After-sales Service：2 Year
• Total：400t
• Board：Transverse
• Layers：1
• Layer：1800mm
• Work：2700*1450mm
• Cylinder：320mm*2PCS
• Stroke：1000mm
• Power：11kw
• Overall：3550mm*1450mm*4200mm
• Working：Automatic
• Transport Package：by Stretch Film with Wooden Case
• Specification：3500kg
• Trademark：GTCO
• Origin：Shandong, China
• HS Code：84659600
• Production Capacity：5000set,Year

Basic Info.

Model NO. GTCO Structure Frame Type Pressing Shape Flat Press Platen Surface Pressure High Pressure Pressing Layer Multi Layer Work Mode Continuous Controlling Mode CNC Automatic Grade Automatic Certification CE, ISO, FDA After-sales Service 2 Year Total 400t Board Transverse Layers 1 Layer 1800mm Work 2700*1450mm Cylinder 320mm*2PCS Stroke 1000mm Power 11kw Overall 3550mm*1450mm*4200mm Working Automatic Transport Package by Stretch Film with Wooden Case Specification 3500kg Trademark GTCO Origin Shandong, China HS Code 84659600 Production Capacity 5000set/Year

Product Description

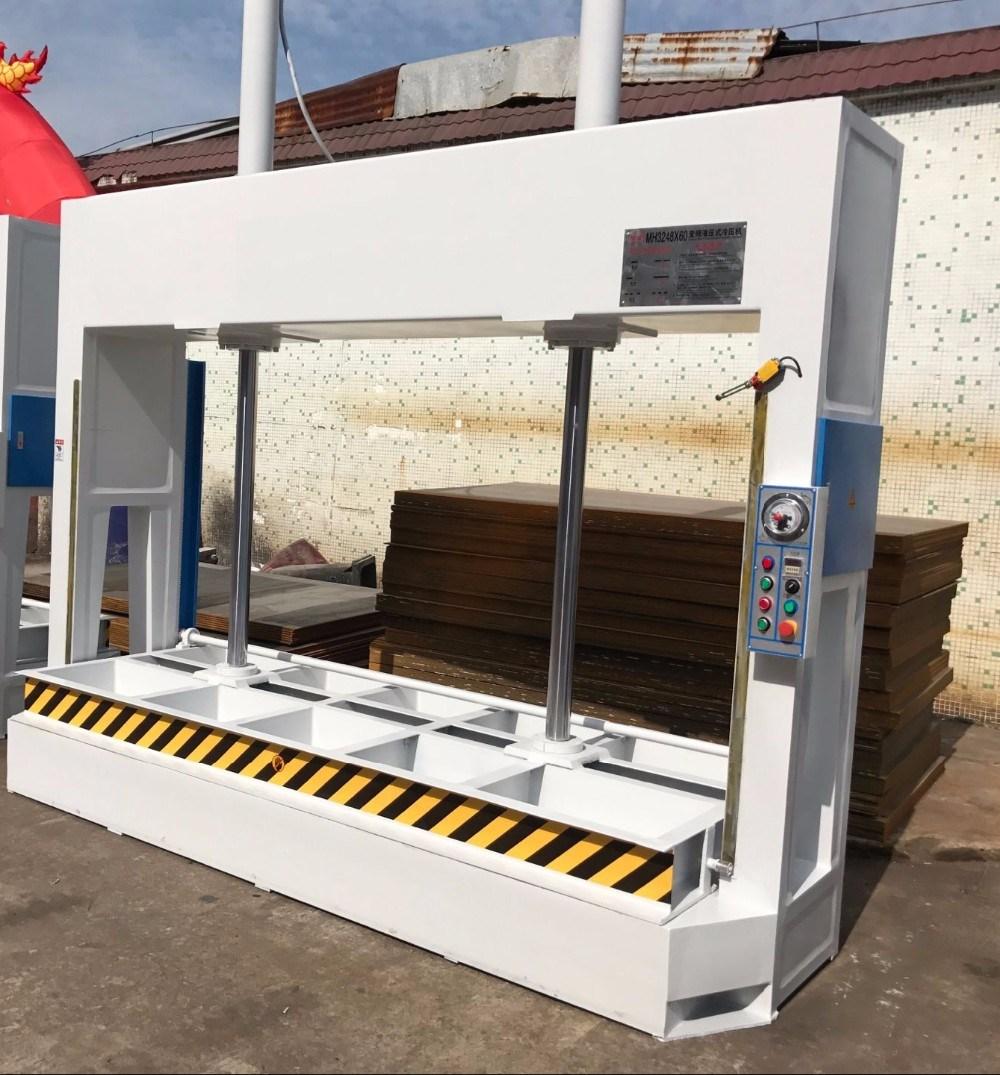

Plywood cold press machine pressing machine woodworking machinery

Product information

Cold press
Total pressure	400 T
Board feeding direction	Transverse
Layers	1
Layer spacing	1800mm
work plate size	2700*1450mm
Stroke	1000mm
Cylinder	ø320mm*2pcs
Power	11KW
Overall dimension	3550mm*1450mm*4200mm
Weight	13Tons
Working methods	Full automatic
Composite frame	Assembled
Upper and bottom beam	900mm
Thickness of the frame	35mm Q235
Middle beam	400mm
Payment terms	T/T 30%,Balance before leave factory
Delievry time	In 20days

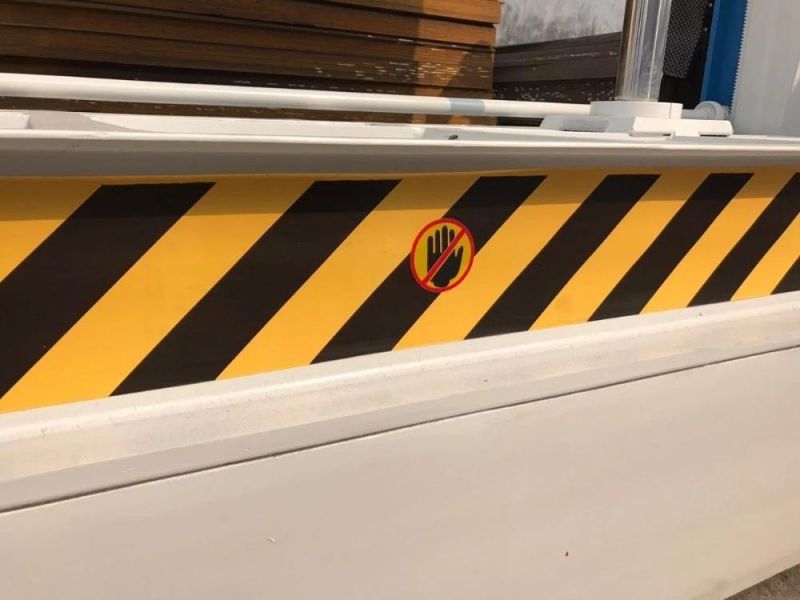

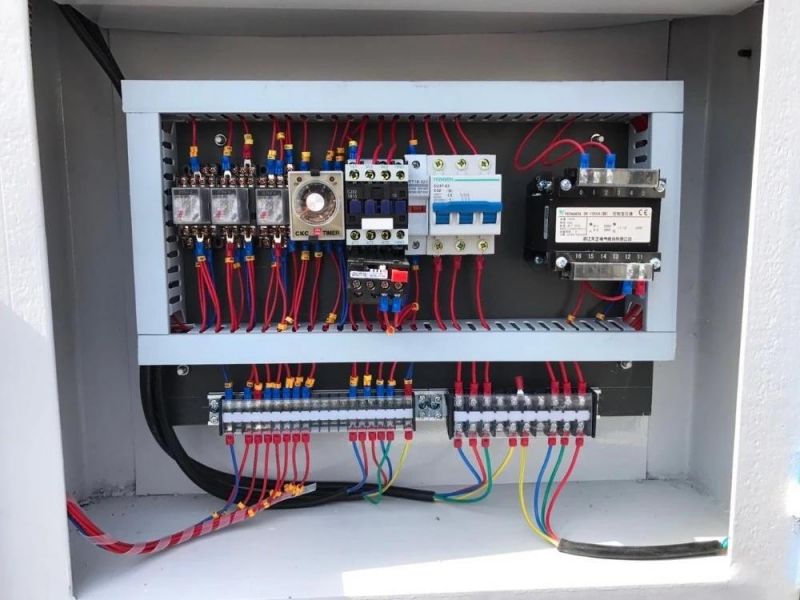

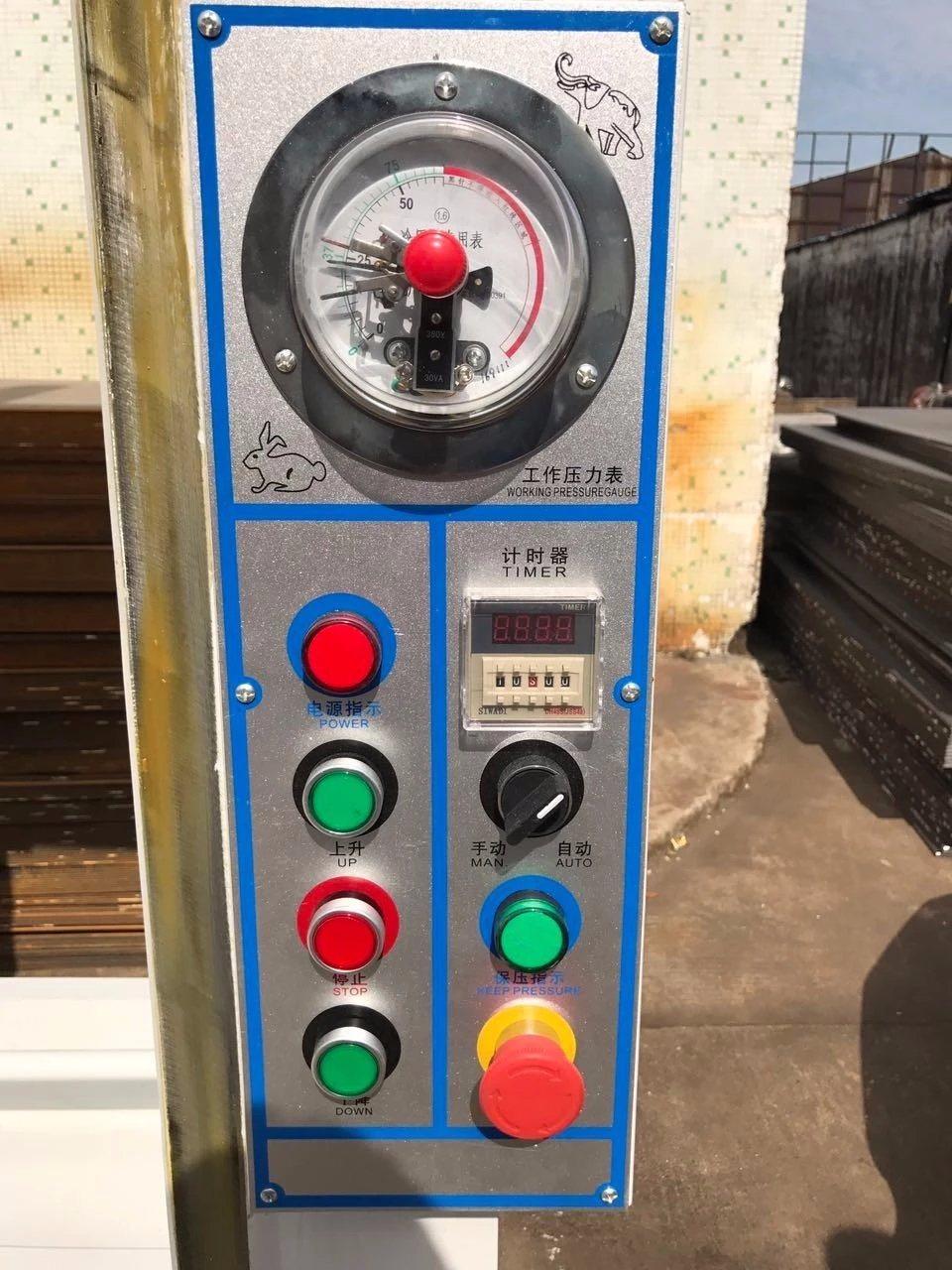

Product show






Packing and Shipping

Packaging Details
stretch film or as your request
Delivery Time
Shipped in 15 days after payment

Our Serive

1. more than 20 years production experience

2. Certifcate notaried

3. 24 hours service

FOQ

What's your company property ?

We have own factory and trading company . Welcome to visit .



Will you charge samples ?

Samples are free. As for the cost of courier , we will give back to you in the payment of the trial order .



What's your delivery time ?

The goods will be deliveried wthin 15 days after recepit of the deposit .



What's your main market ?

We specialized in exporting field for mroe than 8 years , with customers all over the world .Such as the USA ,Mexico , Chile, Venezuela , Italy ,France ,Russia ,Estonia ,

India , South Africa ,Croatia ,etc
