Wood Engraving Machine CNC, Woodworking CNC Router with 4th Axis Rotary Device
Jinan Blue Elephant CNC Machinery Co., Ltd.- Type：Engraving Router
- Spindle Layout：Spindle Over
- Spindle Number：Single-Spindle
- Feed Mode：Mechanical
- Controlling Mode：CNC
- Certification：CE, ISO, FDA
Base Info
- Model NO.：ELECNC1325-4
- Customized：Customized
- Condition：New
- Color：Customized
- X,Y,Z Working Area：1300X2500X200mm (Optional)
- Structure：Heavy Duty Thicker and Bigger Welded Steel Frame S
- Working Voltage：380V,3pH,50Hz(Option)
- Table Surface：T-Slot and Vacuum Working Table
- Spindle：CS 4.5 Kw Water Cooling Spindle, 24000rpm
- Spindle Speed：0-18000rpm
- X, Y Structure：PMI #20 Linear Square Guide Way for X, Y, Z Axis
- Z Structure：Taiwan Tbi Ball Screw for Z Travel
- Motor and Driver：Chinese Leadshine Easy Servo 750W
- Inverter：Taiwan 5.5 Kw Fuling Inverter
- Dust Collector：Dust Collector with 2 Pockets
- Control System：Dspb18 4axis Control System
- Rotary Device：Rotary Device for 200mm Diameter
- Lubrication System：Manual Lubrication System
- Transport Package：Standard Export Wooden Case
- Specification：CE, ISO, SGS
- Trademark：BLUE ELEPHANT
- Origin：Shandong, China
- Production Capacity：200 Sets Per Month
Description
Overview
Product DescriptionProduct Parameters
Sample & Application
Our Service
Packaging & Shipping

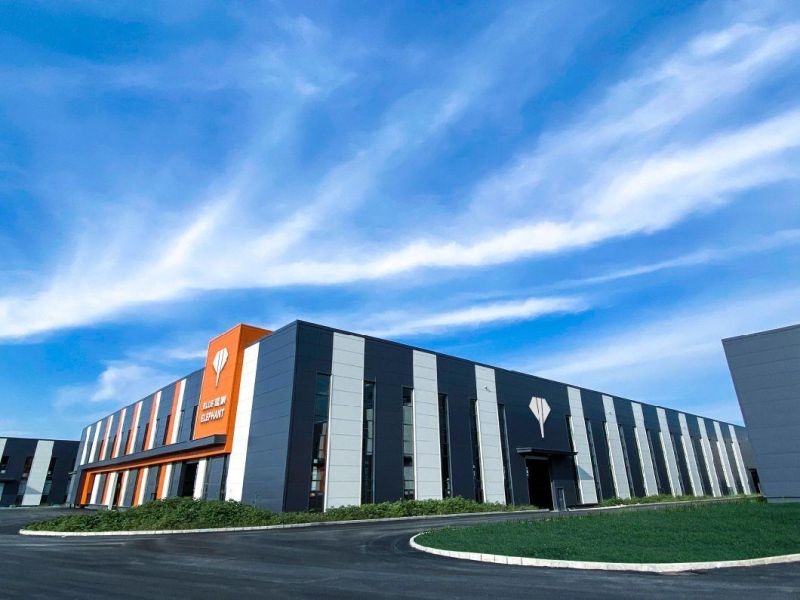

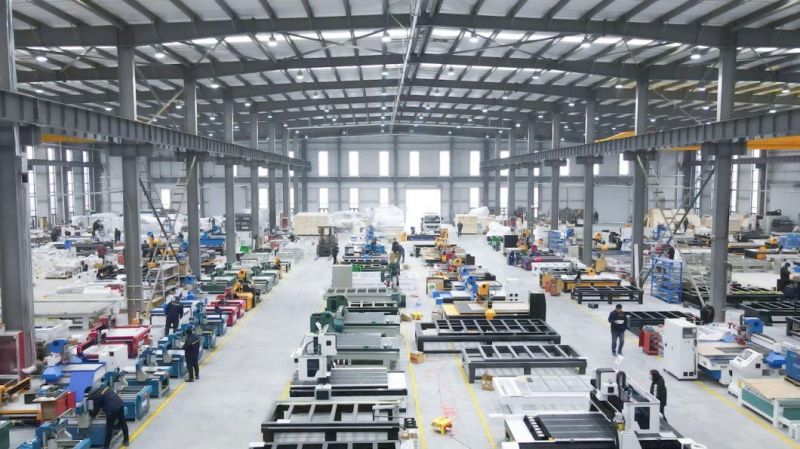

Company Profile
Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
