Wood 3D Relief CNC Machine Hollow out Engraving Processing Machine

Shandong Guandiao CNC Equipment Co., Ltd.
  • Certification:ISO, CE
  • CNC or Not:CNC

Base Info

  • Model NO.:GD1825-10
  • Voltage:380V
  • Warranty:12 Months
  • Power (Kw):4.5kw
  • Range of Spindle Speed:1000 - 24000
  • Positioning Accuracy:0.05mm
  • No. of Spindles:Single
  • Travel (Y Axis)(mm):2500mm
  • Travel (X Axis)(mm):1300mm
  • Key Selling Points:Multifunctional
  • Spindle Motor Power:3.2kw
  • Relative Humidity:30%-75%
  • Running Temperature:0-45ºC
  • Control System:Nc Studio , DSP(Optional)
  • Packing Size:3.2*2*1.7m
  • Packing:Wooden Box
  • Weight:1000kg
  • Transport Package:Plywood Packing
  • Specification:3200*2400*1850mm
  • Trademark:Guandiao
  • Origin:Jinan
  • HS Code:8465990000
  • Production Capacity:10000

Description

Basic Info.

Model NO. GD1825-10 Voltage 380V Warranty 12 Months Power (Kw) 4.5kw Range of Spindle Speed 1000 - 24000 Positioning Accuracy 0.05mm No. of Spindles Single Travel (Y Axis)(mm) 2500mm Travel (X Axis)(mm) 1300mm Key Selling Points Multifunctional Spindle Motor Power 3.2kw Relative Humidity 30%-75% Running Temperature 0-45ºC Control System Nc Studio / DSP(Optional) Packing Size 3.2*2*1.7m Packing Wooden Box Weight 1000kg Transport Package Plywood Packing Specification 3200*2400*1850mm Trademark Guandiao Origin Jinan HS Code 8465990000 Production Capacity 10000

Product Description

Product Description

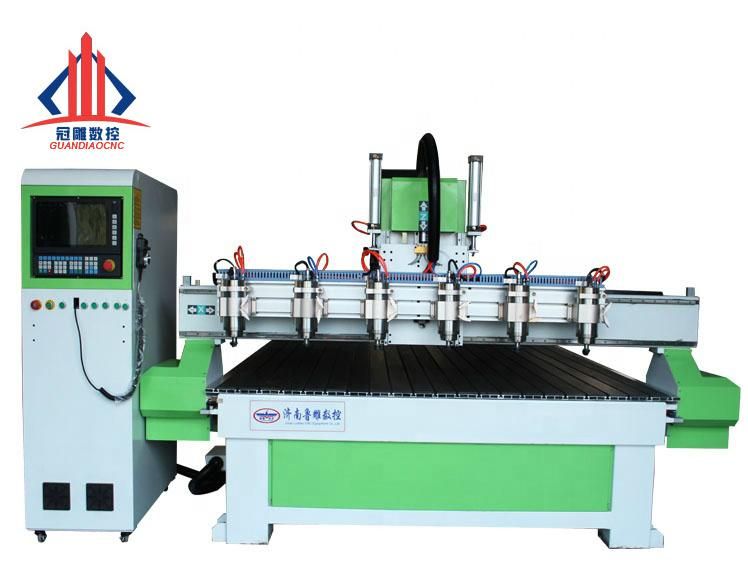

Relief CNC Engraving Machine
Wood 3D Relief CNC Machine Hollow out Engraving Processing Machine


Brief introduction

1.
The lathe bed is cast iron wholly. High-rigidity ,firmness, without deformation.
2.Three axes adopt the imported ball screw rod with high precision and linear guide rail which ensures the precision of machine.
3.
High subdivision step motor with high speed, low noise, running firmly, and powerful torque cutting.
4.
Adopts water cooled spindle with frequency conversion. With low noise, the service life is long, and rotated steadily.
5..High-power, deeply incise. It can incise 30mm thickness acrylic once.
6.The software of the machine can be upgraded so as to ensure the machine improved constantly.
7.Opening software interface can connect all kinds of 3D engraving software, compatible with high precision software.
8.Inserting DSP control system can be optional to this machine.

Relief CNC Engraving Machine technical parameters
Model NO.LD-1325-3-4 -5-6Multi-Spindle CNC Router
X Y Z Traveling Area1300*2500*200mm(optional)
Table StructureAluminum profile
X Y TransmissionXY is with helical helical Rack Gear
Z TransmissionGermany brand ball screws
X Y Z Guide RailTAIWAN HIWIN 20mmSquare Rail
Spindle Power2.2KW Water Cooling/24000rpm/min
Spindle quantity3/4/5/6 heads(optional)
Max. Spindle Power24000 r/min
Max. Traveling Speed20 m/s
Max. Working Area12 m/min
Processing Accuracy±0.025mm
Reposition Accuracy≤0.025mm
Driving SystemStepper motor and leadshine driver
Command LanguageHPGL, G Code
SoftwareCastmate Artcam Typs 3 March 3 Wentai
Operation SystemNC studio control system
Working VoltageAC380V, 50HZ
PackingWooden case
Net Weight/Gross Weight1300KGS /1500KGS
Package Dimension3.2*1.85*2.15m
PaymentTT with 30% in advance

Relief CNC Engraving Machine technical application

1.
Can make cutting, carving processing to wood, plastic and marble etc. Also used in manufacture industry for copper, iron and aluminum work piece processing.
2.
Artwork industry: Carving various characters and figures on gifts, furniture, wood articles, artworks and souvenirs. Matrix processing industry: Applied in carving of elaborate characters and patterns, processing of small matrix products.
3.Building model industry: Carving some elaborate small windows, fences, wall decoration patterns etc.
4.Seal industry: Carving various seals with cattle horn, plastic, wood and ink storage

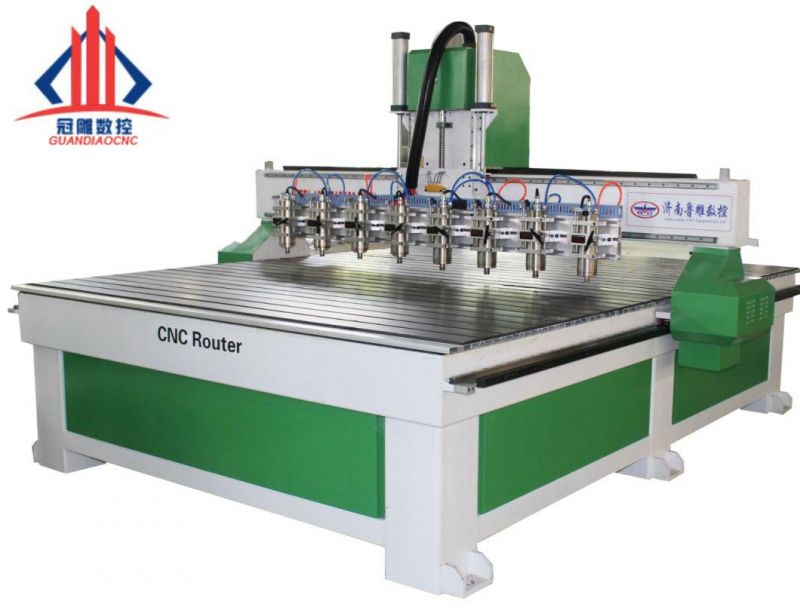

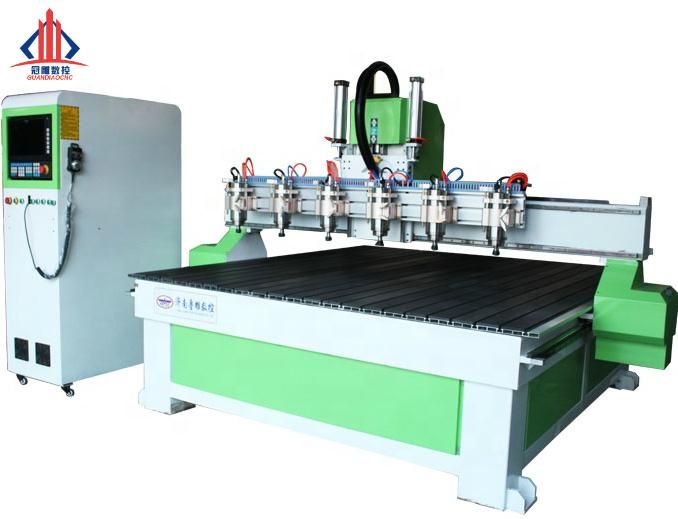

Relief CNC Engraving Machine details
Wood 3D Relief CNC Machine Hollow out Engraving Processing Machine
Wood 3D Relief CNC Machine Hollow out Engraving Processing Machine

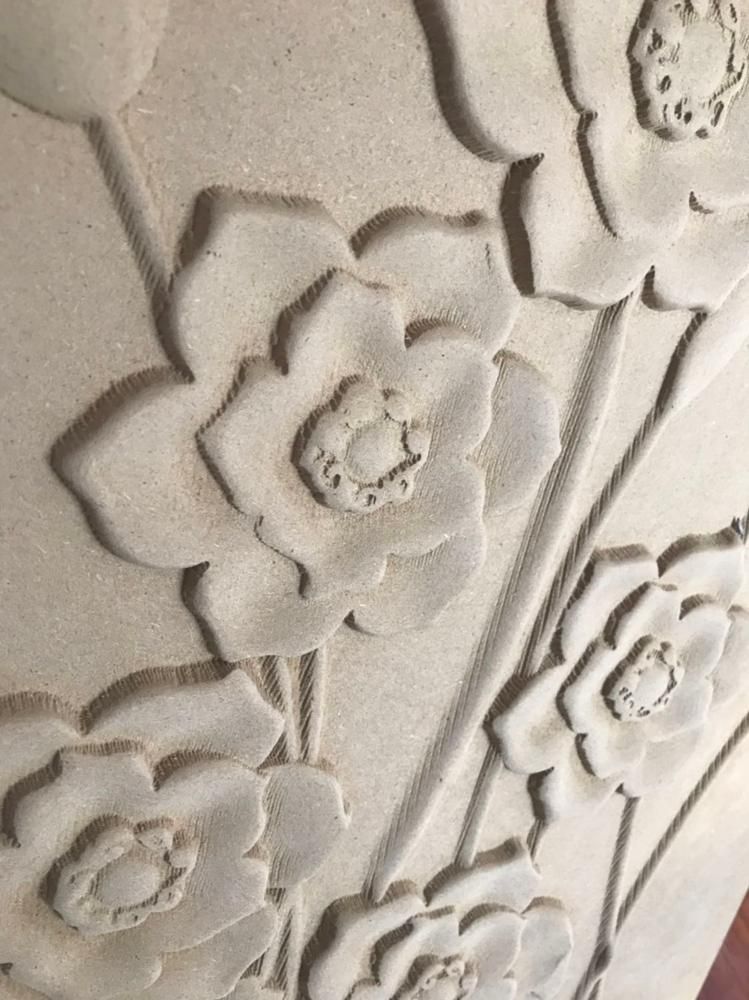

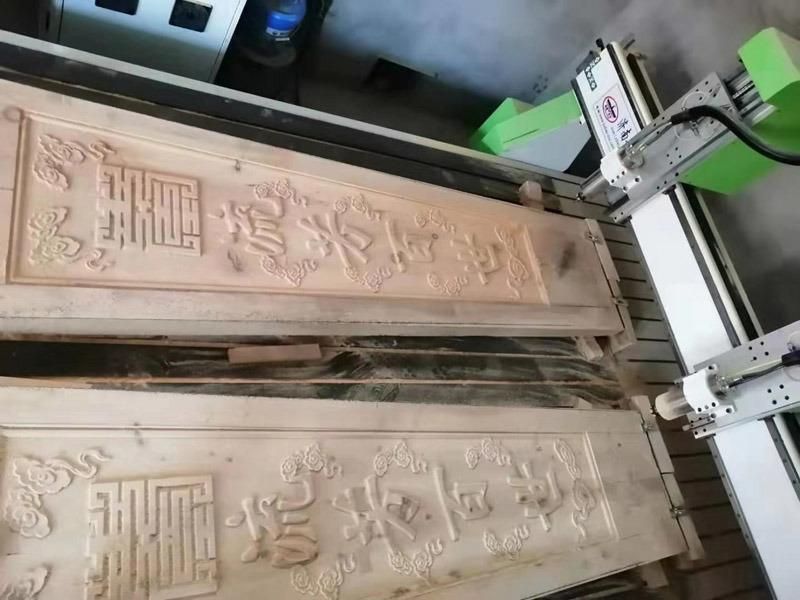

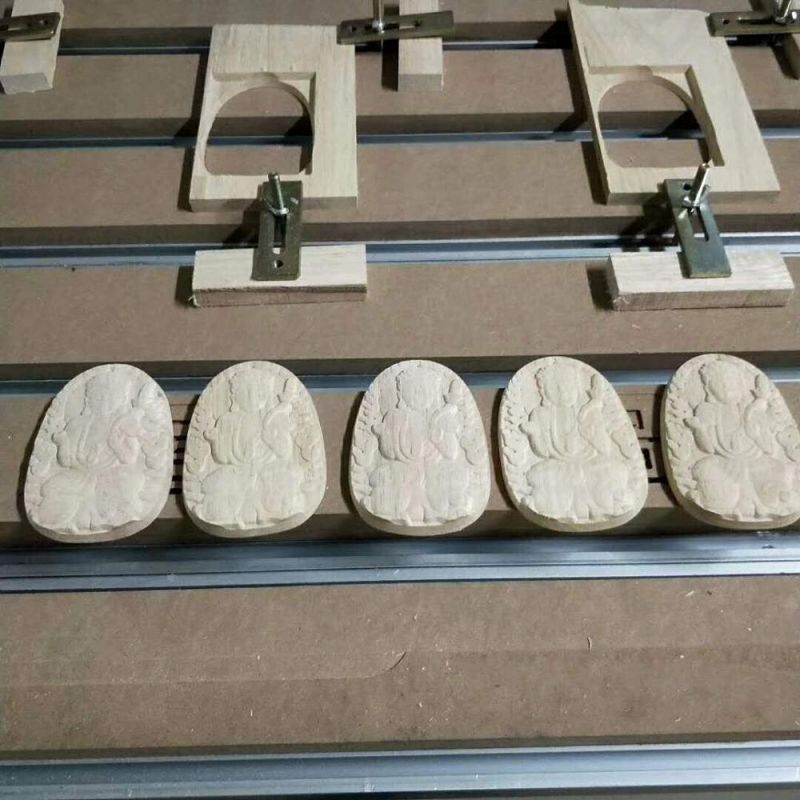

CNC wood carving router samples


Wood 3D Relief CNC Machine Hollow out Engraving Processing Machine
Wood 3D Relief CNC Machine Hollow out Engraving Processing Machine
Wood 3D Relief CNC Machine Hollow out Engraving Processing Machine



Our Services

1. Delivery and Lead time
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
Machine will be tidy and clean , with anti rusty oil brushed on mechanical parts to prevent rusty on sea transportation.
A series pictures and videos will provided as machine finished for help customer understand the performance of the machine.
2.Warranty:
Machine warranty is 12 months.  Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free.  Out of warranty, will collect the accessories cost.  Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided
24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone
Technical support by email, whatsapp, wechat,imo and skype available on time.4.After sale service:Normally the machine will sent on whole except the machine is over size to load container.  so the machine arrange in production immediately after get electricity (air and water some model needed).
The video for operation will provide.
Training at our workshop or on site is available.After sale-service5.We accept the ODM,OEM
If you have other needs, please let me know

Packaging & Shipping

 Wood 3D Relief CNC Machine Hollow out Engraving Processing Machine

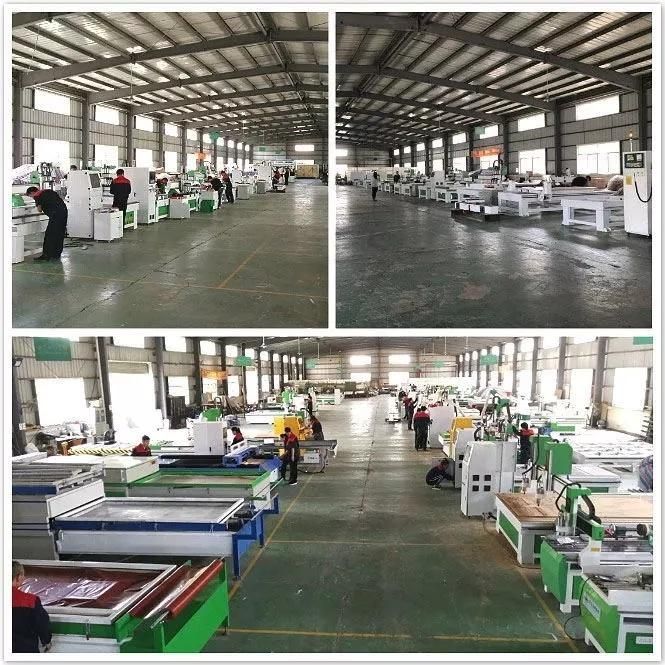

Company Information
Jinan Guandiao CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development,production, sales and good after- sales service. The company's main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router , Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine, Vacuum forming machine, Laser engraving and cutting machine, etc. Products applied to the panel furniture, European furniture, solid wood furniture, advertising, stone, building decoration, handicrafts, mold making, staircases column, PCB printing, automotive industry, packaging industry, shipbuilding, wood manufacturing, watches and clocks, accessories, seals and other industries.
After nearly 10 years of development, the company has a perfect technical team, clear labor division, ensuring the high quality products sent to the whole country, to the world.
We offer our customers best solutions, including product design, installation, training, aftersales service, etc. With the market development demand as the orientation, we stick to innovate and improve technology continuously, to the peak of CNC industry is our relentless drive.
At present, the company's products are sold to major and small cities and regions in China.
The company has independent import and export right, products are exported to southeast Asia, the Middle East, Africa, Europe and the United States and other places, and with its excellent quality, excellent performance and perfect after -sales serves won the customer the consistent approval.
