• Model NO.：ET-60E
• Edging thickness：0.15-3mm
• Automatic Grade：Semiautomatic
• Panel Feeding Speed：10.5,16m,min
• Certification：CE, ISO, FDA
• Panel Thinkness：8-50mm
• Min.length panel：120mm
• Min.width panel：50mm
• Manufacturing Principles：Glue Tank Overhead
• Customized：Customized
• After-sales Service：24 Hours Online Service
• Color：Customized
• Transport Package：in Bulk or Container
• Specification：Customized
• Trademark：ET
• Origin：Shandong Province
• HS Code：846594000
• Production Capacity：100-200 Per Month
• Package size per unit product：27.40cm * 8.50cm * 14.60cm
• Gross weight per unit product：600.000kg

Basic Info.

Model NO. ET-60E Edging thickness 0.15-3mm Automatic Grade Semiautomatic Panel Feeding Speed 10.5/16m/min Certification CE, ISO, FDA Panel Thinkness 8-50mm Min.length panel 120mm Min.width panel 50mm Manufacturing Principles Glue Tank Overhead Customized Customized After-sales Service 24 Hours Online Service Color Customized Transport Package in Bulk or Container Specification Customized Trademark ET Origin Shandong Province HS Code 846594000 Production Capacity 100-200 Per Month

Packaging & Delivery

Package size per unit product 27.40cm * 8.50cm * 14.60cm Gross weight per unit product 600.000kg

Product Description

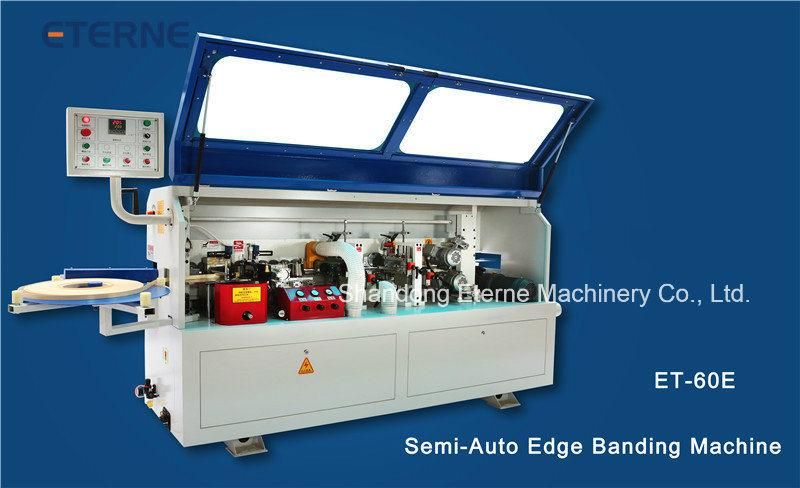

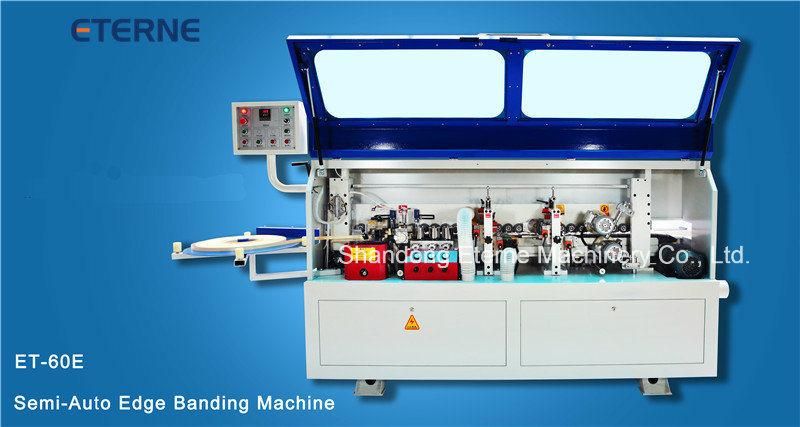

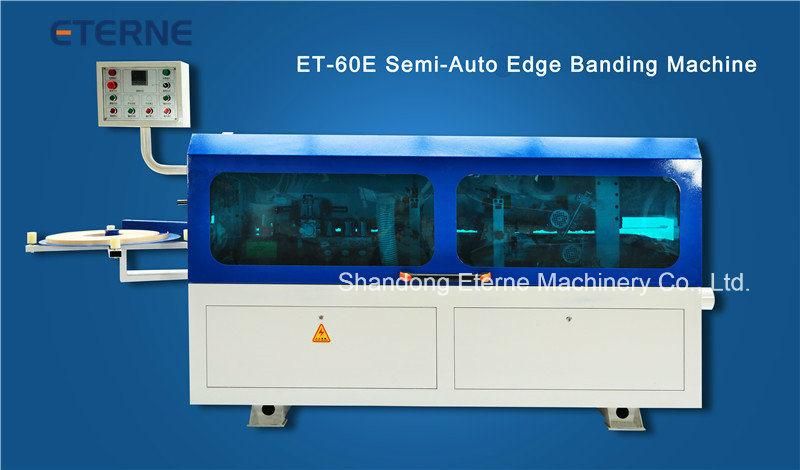

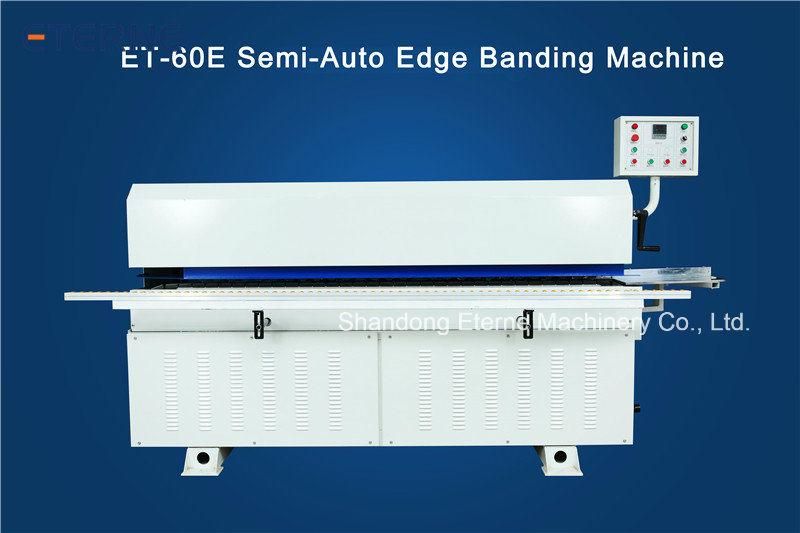

    Woodworking Semi-Auto Edge Banding Making Machinery With Buflling
                                             ( ET-60E )

1.Product Description

1) Application:

Edge banding machine is used to cover the exposed sides of materials such as plywood, particle board or MDF, giving the appearance of a solid (or more valuable) material. Can also be used instead of features such as face frames or molding.
 2)Technical Parameter:

Model	ET60E
Input Voltage	380V(220V,400V,415V etc)
Edge Thickness	0.4-3 mm
Edge Width	12-55 mm
Panel Length	Min.120 mm
Panel Width	Min.60 mm
Panel Thickness	10-50 mm
Feeding Speed	13 m/min
Transport Motor	0.75 kw
Glue Post Motor	0.37 kw
Fine-trimming Motor Power	0.75kw*2
Polishing Motor	0.18kw*2
Glue Box Heater	1.5 kw
Air Pressures To Side	0.7Mpa
Total Power	4.0 kw

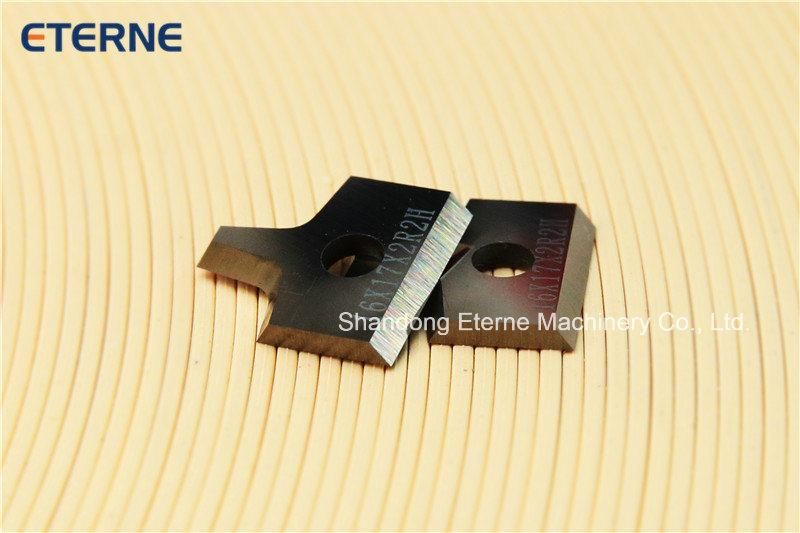

Scraping Blade Model	R2*2 or R3*2
Dimension	2740/850/1460 mm
Weight	600 kg

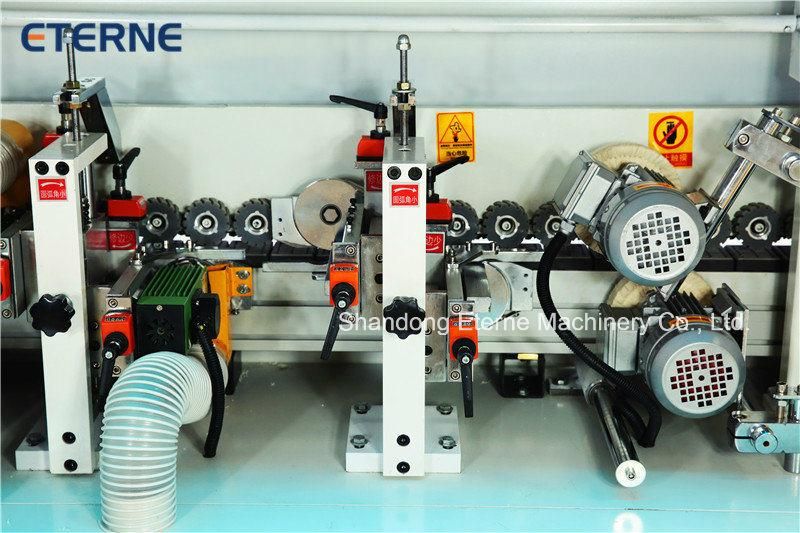

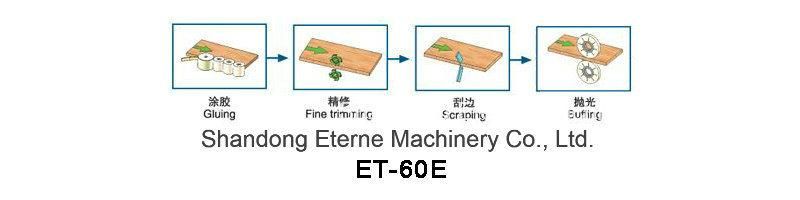

2. Working Process :



3.Advantage:

1. Adopt imported motor and high quality electrical component.
2. Product serialization and diversification is easy for the customer to choose.
3. High precision and work efficiency.
4. Automatic and precise gluing procedure as well as integrated double finish.
5. High strength frame structure, durable
6. Glue evenly, conveying stability
7. The machine is equipped with hand lubricator to reduce wear

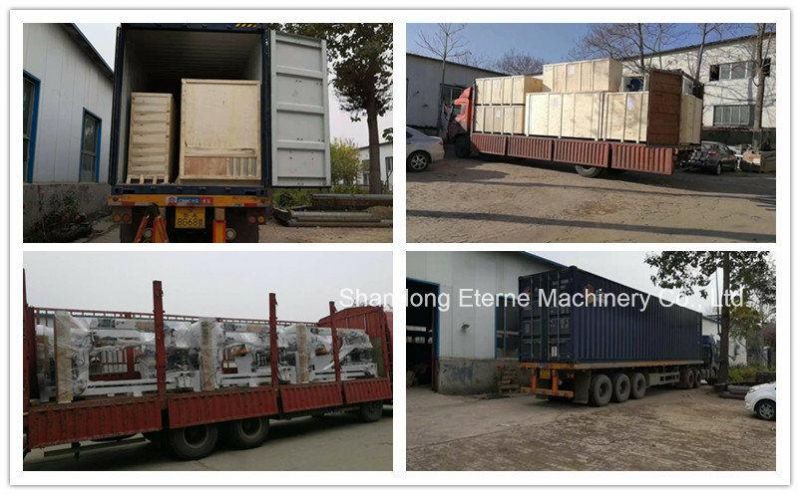

4.Package:

We will take care of your machinery packages well like picture show.
Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.




5.Guarantee:

The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.


6.Technical support:

Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.

7. After sales services:

Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine.
If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.

8. Company Introduction:

Shandong Eterne Machinery Co. Ltd. is a professional manufacturer. "ET Series" products include :

1. Manual edge banding machine
2. Semi-auto edge banding machine
3. Automatic edge banding machine
4. Multi- boring machine
5. Sliding panel saw
6. CNC Router

We devote ourselves to produce and provide high quality products and their spare parts.

9. Contact way:

 Shandong Eterne Machinery Co. Ltd.
 Sales manager : May
