Heavy-Duty S100 Liner Tools Change CNC Machine for Produce Panel
Hefei Aquila CNC Equipment Co., Ltd.- Condition：New
- Certification：ISO, CE
- CNC or Not：CNC
- Voltage：380V
- Configuration：9kw Air Cooling Spindle + Linear Tool Change
- Drive Motor：Ysakawa
Base Info
- Model NO.：S100
- Vacuum Pump：5.5kw
- Control System：Syntec, Osai
- Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
- Specification：3000KG
- Trademark：Mars
- Origin：China
- HS Code：8465990000
- Production Capacity：3000 Sets,Year
Description
Basic Info.
Model NO. S100 Vacuum Pump 5.5kw Control System Syntec/ Osai Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification 3000KG Trademark Mars Origin China HS Code 8465990000 Production Capacity 3000 Sets/YearProduct Description
Heavy-Duty S100 Liner Tools Change CNC Machine for Produce PanelKeywords:15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brand: Mars, Golden Eagle,Borio
Description:

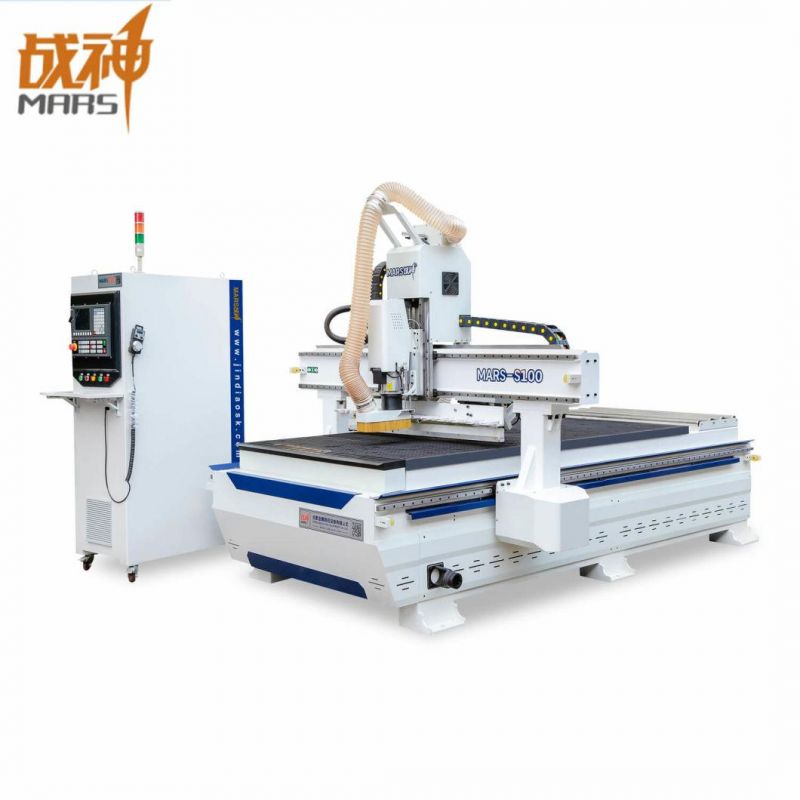

Heavy-Duty S100 Liner Tools Change CNC Machine for Produce Panel is MARS featured machine for processing molded doors, wooden windows, wooden cabinet, wood panels. MARS design it for many years, now popular in the market, it's economic machining center of woodworking cutting machine.
Functions:
The functions of this machine include cutting,milling,drilling and slotting.
Applicable Materials:
MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.
Application Scope:
Cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings, advertising boards, sign makings.
Parameters:
| Model | Heavy-Duty S100 Liner Tools Change CNC Machine for Produce Panel |
| Working Stoke | 1300*2500*100mm |
| Body Structure | Thick-walled steel tube welded |
| Spindle Power | HSD 9KW air cooling spindle |
| Spindle Speed | 0 ~ 24000 rpm/min |
| Control System | Syntec/ Osai |
| Drive System | Yaskawa/ Delta servo motor |
| Lubrication System | Automatic |
| Transmission | XY axis rack and pinion, Z axis ball screw |
| Guide Rail | Taiwan Hiwin linear rail |
| Vacuum Pump | 5.5KW |
| Max Travelling Speed | 25m/min |
| Max Processing Speed | 15m/min |
| Dictate Format | G code/ HPGL |
| Working Accuracy | ±0.02mm |
| Re-positioning Accuracy | ±0.05mm |
| Support Software | Professional cutting optimization software |
| Working Voltage | AC380/ 3PH/ 50HZ |
| Net Weight | 1800KG |
| Machine Size | 2200*3300*1800mm |
Accessories:
Performance Features:
1. Equipped with all the leading international brand components, Taiwan Syntec control system, Japan Yaskawa servo motor and driver.

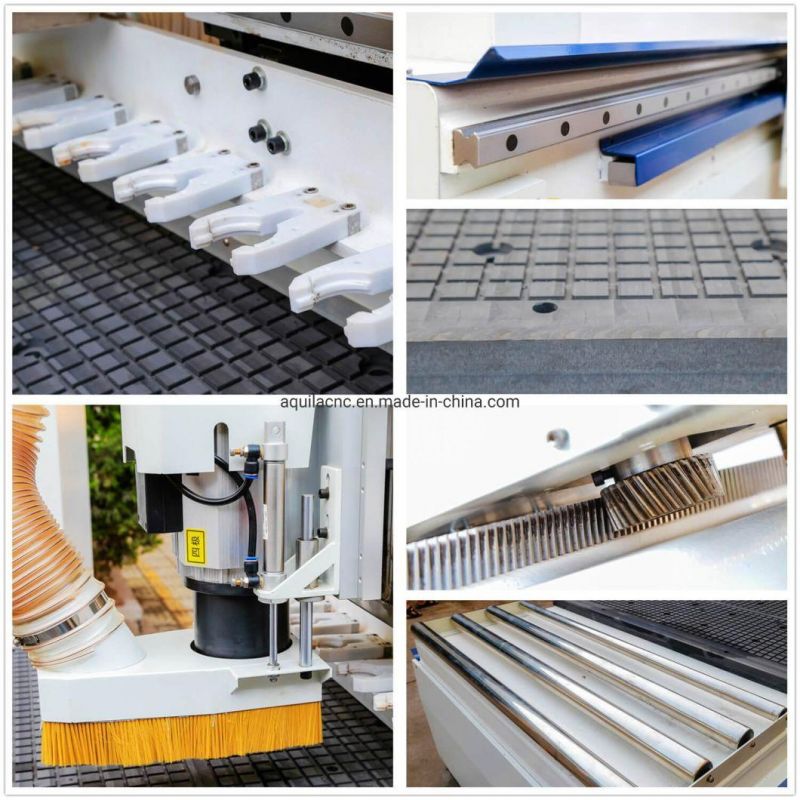

2. Linear type tool magazines support automatic tool changer, improve processing efficiency.
3. Italy 9KW high-power air-cooling spindle can withstand high-speed, heavy loading, low noise characteristics.

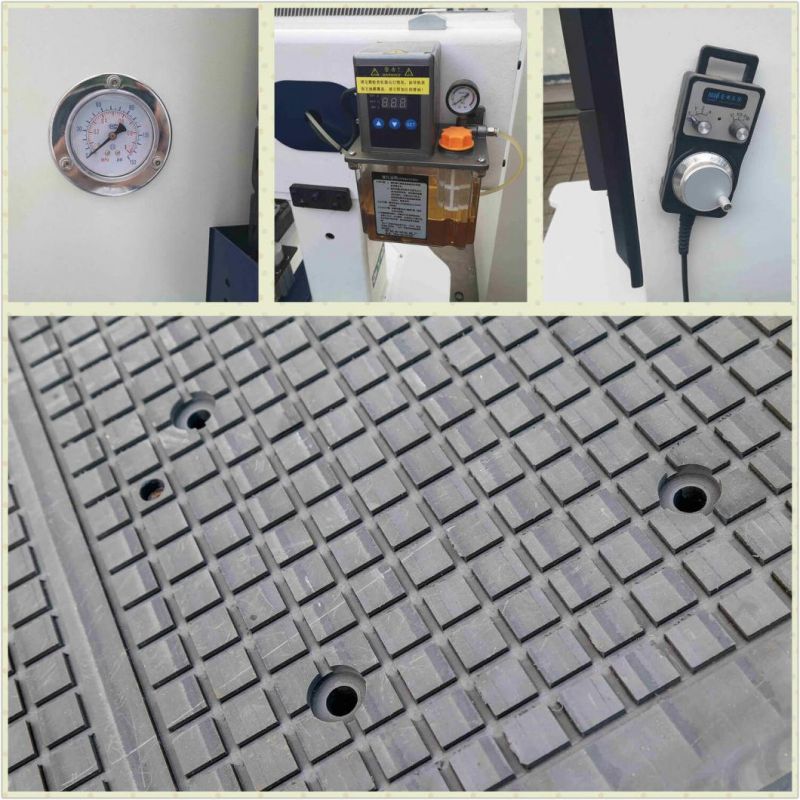

4. Vacuum table, high adsorption capacity, able to adsorb materials of different sizes.

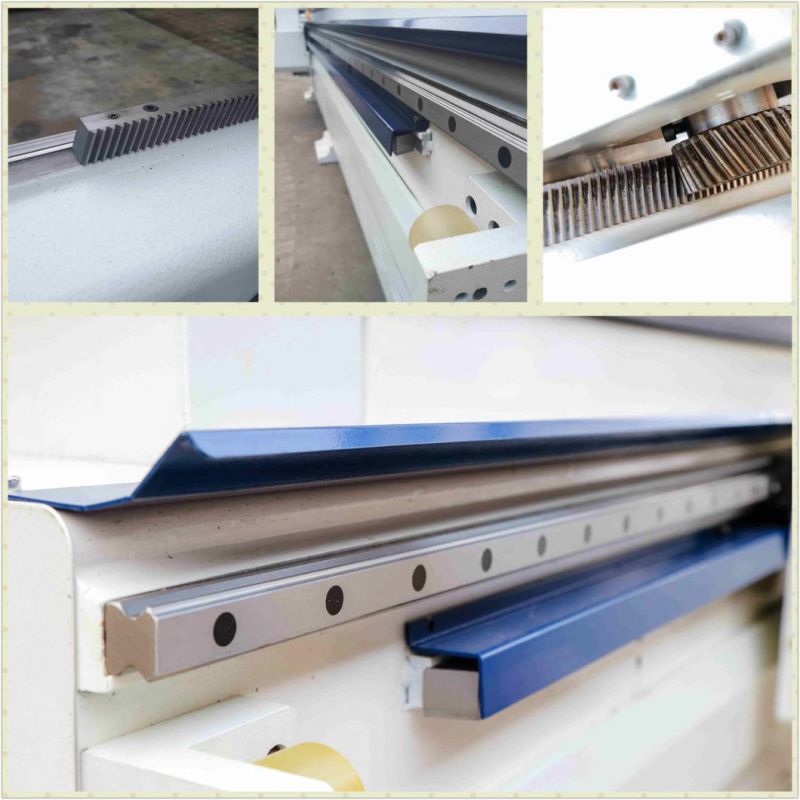

5. Taiwan-made guide rail and ball screw, high precision, long service life, good stability.
6. Taiwan planetary reducer, small volume, withstand large torque, high transmission efficiency, wide range of deceleration.
7. Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area.
8. Syntec CNC control system can automatically accomplish multi-layer 3D job. Easy to operate, fully support automatic production.
Samples:
