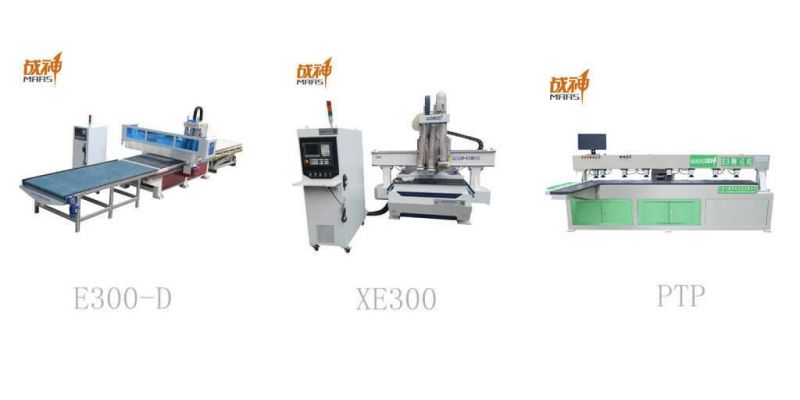

Xe300 Woodworking CNC Router Engraving/Cutting/Carving Machine for Cabinets

Hefei Aquila CNC Equipment Co., Ltd.

Condition：New
Certification：ISO, CE
CNC or Not：CNC
Voltage：380V
Working Stoke：1230*2440*50mm
Guide Rail：Taiwan Hiwin Rectangular Linear Rail

Base Info

Model NO.：XE300
Transport Package：Plywood Case Package
Specification：3000KG
Trademark：Mars
Origin：China
HS Code：8458110090
Production Capacity：300sets,Month

Description

Configuration9KW air cooling spindle + 4.5KW + Drilling bank (5+4)Working Area1230*2450*200mm (Double work table)TransmissionX/Y helical rack & pinion, Z axis TBI ball screwTable StructureVacuum tableDrive MotorYaskawa/ Delta servo motorMax. Traveling Speed60m/minMax. Working Speed30m/minSpindle Speed0-24000r/minWorking VoltageAC380/3PH/50HZControl SystemSyntec

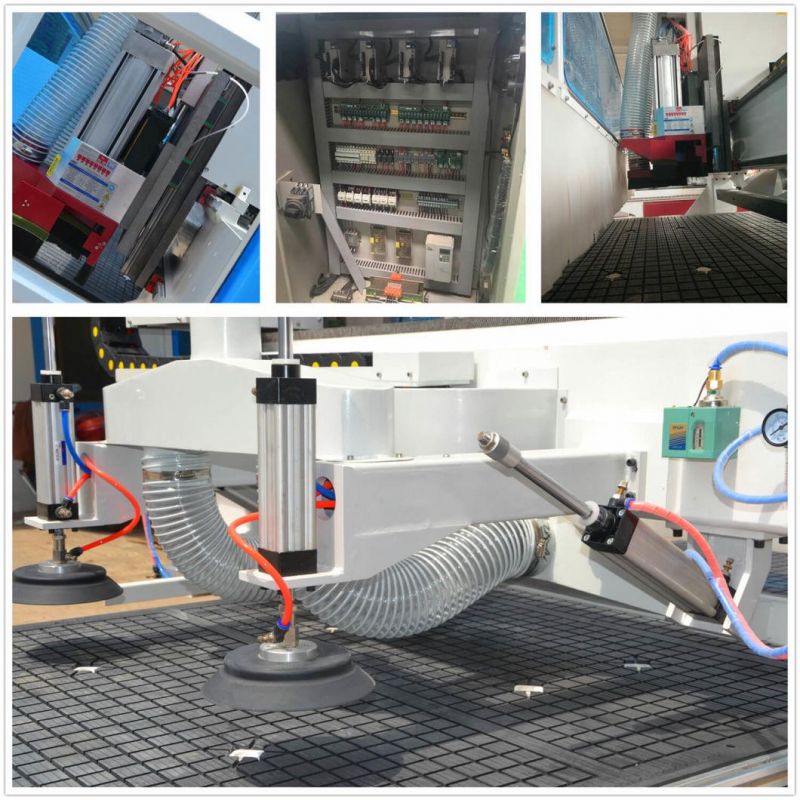

Machine Main Parts:

Performance Features:

1. Equipped with all the leading international brand components.
2. High-power Italy HSD air-cooling spindle, Japan YASKAWA servo motor and driver.
3. Vacuum table, high adsorption capacity, able to adsorb materials of different sizes.
4. Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area.
5. Syntec CNC control system can automatically accomplish multi-layer 3D job, cutting, engraving, milling, all at ease. Offline operation can be realized.

Available Materials:

Samples:
