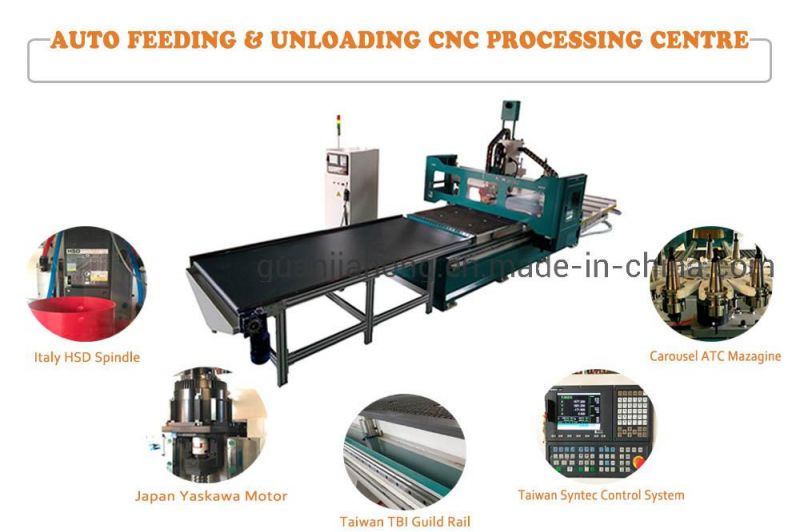

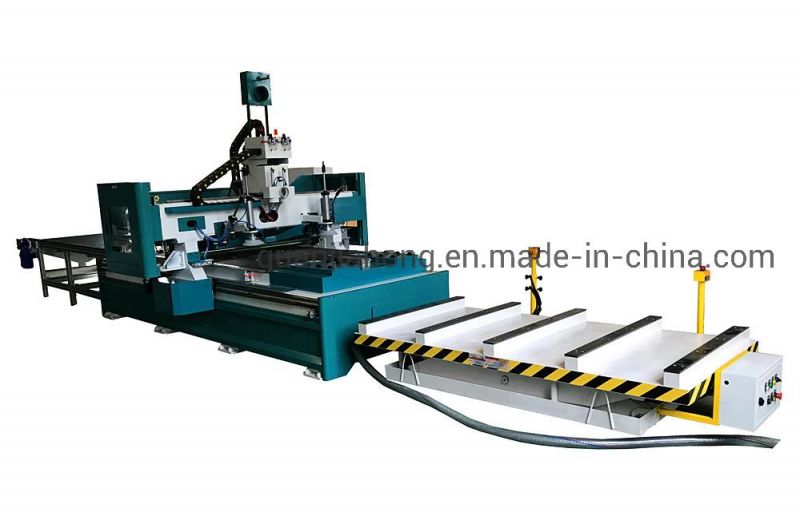

Carousel Atc Auot Loading and Unloading Woodwoking CNC Engraver
Jinan Guanjiahong CNC Machinery Co., Ltd.- Condition：New
- Certification：CE, SGS
- Guide Rail：Taiwan Tbi
- Screw：Taiwan Tbi
- Running Mode：Servo
- Driver：Japan Yaskawa
Base Info
- Model NO.：GJH 1325
- Motor：1.3kw
- Dust Collector：7.5kw
- Spindle：9kw Italy Hsd Atc Air Cooling
- Control System：Taiwan Syntec 6mA
- Application：Woodworking
- Transport Package：Plywood Case
- Specification：GJH 1325
- Trademark：GJH
- Origin：Shandong China
- HS Code：84659900
- Production Capacity：50 Sets Per Month
Description
Basic Info.
Model NO. GJH 1325 Motor 1.3kw Dust Collector 7.5kw Spindle 9kw Italy Hsd Atc Air Cooling Control System Taiwan Syntec 6mA Application Woodworking Transport Package Plywood Case Specification GJH 1325 Trademark GJH Origin Shandong China HS Code 84659900 Production Capacity 50 Sets Per MonthProduct Description
1.All IN ONESTEP-Automatic loading, cutting, drilling, slotting, automatic offloading.

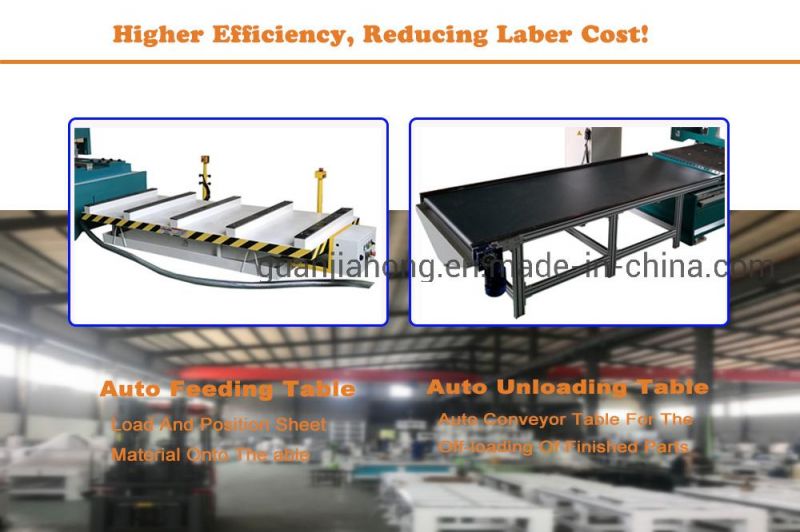

2.Automatic loading and off-loading system
The Suction Cup Loading Device and Integrated Vacuum Cleaning System is standard on the Full
Line CNC Router. The Integrated Vacuum Cleaning System ensures that all dust and debris is
removed from the machine table prior to loading the next sheet. The industrial strength vacuum
cups will load and position sheet material onto the table top without scratching the surfaces and
aligns them perfectly against the pop up pins.
3.Humanizing design of the machine control interface,very simple to operate, requiring only minimal
training of operator, do not need specialized operation technical personnel, high efficiency.
Applicable industry: wood furniture , panel furniture,wooden crafts processing industry, suitable for large panel cutting,large relief carving products and large carpentry engraving.
Applicable material: solid wood panel, artificial board,Acrylics,PVC,MDF,Plexiglass.
| NO | Index | Index | Parameter |
| 1 | Traveling | X axis | 1300mm |
| Y axis | 2500mm | ||
| Z axis | 200mm | ||
| 2 | Working area | 1220x2440mm | |
| 3 | Accuracy | Working accuracy | ≥0.1mm/300mm |
| Traveling Accuracy | ≥±0.2mm/300mm | ||
| Reposition accuracy | ≥±0.05mm/300mm | ||
| 4 | Transmission | X axis | Helical Rack |
| Y axis | Helical Rack & Double motors | ||
| Z axis | Screw | ||
| 5 | Speed | Max Rapid | 50000mm/min |
| Max working speed | 15000mm/min | ||
| 6 | Spindle | Spindle power | 9KW |
| (Water-cooling) | Spindle speed | 18000r/min | |
| 7 | Drive mode | Servo | |
| 8 | Working voltage | AC220/50HZ | |
| 9 | Command language | G Code | |
| 10 | Operation system | Syntec 6MB |
