• Model NO.：FM6090
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Customized
• After-sales Service：Provide
• Guide Rail：Taiwan Hiwin Square Rail
• Spindle：1.5 Kw Watercooling Spindle
• Gantry Height (From Table)：100 mm
• Control System：Mach3 , DSP , Ncstudio
• Motor and Driver：Step , Servo Motor and Driver
• Table Structure：T-Slot Table
• Transport Package：Wooden Packing
• Specification：600*900mm
• Trademark：FIRMCNC
• Origin：Jinan, China
• HS Code：8465990000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. FM6090 Certification CE, ISO Customized Customized Condition New Color Customized After-sales Service Provide Guide Rail Taiwan Hiwin Square Rail Spindle 1.5 Kw Watercooling Spindle Gantry Height (From Table) 100 mm Control System Mach3 / DSP / Ncstudio Motor and Driver Step / Servo Motor and Driver Table Structure T-Slot Table Transport Package Wooden Packing Specification 600*900mm Trademark FIRMCNC Origin Jinan, China HS Code 8465990000 Production Capacity 100 Sets/Month

Product Description

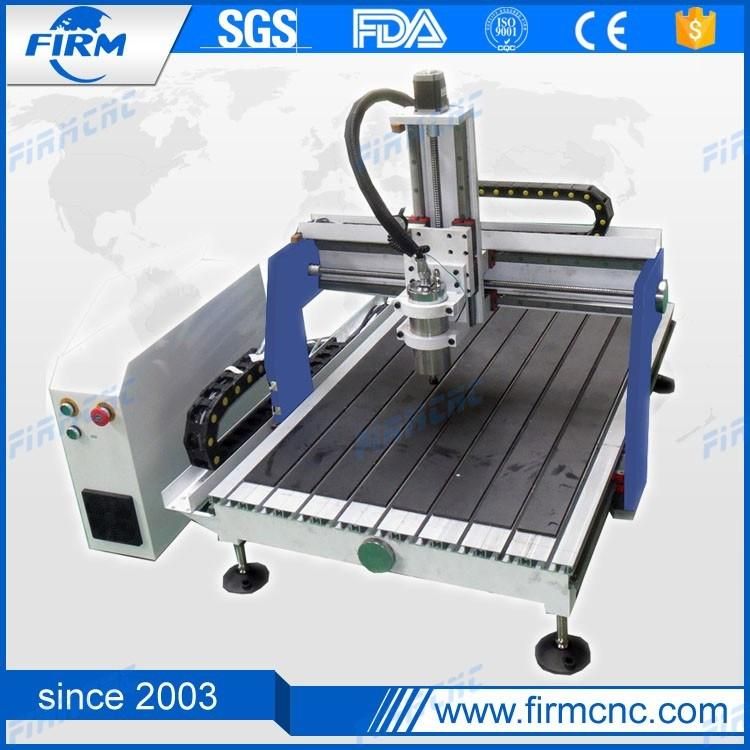

Acrylic Wood Mini CNC Router

Advantages:

1. Free samples(I can help you process samples for free.)

2.Advertising/artwork/woodworking

3.CE, SGS,ISO

4.High precision

5.High sensitivity

6.High efficiency

7. Warranty: 1 year
8.Door-to-door technical service and 24 hours technology online support

Technical Parameters:

No.	Description	Parameter
1	Working Area	600mmx900mmx120mm
2	Dimension(L*W*H)	1420mm×1120mm×500mm
3	X,Y,Z Traveling Positioning  Accuracy	±0.02/300mm
4	X,Y,Z Repositioning Accuracy	±0.02mm
5	Table Surface	T-slot table
6	Table Size	800mm×1250mm
7	Inverter:	Chinese Fuling Inverter/Taiwan Delta Inverter
8	Spindle	1.5KW Chinese Hanqi water colling spindle
9	Limit switch	Japan Omron limit switch
10	Oil LubricationSystem	Manual
11	X, Y,Z Transmission	Taiwan Hiwin Square Rail and TBI Ball Screw
12	Max. Power Consumption	5KW
13	Max. Rapid Travel Rate	12000mm/min
14	Max. Working Speed	8000mm/min
15	Spindle Power	1.5KW(optional:2.2KW/3KW)
16	Spindle Speed	0-24000RPM
17	Motors	450A stepper
18	Working Voltage	220V/380V
19	Command Language	G Code
20	Operating System	DSP System/NC-studio/Mach3
21	Computer Interface	USB
22	Collet	ER16/ER20/ER25
23	X,Y Resolution	<0.03mm
24	Software Compatibility	Artcam Software/Type3 Software
25	Running Environment  Temperature	0 - 45 Centigrade
26	Relative Humidity	30% - 75%
27	Packing Size	1520mmX1220mmX700mm
28	N.W.	80KG
29	G.W.	160KG

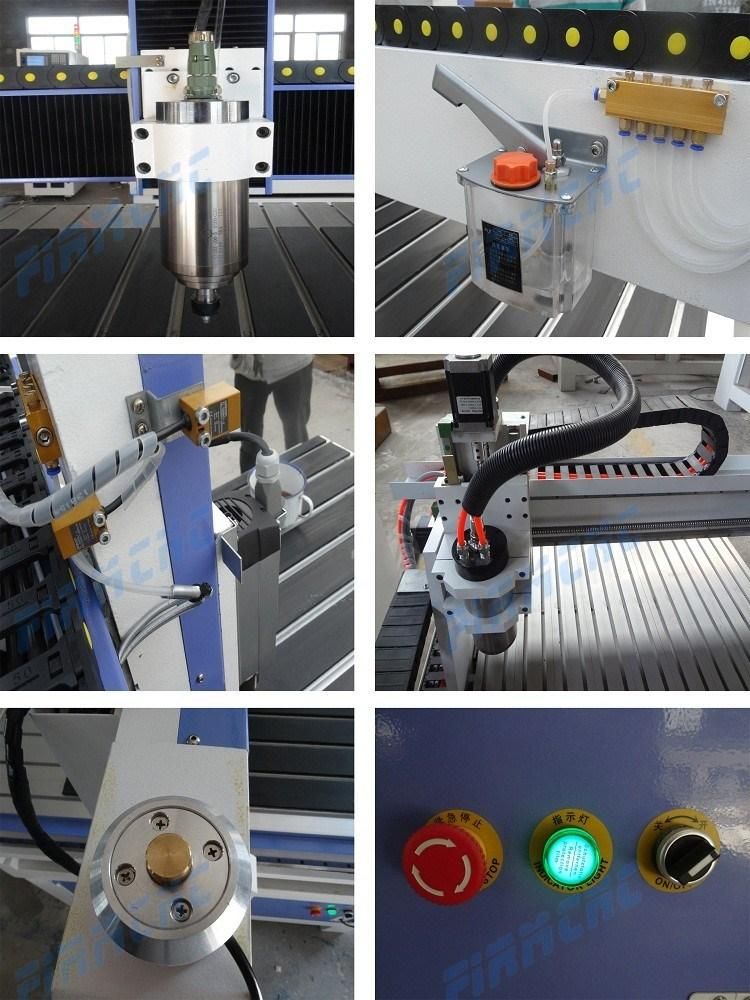

Details:



Application Industry and Materials:

Advertising industury:Cnc router can engrave all kinds of signage,logo  products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards

(drilling and engraving),Double color boards,acrylic etc.

Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,

MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside

cabinets,folding screen etc.

Artwork industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.





Our Company:

Jinan Firm CNC Equipment Co ., Ltd is located in Jinan, Shandong Province ,which specializes in manufacturing CNC and laser machines.

Our main products are CNC Router and Laser Machine. 5-Axis Machine Center, 4-Axis Machining Center, 3-Axis ATC CNC Router , General 3-Axis CNC Router, CNC Plasma

Cutting Machine. We have two factories for product. The application covers Woodworking, Advertising , Marble, Metal, Nonmetal, MDF, Plastic, etc. Our products are widely sold in many European, American countries, Africa, Asia, ect.

We are still trying our best to product innovative products to help customers lower their costs and increase their returns. If you are interested in our products, please do

not hesitates to contact us for future cooperation. We hope to get mutual benefits with you in the near future.

Packing & shipment :

Save space as much as possible for container loading.

• Inside:Water-proof Plastic Film Package With Foam Protection
• Outside:Solid Seaworthy Wood Box Package
• Below: Steel Tube

Our service:

1. Free samples(I can help you process samples for free.)

2.Warranty:1 year

3.English software, user manual and operation CD videos.

4.Door-to-door technical  service and 24 hours technology  online support with  Skype,WhatsApp,QQ  or by mail and phone.
5.International quality certificate:CE,ISO9001:2008,Electrical components are UL and CE certificated.

6.Every cnc router machine must be tested for 18 hours before delivery  , so all of them are absolutelyqualified.

FAQ:

1.How long about the machine's guarantee?

1 year

2.How about your after-sales service ?

Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.

3.How can we install the machine?

English version manual and operation video CD disk.

4.How about the payment terms?

30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal

5.Do you Arrange Shipment For The Machines?

Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.

For EXW price, clients need to arrange shipment by themselves or their agents.
