• Model NO.：JTKL
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Customized
• Capacity：0.8-5.0t,H
• Power：135-300kw
• Weight：45-73t
• Area：10m*24m-12m*26m
• Transport Package：Plywood Box,Plastic Woven Clothes
• Origin：Henan, China
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. JTKL Warranty 1 Year Customized Customized Condition New Color Customized Capacity 0.8-5.0t/H Power 135-300kw Weight 45-73t Area 10m*24m-12m*26m Transport Package Plywood Box/Plastic Woven Clothes Origin Henan, China Production Capacity 500 Sets/Year

Product Description

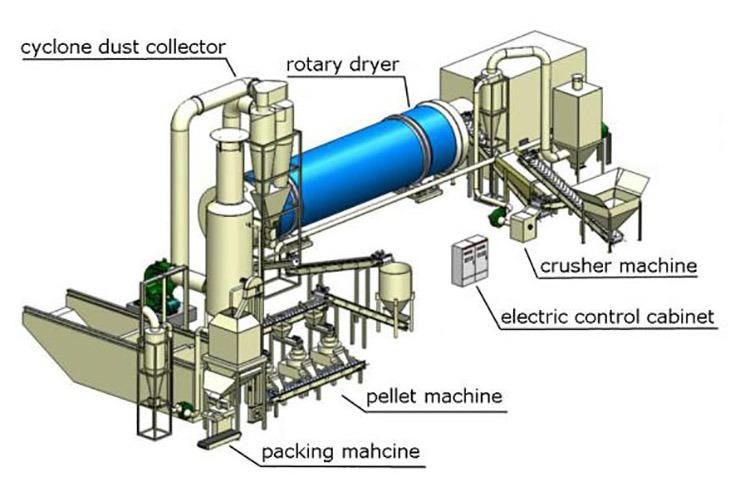

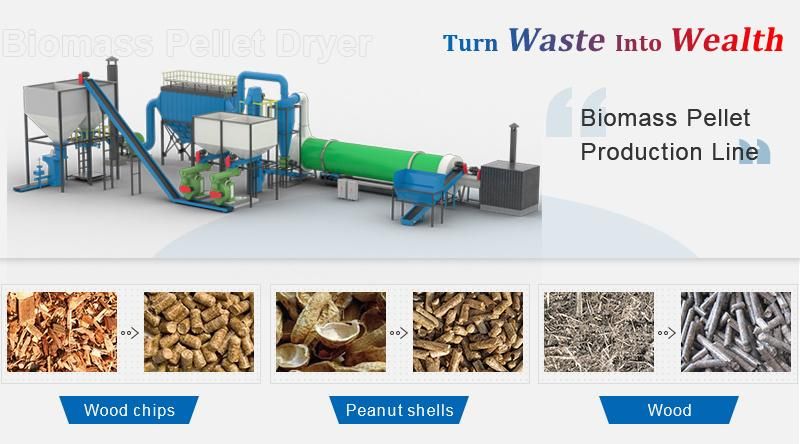

Biomass Pellet Production Line
 Product Introduction
Biomass energy is second only to coal, oil and natural gas one of the world's total energy consumption 4th. According to experts predict that biomass energy is likely to become an important part of the future sustainable energy system, In the middle of this century, using new technology to produce all kinds of biomass alternative fuels will account for more than 40% of total global fuel consumption.
According to the demand of market, our technical team designs and manufactures the equipment of biomass pellet production line, which are suitable for the biomass material with the 35-56% moisture to make pellet, such as sawdust, bamboo shavings, wood shavings, barley straw, oat straw, wheat straw, rye straw, rice straw, rice husk, bagasse, sorghum straw, corn straw, beans stalk, peanut vine stalk, etc. We also help optimize the drying and pelleting process according to the property of different biomass materials, production scale, application requirements, cost control, automation level, and site condition.

Working Principle
The pellet machine using the die roll extrusion principle, the agriculture residues biomass raw materials processed into solid molding fuel, this will realize to continuous and stable production of industrialization. The processing route uses one-time drying, secondary crushing, continuous feeding and adjust feeding mixed process combining, the Particle shaping fuel rate of 98%, bulk density, and particle density are high.

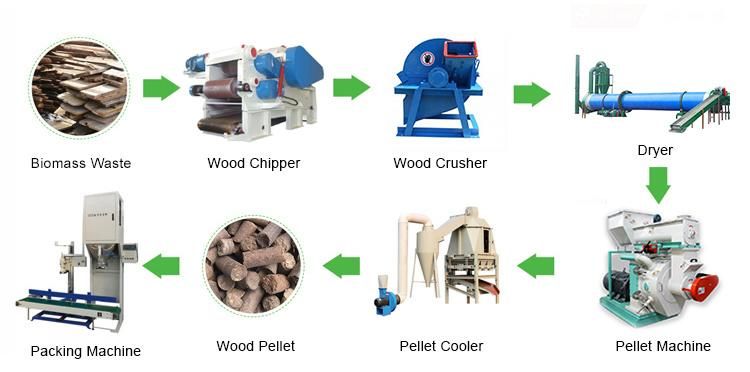

Production Process



Applicable Materials





Product Features
1. Patent technology (patent no. : ZL200920089749.2), single equipment the kinds are variety, application to a variety of materials, modular structures, optimize configurations, ensure production lines broad applicability.
2. According to customer's requirements to realize intelligent control, a key "fool" type operation.
3. More than 300 users in the world, our factory has rich practical experience.
4. The cover area reduces 50% than the traditional drying granulating production line, civil investment reduces about 50%.
5. Waste gas discharge temperature is lower than 50 ºC, low energy consumption.
6. Particle shaping fuel rate of 98%, bulk density, and high density.
7. Special design ash control technology, ash content lower than 1%.
8. Modular dust collecting and purifying heat recycling configuration, safe and protect environmentally.
9. This type of mixing drum dryer is supporting many new types of energy-saving hot air stove, energy consumption drops about 30%, power consumption reduces 20%, lower operation costs.
10. Internet sharing systems can ensure that the personalized production lines, accessories and unit efficient distributions in place.

Specifications
We can help optimize the drying process according to the property of different materials, production scale, application requirements, cost control, automation level, and site condition.

Model	Capacity(t/h)	Motor power(kW)	Weight(ton)	Area(m²)
JTKL1000	0.8-1.0	135	45	10×24m
JTKL1500	1.2-1.5	175	47	10×24m
JTKL2000	1.5-2.0	210	55	10×24m
JTKL3000	2.5-3.0	255	68	12×26m
JTKL5000	4.5-5.0	300	73	12×26m

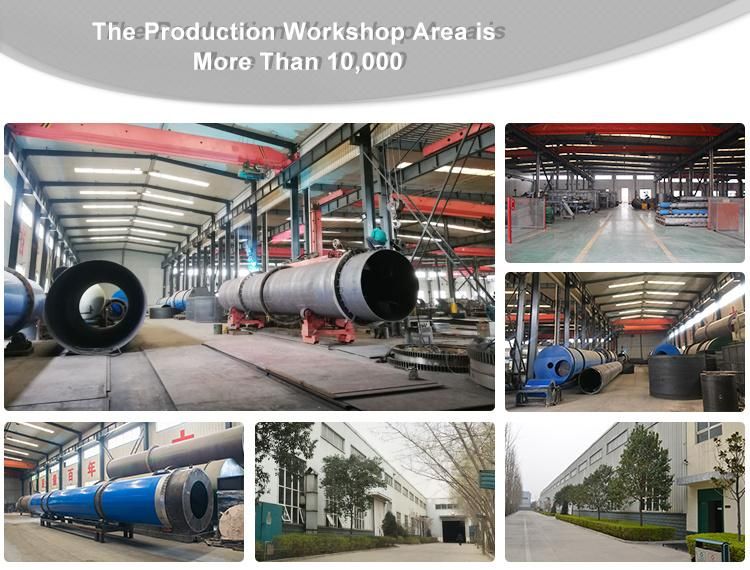

Our Company
Jiutian Machinery has made constant innovations in the biomass pellets production industry and accumulated a wealth of experience in tackling the various challenges facing wood pellets companies, more importantly, is able to offer a range of comprehensive solutions. Now we have evolved into one of China's famous manufacturers of wood pellet production lines with over 100 staff.

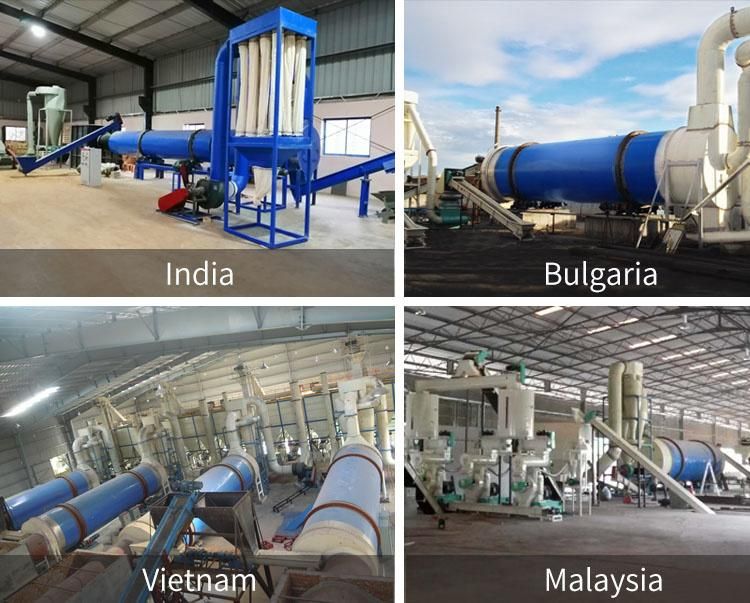

Till now, we have successfully constructed more than 100 pellets production turnkey projects around the world, covering raw material as sawdust(Morocco, Vietnam, Bulgaria), logs(Romania), wood(Malaysia), wood shaving(Tunisia), and also many projects in China, like in Hunan, Jiangsu, etc.

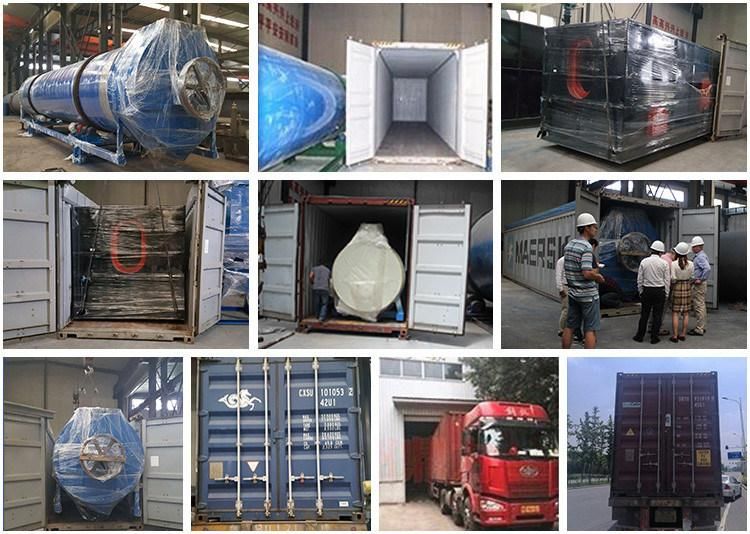

Packaging & Shipping
Your device will be packed well in container and suit for long ocean shipping.
