• Model NO.：GJH 1325-1
• Running Mode：Servo
• Driver：Yaskawa
• Motor：750W
• Spindle：Ronghua, Air Cooling
• Control System：Nc Studio Nk105
• Table：Vacuum Table
• Transport Package：Plywood Case
• Specification：1325MH-1
• Trademark：GJH
• Origin：Shandong China
• HS Code：84659900
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. GJH 1325-1 Running Mode Servo Driver Yaskawa Motor 750W Spindle Ronghua, Air Cooling Control System Nc Studio Nk105 Table Vacuum Table Transport Package Plywood Case Specification 1325MH-1 Trademark GJH Origin Shandong China HS Code 84659900 Production Capacity 50 Sets Per Month

Product Description

Customized:

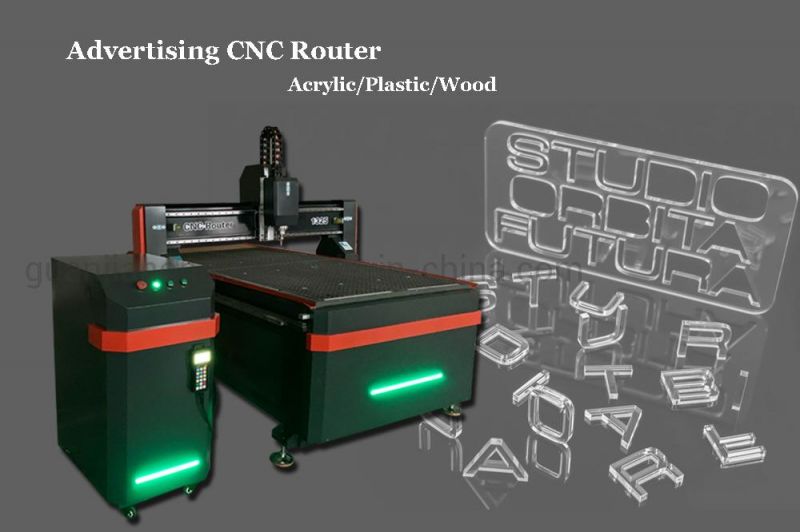

1325 Mini Letter Advertising Cnc Router
Cutting & Engraving Mini Letters






1. Adopt industrial Heavy duty structure design, annealing and distressing strictly according to process requirements, thus to ensure the strength and rigidity of the machine body.
2. Standard configured with independent 4 zone matrix vacuum table with high strength, optimized partition management, suitable for different size processing.
3. Adopt Taiwan PMI 25# linear guide rail with lubrication system, more wearable.
4. Configured with Japan Yaskawa servo system, to ensure the transmission stronger and noise lower.
5. Independent control cabinet, separation of strong electricity and weak electricity to make the maintenance more convenient.
6. Configure with High performance inverter, speed control uniform and cutting edge smooth.
7. High quality 7.5kW air-cooled vacuum pump ensures the adsorption force of the machine's work table and the processing accuracy of the products.

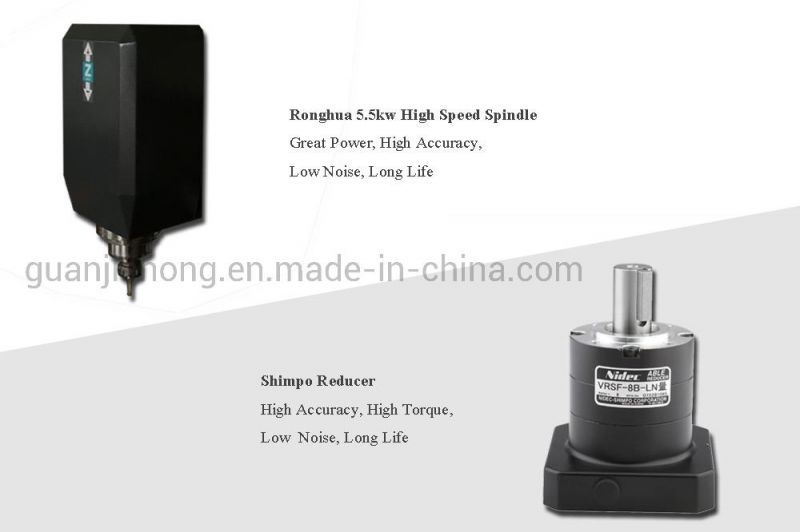

8. Shimpo Reducer from Japan, while reducing speed, at the same time, the output torque is increased and the inertia of load is reduced.

X,Y,Z Working Area	1300*2500*200mm
Color	Gray and Red (can be Customized)
Working Voltage	380V/3PH/50Hz
Table	Vacuum table with 4 zones
Control System	Nc Studio Nk105
Spindle	RongHua 5.5kw air cooling spindle
Spindle Speed	0-24000RPM
Inverter	7.5 KW Fuling inverter
Drive Motors	Yaskawa servo
Frame	Heavy Duty Body
Lubrication	Manual Lubrication System
Gantry structure	Steel Gantry
Guide Rail	PMI 25#
Ball Screw	PMI 2510

If you have any specific requirements for woodworking CNC router engraving machine, customization is available.
