• Model NO.：ML9620M
• Precision：High Precision
• Certification：CE, ISO
• Customized：Non-Customized
• Condition：New
• Color：Iron Grey
• After-sales Service：3 years
• Weight：4300kg
• Transport Package：Plywood Carton or Bulk Packing
• Specification：4580*1800*1750 (MM)
• Trademark：Qingcheng
• Origin：China
• HS Code：8465910000
• Production Capacity：20000,Sets

Basic Info.

Model NO. ML9620M Precision High Precision Certification CE, ISO Customized Non-Customized Condition New Color Iron Grey After-sales Service 3 years Weight 4300kg Transport Package Plywood Carton or Bulk Packing Specification 4580*1800*1750 (MM) Trademark Qingcheng Origin China HS Code 8465910000 Production Capacity 20000/Sets

Product Description

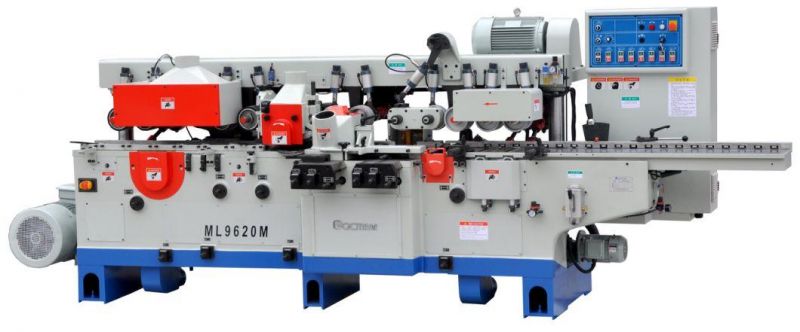

ML9620M Woodworking Machinery Planing and Sawing Combination Machine Rip Saw

1. Technical parameters : ML9620M Planing and Sawing Combination Machine





Working width	20-200	mm
Working thickness	10-125	mm
Min. working length (single / continuous)	650480	mm
Bottom cutter dia.	Φ125	mm
Right & left vertical cutter dia.	Φ110-Φ180	mm
Upper cutter dia.	Φ110-Φ180
Left & right saw blade dia.
Motor for bottom spindle	7.510	mm
Motor for right & left vertical spindle	2*7.510	kWHP
Motor for up horizontal spindle	1115	kWHP
Motor for left, right vertical spindle, upper horizontal spindle		kWHP
Motor for left, right saw spindle		kWHP
Saw spindle dia.	Φ40	mm
Saw spindle speed	4500	r/min
Planer spindle dia	Φ40	mm
Planer spindle speed	6800	r/min
Upper saw blade dia.	Φ180-Φ250	mm
Bottom saw blade dia.	Φ180-Φ250	mm
Feeding speed	5-25	m/min
Total power	82.25110	kWHP
Up saw spindle motor	18.525	kWHP
Bottom saw spindle motor	2230	kWHP
Feeding motor	7.510	kWHP
Rear auxiliary feeding motor		kWHP
Lifting motor for upper and down saw spindle		kWHP
Beem lifting motor	0.751	kWHP
Saw spindle lifting motor		kWHP
Air supply pressure	0.3-0.6	MPa
Suction hood dia.	3*Φ140+4*Φ140	mm
Overall dimension	4530*1680*1630	mm
Weight	4300	KG

2. About Qingcheng Woodworking Machinery:

Qingcheng Woodwokring Machinery Co., Ltd is a professional manufacturer of woodworking machinery since 1970. With more than 40 years experience, we have developed to the top and most powerful manufacturer of woodworking machinery in China.

We mainly engaged in six series of woodworking machinery:
Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoner , and Sanding Machine

To make machinery with high precision and stability, we have introduced the world's advanced modern processing and testing equipment, including OKUMA five-surface gantry machining-center, FMS flexible machining production line, MAKINO horizontal machining center, MORI SEIKI(nine-axis linkage) lathe-mill cutting center, LGMazak vertical machining center, Mitsubishi laser cutting machine, OKK large machining center, Okamoto CNC grinding center, and Mitutoyo three coordinate measuring machine.








3. Our Products:

A: Four Side Moulder




B: Double Side Planer



C: Rip Saw



D: Planing and Sawing Machine




E: Double-end Tenoining Machine




F: Sanding Machine


4. Customer Question and Answers:

1). What is your price term and payment term?
A:We offer FOB, CIF, CNF and EXW price.
TT or LC are both acceptable.
If we have available stock: 100% payment before delivery.
If no available stock: 30% deposit, balance payment paid before delivery.
Customized machines need 50% deposit.

2). Do you have stock? How long for delivery?
Regular machines always have ready stock.
If no ready stock or customized machine, it takes around 60days production.
 3). How long is the warranty?Most machine got 1 year warranty except some consumption spare, all spare is free for change within warranty period, in the condition that machine is running according to the manual book(saga got rights for explain).
 4). How about Installation?For complex machines, we will send our engineers to install and train.
Customers only need to supply for food and living as well as transport.
Some area may be served by our local agent. For commercial machines, we will do our best to offer installation guiding video.
 5). Can we always buy the machine parts?For the convenience of our customers, we keep all of our machine parts standard and all the same forever. You can always buy the parts at any time.
 6). How you insure the safety during transportation?We have mature experience for sea transport packing, for some irregular shape machine, we will do special fix and tight on container to avoid any risk.
