• Model NO.：WZLH420
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• After-sales Service：Provided
• Capacity(T/H)：0.5-1.8
• Main Power(Kw)：37-160
• Pellet Size(mm)：6-8
• Weight(Kg)：3200
• Transport Package：Pallet
• Specification：2000 KG
• Trademark：FDSP
• Origin：Jiangsu China
• HS Code：8479300000
• Production Capacity：5 Sets,Month

Basic Info.

Model NO. WZLH420 Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service Provided Capacity(T/H) 0.5-1.8 Main Power(Kw) 37-160 Pellet Size(mm) 6-8 Weight(Kg) 3200 Transport Package Pallet Specification 2000 KG Trademark FDSP Origin Jiangsu China HS Code 8479300000 Production Capacity 5 Sets/Month

Product Description

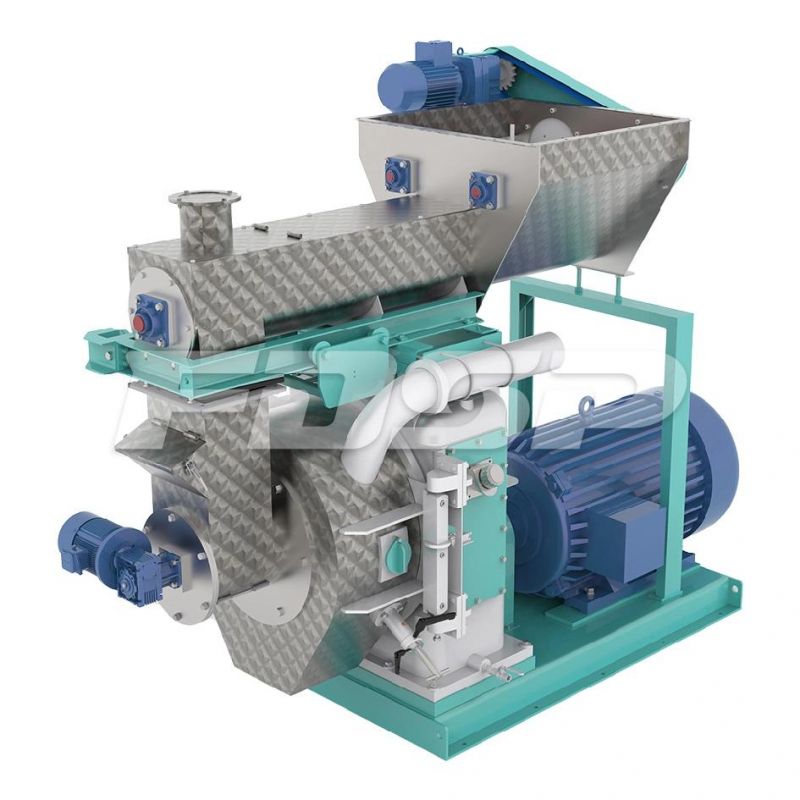

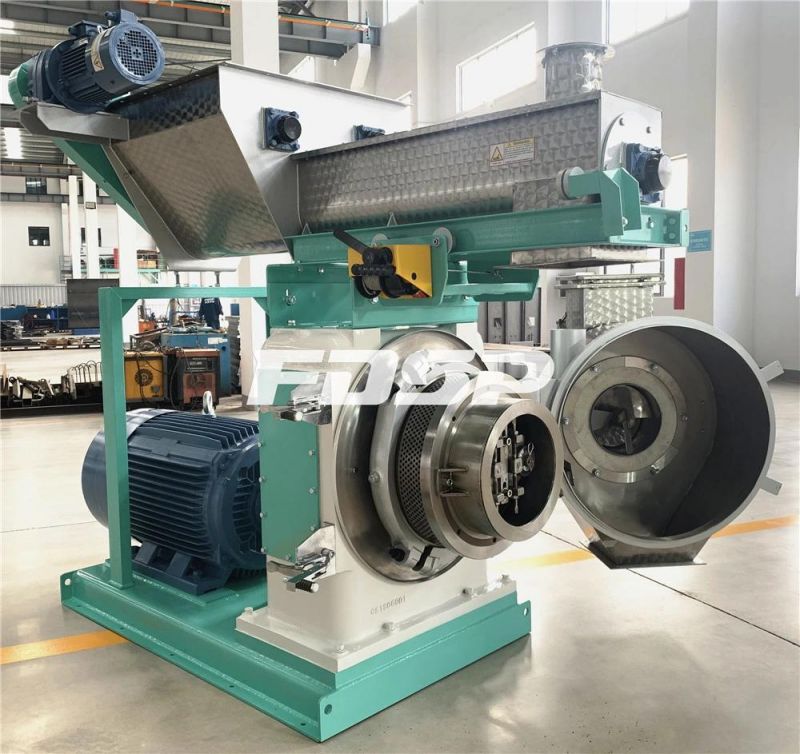

                                               Biomass Energy Ring Die Wood Pellet Mill

Product Features:

1. It is widely used for pelletizing of light substances, such as wood chips, sawdust, straw, pasture, chrysanthemum, palm leaf and so on;

2. The feeder's especial structure makes materials conveyed evenly. It is specially designed for pelletizing of  light substances with the density of 0.15-0.65g/cm3;

3. Feeder,conditioner and chute are made of stainless steel with long service life;

4. It is with magnet and over load protection system which can protect machine well during production;

5. It makes gear directly-connecting as the driver and is with quick-release die fixed by clamps,which can increase the output by 15% more than the same type machine with belt-convey;

6. The bearings and oil seals in the main drivers are imported from Japan to ensure highly-efficient,stability and credibility.

 Main technical parameters as below:

Model	WZLH420	WZLH508	WZLH680
Ring die inner diameter (mm)	420	500	688
Ring die working width(mm)	90	100	110
Ring die linear speed (m/s)	3.16	3.78	3.54
Number of clamp	3 pcs	3 pcs	8 pcs
Number of roller	2 pcs	2 pcs	2 pcs
Number of cutter	1 pcs	1 pcs	1 pcs
Motor power	90+2.2+0.75	90+2.2+1.5	185+3.0+1.5
Motor rotation speed	750	750	595
Ring die hole   diameter(mm)	6/8/10	6/8/10	6/8/10

Product

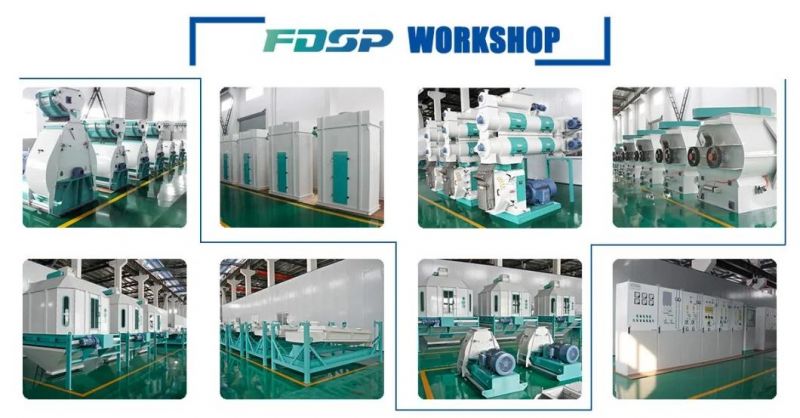

FDSP Workshop


About FDSP
