• Model NO.：B-R-RP1300
• Condition：New
• Color：Customized
• After-sales Service：Video ,Email,Phone
• Model Name：B-R-RP1300
• Working Width：1300mm
• Working Thickness：2-110mm
• Machine Using：Woodworking
• Total Motor：80.25kw
• Transport Package：Stretch Film
• Specification：2150*3000*2150 mm
• Trademark：SOSN
• Origin：China
• HS Code：84659300
• Production Capacity：400 Sets Per Month

Basic Info.

Model NO. B-R-RP1300 Condition New Color Customized After-sales Service Video ,Email,Phone Model Name B-R-RP1300 Working Width 1300mm Working Thickness 2-110mm Machine Using Woodworking Total Motor 80.25kw Transport Package Stretch Film Specification 2150*3000*2150 mm Trademark SOSN Origin China HS Code 84659300 Production Capacity 400 Sets Per Month

Product Description

 1300 mm

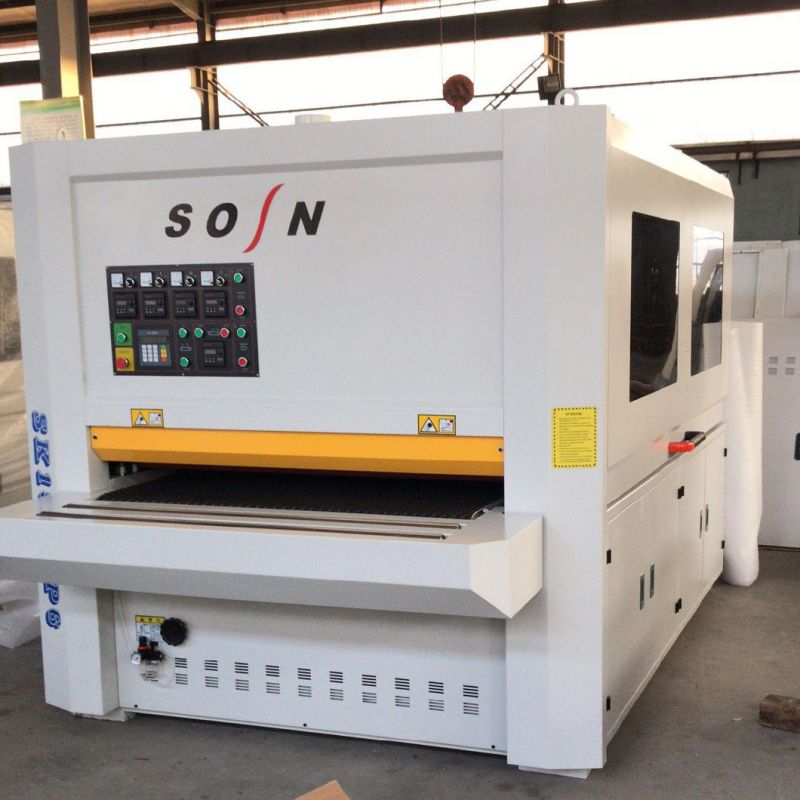

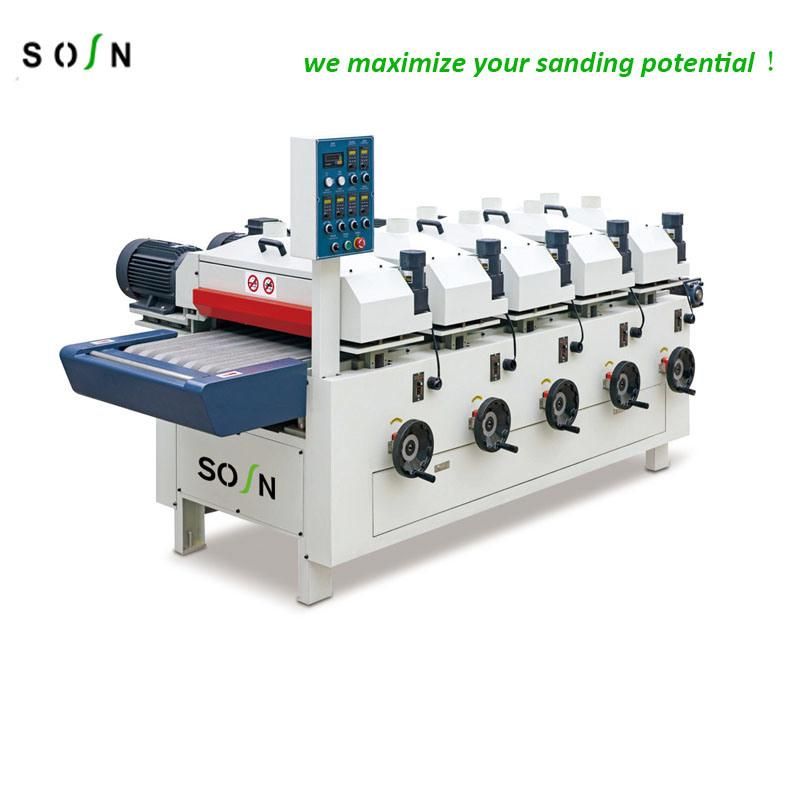

Wood Planer and Sanding Machine Solid Wood Planer Sand Woodworking Machine B-R-RP1300

Feature:

1. High strength body, high precision and high speed spiral planing roller, bearing marble platform wear no deformation, easyt to adjust the eccentric roller and the rubber roller, high precision ball screw drive, make the equipment more stable in use, convenient adjustment, sanding more precision, more accurate positioning.
2. The key-type pressure shoe structure, can better solve the multi-piece thickness tolerance, narrow material can not simultaneously planing, sand problems, thus greatly improving production efficiency.
3. Stop system+one-way roller system, improve safety performance, avoid plate rebound injury.

Main Specification:

Working width	1300 mm
Working thickness	10-100 mm
Min. Working length	550 mm
Feeding speed	5-25 m/min
Size of sanding belt	1320*2200 mm
Total power	80.25 kw
Air pressure	0.6 Mpa
Volume of dust collection devoce	15000 m3/h
Air consumption	17 m3/h
Overall dimension	2150*3000*2150 mm
Net weight	4500 kg

detail pictures

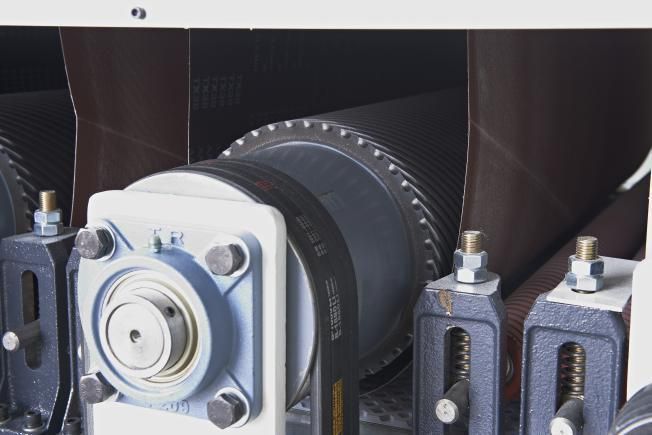

	one planer roller+2 sanding roller+1polishing pad
	*Aluminum sanding pad,big contact area , make sure good polishing effect. *Special dovetail structure, increase its stability.
	Pulley integrated contact roller,increase the whole balance station and stability.

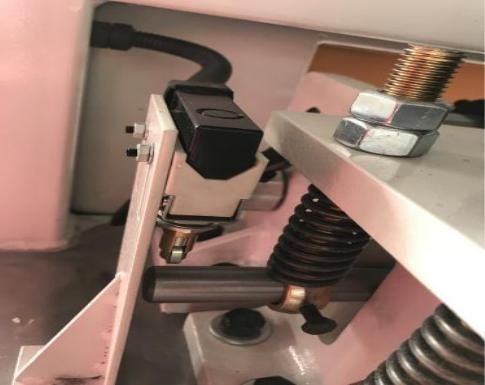

	The worktable height can be adjusted according to the thickness of the workpiece. Lock plate: The machine will stop working automaticly once the panel exceed the machine setted thickness, protect machines and staff from injury .

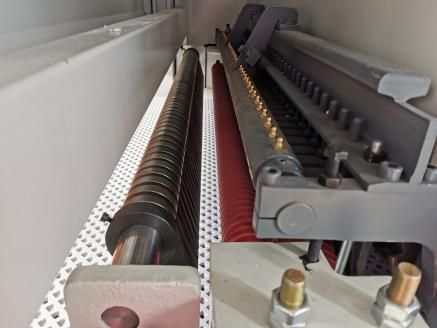

	*The first press roller is one-way feeding, avoid the feeding material bounce. *Sectional type press device, used for sanding high pressure narrow material

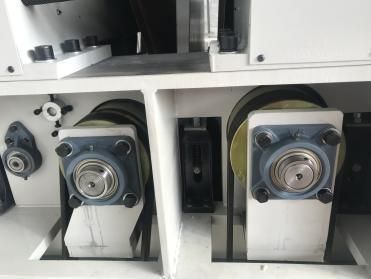

	*Independent bearing hanging plates to fix the height of roller *Equipped with locating rod ,easy to adjust the height of roller.

The fix-thickness roller of this kind of machine is low durometre stock roller, is dealt with exact dynamic balancing management.

The revolving speed of coated abrasive is controlled by transducer, which satisfies the sanding need of all kinds of timber.

Running of the conveyer belt uses the stepless shift structure, which can choose proper speed by itself to insure quality of the sanding of the limb. To fix brushing roller at the discharge hatch can clear dust.

To fix dust removal pipe at the top can clear the dust of the coated abrasive.
The high-low adjustment of the transportation machine tool is controlled by the computer, with the advantages of exactness, convenience, fast. The machine is indispensable to producing furniture and floor board.


Our services
1.After you purchased a product from SOSN, it's not the end of the business but the beginning of our service. We promise to our customers that we will provide persistent technical assistance.

2.After the machine reached you, Please check the machines to see if they are going well, if there is any question, please feel free to contact with us, and also if any problem in the later daily using, please also do not hesitate to contact with us, we will try our best to give you the solution within two working days.
 3.Therefore, you don't need to worry about the after-sale maintenance.
warranty one year .if you have any questions about machine,please contact me
With a professional sale and technique group, we can assure you a considerate and professional service experience

Trade processing:
Actively solving problems during manufacturing and delivery, assure you a best price.
Our quality
Many  years manufacturing experience lead us to a mature and professional quality guarantee with best price.
Professional assembly line work and strict quality test system can ensure your high quality requirement

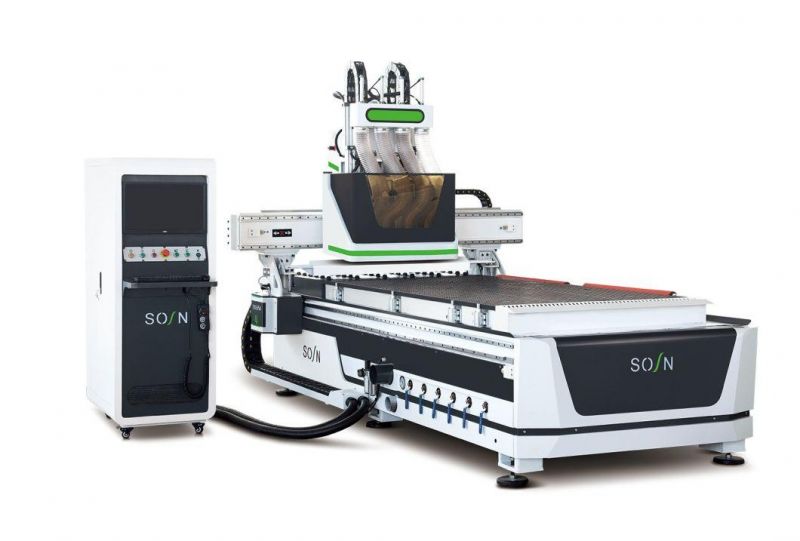

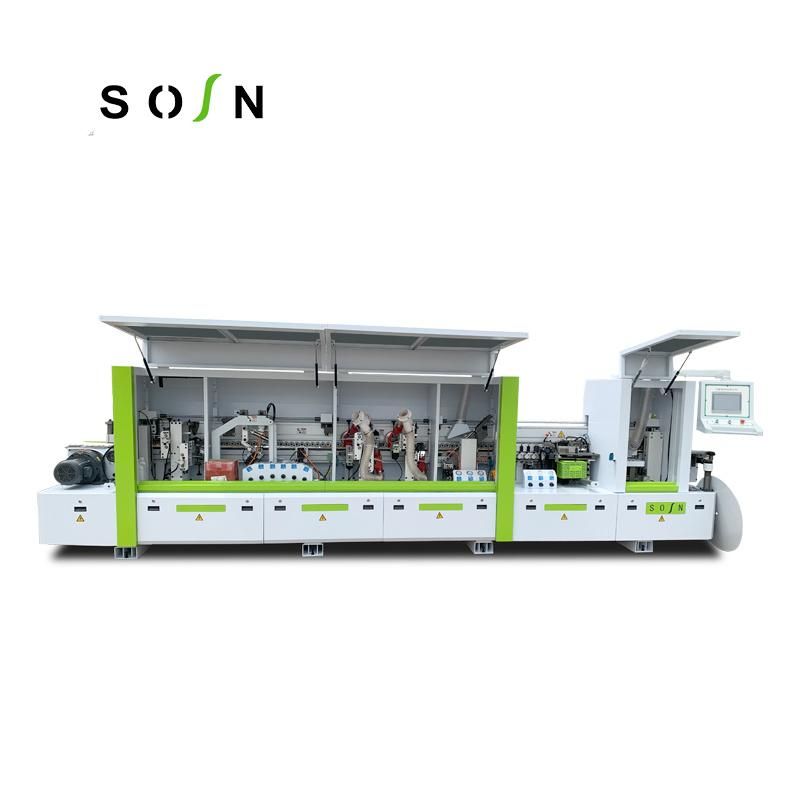

other machines :


Note:
1. The price is valid for two months since the date of quotation offered
2. Delivery Time: within 15 workdays after be prepaid.
3. One year warranty
4. Payment: 30% the deposit by T/T, the balance 70% before the shipment
