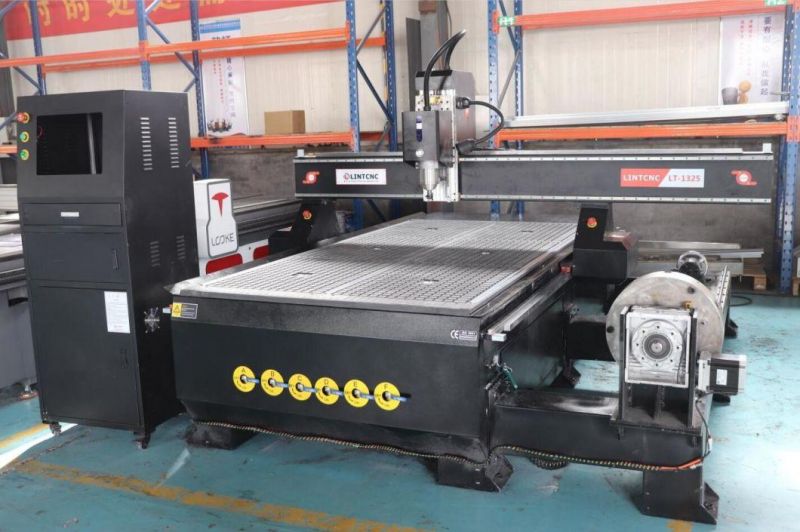

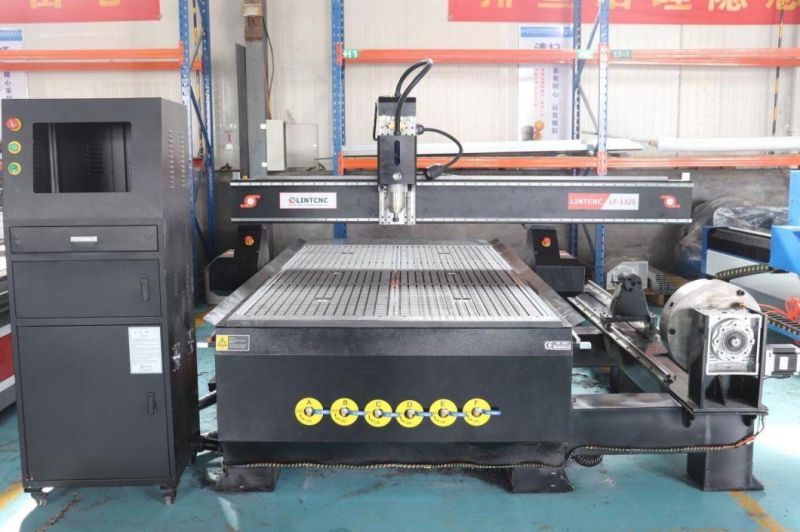

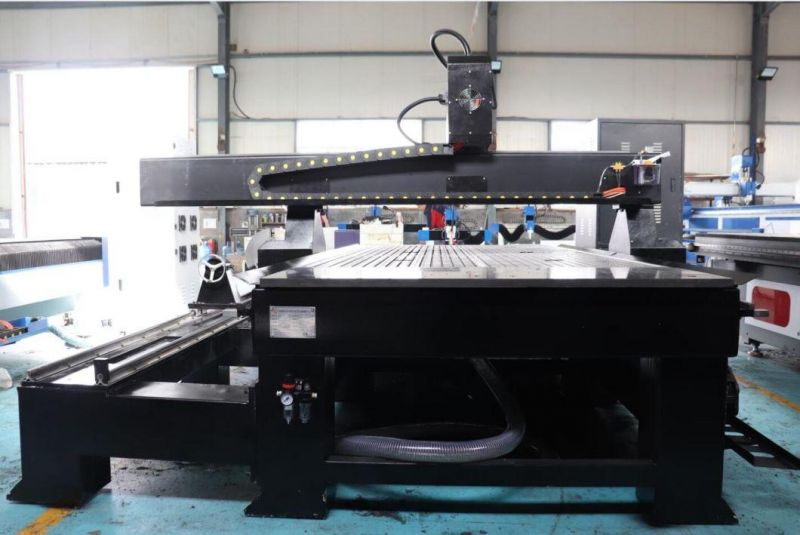

1325 1530 4 Axis Plywood Making CNC Router with 150mm Diameter Rotary Woodworking Cabinet Door Design Make Machine DIY 2130
Shandong Lintianzhiyuan CNC Equipment Co., Ltd.- Condition：New
- Certification：ISO, CE
- CNC or Not：CNC
- Voltage：220V
- Working Table：Aluminum T-Slot Atbel with PVC;Water Tank
- Control System：Mach3 USB Control System
Base Info
- Model NO.：LT-1325
- Spindle Power：3kw
- Spindle：Water Cooled Spindle
- Guide Rail：Hiwin Linear Square Guide Rail
- Working Area：1300*2500mm
- Transmission：X, Y by Gear Rack, Z by Ball Screw
- Spindle Rotating Speed：0-24000rpm
- Inverter：Fuling Inverter
- Software：Artcam
- Motor：Stepper Motor
- Driver：Leadshine Driver
- Transport Package：3300*1950*1950mm
- Specification：12.548
- Trademark：LINTCNC
- Origin：China
- HS Code：8465990000
- Production Capacity：500sets,Year
Description
Main Features
1. Z axis feeding height 200mm
2. Square tube welded steel frame structure-8mm thickness
3. Aluminum T-slot table or Vacuum table +5.5kw Vacuum pump
4. X axis rack and pinion drive, Y axis 2 way rack and pinion drive and Z axis 2510 Ball screw
5. X, Y, Z axis Taiwan square rails PMI
6. 450B stepper motor and MA860H Leadshine driver or servo motor and driver
7. 3.0KW water cooling spindle and 3.7kw Fuling inverter, other spindles are optional
8. Nc-Studio-5.4.49 control system, DSP or Mach 3 is optional

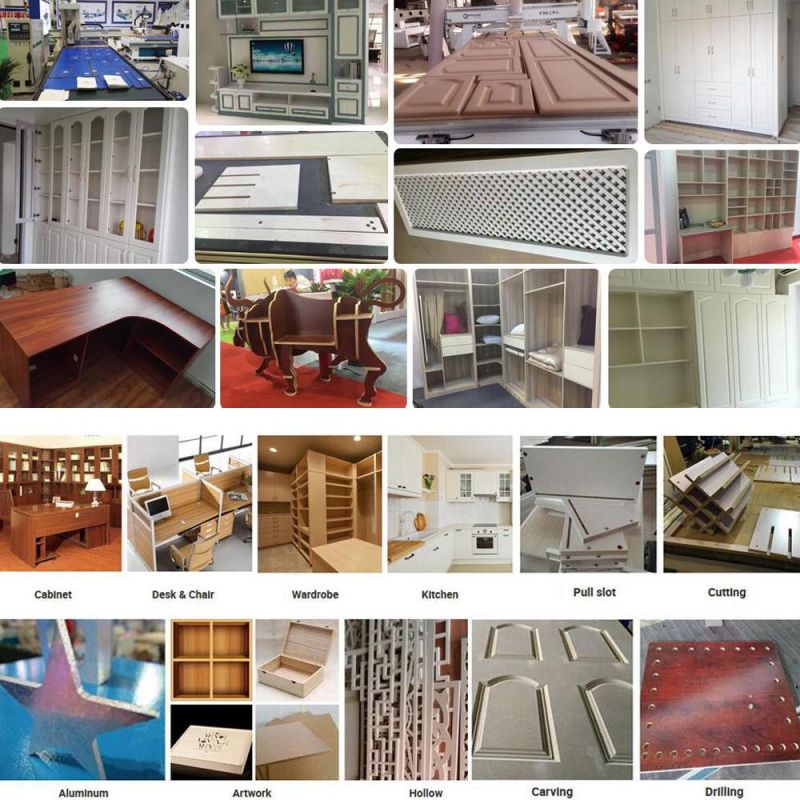

Application
Wood Processing: processing of various furniture such as door, window, cabinet, screen and so on
Advertisement: engraving and cutting various labels and number plate.
Art crafts: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials
wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials.

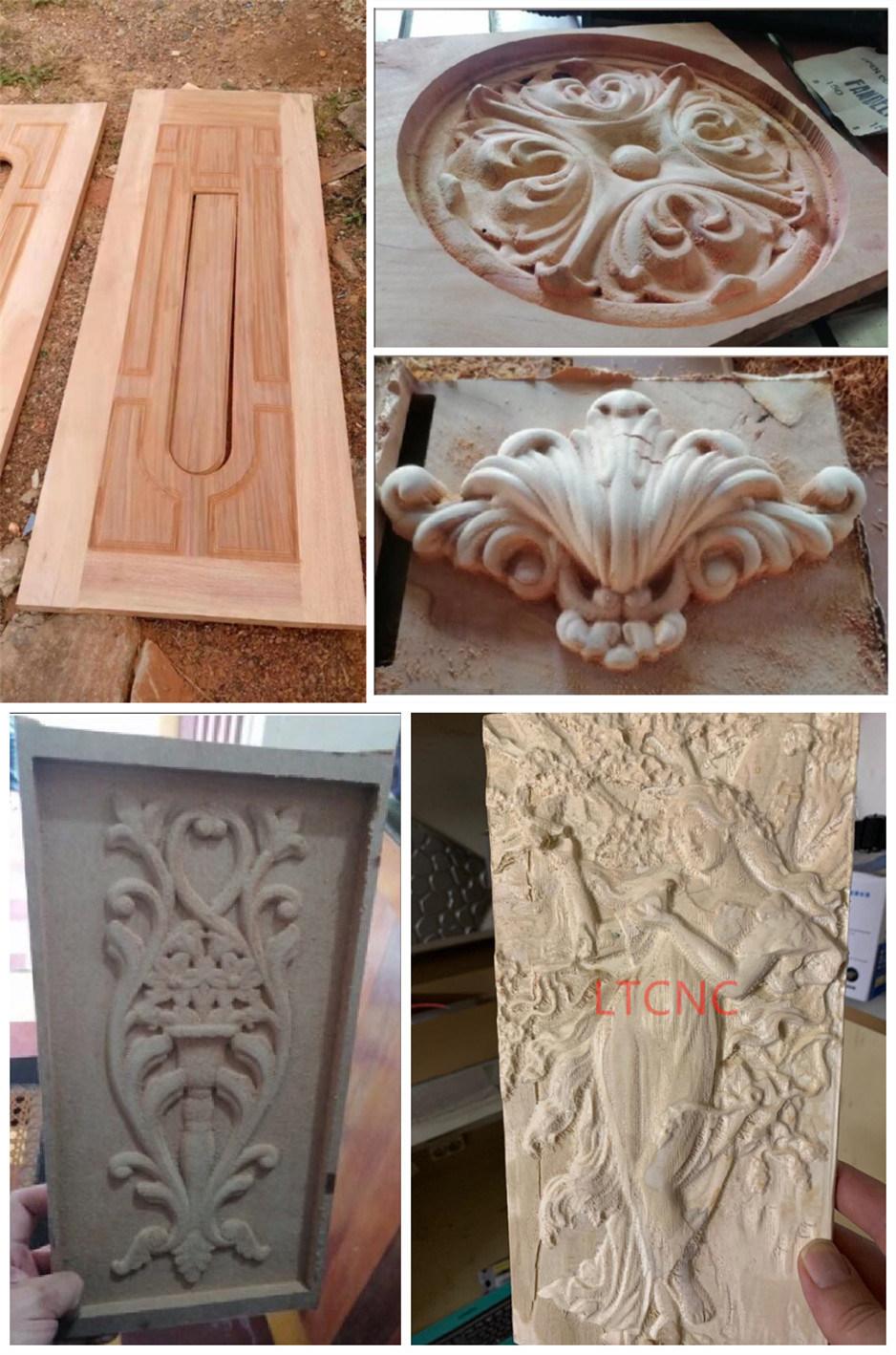

Samples
