4 Axis CNC Wood Router, 3D CNC Wood Engraving Machine
Jinan Guanjiahong CNC Machinery Co., Ltd.- Condition:New
- Certification:CE
- Turning Diameter:250mm
- Running Mode:Yaskawa Servo
- Quantity of Spindle:4
- Ball Screw:PMI Taiwan
Base Info
- Model NO.:3013-4
- Transport Package:Plywood Case
- Specification:CE
- Trademark:GJH
- Origin:Shandong China
- HS Code:84609090
- Production Capacity:50 Sets Per Month
Description
Basic Info.
Model NO. 3013-4 Transport Package Plywood Case Specification CE Trademark GJH Origin Shandong China HS Code 84609090 Production Capacity 50 Sets Per MonthProduct Description
4 Axis CNC wood router machineWood 3D CNC engraving machine 4 aixs rotary for woodworking
from professional cnc router manufacturer in China.

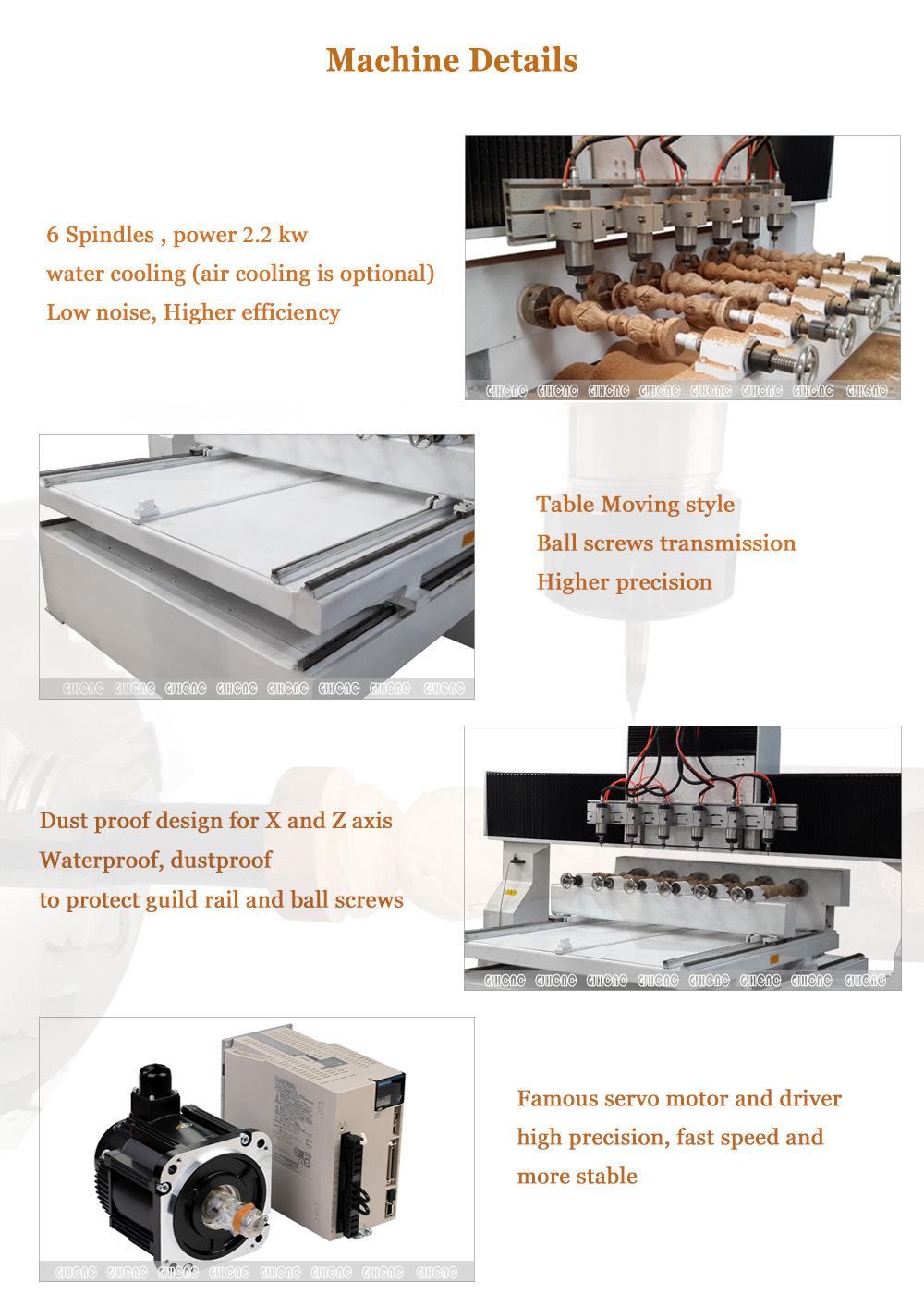

1. Multi spindle 4 axis CNC Router is specially designed for 3d processing
2. Table moving, make machine has high precision
3. Advanced 4 axis control system: Taiwan SYNTEC or NC STUDIO
4. Functions of power-off recovery, continuation on break point, time anticipation.

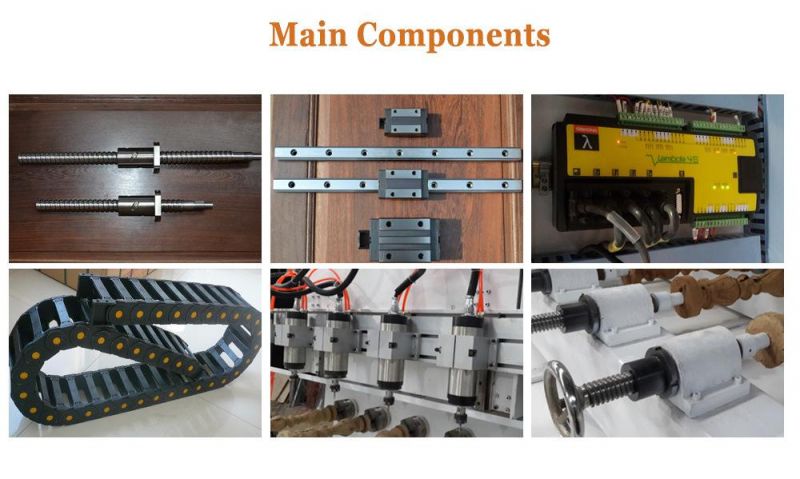

5. Excellent components: HIWIN guild rail and ball screws, low noise spindle
6. Whole welding steel frame and 10mm gantry
7. Famous power servo motor and driver
8. Spinner consists of holding chuck and dead center
4 Axis woodworking CNC router machine, customization is available.
Performance | |||
1 | Working area | X axis | 300mm |
Y axis | 1400mm | ||
Z axis | 300mm | ||
2 | Rotary diameter | 300mm | |
3 | Accuracy | Working accuracy | 0.02mm |
Repositioning accuracy | 0.02mm | ||
4 | Transmission | XYZ axis | Ball Screws |
5 | Speed | Max travel speed | 15000mm/min |
Max working speed | 10000mm/min | ||
6 | Spindle | Spindle power | 2.2KW |
Spindle speed | 0_24000r/min | ||
7 | Running mode | Servo | |
8 | Working voltage | AC220-380V/50HZ | |
9 | Machine size | 2200*2200*1900 | |
10 | Operating system | NC STUDIO | |
11 | Auto lubrication | YES | |
12 | Dust proof | X Z axis |
Technical support:
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.
After-sale & guarantee service:
1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. You will be able to get free training advice towards our machine in our factory.
4. Free suggestion and consulting, lifetime technical support and service
4 Axis CNC Wood Router
3D Wood CNC Engraving Machine
When you have speicial requirement , please contact with us.
Customization is available.
