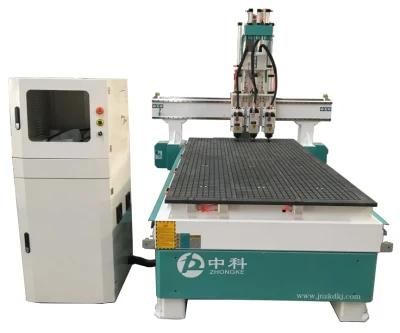

Hot Sale CNC Router with 3kw*3 380V/220V Air Cooled Spindle

Jinan Zhongke CNC Equipment Co., Ltd.
  • Type：Engraving Router
  • Spindle Layout：Vertical
  • Spindle Number：Three
  • Feed Mode：Manual
  • Controlling Mode：CNC
  • Certification：CE, ISO

Base Info

  • Model NO.：1325
  • Customized：Customized
  • Condition：New
  • Color：Customized
  • Model：1325
  • Spindle：Air Cooling Spindle
  • Guide Rails：Hiwin Liner Square Guide Rails
  • Ball Screw：Tbi Ball Screw
  • Inverter：Sunfar Brand Inverter
  • Control System：Ncstudio Control System
  • Motor：Easy Servo Motor
  • Driving Way：Easy Servo Motor
  • Transmission in X,Y：Helical Rack
  • Table Surface：Vacuum Absorption Table
  • Transport Package：Exporting Plywood Package
  • Specification：1300*2500*200mm
  • Trademark：zhongke
  • Origin：Jinan Shandong China
  • HS Code：84659900
  • Production Capacity：100set ,Month

Description

ModelZK1325X,Y,Z axis working area1300*2500*200mmWhole structureWelded Steel gantry structureTable surfaceVacuum absorption tableX,Y,Z structureTaiwan PMI/HIWIN Square linear guide railX,Y structureRack and pinion transmission, high speed and more stable;
Y -double motor driveZ structureImported ball screw, high precisionMax. idling speed50m/minMax. working speed25m/minRepositioning Accuracy±0.05mmX Y Z working Accuracy< 0.02mmSpindleAir cooling spindleSpindle rotating speed6000-18000rpm/minDiameter of toolsΦ3.175 -Φ20Collect sizeER 25Operation languageG code (plt, mmg, uoo, bmp)Driving systemEasy servo motor Operating systemNcstudio control system(can be optional NK105)Working voltage220V/380V/3PHSoftwareUcancamV8 / Type3 / Artcam software (option)
After sale service:
1 we offer 1 year warranty
2 we offer 24 hourses technical support online
3 Druring the warranty, if there is part broken, we will offer you the same for free.

Our factory photo
